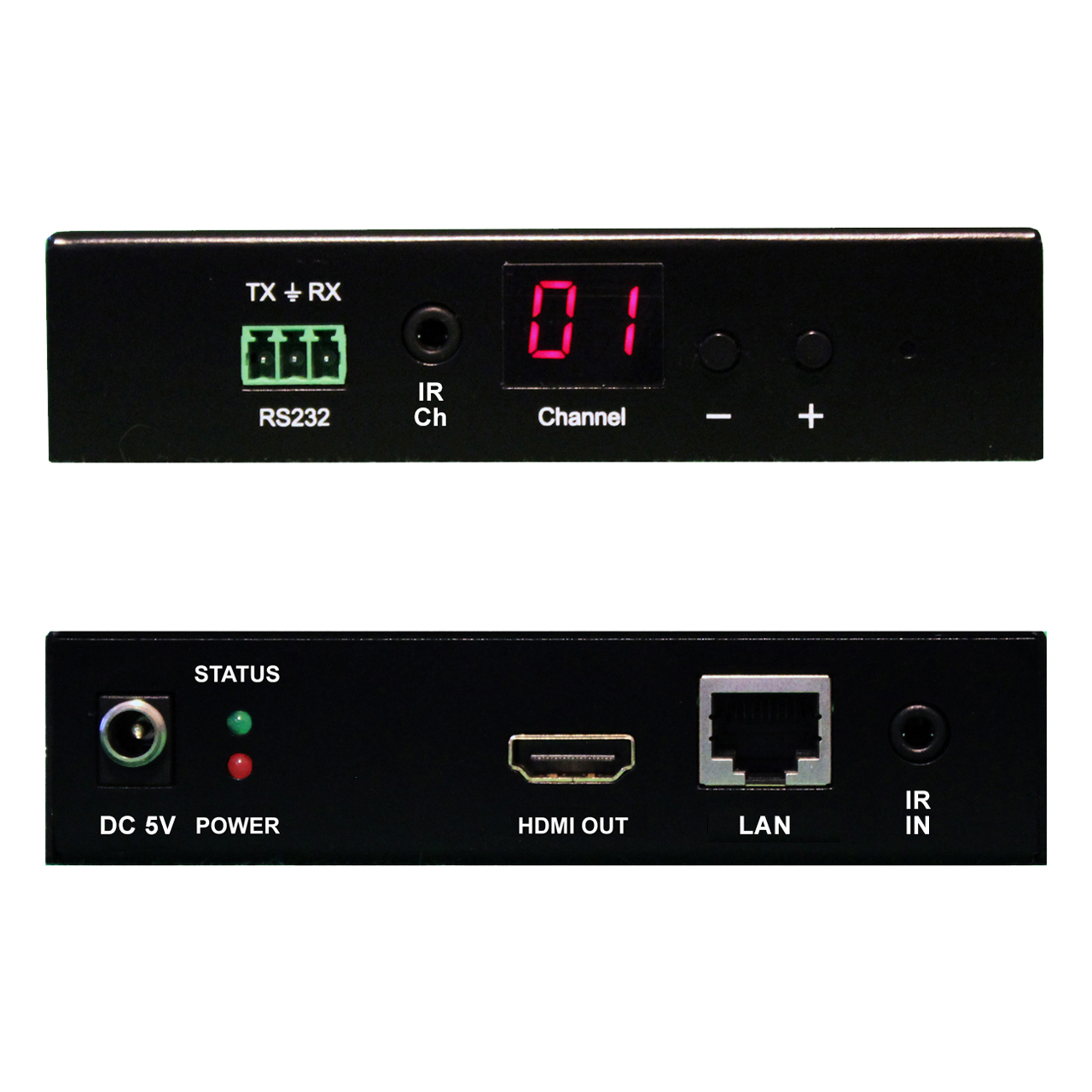

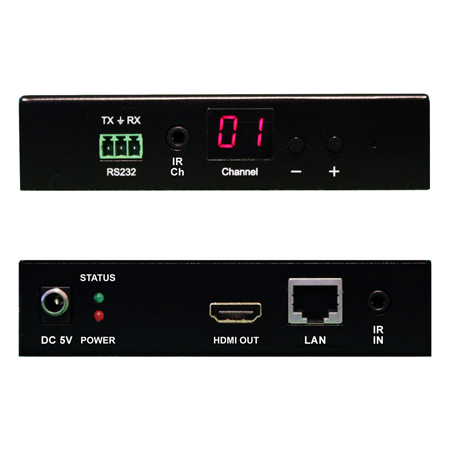

PureLink VIP-100-II-D PureStream 1080p HDMI over IP Decoder with PoE

VIP-100-II-D - Overview

• Features:

  • Support resolutions up to Full HD/1080p
  • LED channel display
  • Front panel channel plus/minus buttons
  • IR remote control for familiar channel selection
  • PoE (Power over Ethernet) - power encoders/decoders from 802.3af PoE network switches
  • RS232 & IR extension/distribution
  • HDMI Loop out on Transmitter
  • HDCP compliant

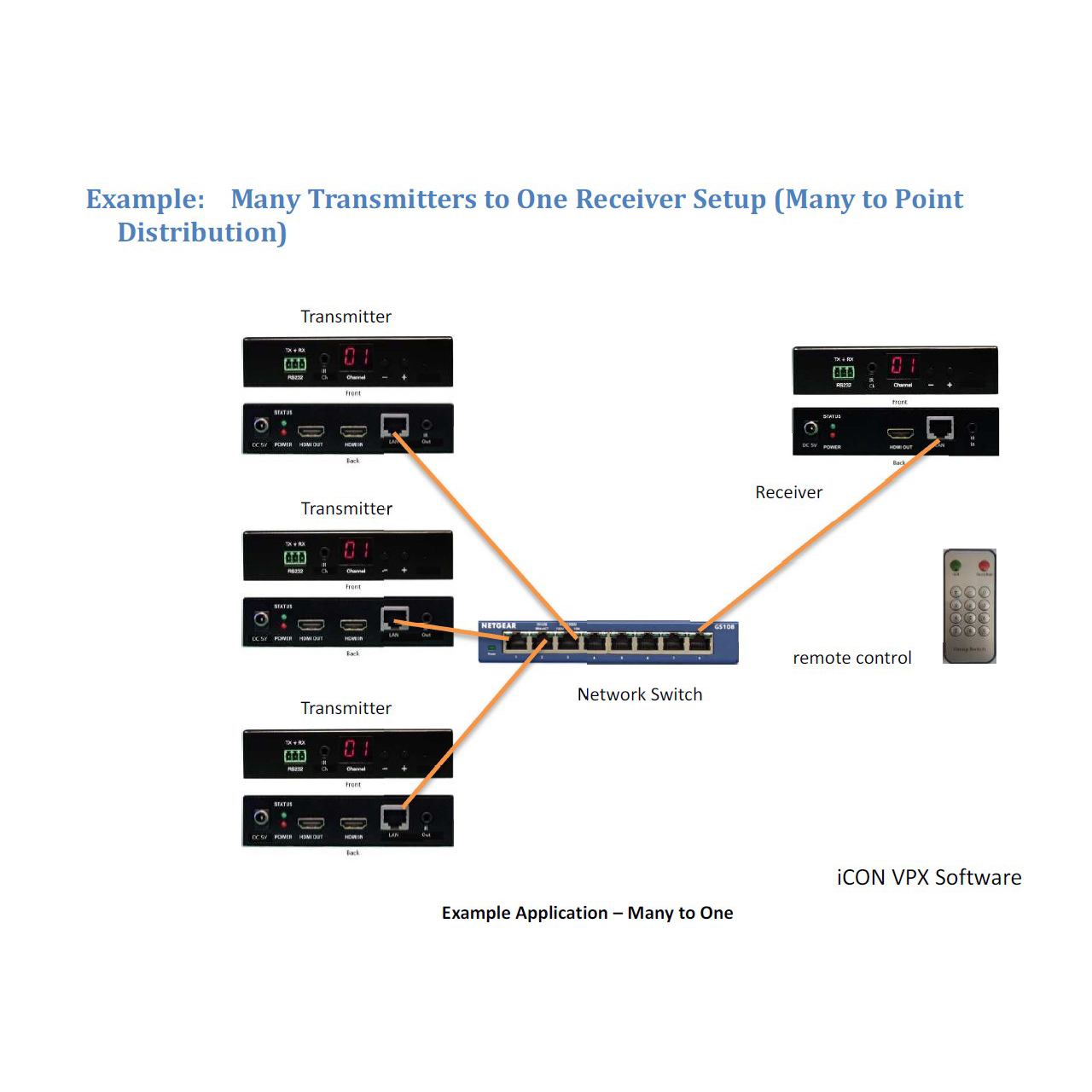

  • Point-to-point or matrix system:
    - up to 64 x 190 matrix (hardware) on Class C networks
    - up to 64x 65K on Class B networks


• Specifications:

  • Performance
  • Supported Distance: 390ft (120m)
  • Supported Resolutions: Up to 1080p/1920 x 1080
  • Compliance: HDCP 1.3
  • RS-232: 1x Phoenix 3-Pin (RS232); 2400-115K baud, user-settable
  • IR Extension: 1x 1/8" Female (IR)
  • Power Supply: 120 - 240 VAC to 5 VDC, 1A
  • Power Injection or CATx Extenders: 802.3af
  • Operating Temperature: 32°F - 117°F (0°C - 47°C)
  • Storage Temperature: -40°F - 158°F (-40°C - 70°C)
  • Relative Humidity: 0% - 90% non-condensing
  • MTBF: 50,000 hours

    Enclosure
  • Enclosure Type: All metal, black powder coat finish
  • Product Dimensions: 1.1" x 4.7" x 3.1" (29mm x 120mm x 79mm)
  • Product Weight: 0.61lbs (280g)


• Item Includes:

  • 1x Purelink VIP-100-II-D PureStream 1080p HDMI over IP Decoder with PoE
  • 1x Power Adapter
  • 1x Infrared Receiver
  • 1x Set of Mounting Brackets
  • 1x Remote Control


• Warranty:

  • 3 Year Limited Warranty
