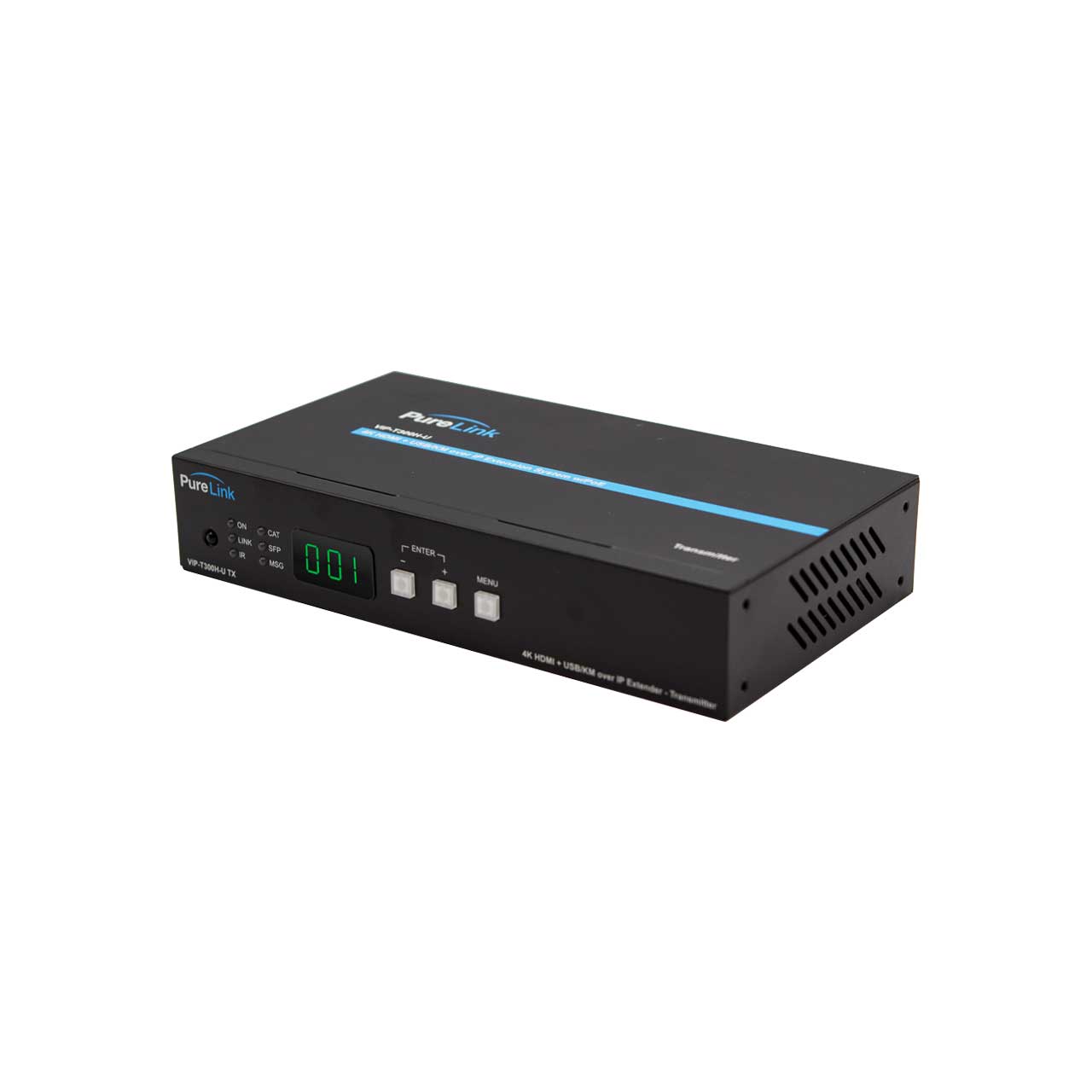

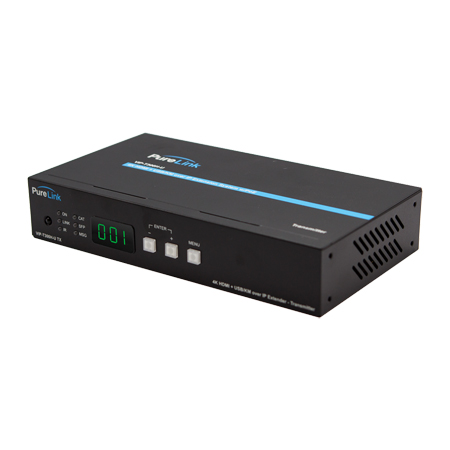

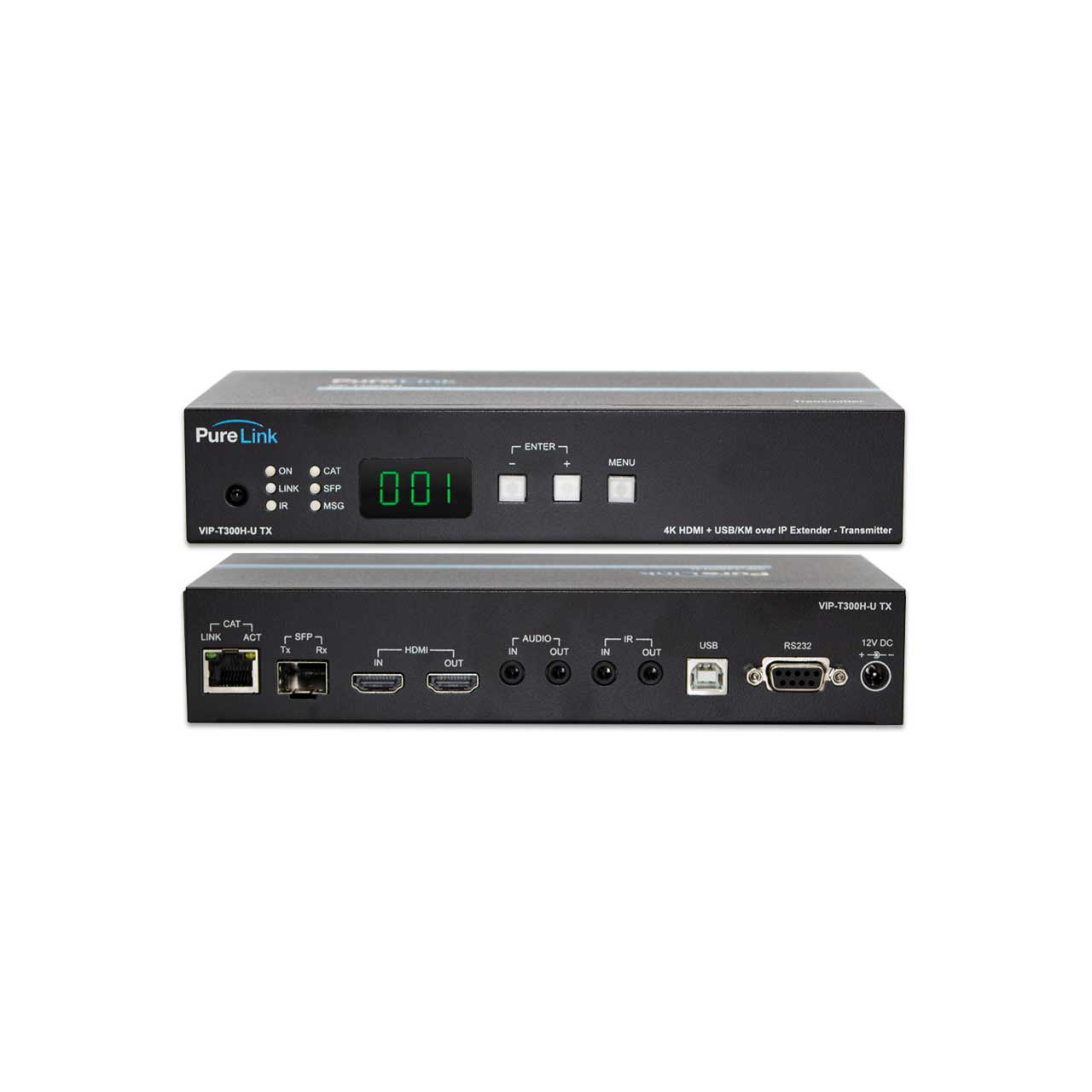

PureLink VIP-T300H-U 4K HDMI & USB/KM over IP Transmitter - Ultra-low Latency - TAA Compliant

VIP-T300H-U TX - Overview

• Features:

  • Ultra-low latency (<17mS)
  • 800Mbps max data rate; 250Mbps nominal
  • Fiber or CAT transport - 1G port
  • Extend signals up to to 300 m. using network switch
  • HDCP 2.2 compliant
  • Comprehensive diagnostics via API - device discovery, signal data, and EDID
  • Supports instant switching
  • Multiple control interfaces - built-in web interface, front panel buttons, IR remote control, VPX Management Software, Crestron module, and 3rd party control development via API
  • Built-in video wall processing (up to 8x8)
  • Built-in scaler on receiver (decoder)
  • Image rotation 0, 90, 180 degrees
  • IR and RS232 extension
  • TCP/IP to RS232 conversion
  • USB 2.0 for keyboard/mouse, camera, or hard drive
  • HDMI loop-out on TX (encoder)
  • PoE 802.3af (under 5W)
  • Supports Dolby, DTS, and LPCM audio
  • Matrix switching systems up to 999 sources and 65K displays
  • TAA compliant


• Specifications:

  • Hardware
  • Input Signal Type(s): (1) HDMI Type-A, (1) 3.5mm Stereo Phone Jack, (1) USB 2.0 Type B RS-232 (DB9 Female), Ethernet (RJ45), Fiber SFP (1G)
  • Output Signal Type(s): (1) HDMI Type-A (loop-out), 3.5mm Stereo Phone Jack

    Performance
  • Supported Distance: 150M (up to 300M using Network Switch)
  • Supported Resolutions: Up to 4K UHD 4:4:4 @ 30HZ
  • Compliance: HDCP 2.2
  • Supported Audio Formats: Up to 7.1 LPCM 192Khz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X
  • Power Consumption: 600mA (Typical)
  • Power Supply: DC 12V 1500mA
  • PoE (Power Over Ethernet): 802.3af

    Enclosure
  • Product Dimensions: 8.2" x 4.8" x 1.5"
  • Shipping Weight: 1.5 lbs.


• Item Includes:

  • 1x VIP-T300H-U TX Transmitter/Encoder
  • 1x 12 VDC Power Adapter
  • 1x Set of mounting brackets
  • 1x IR receiver
  • 1x USB cable


• Warranty:

  • Limited Warranty (3-Years)
