ATX Networks PD1000 High Quality Dense Encoder Modulation System

ITEM #: PM-PD1000 MFG #: PD1000

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

PD1000 - Overview

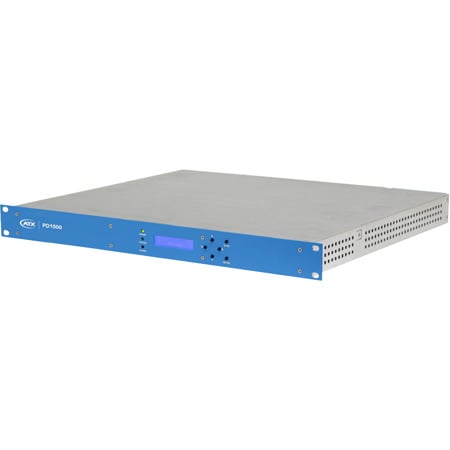

The professional-grade PD1000 HD encoder series allows the user to encode both HD and SD signals in MPEG2 or H.264 formats all in a single rack space. The HD encoder supports real time encoding and while giving the flexibility of two, four, six or eight encoder inputs in HDMI (in the clear), component and composite (closed captioning). The HD encoder offers simultaneous QAM and IP output.

The PD1000 HD encoder series also has the ability for remotely controlled access and monitoring as well as virtual channel mapping. In addition, Dolby audio HD encoding is supported. Ideal uses for the HD encoder include commercial residential properties, academic and medical facilities, local area network applications for both CATV and broadcast as well as the hospitality industries.

PLEASE NOTE: The PD1000 is a Universal Digital Platform Chassis ONLY (modules are not included) and requires an EM-2HD dual encoder input module as well as an OM4 output module (See required Items). The PD1000 holds up to 4 EM-2HD encoders.

  • Features:

    • Platform based encoder with up to four field hardware upgradeable dual channel encoder modules
    • Software upgradeable for future proof feature upgrades
    • Supports 480i to 1080p real time encoding and up to 8 HD video channels in MPEG-2 or H.264 formats in 1RU
    • MPEG Audio Encoding plus optional Dolby Digital Stereo Creator
    • Output resolution same as input resolution
    • Inputs per dual encoder module - component, HDMI (clear) and composite/closed caption
    • Integrated support for Emergency Alert System (EAS)
    • Automatic detection of input type and format
    • Outputs four consecutive QAM channels
    • IP output - Unicast/Multicast, UDP/IP, SPTS
    • Simultaneous QAM/IP Output
    • PSIP tables allow user to configure virtual channel map for each channel
    • High output with 60 db Max. pre-combined
    • Secure management and configuration via easy to use web browser
    • External DC backup power supply
  • Specifications:

    • Audio/Video Inputs Per Encoder Module
    • HDMI Dual Type A v1.4 (Clear)
    • Component Dual YPrPb, (RCA)
    • Audio Dual Stereo (RCA)
    • Composite/Closed Caption Dual CVBS (RCA)

      Video Formats
    • In/Out Line Rates 1080p/1080i/720p/480p/576i/480i
    • Frame Rates 25/29.97/30/50/59.94/60

      Video / Audio Compression
    • Video Codecs HD and SD MPEG-2/H.264
    • Audio Codecs Layer II, Dolbyr Digital Stereo Creator

      QAM/RF Output
    • Frequency Range 50 to 1002 MHz
    • RF Channel Count 4
    • Modulation Modes QAM 64/256
    • QAM Type Annex A/B
    • MER > 40 dB
    • RF Level (pre-combined) >60 dBmV
    • RF Level Adjustment Range (combined) 38 to 53 dBmV
    • Spurious > 60 dBc
    • I/Q Amplitude Imbalance < 1%
    • I/Q Phase Error < 1°
    • Frequency Accuracy ± 100 Hertz
    • Phase Noise 100 dBc @ 10Khz offset
    • Amplitude Flatness ± 0.25 dB (over 24 MHz bandwidth)
    • Output Connector F-Female, 75Ω
    • Front Panel Test Port F-Female, 75Ω

      IP Output(optional)
    • Connection RJ45, GbE, Full Duplex, Auto-Neg
    • Addressing Unicast, Multicast
    • Transport Protocol UDP/IP
    • Transport Format SPTS

    • Connection RJ-45, GbE, Full Duplex, Auto-Neg
    • Protocols HTTP
    • User Interface Web Browser
    • Browser Support IE9 or later, Firefox and Chrome

      EAS Inputs
    • Video CVBS (RCA)
    • Audio Stereo (RCA)
    • Trigger Terminals

      Internal AC Power Supply
    • Line Voltage 93-254 VAC, 47-63 Hz
    • Power Consumption up to 130 Watts

      External DC Power Backup
    • Voltage +12 VDC ±5% VAC
    • Current < 10 Amps
    • Operating Temperature 0- 50° C

    • Dolby Digital Stereo Creator
    • Dimensions 1RU, 19" (W)

PD1000 - Required Accessories

PD1000 - Recommended Accessories
