Pure Resonance Audio PRA-RZMA120BT 120 Watt Rack Mount 4 Zone Commercial Mixer Amplifier with Bluetooth


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    RZMA120BT - Overview

    The Pure Resonance Audio RZMA120BT is a 4 zone commercial mixer amplifier equipped with built-in MP3, FM tuner, Bluetooth and recording capability. This multi-zone mixer amplifier has 4 x 120-watt output capability at 4 Ohm, 70 and 100 Volts. Advanced matrix technology allows four zone selectable inputs to be assigned to a zone, or across multiple zones with the push of a button. A monitor channel provides a 1 watt 8-ohm output for a control room monitor speaker. Remote microphones can be daisy-chained via Cat5 for zone paging, and a convenient IR remote is available for volume and source control.

    This advanced multi-input audio mixer amplifier features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones. Ideal for multi-zone paging, music distribution, and room-combining applications, each input is also supplied with separate bass, treble and volume control for precise sound in each individual zone.

    The RZMA120BT is equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You simply push a button to route your inputs to the appropriate outputs, no programming or tuning required. You can also mix 70v and 8 ohms between zones with high impedance and low impedance supported with every zone.

    The RZMA120BT makes it easy to record your own message or content and play it back as needed. Using the recordable media player, simply plug a microphone into the amplifier and record specific messages that you need to play back regularly. You can then play back those recorded messages through your system by simply hitting a button on your remote. The ease of this system saves both time and energy. The RZMA120BT also allows you to conveniently play your own music through the mixer-amplifier via Bluetooth connection.

    • Features:

      • 4 channel amplifier in a 3U 19" rack mount design
      • All source inputs can be matrix assigned to different 4 zones output simultaneously
      • The 5 channel inputs & MP3 input are designed with separate bass, treble and volume control
      • 3 microphone/line inputs with phantom power and gain control
      • 2 AUX inputs by RAC with gain control
      • MP3 player with SD and USB inputs has a separate power supplied module
      • Built-in tuner audio source
      • 1 4 zone remote microphone input via RJ45 port
      • 4 channel line inputs and speaker outputs
      • Versatile speaker outputs for each four channels: 70V, 100V and 4 Ω
      • RS232 serial control port for third-party system communication
      • Priority input to override other inputs (equal to EMC input)
      • Input priority level from high to low:
      • Built-in monitor with volume control
      • Extensive protection of thermal, short-circuit, clip and overload with indicators
      • Ground lift switch
    • Specifications:

      • Input Sensitivity and Impedance CH1, CH2, CH3
      • MIC: ± 2.5mV/600 Ω
      • PHANTOM: ± 2.5mV
      • LINE: ~175mV/10K Ω balance input
      • CH5~6: 350mV/10K Ω balance input
      • TEL: 350mV/10K Ω
      • REMOTE MIC: ± 387mV/10K Ω

      • Rated Power Output: 4 Zone Channels x 120W
      • Speaker Outputs: 4 Ω, 70V/100V
      • Monitor Output: 1W/8 Ω
      • Tone Bass: ±10dB at 100Hz
      • Treble: ±10dB at 100Hz
      • S/N Ratio: >65dB
      • LINE 1-4 Output Level: 1V/600 Ω (balance output)
      • Frequency: 80-16KHz
      • MP3 Support: MP3 format, max capacity of 32GB
      • SD File System: Only FAT16, FAT32, the biggest one partition, does not support folder to store
      • Harmonic Distortion: <1%
      • Power Consumption: 750W
      • Supply Voltage: ~120V 60Hz
      • Relative Humidity: <95% (No condensation)
      • Dimensions (H x W x D): 5.20" (132 mm) x 19" (483 mm) x 17.32" (440 mm)
      • Weight: 41.2 lbs (18.69 kg)
    • Item Includes:

      • (1) RZMA120BT 4 Zone Bluetooth Mixer Amplifier

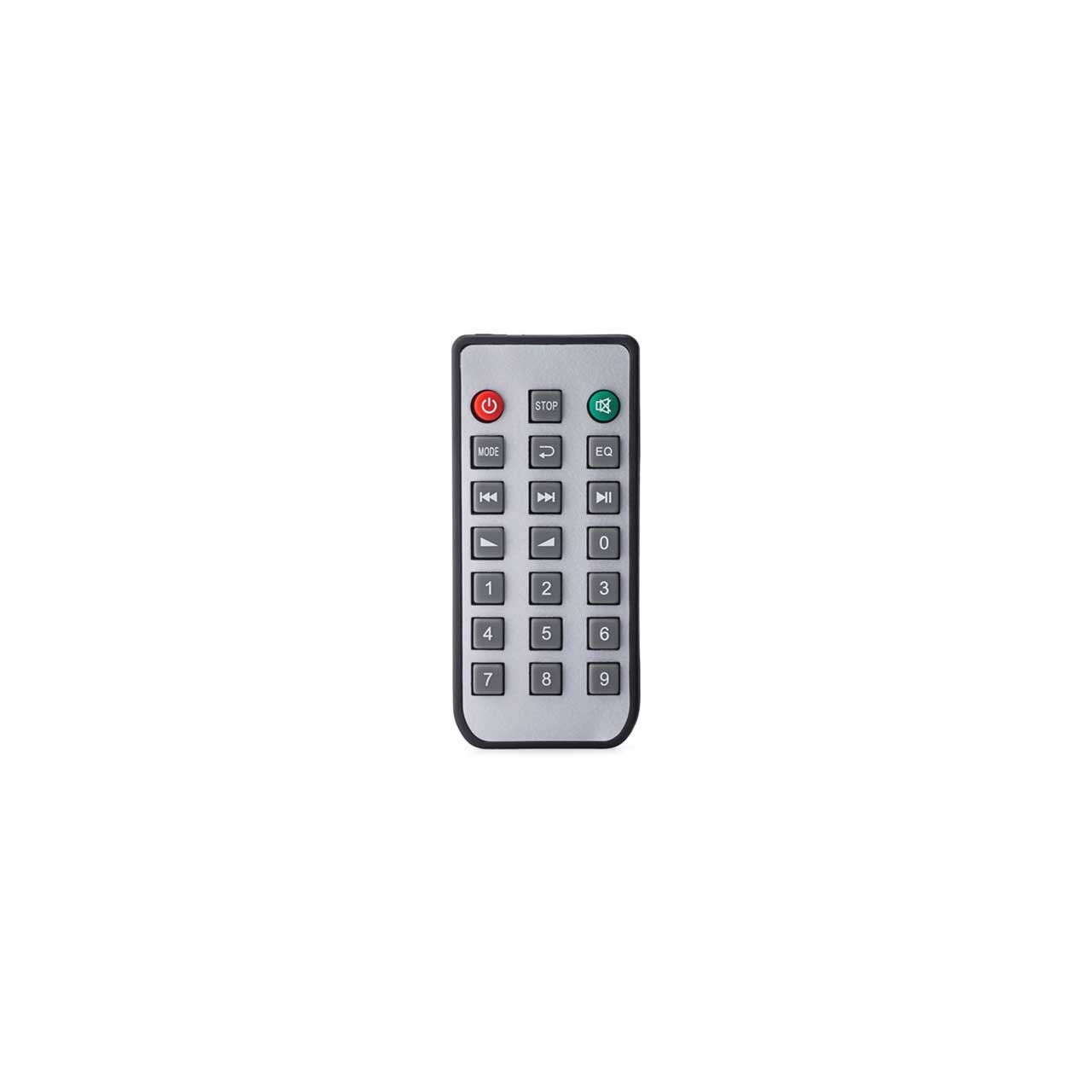

      • (1) IR Remote Control
      • (1) Power Cord
