PTZOptics PT20X-SDI-GY-G2 2x PTZ Camera Kit with JOY-G4 PTZ Joystick Controller - 20x Zoom/SDI-HDMI/CVBS/IP Streaming

PTZ-PT20XSDI-KIT - Overview

• Features:

  • 20X-SDI-GY-G2 1080p PTZ Camera
  • 60.7 degree wide-angle lens.
  • High performance in low light scenarios with Wide Dynamic Range.
  • Full 1920x1080p HD Resolutions up to 60 frames per second.
  • 2D and 3D noise reduction with our latest "low noise CMOS sensor".
  • RS232 & RS485 (Serial), and IP (LAN/WAN) control
  • H.264, H.265, & MJPEG streaming over RJ-45 LAN port
  • HDMI, 3G-SDI, & IP streaming (all 3 simultaneously)
  • PoE (Power over Ethernet) or 12VDC
  • RTMP & RTSP IP streaming

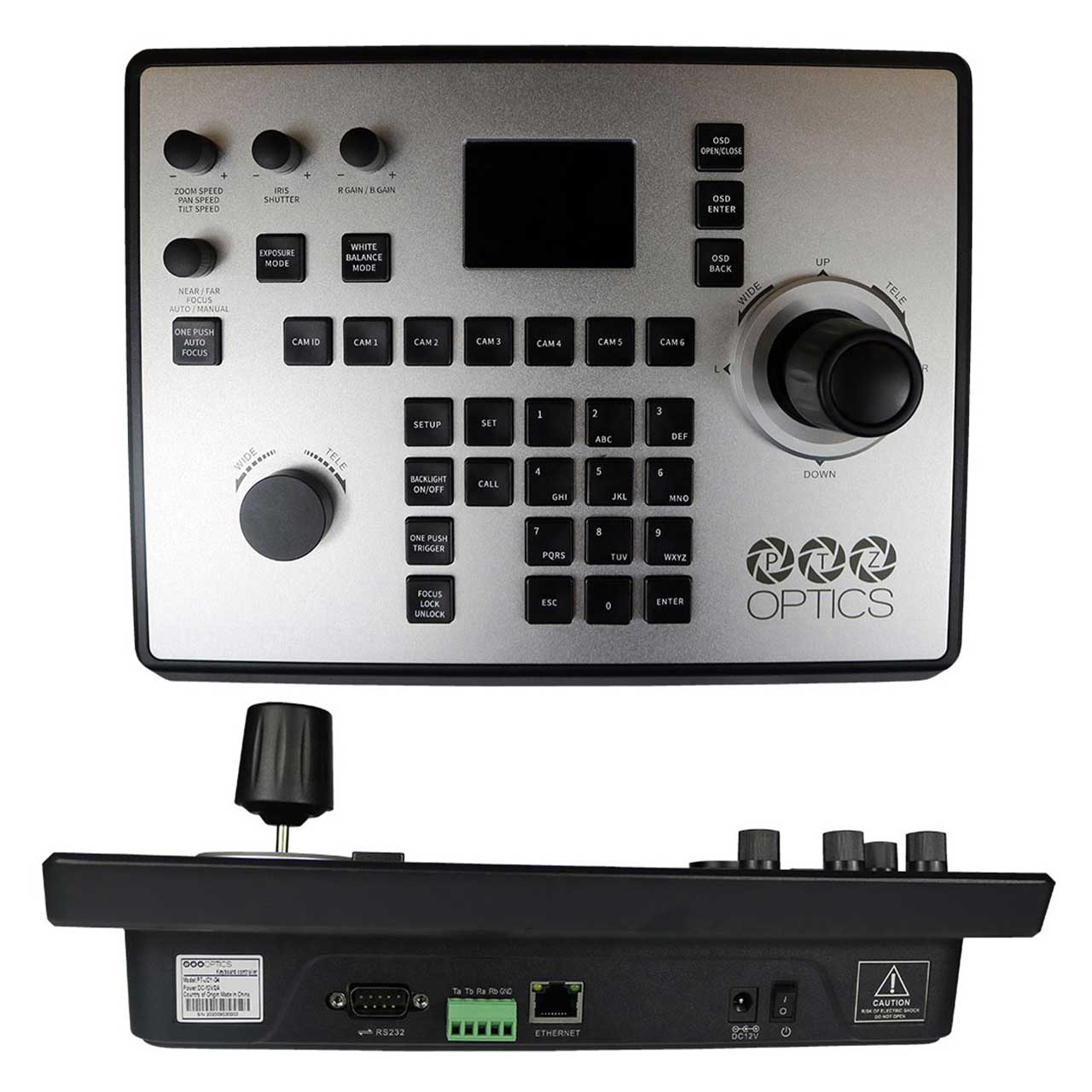

    PT-JOY-G4 IP Joystick Controller
  • Durable metal housing
  • VISCA over IP & Serial control
  • PTZOptics Camera On Screen Display control
  • Full Pan / Tilt / Zoom camera control
  • P/T/Z Speed adjustment on the fly
  • Direct exposure & white balance control
  • 255 total cameras via network
  • 255 camera presets, 9 Quick presets
  • Fine tune zoom control dial
  • Fine tune focus control knob
  • PTZOptics Focus lock & unlock
  • Large LCD screen with controller status
  • Import / Export settings via network


• Specifications:

  • 20X-SDI-GY-G2 1080p PTZ Camera
    Camera & Lens
  • Video CMOS Sensor: 1/3" CMOS, 2.12 Mega Pixels
  • Frame Rate: 1080p/30, 1080p/25, 720p/60, 720p/50, NTCS, PAL
  • Lens: 20x, F4.42mm-88.5mm, F1.8-F2.8
  • Lens Zoom: 20x, 16x Digital Zoom
  • Field of View: 60.7°
  • Min Lux: 0.5 Lux at F1.8, AGC ON
  • Shutter Speed: 1/30s - 1/10000s
  • SNR: ±55dB
  • Vertical Flip & Mirror: Supported
  • Horizontal Angle of View: 3.36° (tele) to 60.7° (wide)
  • Vertical Angle of View: 1.89° (tele) to 34.1°(wide)
  • Working Environment: Indoor

    Electrical Index
  • Power Supply: 12W 24W(Max)
  • Input Voltage: 12V DC (10.8 - 13.0V DC)

    Pan & Tilt Movement
  • Pan Movement: ±170°
  • Tilt Rotation: Up: 90°, Down: 30°
  • Presets: 64 Presets (245 Presets via RS-232)

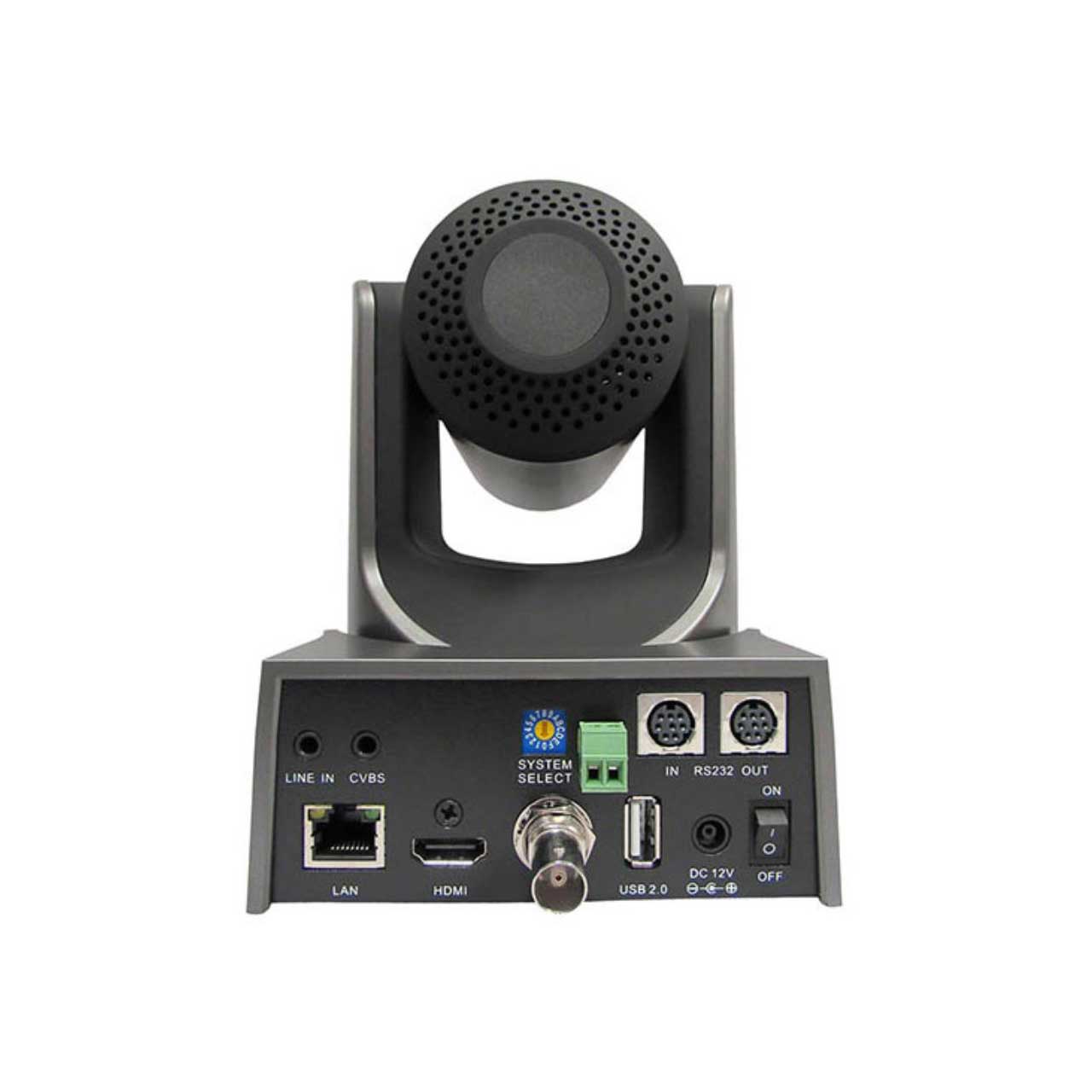

    Rear Board Connectors
  • Video Output Interface: HDMI, HD-SDI, IP Streaming, CVBS
  • Network Interface: RJ45
  • Audio Interface: Line In, 3.5mm (IP Stream Only)
  • Communication Interface: RS-232, RS485
  • Baud Rate: 2400/4800/9600 bits
  • Power Supply Interface: JEITA Type Power Adapter (DC IN 12V)
  • USB Interface: USB 2.0 (for firmware updates only)


  • JOY-G4 IP Joystick Controller
    Technical
  • Connections: RS-232, RS-485, RS-422, RJ-45
  • Max Cameras: 255 cameras via network, 7 cameras via serial VISCA
  • Recommended Max Distance: RS-232 / RS-422: 50 ft (15m), RS-485: 3,937 ft (1200m), Ethernet: 328 ft (100m)
  • Baud Rate: 1200 ~ 19200 bps

    Operation
  • Power: 6W (12VDC) / PoE (802.3af)
  • Working Temp: 14° F ~ 122° F
  • Working Humidity: 10% ~ 90% (non-condensation)
  • Weight: 4.45 lbs (2.02 kg)
  • Dimensions (in.): 11.938 W x 9.25 D x 4.25 H
  • Dimensions (mm.): 303.23 W x 234.95 D x 107.95 H

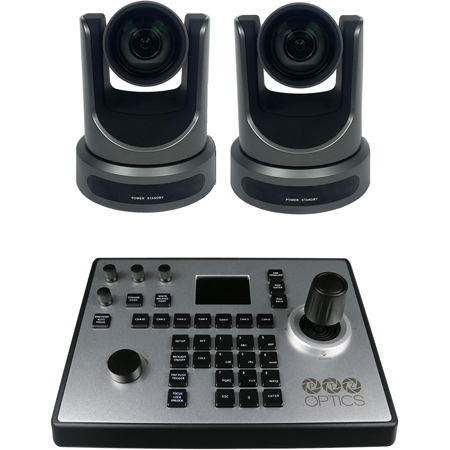

• Item Includes:

  • 2x PT20X-SDI-GY-G2
  • 1x JOY-G4 PTZ Joystick Controller
