PT20X-SDI-GY-G2 - Overview

The PTZOptics PT20X-SDI-GY-G2 is a 1080p camera with 20X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

  • Features:

    • H.264, H.265, & MJPEG Streaming over RJ-45 LAN port

  • Specifications:

    • Camera & Lens
    • Video CMOS Sensor: 1/3" CMOS, 2.12 Mega Pixels
    • Frame Rate: 1080p/30, 1080p/25, 720p/60, 720p/50, NTCS, PAL
    • Lens: 20x, F4.42mm-88.5mm, F1.8-F2.8
    • Lens Zoom: 20x, 16x Digital Zoom
    • Field of View: 60.7°
    • Min Lux: 0.5 Lux at F1.8, AGC ON
    • Shutter Speed: 1/30s - 1/10000s
    • SNR: ±55dB
    • Vertical Flip & Mirror: Supported
    • Horizontal Angle of View: 3.36° (tele) to 60.7° (wide)
    • Vertical Angle of View: 1.89° (tele) to 34.1°(wide)
    • Working Environment: Indoor

      Electrical Index
    • Power Supply: 12W 24W(Max)
    • Input Voltage: 12V DC (10.8 - 13.0V DC)

      Pan & Tilt Movement
    • Pan Movement: ±170°
    • Tilt Rotation: Up: 90°, Down: 30°
    • Presets: 64 Presets (245 Presets via RS-232)

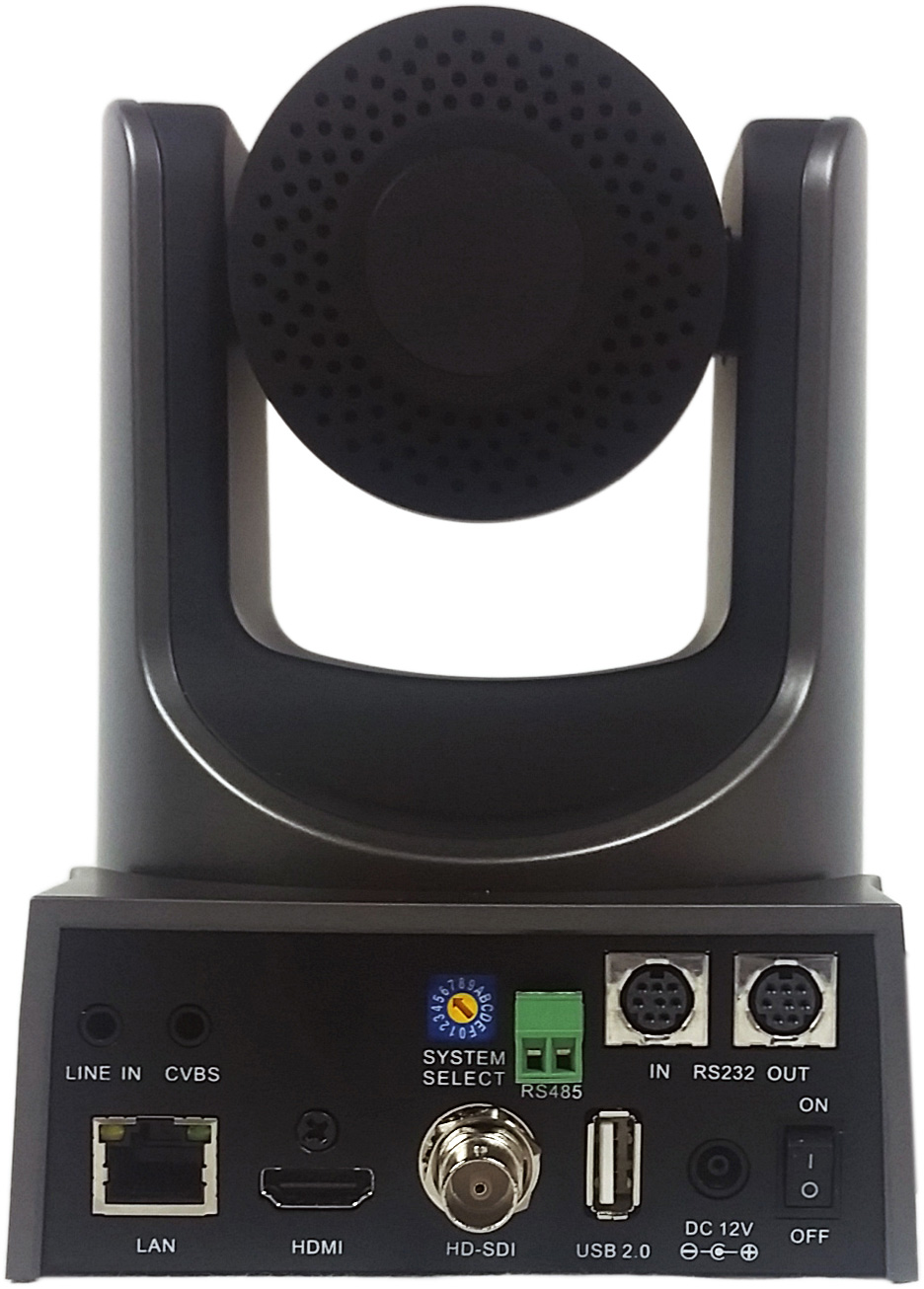

      Rear Board Connectors
    • Video Output Interface: HDMI, HD-SDI, IP Streaming, CVBS
    • Network Interface: RJ45
    • Audio Interface: Line In, 3.5mm (IP Stream Only)
    • Communication Interface: RS-232, RS485
    • Baud Rate: 2400/4800/9600 bits
    • Power Supply Interface: JEITA Type Power Adapter (DC IN 12V)
    • USB Interface: USB 2.0 (for firmware updates only)

  • Item Includes:

    • 20X Zoom HD-SDI Camera
    • Power Adapter + Cord
    • IR Remote Control
    • RS-232C Cable
    • User Manual

  • Warranty:

    • 5 Years
