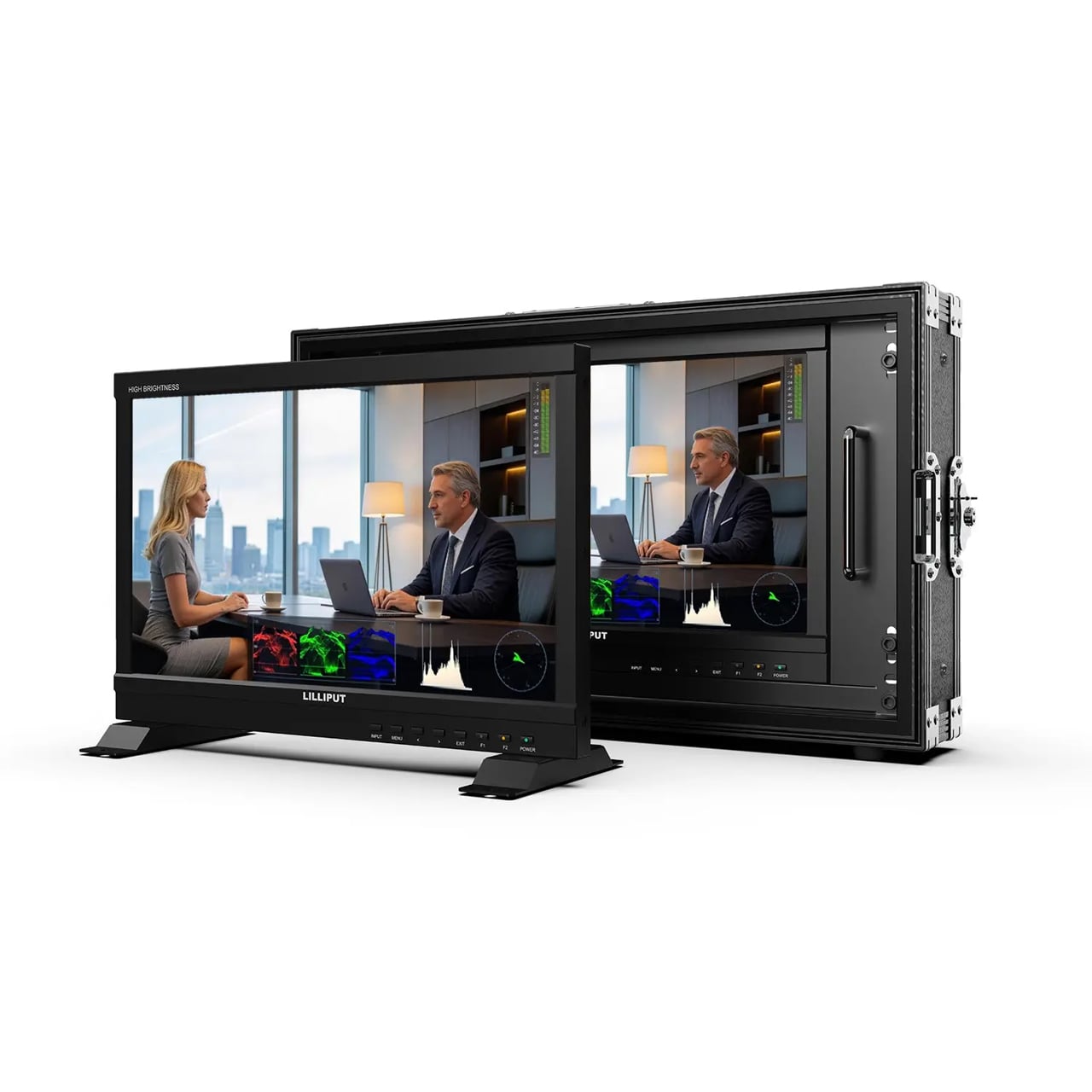

Lilliput Electronics PVM160S-H-ABBP-NDI 16-Inch 1200 Nits High Brightness Broadcast Monitor - Gold Mount Plate and NDI

PVM160S-H-ABBP-NDI - Overview

1200NITS High-Bright Broadcast Monitor

• Features:

  • 1920x1080 Resolution
  • HDMI 2.0 3G-SDI
  • 1200 NITS High Brightness
  • HDR PQ / HLG
  • 3D LUT 17 Default Logs


• Specifications:

  Display
  • Panel: 15.6"
  • Physical Resolution: 1920x1080
  • Aspect Ratio: 16:9
  • Brightness: 1200 cd/m2
  • Contrast: 1000:1
  • Viewing Angle: 160°/160°?H/V)
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
  • Look up Table(LUT)support: 3D LUT (.cube format)
  • Technology: Calibration to Rec.709 with optional calibration unit

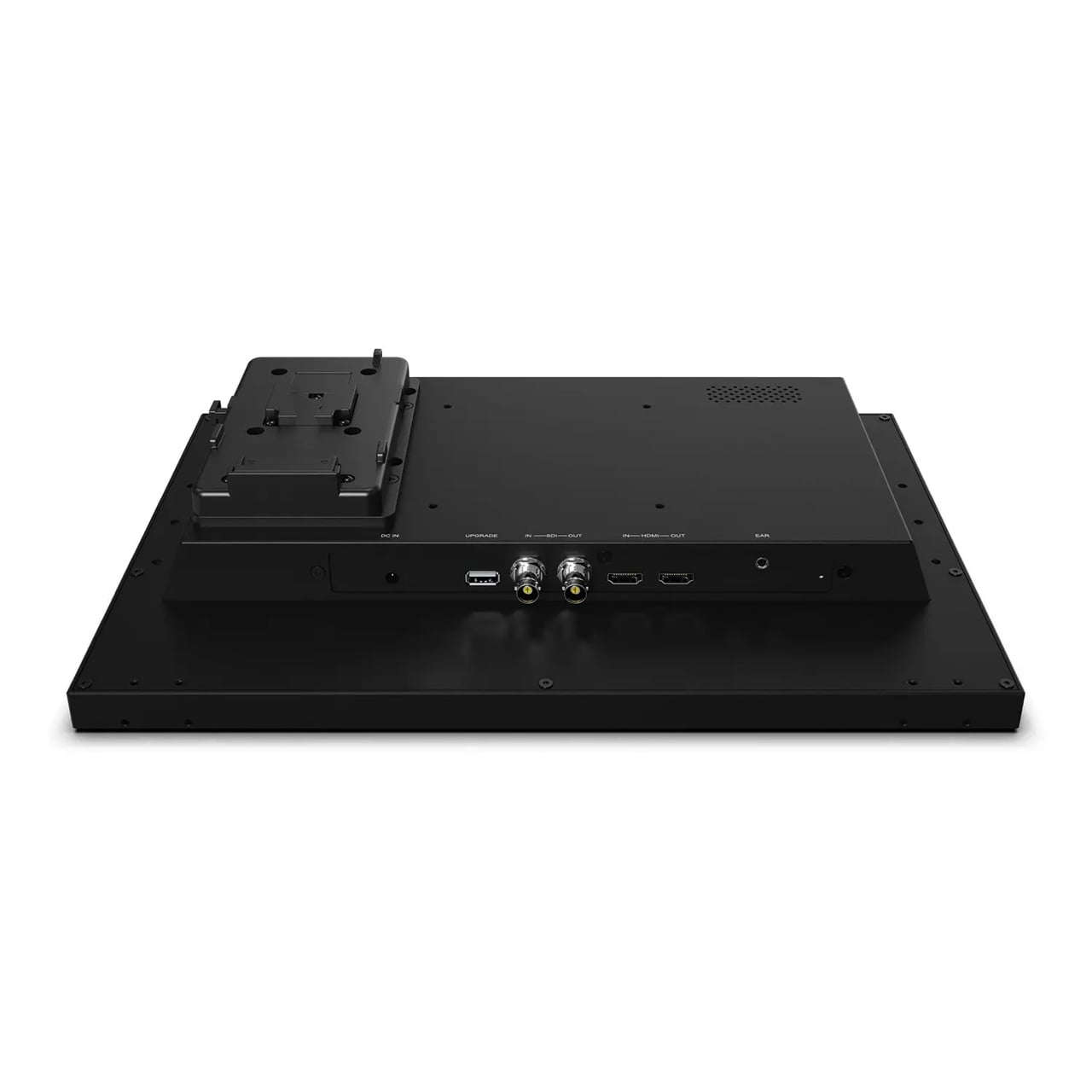

    Video Input
  • SDI: 1x 3G
  • HDMI: 1x HDMI 2.0

    Video Loop Output
  • SDI: 1x 3G
  • HDMI: 1x HDMI 2.0

    Supported Formats
  • SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

    Audio In/Out (48kHz PCM Audio)
  • SDI: 2ch 48kHz 24-bit
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm
  • Built-in Speakers: 1

    Power
  • Input Voltage: DC 9-24V
  • Power Consumption: ≤39W (15V)
  • Compatible Batteries: V-Lock or Anton Bauer Mount
  • Input Voltage(battery): 14.8V nominal

    Environment
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)

    Physical
  • Dimension(LxWxD): 18" x 14" x 6" (457.2mm x 355.6mm x 152.4mm)
  • Weight: 6.9lbs (3.15kg)
  • Shipping Weight: 15lbs (6.8kg)


• Item Includes:

  • 1x 4A Power Adapter

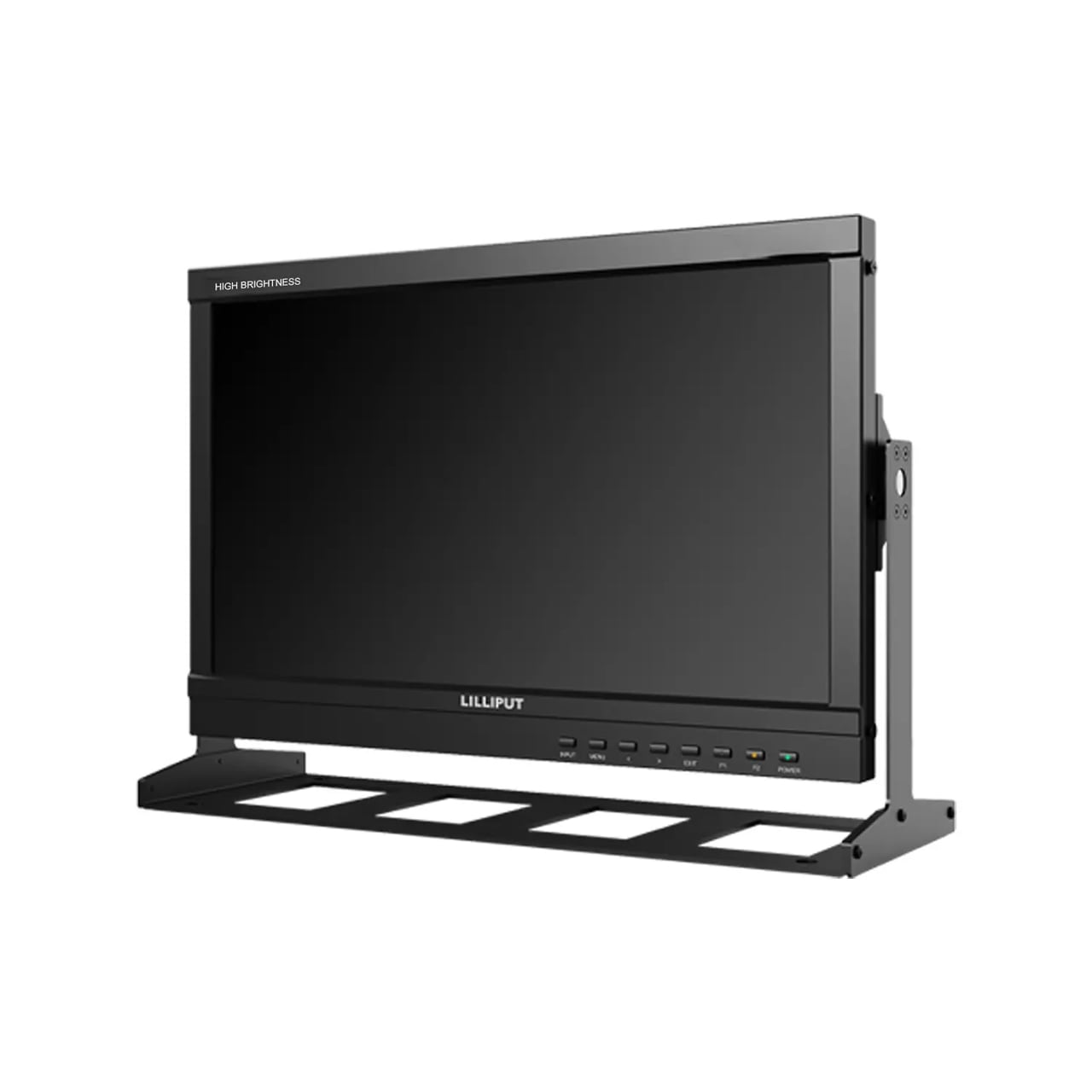

  • 1x Base Bracket
  • 1x E-User Manual


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  6950821604960
