Python PY3-RRRR-W16 3G Receiver 16 HD/SDI RX On 1 Fiber CWDM
  • Python PY3-RRRR-W16 3G Receiver 16 HD/SDI RX On 1 Fiber CWDM
  • Python PY3-RRRR-W16 3G Receiver 16 HD/SDI RX On 1 Fiber CWDM

Questions? Ask a Markertek Expert:
800-522-2025 Email

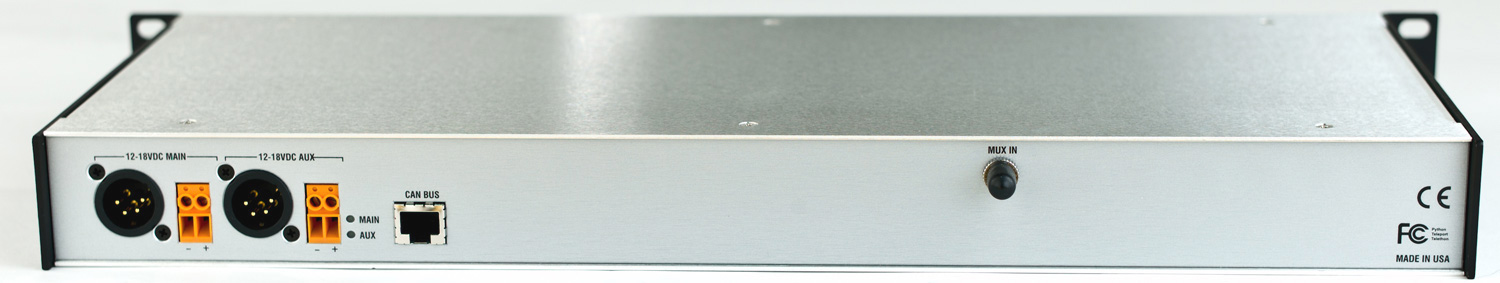

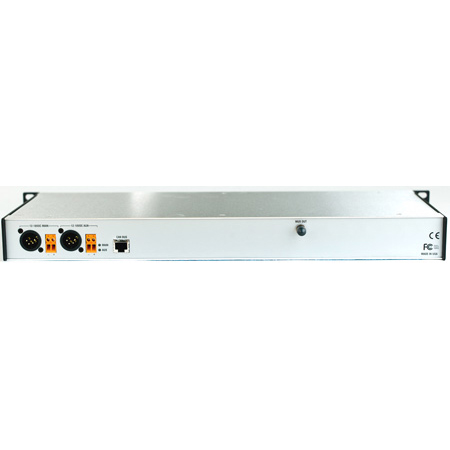

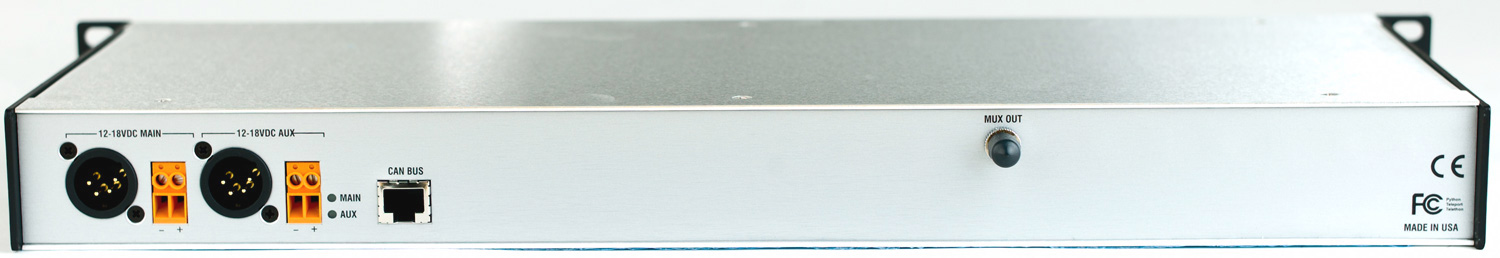

Python PY3-RRRR-W16 3G Receiver 16 HD/SDI RX On 1 Fiber CWDM

Item #: PY-RRRR-W16   •   MFG #: PY3-RRRR-W16



List Price:$12,790.00
Our Price:$12,483.40

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Python II lowers the cost of digital video distribution, simplifies your cable plant and eliminates all concerns about distance, interference and grounding. The Python II converts up to four groups of four-channels of HD/SDI to pristine fiber optic transport, all in a compact 1RU frame. Select a transmitter and a receiver frame for eight or sixteen channels, for example, in one direction. Select two transceiver frames for, say, eight channels in each direction.

The Python II CWDM with the Band Splitter option provides for sixteen HD/SD Channels in one direction or eight each way on just one single mode fiber.

The Python II offers the industry's broadest range of digital transmission rates while maintaining the quality that broadcasters demand. It supports numerous interface standards, including applicable SMPTE, ATSC, and DVB recommendations.


  • Features

    • Economical, low profile packaging
    • 4 to 16 Channels per 1 RU chassis
    • Wide range of digital formats
    • 19.4 Mbps to 1.5 Gbps transport
    • Compatible with digital TV standards SMPTE 292M & 259M
    • Handles DVB/ASI signals
    • Immune to pathological data errors
    • Equalizes coax up to 1.5 Gbps
    • BNC input/output
    • Wide optical budget
    • Low system jitter
    • Low power consumption
    • High reliability, durable design
    • CWDM multiplexing options
    • Compatible with other Telecast SD/HD SDI Transport Systems

  • Specifications

    • Transmission Method: Digital
    • Input Level: 800 mV (peak to peak)
    • Input/Output Impedance: 75 Ohms
    • Return Loss (1.5GHz): >15 dB, 5Mhz-1.5GHz
    • Coaxial Input Equalization Maximum Rate: 1.5 Gbps
    • Coaxial Input Equalization at 1.5Gbps: 300 meters of Belden 8281
    • Bit-Error Rate (@ -22 dBm rx optical power): 10-12
    • Jitter (using pathological data pattern): < 0.2 UI
    • Operating Wavelength: 1310 nm or 1550nm Optical Window
    • Link Margin: up to 22 dB
    • Transmitter Output Power Options: -7 dBm or 0 dBm
    • Receiver Sensitivity: -20dBm/-22 dBm
    • Optical Source: Laser diode
    • Optical Detector: PIN
    • Fiber Type: Single mode or multimode
    • Dimensions (LxWxH): 16.7 x 10.5 x 1.75
    • Weight: 5 lbs
    • Connectors (Electrical): BNC
    • Connectors (Optical): ST
    • Input Voltage: 12-24VDC
    • Power Consumption: < 15 Watts
    • Indicators: Power On, SDI Data Presence, Optical Power
    • Temperature Range: -20 C to +55C
    • Humidity Range: 0 to 95% non-condensing
