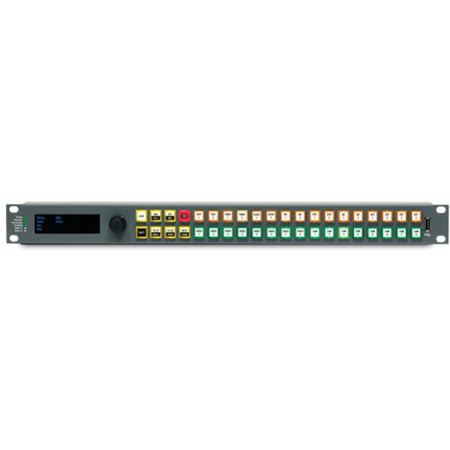

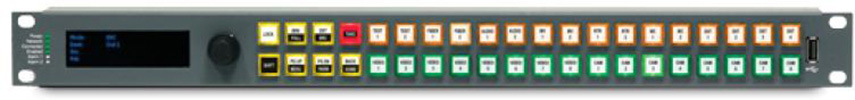

Imagine RCP-32PB-OLED 1RU Control Panel with 32 Push Buttons and OLED Display


free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    RCP-32PB-OLED - Overview

    The Imagine Communications Magellan™ RCP-32PB-OLED family of router control panels (RCPs) provides a fast, powerful and simple way to control your Imagine Communications or third-party routing systems. Available as a series of 10 programmable hardware panels in 1 or 2RU versions, Magellan RCPs offer intuitive, Web-based configuration - enabling the industry's fastest setup for both local and remote operations. These feature-rich, cost-effective and highly customizable panels - ranging from simple, button-per-source, single-bus panels to multilevel, multi bus, resendable LCD-button panels - are sure to meet both your budget and routing operational requirements. Designed with an understanding of the physical layout of a typical facility or OB truck, these compact RCPs - less than 2 inches deep - integrate easily into console-mount or any other space-constrained environment, enabling you to rapidly optimize the navigation and control of your routers.

    • Features:

      • Supports button-per-source (BPS), multibus, XY and enhanced grouping modes
      • Ability to reconfigure and reassign buttons and alias names both on panel front and at configuration GUI
      • Compact and less than 2-in. (51 mm) deep, ideal for console-mount applications
      • Supports Ethernet and coaxial connections
      • Ethernet supports both LRC (recommended) and XY protocols
      • Coaxial supports XY only (use these systems without a Platinum™ router or for legacy routers)
      • Common control sections
      • Web-based configuration for easy and fast setup
      • Unicode support
      • Template-based to facilitate quick configuration changes either at the panel or through the web
      • Automatic update of routing tables - no need for downloads
      • Parametric control of all Platinum modules for seamless router integration
    • Specifications:

      • Number of Buttons:
      • 32 push buttons plus 8 programmable function keys

        Operation Modes:
      • Button-per-source, XY, multi bus, single-bus, breakaway

        Communications Ports:
      • Ethernet and loop-through coaxial

        Protocols Supported:
      • LRC (Ethernet only), XY (coaxial and Ethernet)

        Dimensions (WxHxD):
      • 19 x 1.75 x 1.75 in. (48.3 x 4.4 x 4.4 cm)
