RF Venue D-ARCBD9 9-Channel Diversity Architectural Antenna Distribution DISTRO9 HDR Pack for Wireless Mics - Black

D-ARCBD9 - Overview

This turnkey bundle includes everything needed to configure up to 9 channels of wireless microphones!

• Features:

  • Blends into any background
  • Doesn't drop out
  • Two antennas in one package
  • Lower cost - easy installation


• Specifications:

  • Color: Black
  • Frequency Range: 50MHz - 1000MHz (VHF, UHF, +900 bands)
  • RF Output Level (Gain): ±3dB
  • Output Connection Isolation: 60dB @ 510MHz, 80dB @ 200MHz
  • Third Order Intercept Point: 15dBm @ VHF, 20+ @ UHF
  • Impedance: 50Ω
  • Power Requirements: 50/60Hz, 2A
  • Fuse: T3.15A/250V
  • Input AC Voltage: 100V - 240VAC
  • DC Over Coax (to external antennas): 12VDC 100mA
  • Output DC Voltage (to Receiver Jacks): 12V 3A
  • Output DC Connectors: Anderson Power Pole
  • Dimensions (WxHxD): 19" x 2" x 10" (480mm x 45mm x 250mm)
  • Unit Weight: 6lbs (2.7kg)

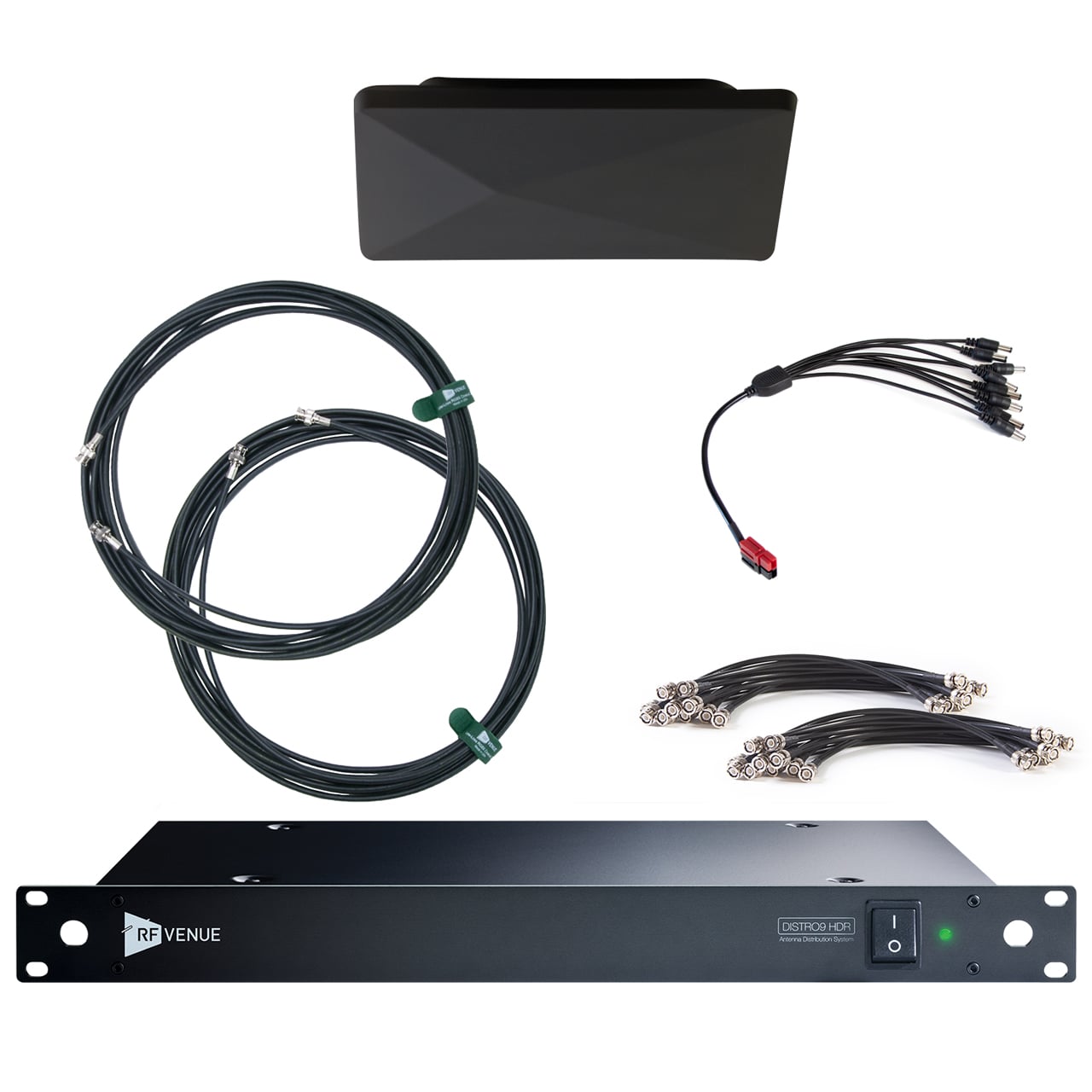

• Item Includes:

  • 1x Diversity Architectural Antenna - Black
  • 1x DISTRO9-HDR 9 Channel RF Distributor
  • 2x RG8X25 Coaxial Cables BNC - Black
  • 1x RG8X1.5-10 (10 pack interconnects)
  • 1x RG8X2-10 (10 pack interconnects)
  • 1x DC-OCTOPUS Power Distribution Kit


• Warranty:

  • 2 Year Limited Warranty
