    MINI-PRO - Overview

    The dual channel video switcher mixer for the streaming generation, Mini-Pro features four resolution independent inputs - up to full 4K60 to take advantage of native high-performance sources, whether cameras or laptops, without compromise. While presets for PIP and PBP are provided, Mini-Pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers - truly unique in a streaming mixer of this size - features usually found only on larger professional video mixers.

    Audio for output is selectable from embedded sources or an external source. Both Line and Mic level audio a supported on board with variable delay controls to bring audio into sync if needed.

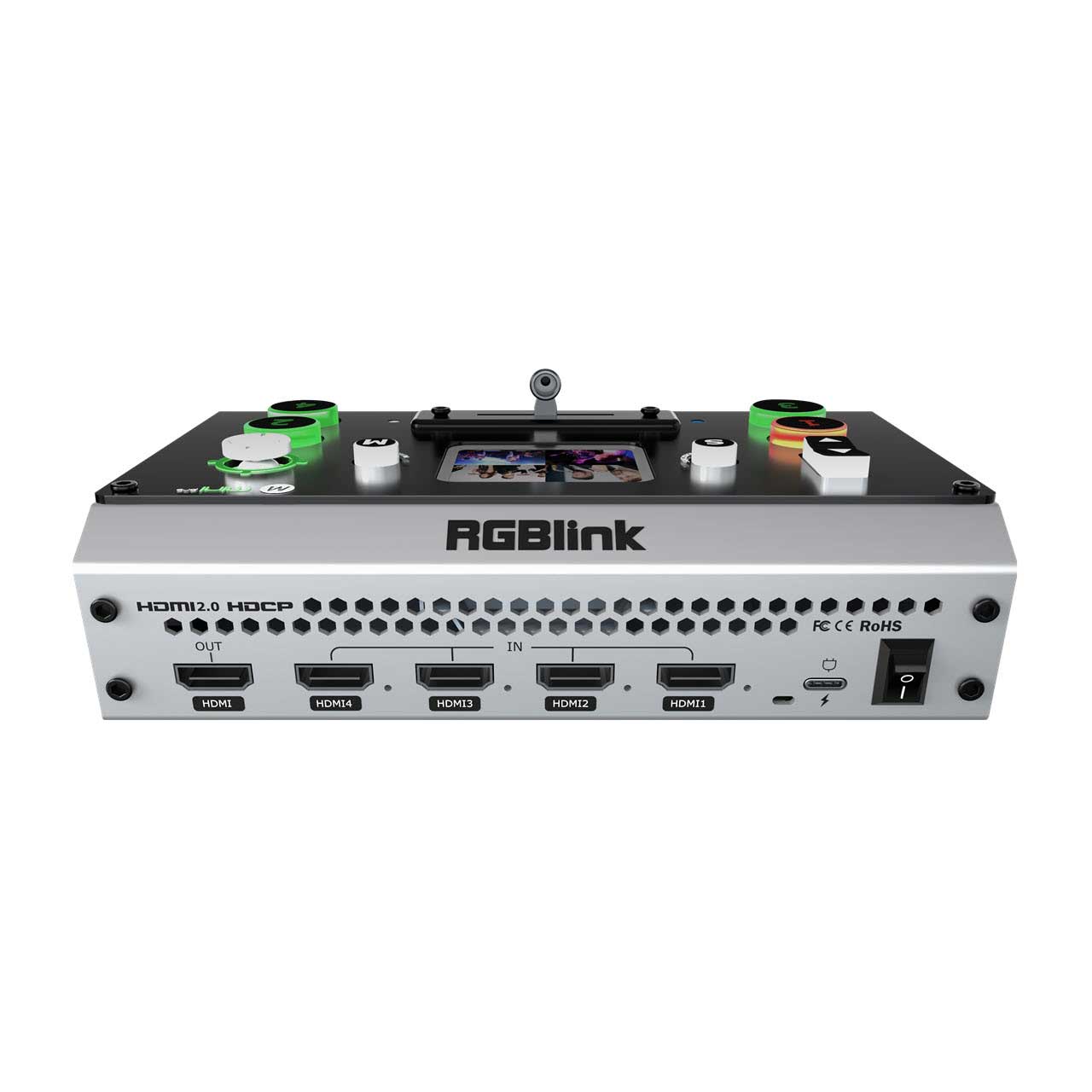

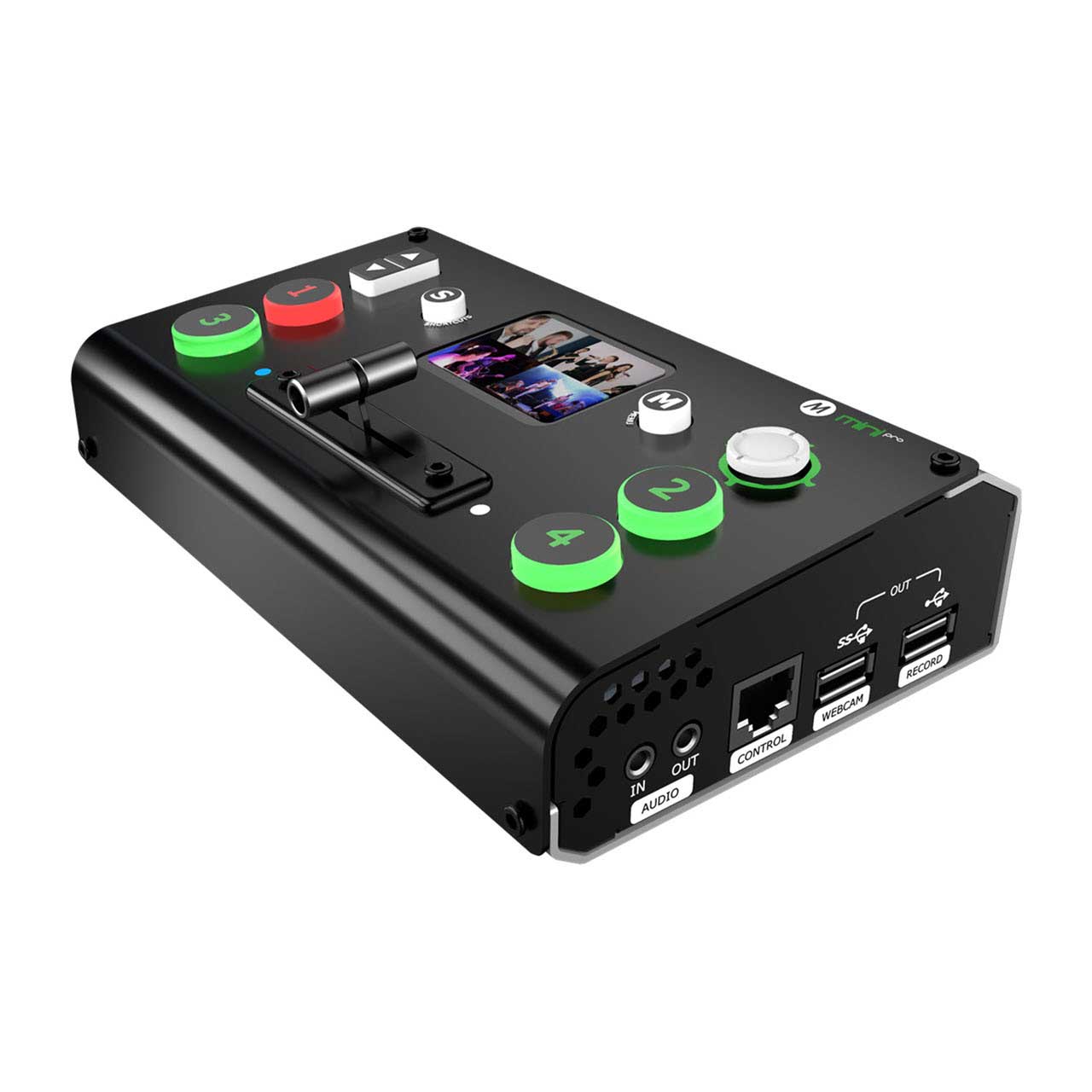

    In addition to HDMI and USB3.0 streaming outputs, Mini-Pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from Mini-Pro.

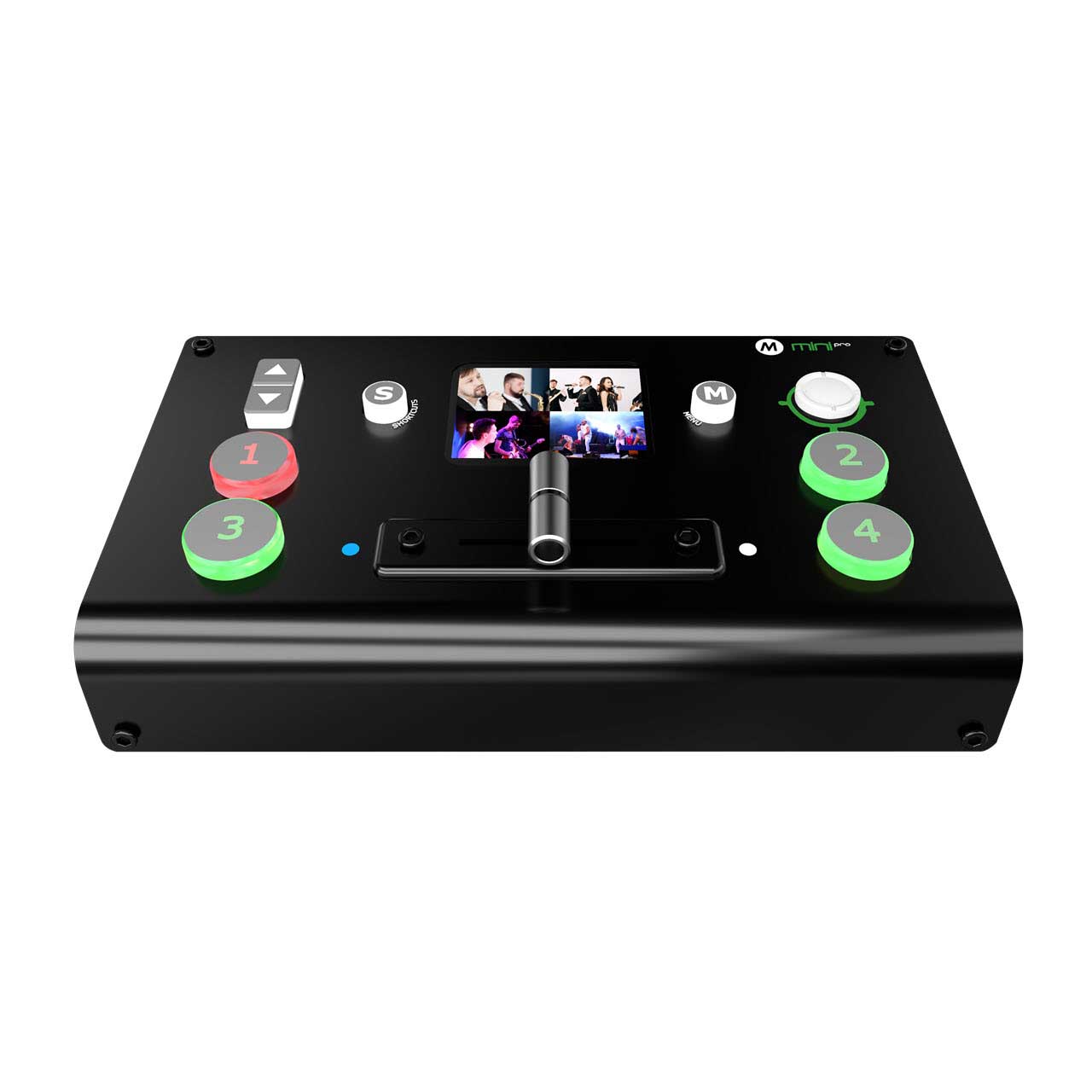

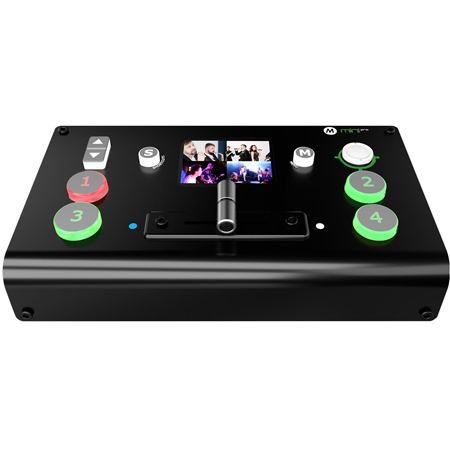

    The exclusive integral display not only shows video preview, but is touch enabled for natural operation of features and settings. Remote control is available via free companion apps for laptops and mobile devices too.

    Mini-Pro is packed with features including dynamic output control, preview multi-view, picture in picture, Chroma Key, video transitions, on board PTZ camera controls and more.

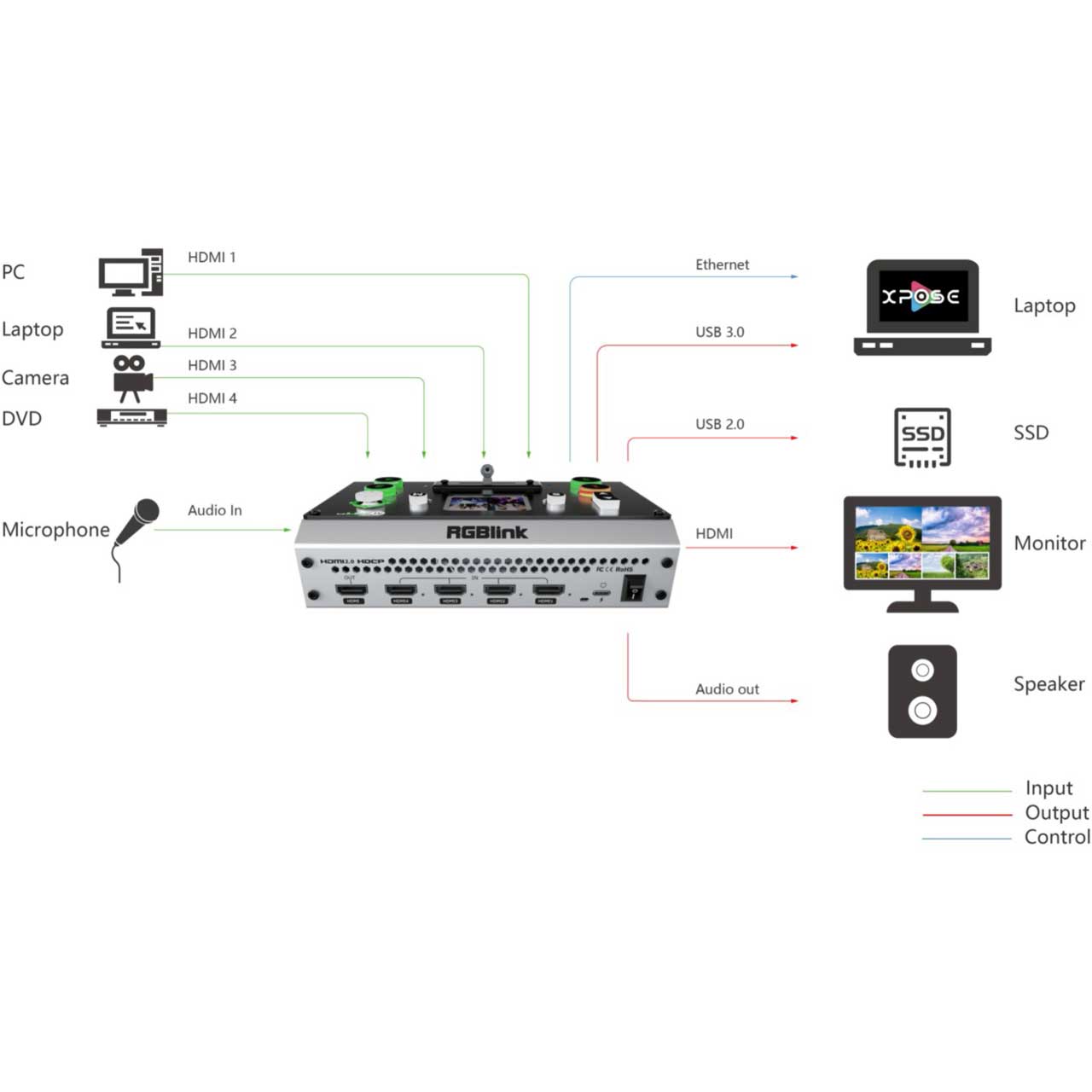

    SuperSpeed USB3.0 streaming to take video to the world. Simply connect mini-pro to a laptop or other device to stream quickly and easily to hundreds of social media and streaming platforms as well as a vast array of popular collaboration applications.

    Go Live
    Display local and live with the 2K HDMI output port - use for a preview or the live program output. mini-pro is more than a streaming switcher, mini-pro is also a live event switcher

    Capture the moment, record video and audio directly from mini-pro with any portable drive up to 2TB, nothing else needed.

    Bring it all together with on board control for PTZ cameras directly within mini-pro. Save attribute views of cameras for recall at the touch of a button.

    See all sources live immediately in the integral LCD display. Connect video output and display a multi-view preview to always see the next preset before going live.

    Transition and switch between live video program and preset. Recall saved preset views along with scaled video layers for the professional look a of prepared broadcast or presentation.
