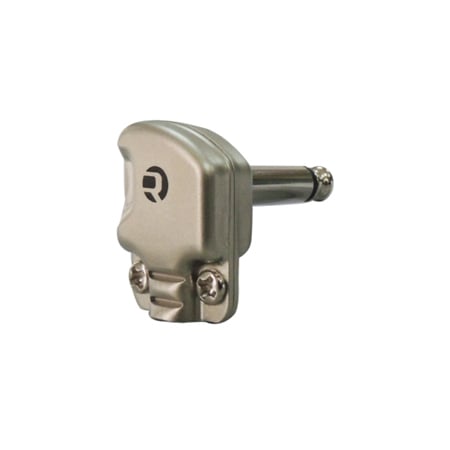

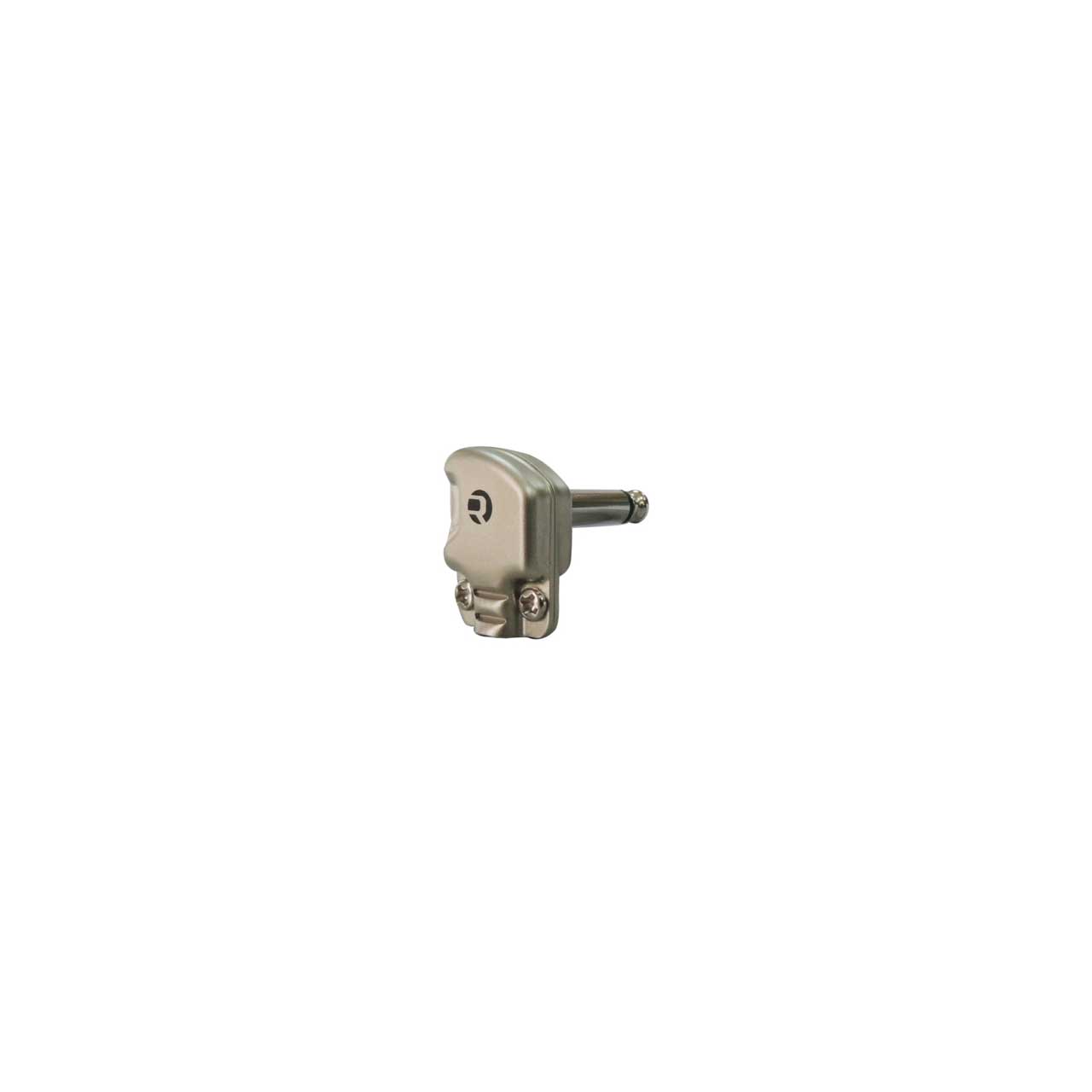

Rean RP2RCF 1/4 Inch Mono / Low-Profile Right Angle Pancake Plug - Nickel/Nickel - Each

ITEM #: RN-RP2RCF MFG #: RP2RCF

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.00

Our Price:

$1.90

Availability: In Stock
iAvailability Description Popup


    RP2RCF - Overview

    Rean RP2RCF Pancake 1/4" right angle plugs feature a modern, rectangular low-profile that's perfect for electric instrument pedalboards and other effects by daisy-chaining. Rean RP2RCF low profile right-angle TS plugs offer a ≥1GΩ insulation resistance, >1.0kVDC dielectric strength, and a -20°C to +70°C operating temperature range. The Pancake plugs are available with nickel or black covers and have a heavy duty cable clamp for best strain relief. Every Rean Pancake 1/4" right angle plug features a lifetime of >1000 mating cycles and complies with IEC 68-2-20.

    RP2RCF features a nickel-plated back cover. RP2RCF-BAG features a black-plated cover.

    • Features:

      • 1/4" mono plug
      • Right angle version
      • Nickel cover
      • Heavy duty cable clamp for best strain relief
      • Cable O.D. up to 7 mm

    • Specifications:

      • Electrical
      • Rated Current And Contact Resistance: Depends on mating connector
      • Insulation Resistance: ≥ 1 GΩ
      • Dielectric Strength: > 1.0 kV dc

        Mechanical
      • Cable O.D.: 6-7mm
      • Wiresize: 0.22 mm² / 24 AWG
      • Lifetime: > 1`000 mating cycles
      • Solderability: complies with IEC68-2-20
      • Operating Temperature: -20°C to +70°C

        Material
      • Shell: Steel
      • Shell Plating: bottom: Nickel, cover: Nickel or Black
      • Contacts: Brass
      • Contacts Plating: Nickel

    • GTIN:

      7613187014925
