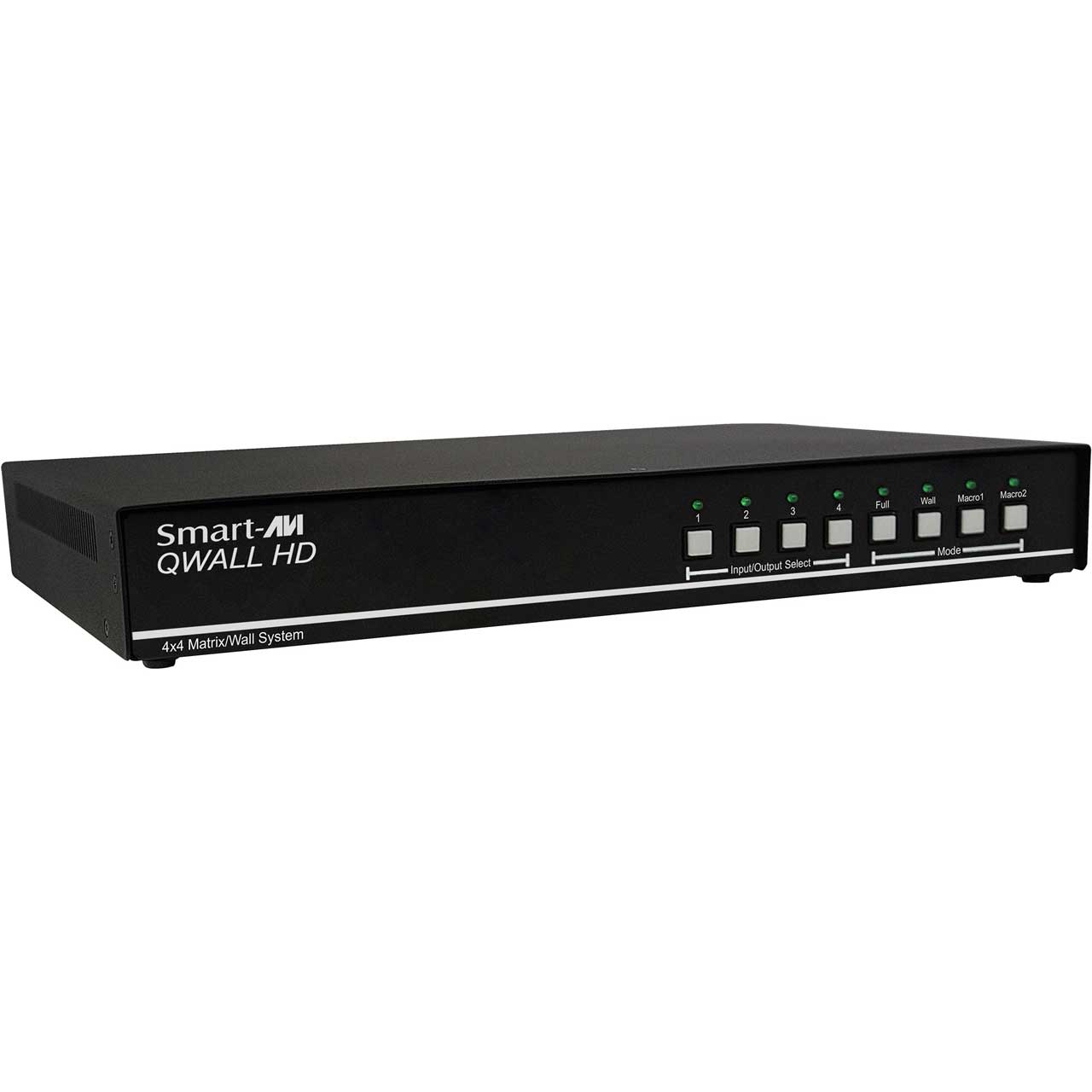

Smart-AVI SAVI-QWALL-HD 4x4 HDMI VideoWall Processor

QWALL-HD - Overview

• Features:

  • Complete Hardware Solution - No Need For A Pc
  • Plug-and-Play Ready
  • Four HDMI Inputs and Four HDMI Outputs
  • HDMI Digital Audio Output
  • Learns any EDID
  • Built-In Database
  • Ethernet Control-Ready
  • Multiple Screen Modes and Picture Flip Functions
  • Easy Control and Access
  • HDMI 1080p
  • Supports IR and RS-232
  • 1920 x 1080p Resolution


• Specifications:

  • Video
  • Video Bandwidth: Single-link 340MHz [10.2Gbps]
  • Resolution HDTV: 480i, 480p, 720i, 720p, 1080i, 1080p
  • Single Link Range: 1080p
  • Format: HDMI 1.4
  • DVI Compliance: Single-link DVI-D 2.0
  • HDCP Compliance: 1.0/2.0

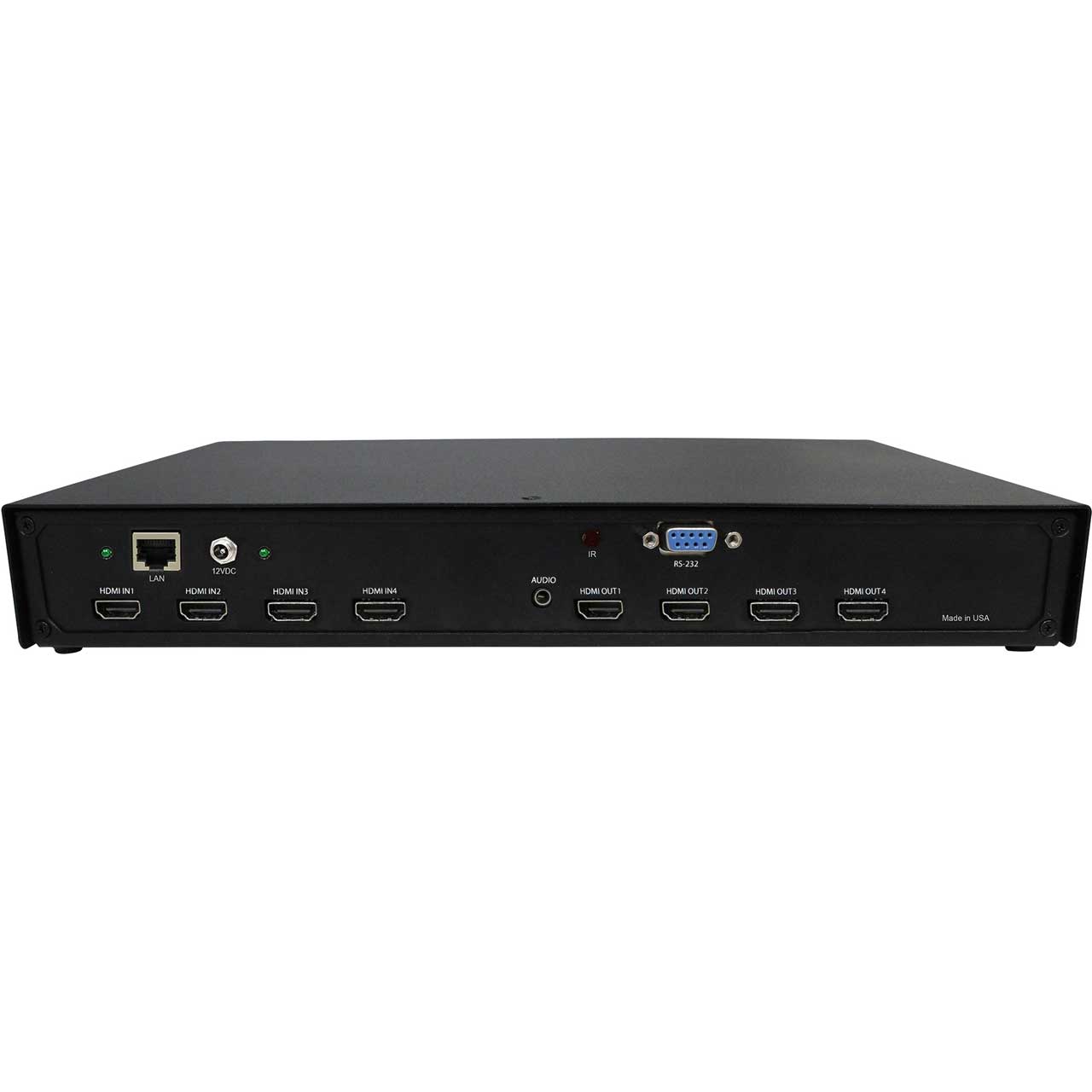

  • Input Interface: (4) HDMI
  • Output Interface: (4) HDMI
  • Connector: Type A [19-pin female]

    Audio
  • Format: HDMI Digital Audio
  • Frequency Response: 20Hz ~ 20KHz
  • Output Interface: 3.5 mm stereo audio

    Control

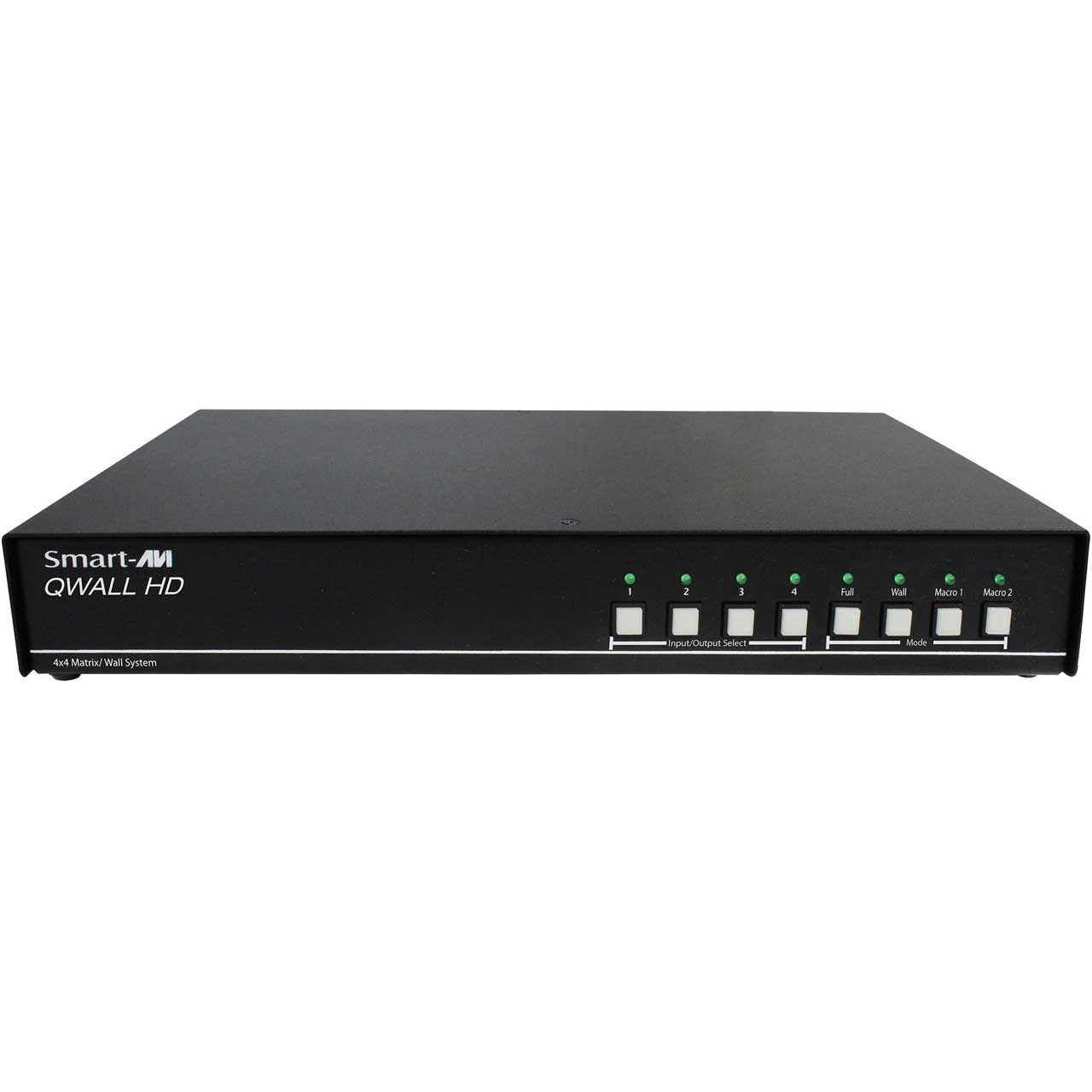

  • Front Panel: Push Buttons with LED Indicators
  • RS-232: DB9 (female) Via Control @ 9600 bps
  • Hot Keys: Via Keyboard
  • Remote: IR
  • Web: Web Interface

    Other
  • Power Supply: Internal 100-240 VAC
  • Dimensions: 17.0" W x 2.0" H x 10.75" D
  • Weight: 4.4 lbs
  • Approvals: UL, CE, ROHS Compliant
  • Operating Temperature: +32 to +104°F (0 to +40°C)
  • Storage Temperature: -4 to 140°F (-20 to +60°C)
  • Humidity: Up to 80% (No Condensation)


• Item Includes:

  • 1x QWALL-HD
  • 1x PS12VD3A-WLLMNT
