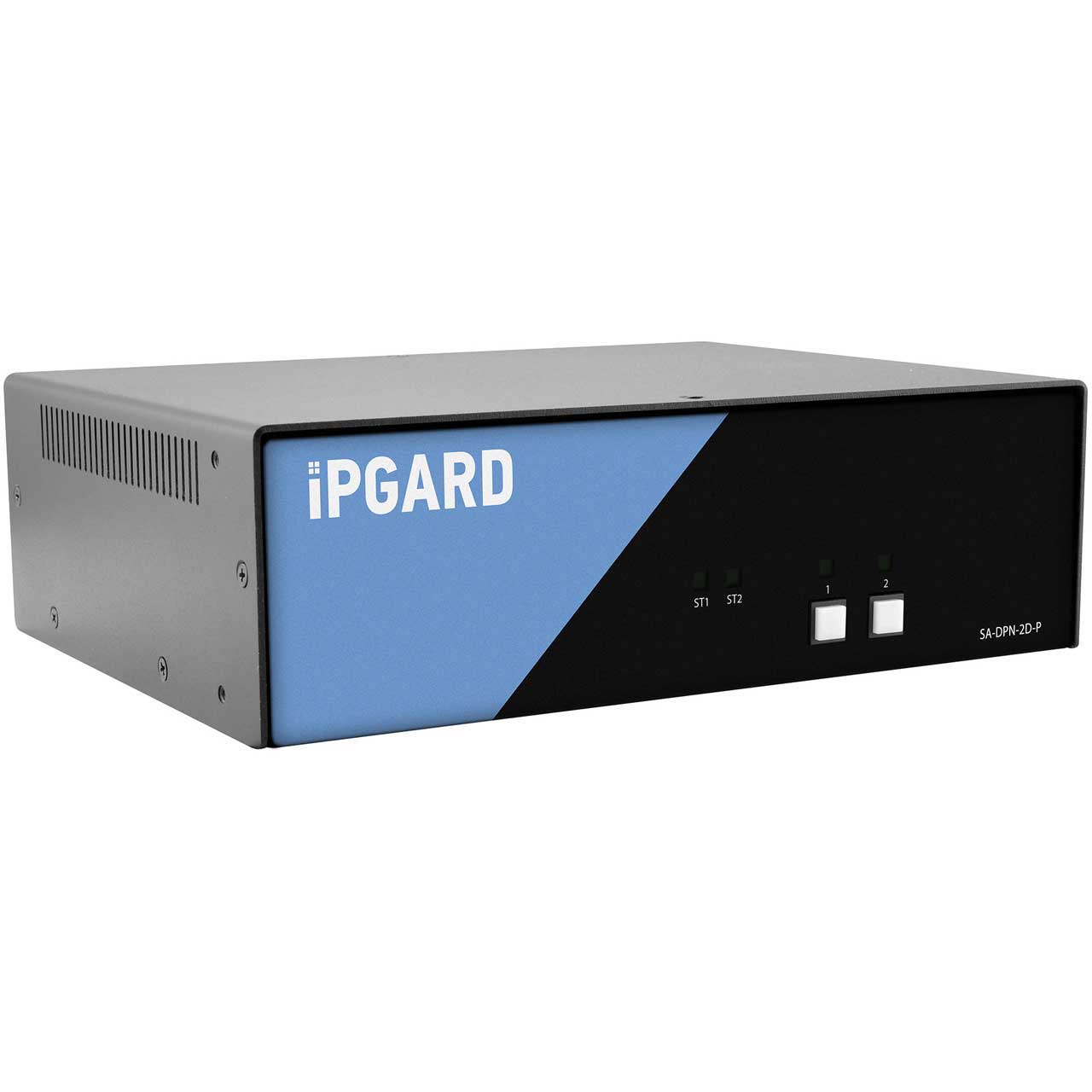

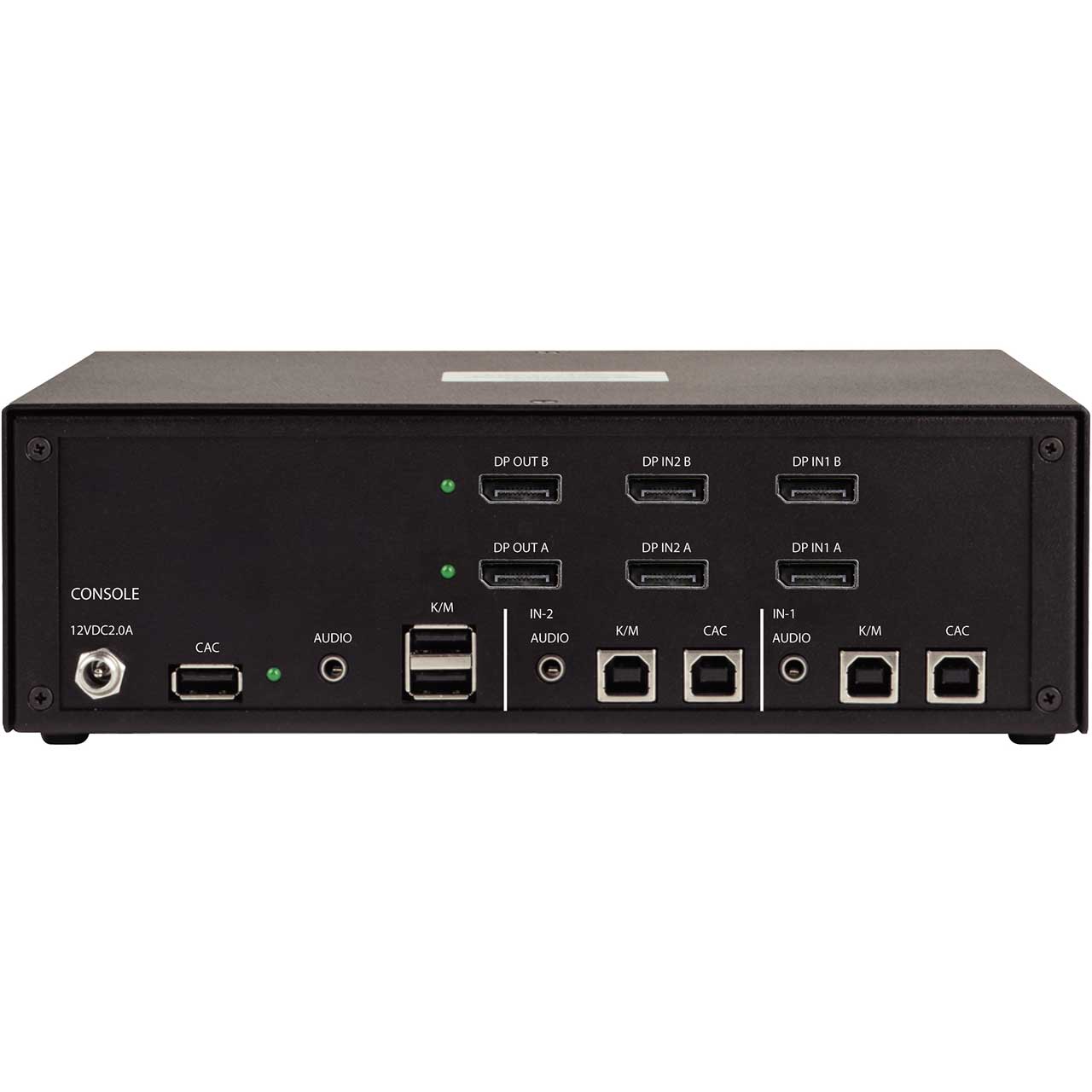

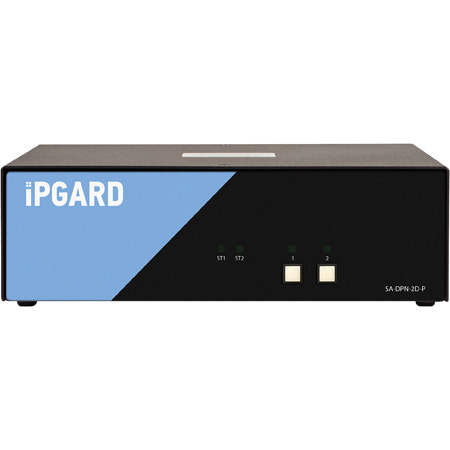

SmartAVI SA-DPN-2D-P 2-Port DH Secure Pro DisplayPort KVM with Audio and CAC

ITEM #: SAVI-SA-DPN-2D-P MFG #: SA-DPN-2D-P

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$845.00

Our Price:

$718.25

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SA-DPN-2D-P - Overview

    SmartAVI SA-DPN-2D-P is a 2-Port DH Secure Pro DP KVM with Audio and CAC. This supports Windows, Mac and Linux OS with advanced configurable CAC port and an External power supply with Level VI efficiency. No external interfaces can be used, only keyboard, mouse and CAC devices are accepted. You can ensure that all user data is completely isolated and no data is ever stored, as well as secure channel switching with leak prevention and no hotkeys.

    • Features:

      • Computer interface isolation while powered or unpowered
      • Front panel tactile buttons for secure channel switching and LED channel indicators
      • Peripheral and authentication ports isolation for secure usage
      • Tamper evident label and anti-tampering technology
      • No wireless devices connected
      • Ensures only trusted admin gains access

    • Specifications:

      • Video
      • Format: DisplayPort1.2a
      • Input Interface: (4) DisplayPort
      • Output Interface: (2) DisplayPort
      • Resolution: Up to 4K (3840x2160 @ 30Hz)
      • DDC: 5 volts p-p (TTL)
      • Input Equalization: Automatic
      • Input Cable Length: Up to 20 ft.
      • Output Cable Length: Up to 20 ft.

        USB
      • Input Interface: (4) USB Type B
      • Output Interface: (2) USB 1.1 Type A for KM Devices
      • Emulation: USB 1.1 and USB 2.0 Compatible
      • CAC: Configurable USB 2.0 Port

        Audio
      • Audio Input: (2) 3.5mm stereo audio
      • Audio Output: (1) 3.5mm stereo audio

        Control
      • Front Panel: Front panel SELECT buttons

        Other
      • Power: External 100-240 VAC/ 12VDC2A @ 24W
      • Dimensions (WxHxD): 8.8 x 2.63 x 6.69"
      • Weight: 3.85Lbs
      • Approvals: NIAP PP 4.0, UL, CE, ROHS Compliant
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Humidity: Up to 80% (non-condensing)

    • Warranty:

      • 1 Year

    • GTIN:

      0686911124037
