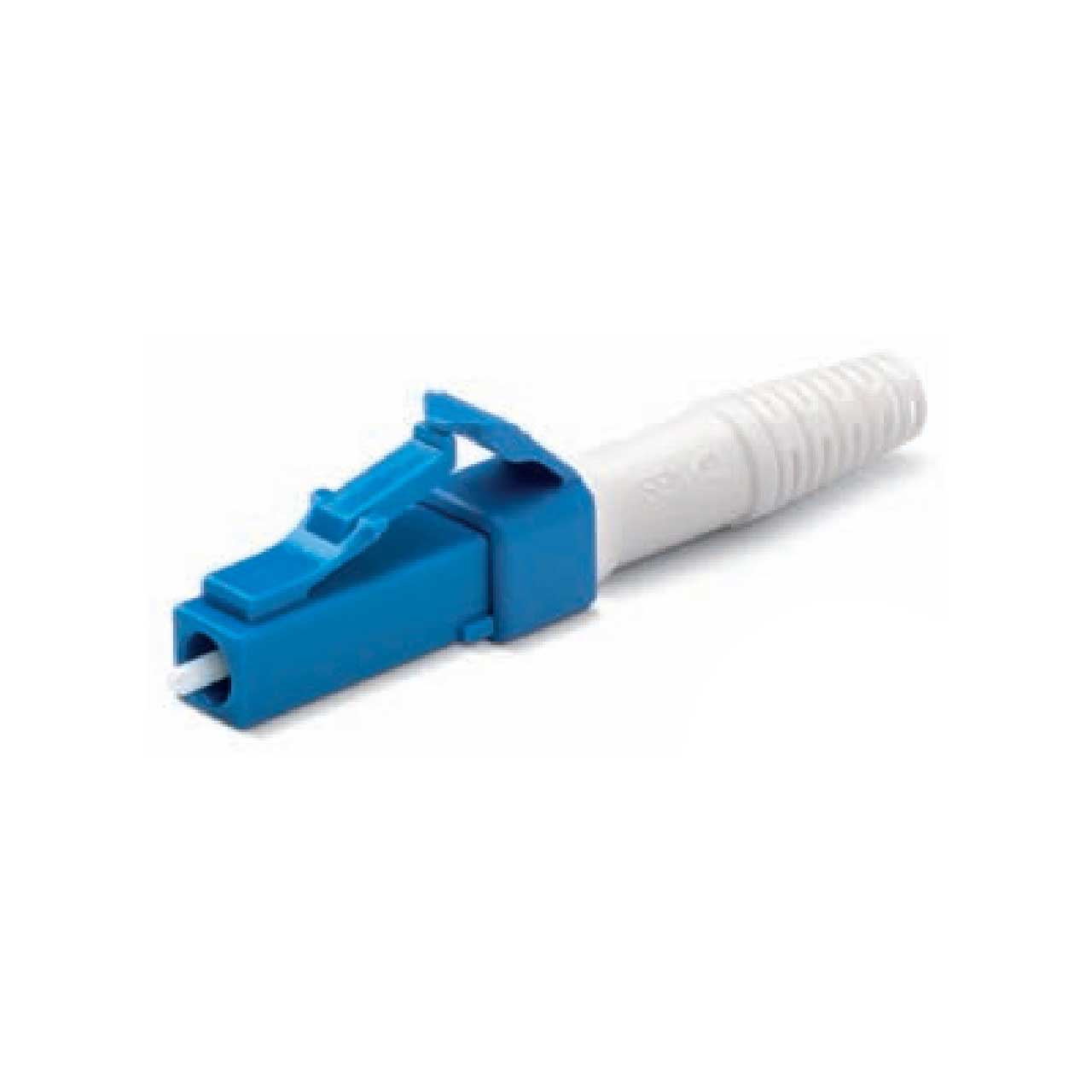

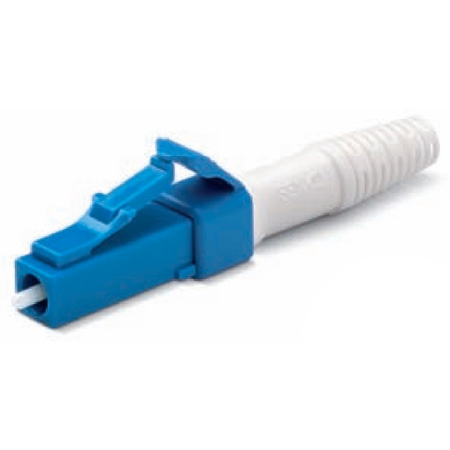

Senko 931-153-1D1 Premium 125um Singlemode 3mm Simplex Fiber LC Connector with White Boot

Name: Senko 931-153-1D1 Premium 125um Singlemode 3mm Simplex Fiber LC Connector with White Boot
Brand: Senko Advanced Components
SKU: SENK-931-153-1D1
Price: 175.00 USD
Availability: InStock

ITEM #: SENK-931-153-1D1 MFG #: 931-153-1D1

Senko Advanced Components

List Price:

$192.50

Our Price:

$175.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

931-153-1D1 - Overview

The Senko 931-153-1D1 LC Premium Unibody Connector molded with a Single body delivers maximum strength against mechanical tests including side loading test and TWAL tests. Manufactured to the highest standard, the LC Unibody connector is designed to meet and exceed the Verizon FOC TPR requirement and designed for the usage for the OSP application or where customers needs the highest quality product.

Features:
- Premium SM and Premium Low Loss SM (LS) are available
- Typical IL of 0.05 for LS SM and 0.08 for Premium SM Ferrule
- Various option of boots are available to meet your needs
- PC Type and APC Type available
- SENKO's flagship highest quality LC connector seriers
- Solid body robust design to improve mechanical strength
- designed to exceed the requirement of Versizon FOC TPR 9409 requirment
- Premium Super Low loss, typical IL against Master 0.05dB
- Premium Super Low Loss to meet IEC 61753-1 Grade A random mating requirement of Max 0.15dB
- Premium SM typlical IL against Master 0.08dB Max
- Premium SM to meet IEC 61753-1 Grade B random mating requirement of Max 0.25dB
- 6 direction tuning feature to improve random mating IL wide choice of boot types
- Crimp tool to be used CRT-701
Specifications:
- Operating Temperature: -40° to 167°F (-40° to 75°C)
- Durability: <0.2dB typical change, 500 matings
