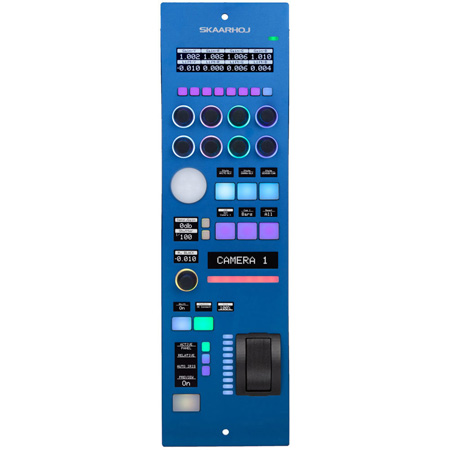

Skaarhoj RCP-ROLLER-V2 Universal Camera Controller with Roller Wheel

ITEM #: SKA-RCPV20FEWHE MFG #: RCP-V2.0-FE-WHEEL

free ship

List Price:

$3,519.00

Our Price:

$3,448.62

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    RCP-V2.0-FE-WHEEL - Overview

    Whichever camera brand you're shading, the RCPv2 from SKAARHOJ provides you with a versatile and programmmable remote control panel to help you get the job done. The RCPv2 fits into your rack or sits console-style on your tabletop. This version of the RCPv2 is equipped with an encoder roller wheel with a display and a LED bar as well as encoder knobs, a joystick pad, OLED displays, a preview button, four-way buttons, and a master black knob.

    The RCPv2 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

    • Features:

      • OLED display with large display tiles for settings
      • Eight encoder knobs with RGB backlight for function identification
      • Pressure- and direction-sensitive joystick pad
      • Camera ID display with OLED technology and RGB tally bar
      • Roller wheel with master black ring and preview button
      • Preview button for GPI or control of video router
      • Four-way buttons with OLED displays for dynamic labeling and
        functionality
      • Fits in your existing OB van rack or sits console-style on your tabletop
      • Ethernet with PoE (IEEE802.3af)
      • UniSketch OS

    • Specifications:

      • Controls and Indicators
        1 x OLED Display with Large Display Tiles
        8 x Utility Buttons
        8 x RGB-Backlit Encoder Knobs
        1 x Pressure-Sensitive Elastomer Joystick Pad
        6 x Programmable Pressure- & Direction-Sensitive 4-Way Buttons with OLED Displays
        2 x Small Buttons with 1 OLED Display
        1 x Camera-ID OLED Display with RGB Tally Bar
        1 x Master Black Knob with OLED Display
        1 x Encoder Roller Wheel with LED Bar
        2 x Large Buttons with 2 OLED Displays
        3 x Small Buttons with 1 OLED Display
        1 x Preview Button
        1 x DIP/GPI Camera Selector (Rear)
      • Operating System: UniSketch
      • Connectors:
        1 x RJ45, Ethernet
        1 x Micro-USB
        1 x DC Power Input
      • Power Source: PoE IEEE802.3af, DC
      • Dimensions: 17.7 x 5.5 x 5.9 Inches
      • Weight: 4.7 lb / 2140 g

    • GTIN:

      5714074001850
