Skaarhoj SDI-B4-LINK-V1 SDI-B4 Link Camera Lens Control Extractor over SDI for BlackMagic

ITEM #: SKA-SDI-B4LINKV1 MFG #: SDI-B4-LINK-V1

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$889.00

Our Price:

$871.22

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    SDI-B4-LINK-V1 - Overview

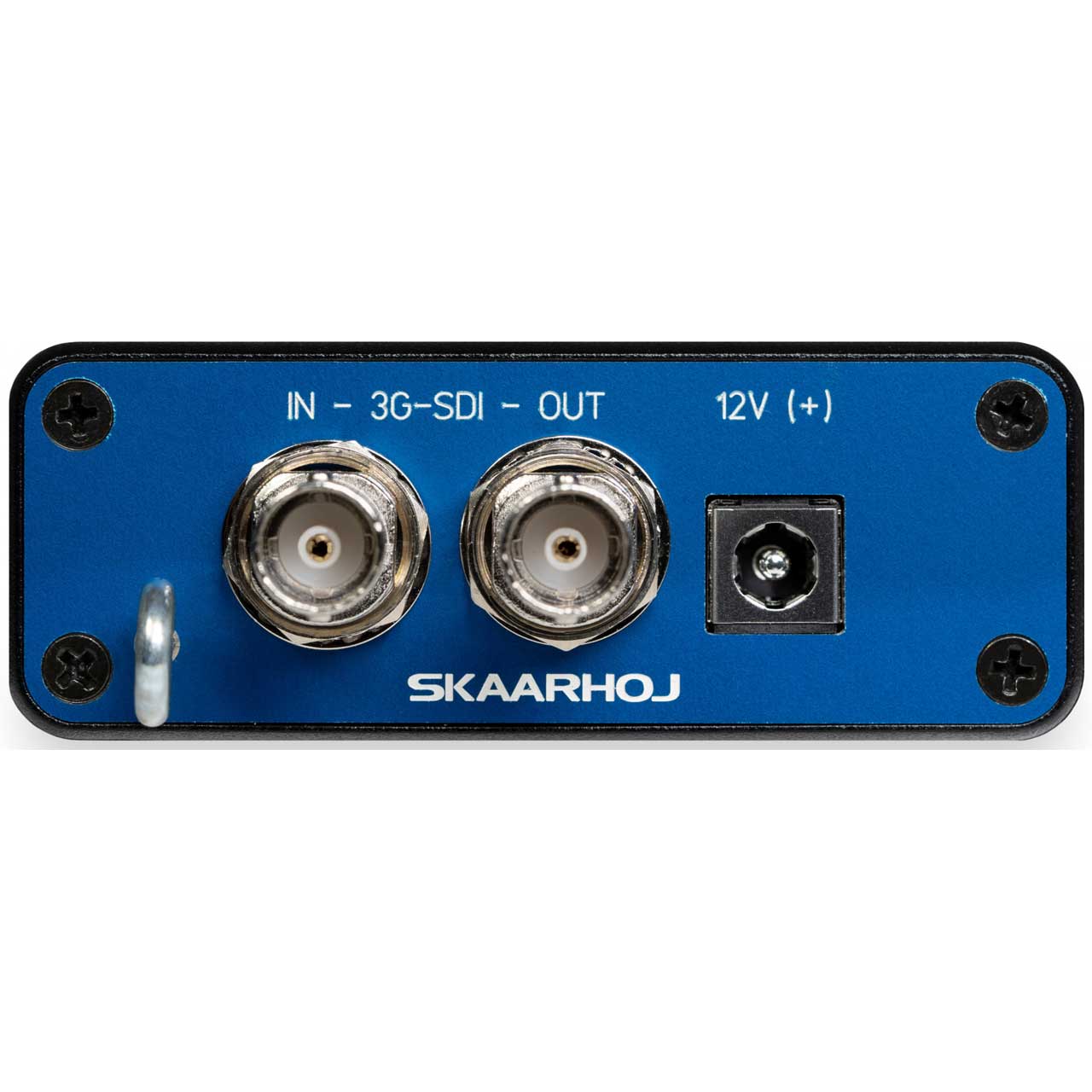

    The SDI-B4-LINK-V1 extracts iris information from 3G-SDI input signal according to Blackmagic Designs Camera Control Protocol. Outputs analog B4 lens iris control (Hirose- 12), tally LED and relay. Supports camera 1-10 by multi-position switch. SDI input passed through on SDI out.

    Completely self contained unit - runs independently. Durable enclosure with blue anodized aluminum plates.

    Camera Support
    The Blackmagic 3G-SDI Arduino Shield supports the following formats using SDI Level B: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50 (output only), 1080p59.94 (output only) and 1080p60 (output only), but the camera doesn't have to be running the same video format as the program input, so you can use cameras in Ultra HD while the camera protocol is sent over HD signal to the camera.

    • Features:

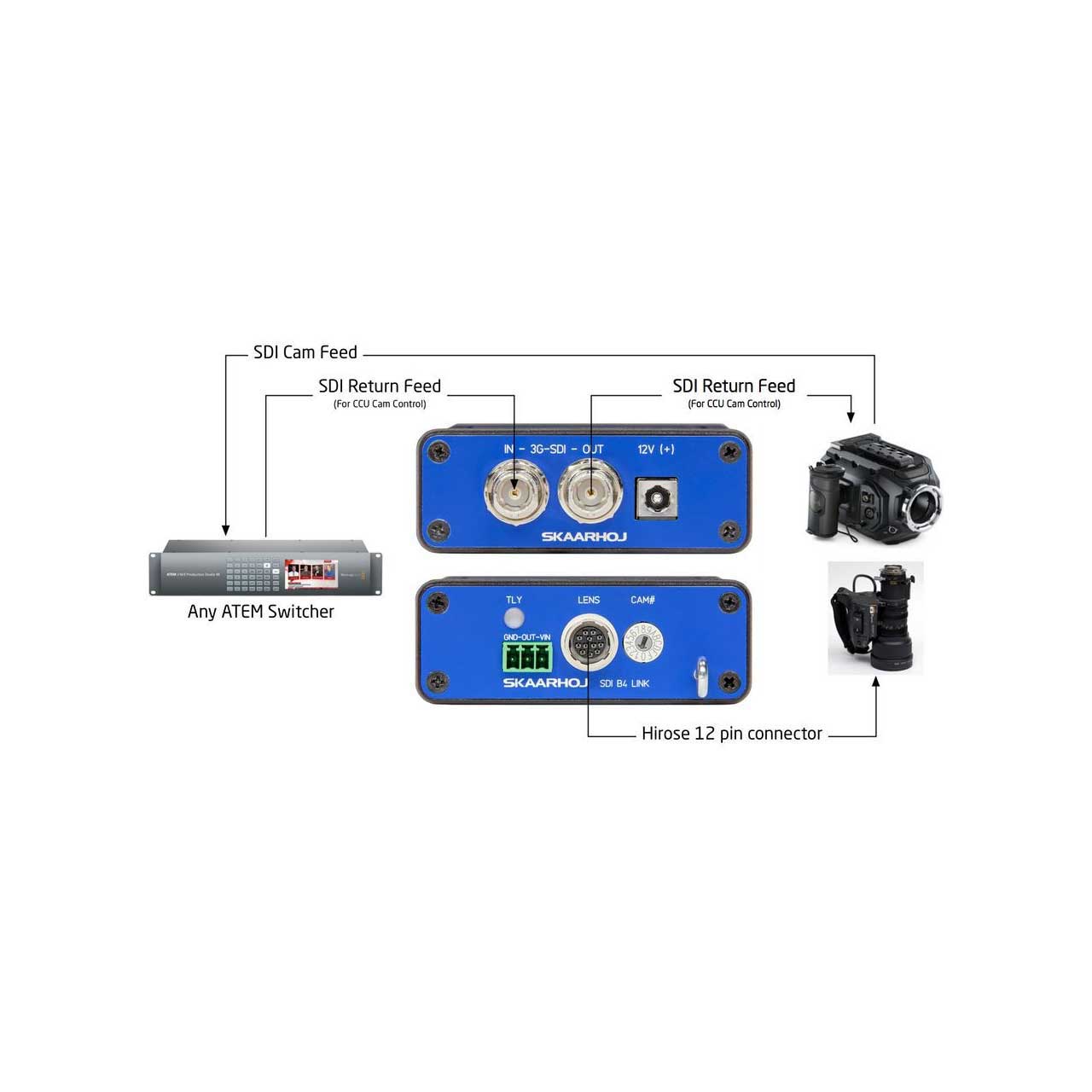

      • Principle for Setup

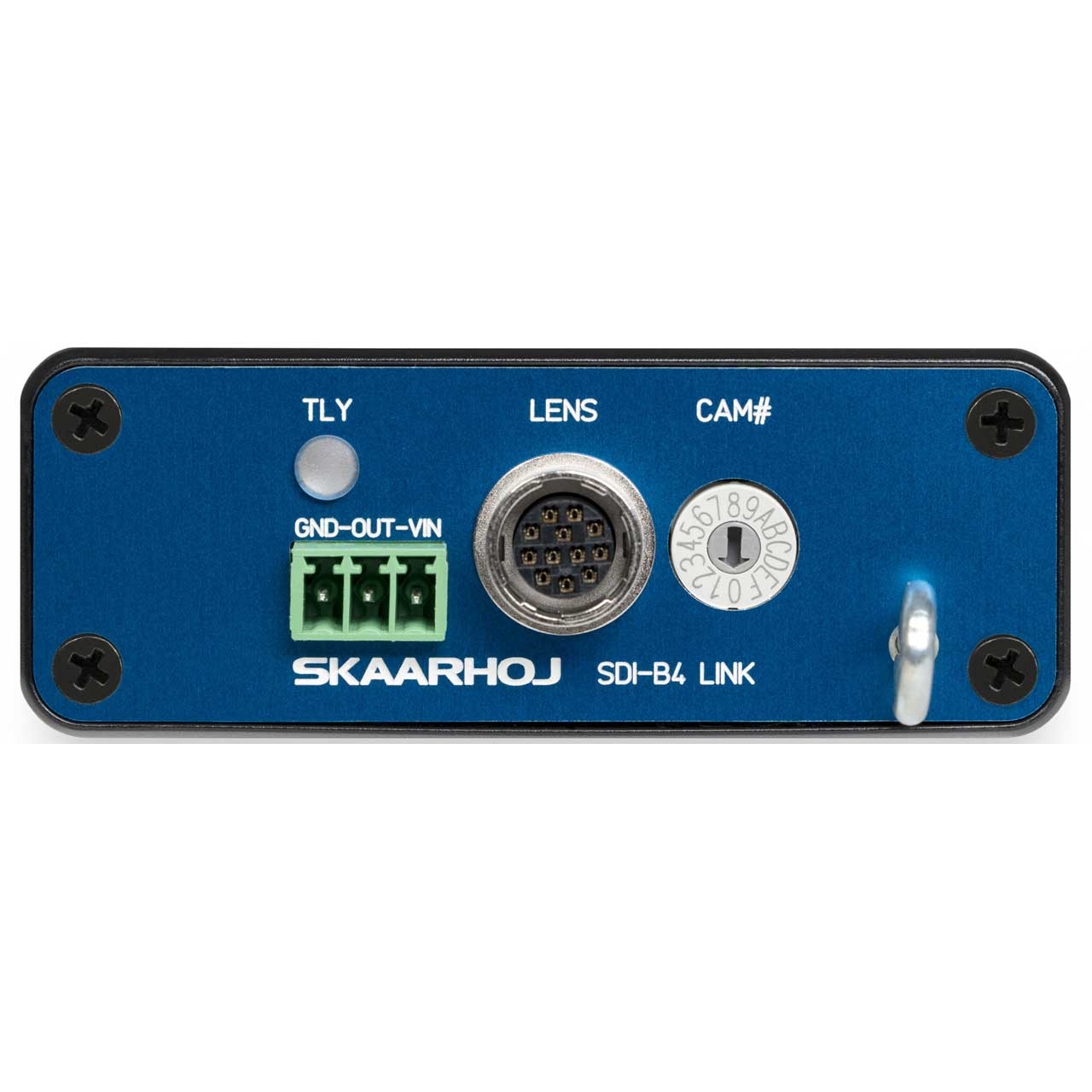

      • Control iris on analog B4 lens
      • Hirose 12-Pin connector
      • Tally on small LED
      • Selector switch
      • 3-pin phoenix connector
      • Test mode for iris and program tally
      • Iris lens calibration feature
      • Compatible with studio camera series and URSE Mini (+Pro)

    • Specifications:

      • Dimensions (LxWxH): 6.22 x 3.19 x 1.14" (158 x 81 x 29mm)
      • Weight: 0.57Lbs (0.258kg)

    • Item Includes:

      • 1x SDI-B4-LINK-V1
      • 1x 12V Power Supply (1.5m)
      • 1x USB Programming Cable (1m)
      • 1x Networking Cable (2m)

    • GTIN:

      5714074002444
