Sony SRG120DS 12x Desktop PTZ Camera with Silver Housing - SDI

ITEM #: SNY-SRG120DS MFG #: SRG-120DS

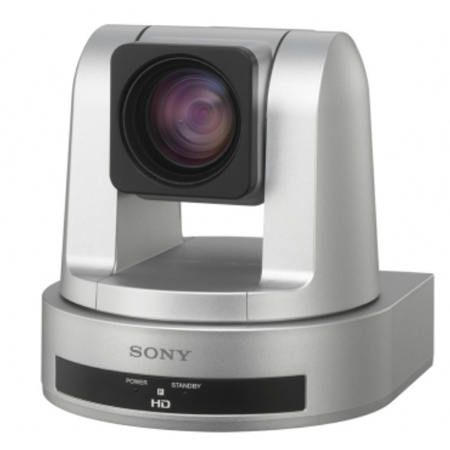

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SNY-SRG120DS

SRG-120DS - Overview

Desktop PTZ camera for corporate, educational and government applications, with 3G-SDI output and 12x optical zoom.
The SRG-120DS desktop PTZ camera captures high-quality color video images in corporate boardrooms, lecture theaters and training suites. Controlled remotely over standard IP networks, it's ideal for use as either a primary or secondary camera in a wide range of visual imaging applications, from videoconferencing to remote monitoring and education.

The inclusion of an 3G-SDI interface output supports longer cable lengths than HDMI, making the camera ideal for integration in large rooms.

The sensitive Exmor™ CMOS sensor assures detail-packed Full HD pictures with a high horizontal resolution. High frame rate operation at 60fps delivers more natural, blur-free reproduction of moving subjects.

Excellent low-light sensitivity (as low as 0.4 lx in High Sensitivity mode) makes the camera ideal for use in conditions of near-darkness. Unique to Sony, View-DR technology expands dynamic range for clear images under harsh backlighting with extremes of light and dark in the same scene. XDNR technology reduces image noise for crisp reproduction of still and moving objects in poorly-illuminated rooms, even when digital zoom is used.

The camera's wide field of view makes it easier to cover everyone in the room during videoconferences. Smooth, silent PTZ operation with 16 preset camera positions makes it quick and easy to re-frame shots without disturbing presenter or other audience members. 12x optical zoom is boosted further by 12x digital zoom for high-quality close-ups of subjects far from the camera - such as a lecturer on the other side of a large auditorium.

For extra flexibility, the camera can be controlled using VISCA command protocols over standard IP networks.

  • Features:

    • Full HD image quality with 60fps frame rate
    • Clearer pictures in any lighting conditions
    • Fast, quiet PTZ operation
    • Get closer with powerful 12x optical zoom
    • Wide 71-degree viewing angle
    • Versatile connectivity options
    • 3G-SDI video interface
    • 16 programmable presets

  • Specifications:

    • General
    • Image Device: 1/2.8-type Exmor CMOS
    • Effective Pixels: Approximately 2.1 megapixels
    • Lens:
    • 12x optical/12x digital zoom
      Focal Length - 3.9 mm (wide) to 46.8 mm (tele)
      F1.8 to 2.0
    • Minimum Object Distance: 10 mm (Wide) to 1500 mm (Tele)
    • Auto Exposure: Yes
    • Shutter Speed:
      1/1 to 1/10000 sec (59.94 Hz system)
      1/1 to 1/10000 sec (50 Hz system)
    • Gain: Auto/Manual (0 to +43 dB)
    • White Balance: Auto, Indoor, Outdoor, One-push auto, ATW, Manual
    • Pan Angle/Speed:
      Angle: +/- 100 degrees
      Speed: 300 degrees /sec.
    • Tilt Angle/Speed: Angle: +25 degrees / -25 degrees
    • Speed: 126 degrees / sec
    • Horizontal Viewing Angle: 71 degrees wide

      Digital Zoom
    • Digital Zoom: 12x
    • Preset Positions: 16
    • Focus System: Auto/Manual
    • Sync System: INT
    • Wide Dynamic Range: Yes (View-DR)

      Interface
    • Camera Control Interface: VISCA protocol with built-in IP control
    • Camera Control Interface: RJ-45 / RS-232C

      Video Output
    • Horizontal Resolution: 1,000 TV lines
    • Minimum Illumination: 1.8 lx (50 IRE, F1.8 30 fps)
    • S/N Ratio: 50 dB
    • Video Output: 3G-SDI
    • Signal System:
      1080/59.54p, 50p, 29.87p, 25p
      1080/59.94i, 50i
      720/59.94p, 50p, 29.97p, 25p

      Environmental
    • Dimensions (WxHxD): 153 x 156 x 153mm (6-1/8 x 6-1/4 x 6-1/8")
    • Weight: 1.6kg (3Lbs 8.4 oz)
    • Power Requirements: DC 12V (DC 10.8 to 13.2 V)
    • Power Consumption: 16.8 W
    • Operating Temperature: 0°C to 40° C (32°F to 104° F)
    • Storage Temperature: -20°C to 60°C (-4°F to + 140°F)

  • GTIN:

    0027242913462
