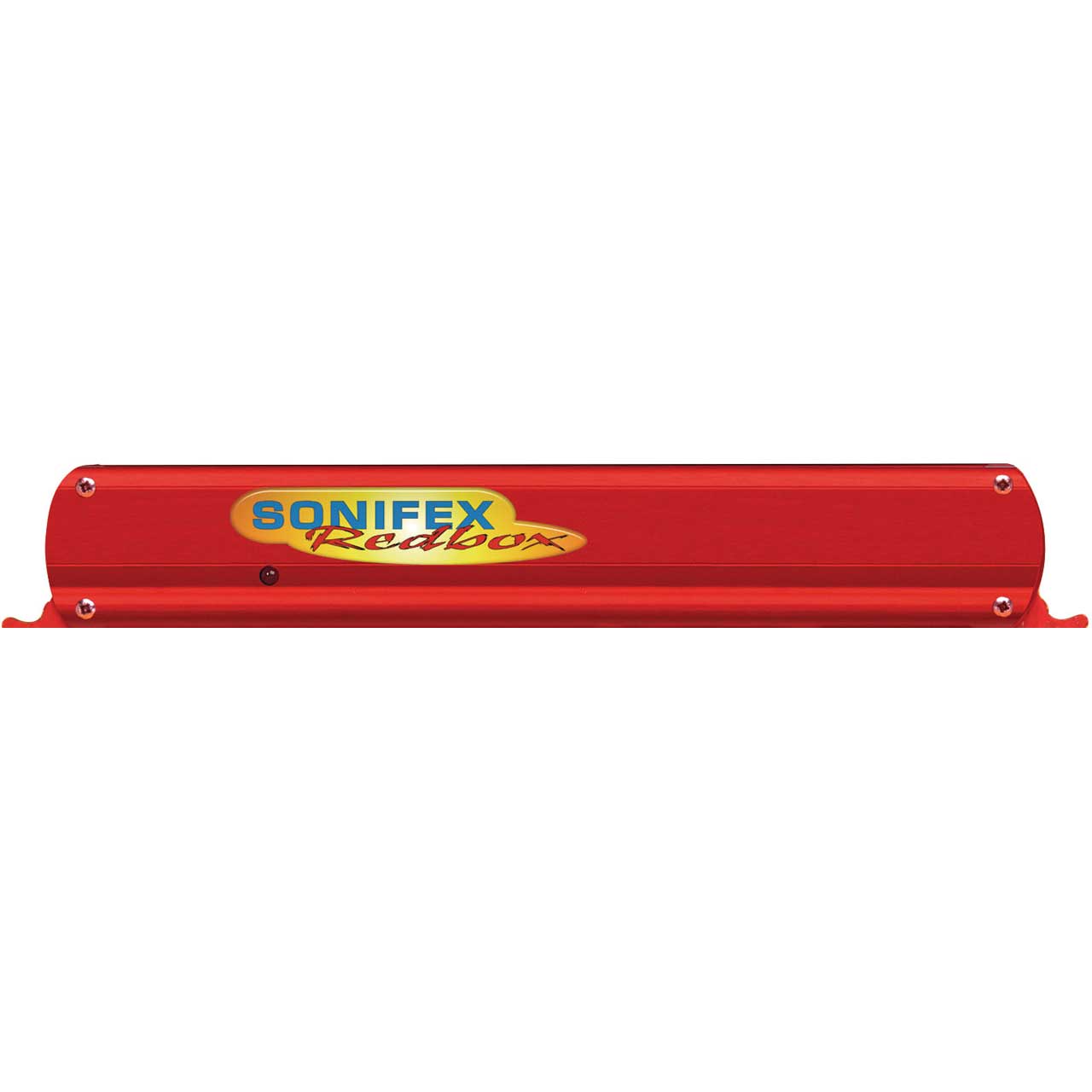

Sonifex RB-PA2 Dual Stereo RIAA Phono Amplifier

ITEM #: SON-RB-PA2 MFG #: RB-PA2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$518.82

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RB-PA2 - Overview

    The Sonifex RB-PA2 is a dual stereo RIAA equalised phono amplifier. This record player preamp amplifies the small signal from your pick up cartridge (either moving magnet or high output moving coil magnetic) and provides the necessary RIAA equalisation required for vinyl records, to match it to a line input of your mixer, or amplifier. It uses a clean RIAA response making it ideal for use with broadcast turntables and DJ decks and where vinyl records are being archived to CD for high quality transfers, or for converting albums to mp3.

    • Specifications:

      • Audio Specification
      • Input Impedance: >47kΩ
      • Input Sensitivity Range: 1mV to 31mV (ref 1kHz)
      • Maximum Output Level: +28dBu
      • Output Impedance: <50Ω
      • Output Gain Range: Adjustable 28dB to 60dB gain via 4 multi-turn pots
      • Crosstalk: Better than -80dBu at 1kHz
      • Frequency Response: 10Hz-15kHz (-3dB)
      • RIAA Accuracy: Within 0.5dB of RIAA curve
      • Distortion: 0.01% THD @ 1kHz, ref +8dBu output
      • Noise: -77dB (CCIR Q-Pk, 20Hz-20kHz)
      • Headroom: 27dB for 3mV input
      • Dynamic Range: 90dB

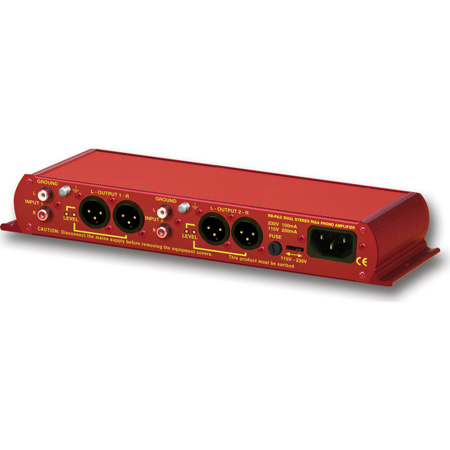

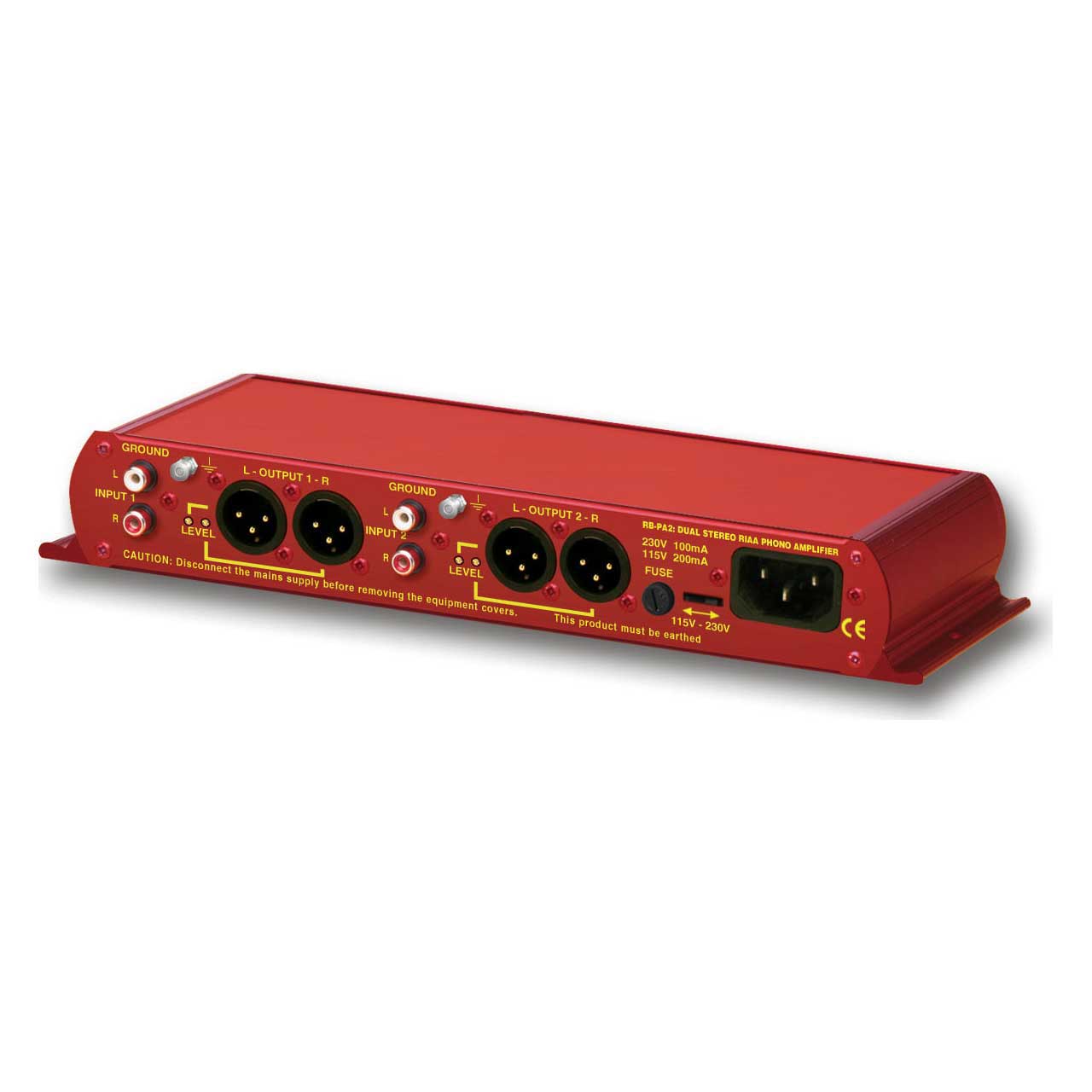

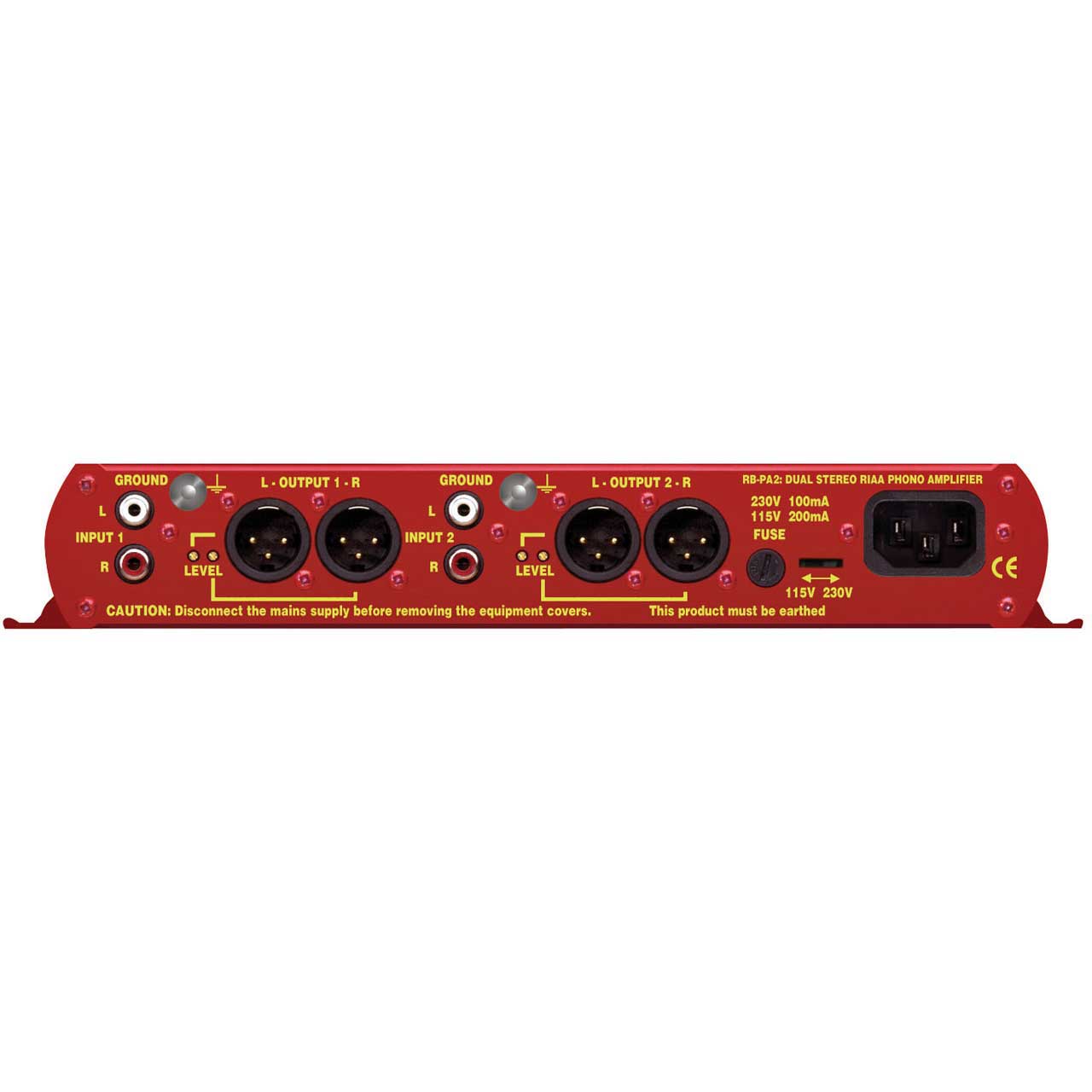

        Connections
      • Analog Inputs: 4 x RCA Phono sockets.
      • Analog Outputs: 4 x XLR 3 pin male (balanced) (L & R)
      • Earth Tag: Grounding turret tag
      • Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max.
      • Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC), Anti-surge fuse 250mA 20 x 5mm (115VAC)

        Equipment Type
      • RB-PA2: Dual stereo RIAA phono amplifier

        Physical Specification
      • Dimensions (Raw): 11" (W) x 4.3" (D) x 1.7" (H) (1U)
      • Dimensions (Boxed): 14.2" (W) x 8" (D) x 2.4" (H)
      • Weight: 2.4lbs Gross: 3.3lbs
