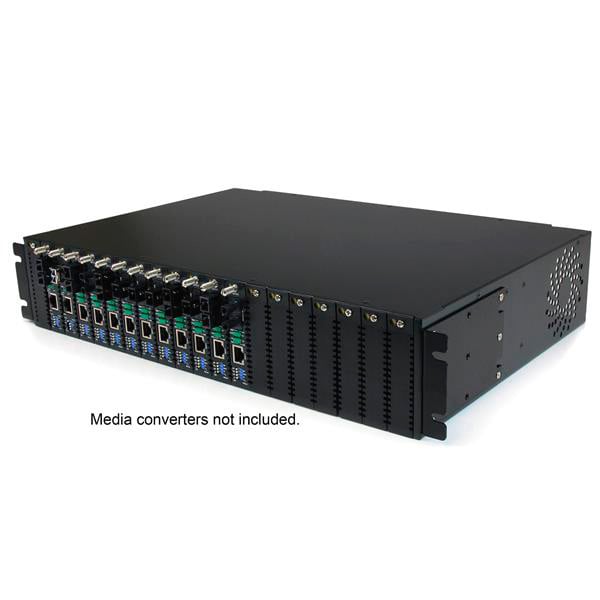

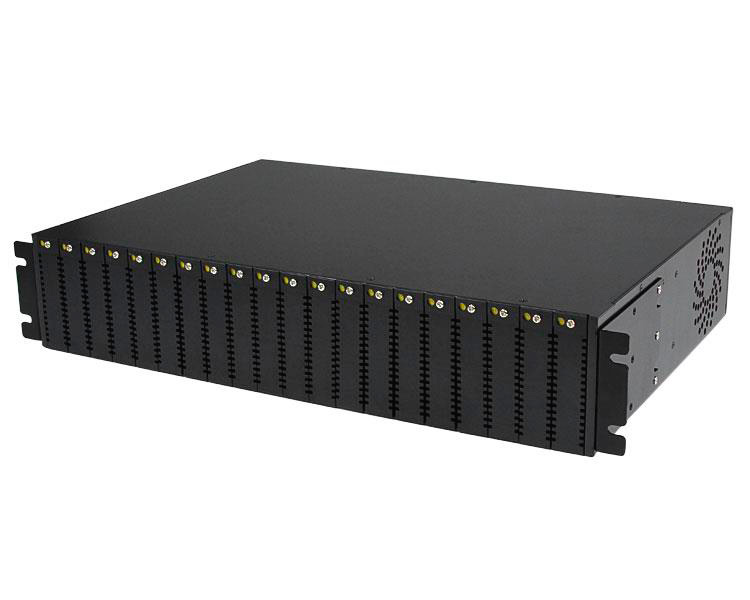

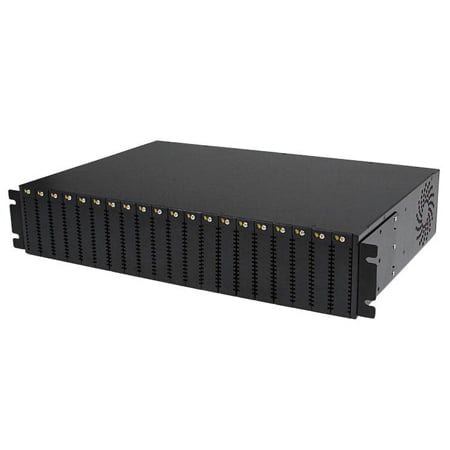

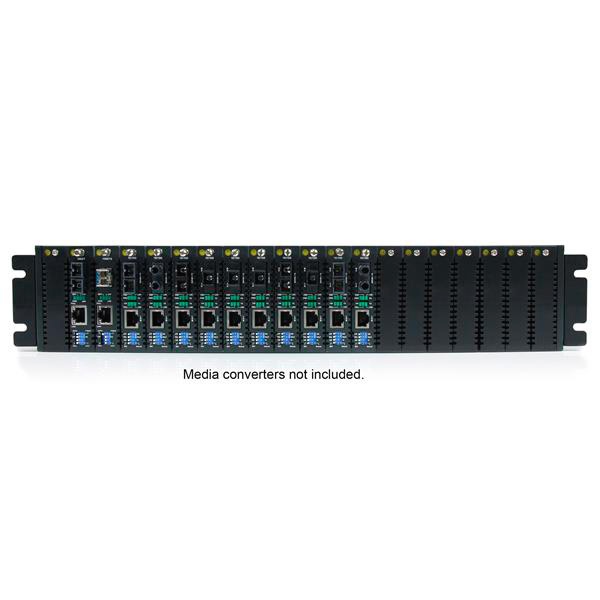

StarTech ETCHS2U 2RU 20-Slot Rack Mount Media Converter Chassis

ITEM #: ST-ETCHS2U MFG #: ETCHS2U

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$787.99

Our Price:

$748.60

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    ETCHS2U - Overview

    Add an un-managed, 20-slot media converter chassis to your rack or cabinet
    The StarTech ETCHS2U 20-Slot 2RU Rack Mount Media Converter Chassis for ET Series 2 Media Converters lets you add an un-managed, 20-slot media converter chassis to your rack or cabinet to provide central power and cooling.

    The media converter rack includes a single 200W power supply to centrally power all 20 slots, with an additional slot to add a redundant power supply (ETCHS2UPSU) for maximum up-time. It also includes two cooling fans (one per side) to help extend the life of your media converters.

    A perfect accessory to the StarTech ET series 2 converters, the 2U chassis is designed so that all critical components (Power, Fans and Media Converter Cards) are hot swappable to avoid network disruption.

    Applications
    Centrally mount and power up to 20 media converter units with a single chassis, while providing additional cooling and optional redundant power

    • Features:

      • 2RU 20-slot Media Converter Chassis with AC/DC power
      • Single 200W Power Supply included - redundant power supply(ETCHS2UPSU) also available - sold separately
      • 2 removable cooling fans included
      • All modules and cards support hot-swapping

    • Specifications:

      • Hardware
      • Height: 2RU
      • Frame Type: Open Frame
      • Mounting Options: Front Mount (Front Only)
      • Fan(s): Yes
      • Fans: 2 - 80 mm

        Performance
      • Air Flow Rate: 59.37 CFM
      • Noise Level: 44.5 dBA
      • MTBF: 65,000 Hours (25°C)

        Physical Characteristics
      • Color: Black
      • Enclosure Type: Steel
      • Enclosure Thickness: 0 in [1 mm]
      • Product Length: 15.5 in [394 mm]
      • Product Width: 20.4 in [517 mm]
      • Product Height: 6.5 in [164 mm]
      • Product Weight: 13.4 lb [6.1 kg]

        Power
      • Input Voltage: 110 ~ 240 AC
      • Input Current: 2.2 A
      • Output Voltage: 12 DC
      • Output Current: 16.6 A
      • Power Consumption: 60W (fully loaded, with mixed card types)

        Environmental
      • Operating Temperature: 32°F to 140°F
      • Storage Temperature: 14°F to 158°F
      • Humidity: 5~90% RH Non-condensing

    • Item Includes:

      • 1 - 2U Media Converter Chassis

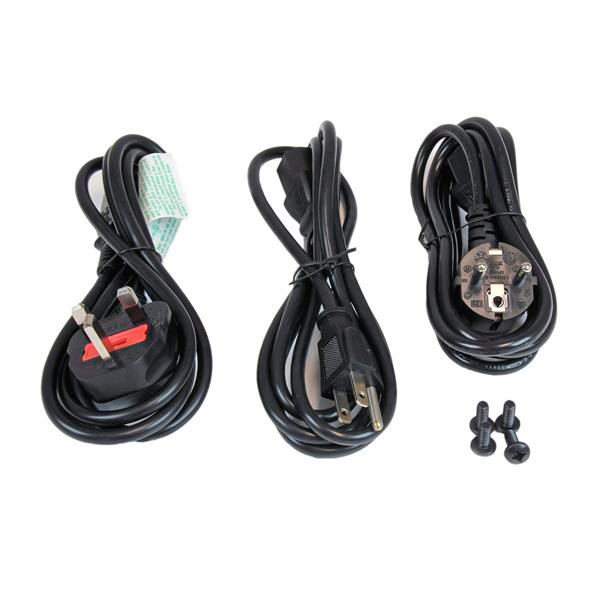

      • 3 - Power Cords (NA/EU/UK)
      • 1 - Instruction Manual

    • Warranty:

      • 3-year warranty and free lifetime technical support

    • GTIN:

      0065030848275
