Studio Technologies DPL-KIT-02 Party-Line Intercom Kit w/ 1 x Model 5421 Dante Intercom Audio + 4 x Model 373A Beltpacks


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    DPL-KIT-02 - Overview

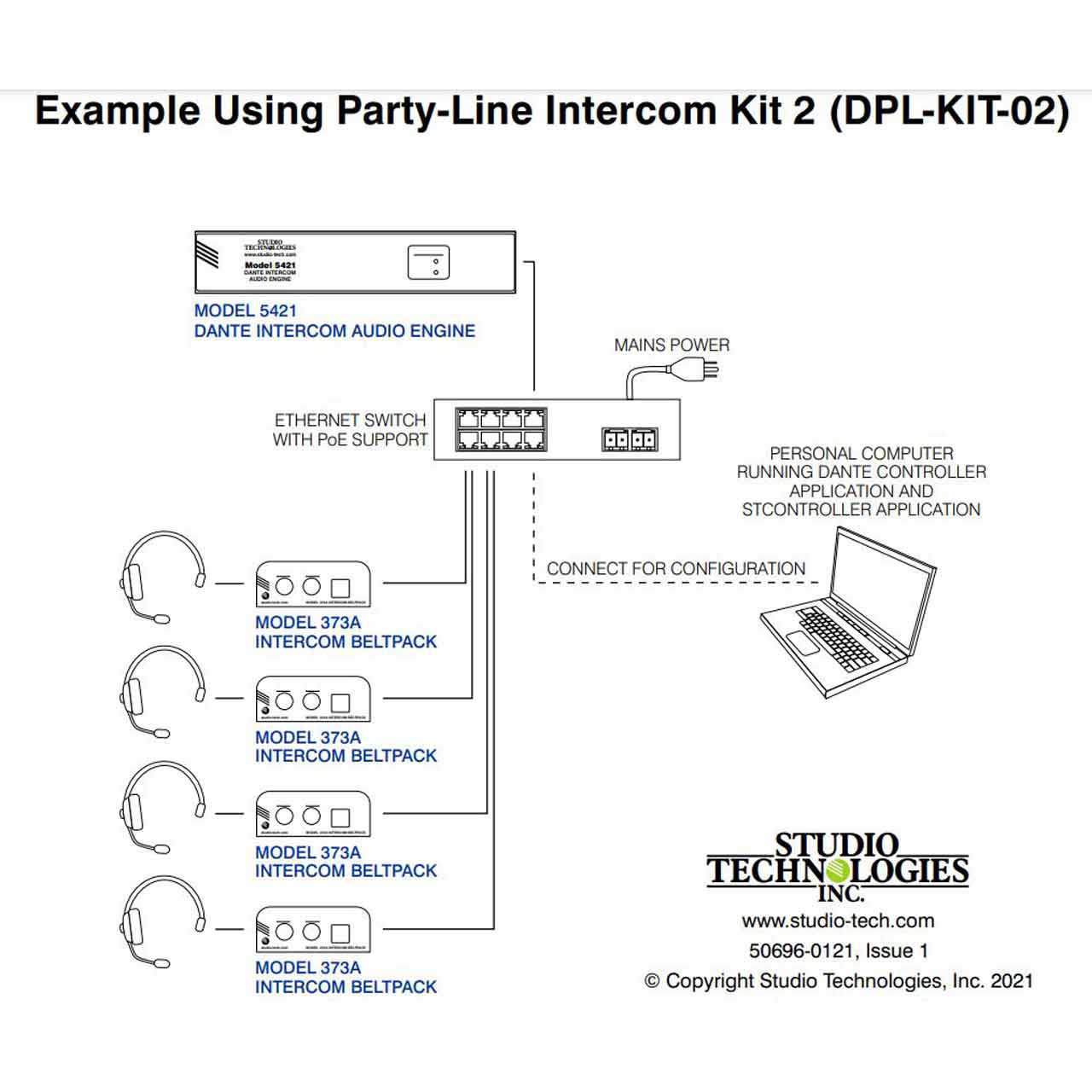

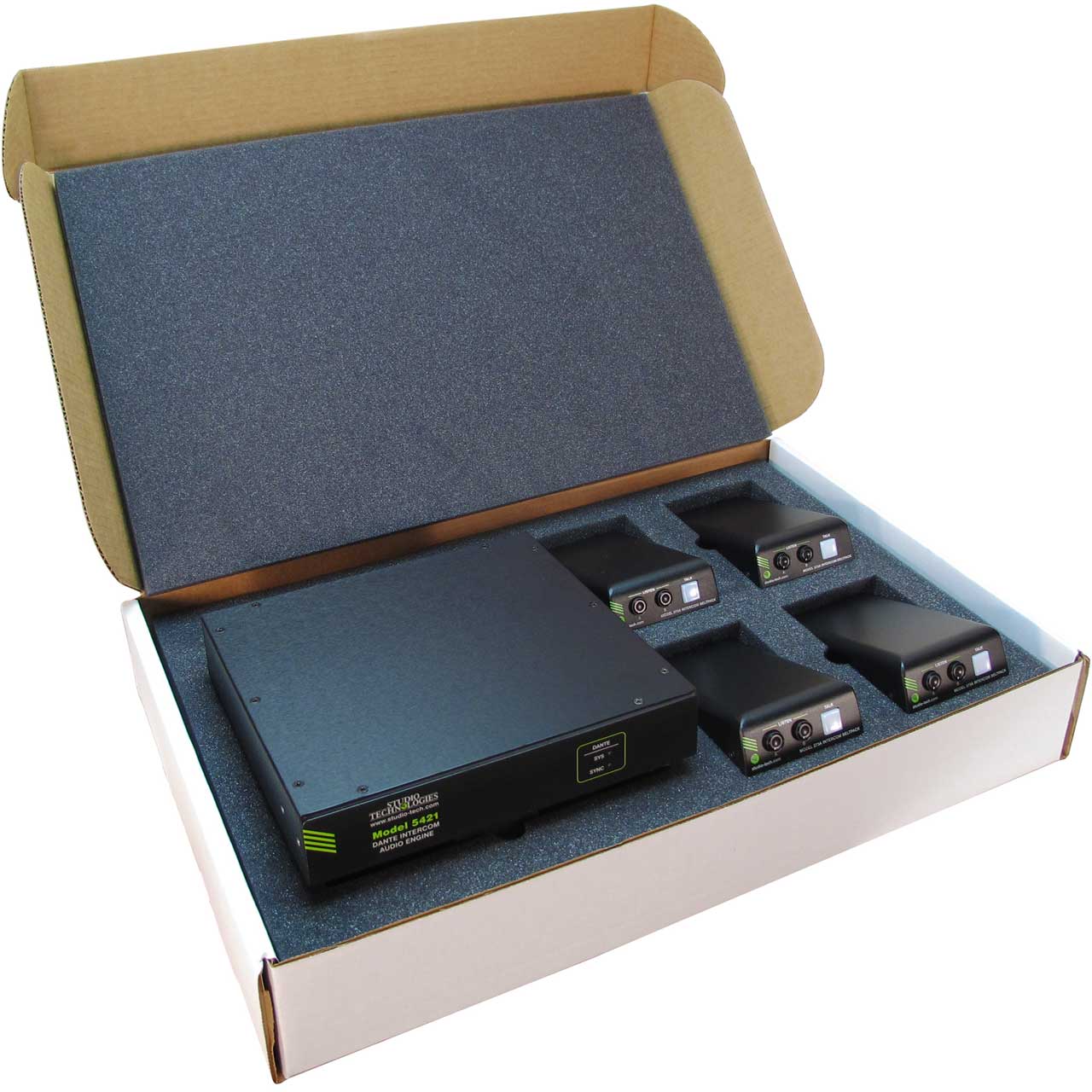

    Party-Line Intercom Kit 2 consists on one Model 5421 Dante Intercom Audio Engine and four Model 373A Intercom Beltpack units. Packed in a single carton, this kit is a simple and cost-effect way to implement a basic single-channel party-line (PL) intercom system. Requires Ethernet local area network (LAN) with Power-over-Ethernet (PoE) ports and headsets to enable (not included).

    Model 5421
    The Model 5421 Dante® Intercom Audio Engine is a high-performance, cost-effective, flexible solution for creating party-line (PL) intercom circuits. It's directly compatible with the Studio Technologies' range of 1-, 2-, and 4-channel Dante-enabled beltpacks and other interface-related products. The unit is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, and entertainment applications.

    Model 373A
    The Model 373A Intercom Beltpack is a highly compact user-worn device that combines a single channel of talk and two channels of listen. The unit begins with the features offered by traditional analog party-line (PL) intercom user devices and adds a range of new capabilities, along with the advanced performance and flexibility that Danter audio-over-Ethernet provides. Over a standard IP network, multiple Model 373A and other compatible Studio Technologies' beltpack units can be used to create party-line intercom applications with help from an external Dante-enabled audio matrix such as the Studio Technologies' Model 5422 Dante Intercom Audio Engine. Alternately, Model 373A units can be used "point-to-point" or interfaced with Dante-compatible matrix intercom systems.

    • Features:

      • Model 5421
      • 16-channel audio engine creates multiple virtual party-line (PL) intercom circuits
      • Dante audio-over-Ethernet technology
      • Auto Mix for enhanced audio performance
      • Supports Studio Technologies' intercom beltpacks
      • DDM support and AES67 compliant
      • PoE powered, Gigabit Ethernet interface
      • Configured using STcontroller application
      • Tabletop, portable, or optional rack-mount installation
        Model 373A
      • Dante audio-over-Ethernet technology
      • One talk and two listen channels
      • Supports dynamic and electret microphones
      • 4-pin male XLR headset connector
      • 3.5 mm 4-conductor TRRS headset connector
      • Call receive and display function
      • Excellent audio quality
      • Uses STcontroller for configuration
      • AES67 and Dante Domain Manager (DDM) support
      • Power-over-Ethernet (PoE) powered
    • Specifications:

      • Model 5421
      • Applications: designed to create from one to four virtual party-line (PL) circuits in Dante
        audio-over-Ethernet environments

        Engine Group Options:
      • 16 (one group)
      • 12, 4 (two groups)
      • 8, 8 (two groups)
      • 8, 4, 4 (three groups)
      • 4, 4, 4, 4 (four groups)

        Audio Performance:
      • Internal Digital Audio Processing: 24-bit, fixed
      • Input-to-Output Audio Processing Latency: <100 uSec
      • Auto Mix: sophisticated FPGA-based algorithm provides enhanced party-line (PL) audio intelligibility (selectable on or off)

        Network Audio Technology:
      • Type: Dante audio-over-Ethernet (also known as Dante audio-over-IP)
      • AES67-2018 Support: yes
      • Dante Domain Manager (DDM) Support: yes
      • Clock Source: Dante network or internal (can serve as leader clock)
      • Bit Depth: 16, 24, or 32
      • Sample Rate: 48 kHz
      • Number of Dante Receiver (Input) Channels: 16
      • Number of Dante Transmitter (Output) Channels: 16
      • Number of Dante Flows: 16 receiver, 16 transmitter

        Network Interface:
      • Type: 1000BASE-T (Gigabit, GigE, or GbE) per IEEE 802.3ab, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
      • Data Rate: 1000 Mb/s (10 Mb/s not supported; 100 Mb/s supported but not optimal)
      • Auto MDI/MDI-X Support: yes
      • NIC Status LEDs: one link and one activity

        Power Source:
      • Power-over-Ethernet (PoE): class 2 (low power, =6.49 watts) per IEEEr 802.3af

        Configuration: requires Studio Technologies' STcontroller software application, version 2.06.00 and later

      • Ethernet: 1, RJ45

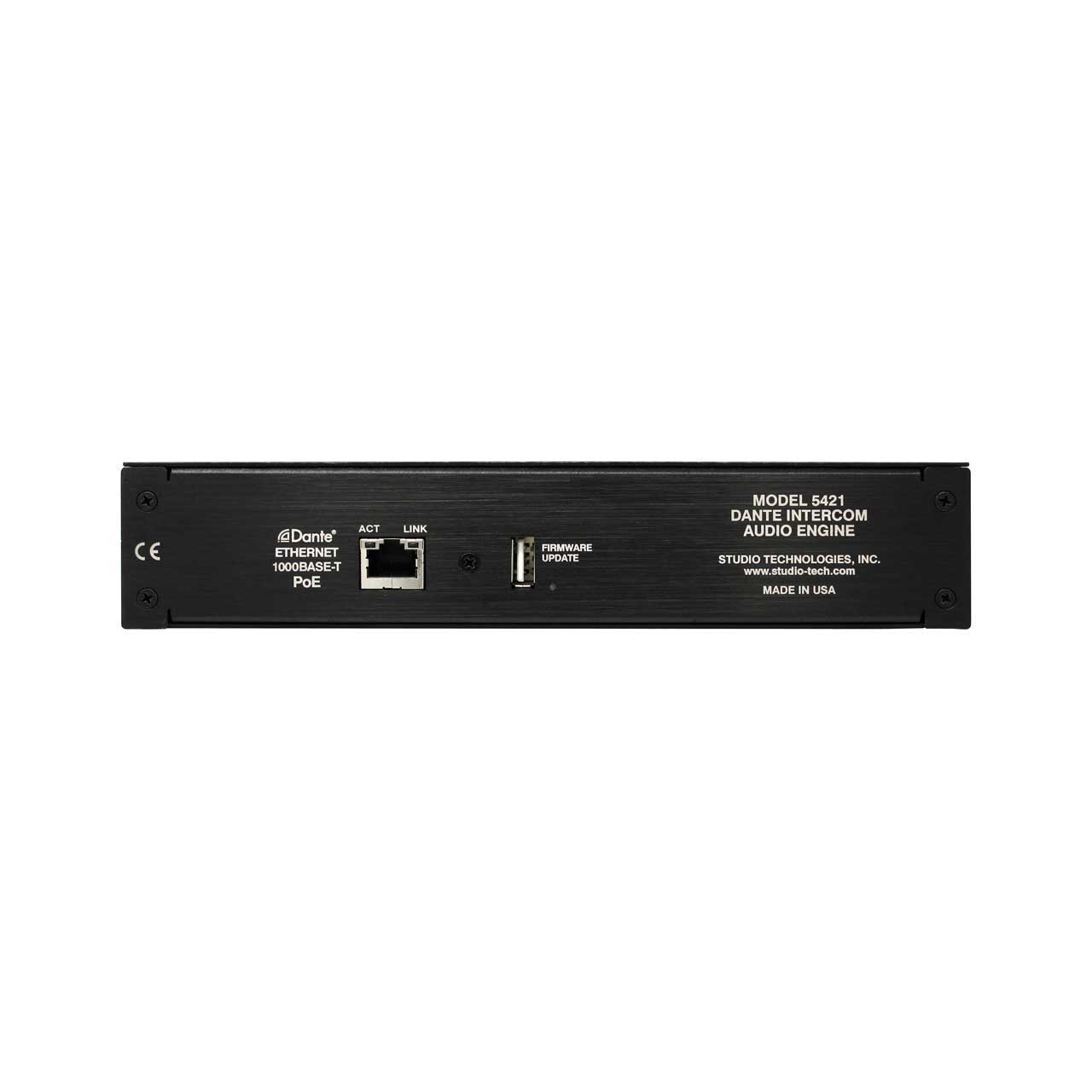

      • USB: type A receptacle (used only for updating application and FPGA firmware)

        Software Updating: USB flash drive used for updating application and FPGA firmware; Dante Controller or Dante
        Firmware Update Manager applications can be used for updating Dante interface firmware

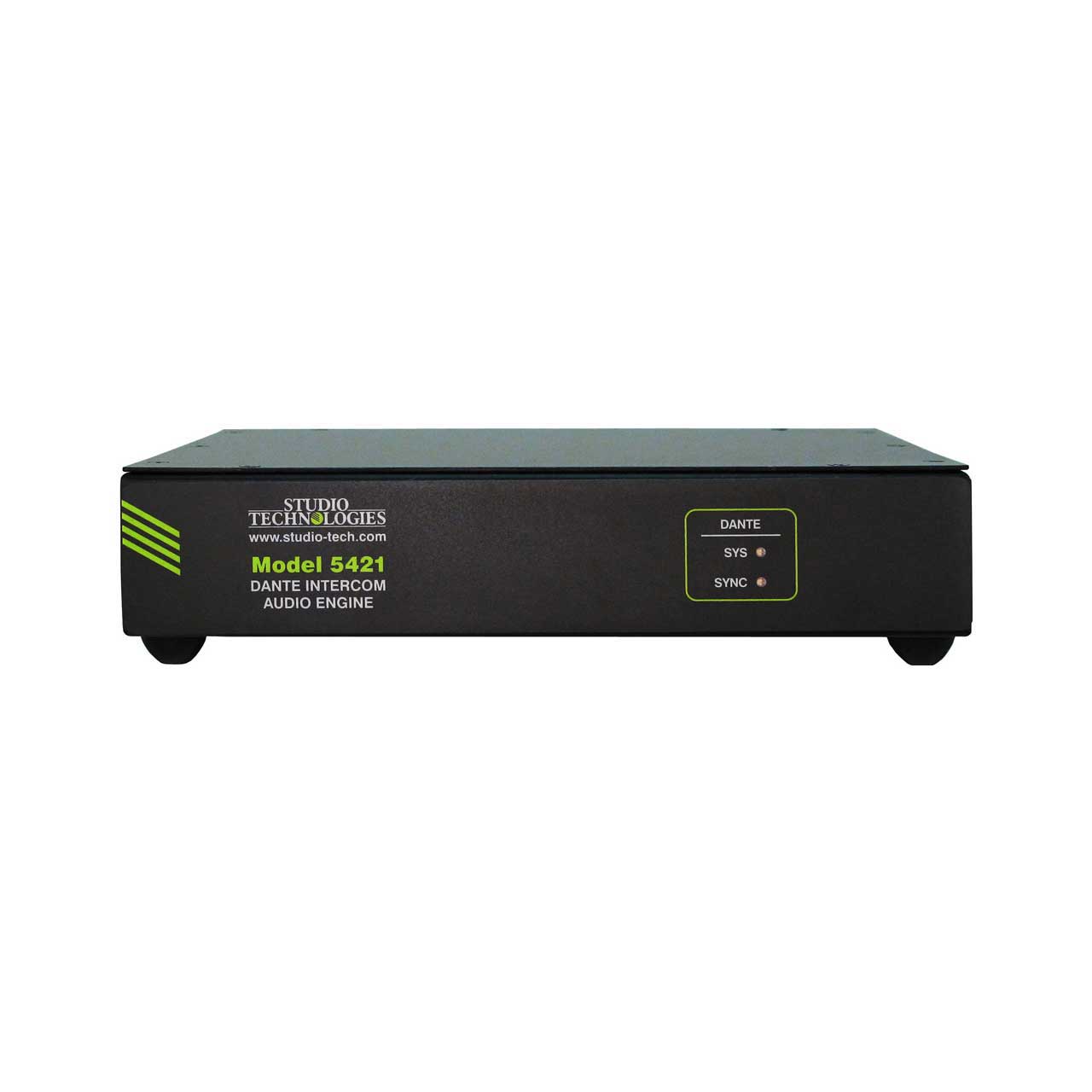

        Front Panel LEDs: 2, dual-color
      • Functions: provides indication of status of Dante connectivity

      • Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
      • Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F)
      • Humidity: 0 to 95%, non-condensing
      • Altitude: not characterized

        Dimensions - Overall:
      • 8.7 inches wide (22.1 cm)
      • 1.72 inches high (4.4 cm)
      • 8.3 inches deep (21.1 cm)

        Model 373A
      • Power Source:
      • Power-over-Ethernet (PoE): class 1 (very low power, =3.84 watts) per IEEEr 802.3af

        Network Audio Technology:
      • Type: Dante audio-over-Ethernet
      • AES67-2013 Support: yes
      • Dante Domain Manager (DDM) Support: yes
      • Bit Depth: up to 24
      • Sample Rate: 48 kHz
      • Number of Transmitter (Output) Channels: 1
      • Number of Receiver (Input) Channels: 2
      • Dante Audio Flows: 4; 2 transmitter, 2 receiver

        Network Interface:
      • Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
      • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)
      • Compatibility - Headset A: monaural single- or dual-ear broadcast-style with dynamic or electret (low-voltage DC-powered)
        microphone: pin 1 mic -/shield/screen; pin 2 mic +; pin 3 phones -; pin 4 phones +
      • Compatibility - Headset B: CTIA/AHJ configuration (typically uses electret powered mic): tip phones left; ring 1 phones
        right; ring 2 common; sleeve mic
      • Audio Channels: 1 talk, 2 listen

        Microphone Input:
      • Compatibility: dynamic or electret (low-voltage DC-powered) microphones
      • Type: unbalanced
      • Electret Microphone Power: 3.3 volts DC via 2.00 k resistor, selectable on/off
      • Impedance: 1 k ohms, nominal, microphone power off; 690 ohms, nominal, microphone power on
      • Gain: 24, 30, 36, 42, or 48 dB, selectable, ref. -60 dBu input to Dante output (-20 dBFS nominal)
      • Frequency Response: 40 Hz to 20 kHz, -3 dB
      • Distortion (THD+N): <0.02% (at minimum gain)
      • Dynamic Range: 91 dB of dynamic range
    • Item Includes:

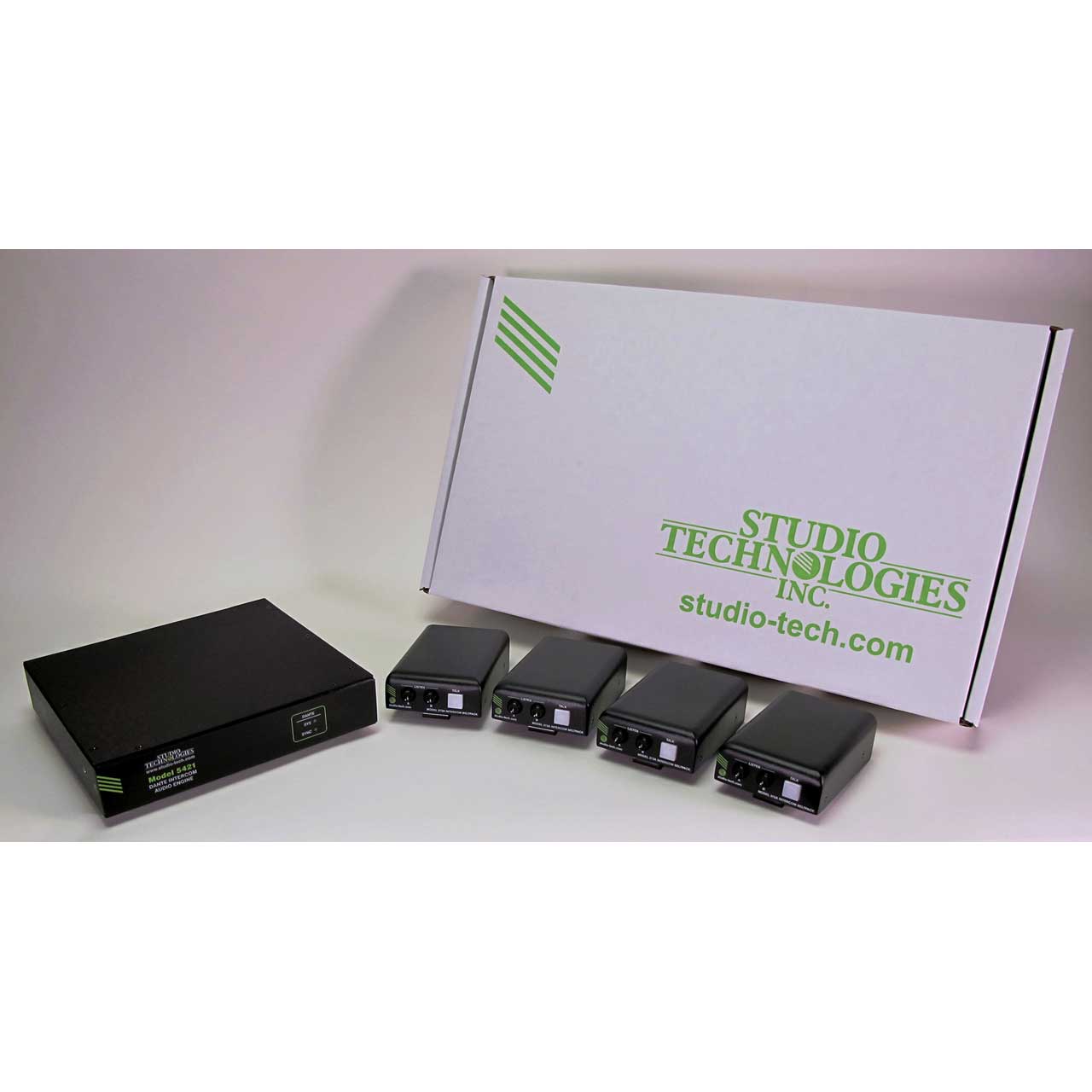

      • 1x Model 5421 Dante Intercom Audio Engine
      • 4x Model 373A Intercom Beltpacks

    DPL-KIT-02 - Required Accessories
