Studio Technologies Model 211 Announcers Console

Item #: STCH-M211   •   MFG #: M211




Our Price:$735.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

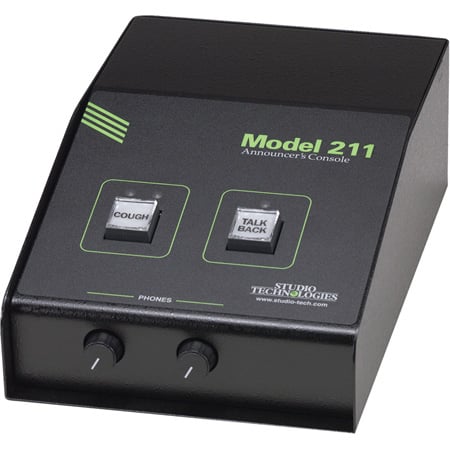

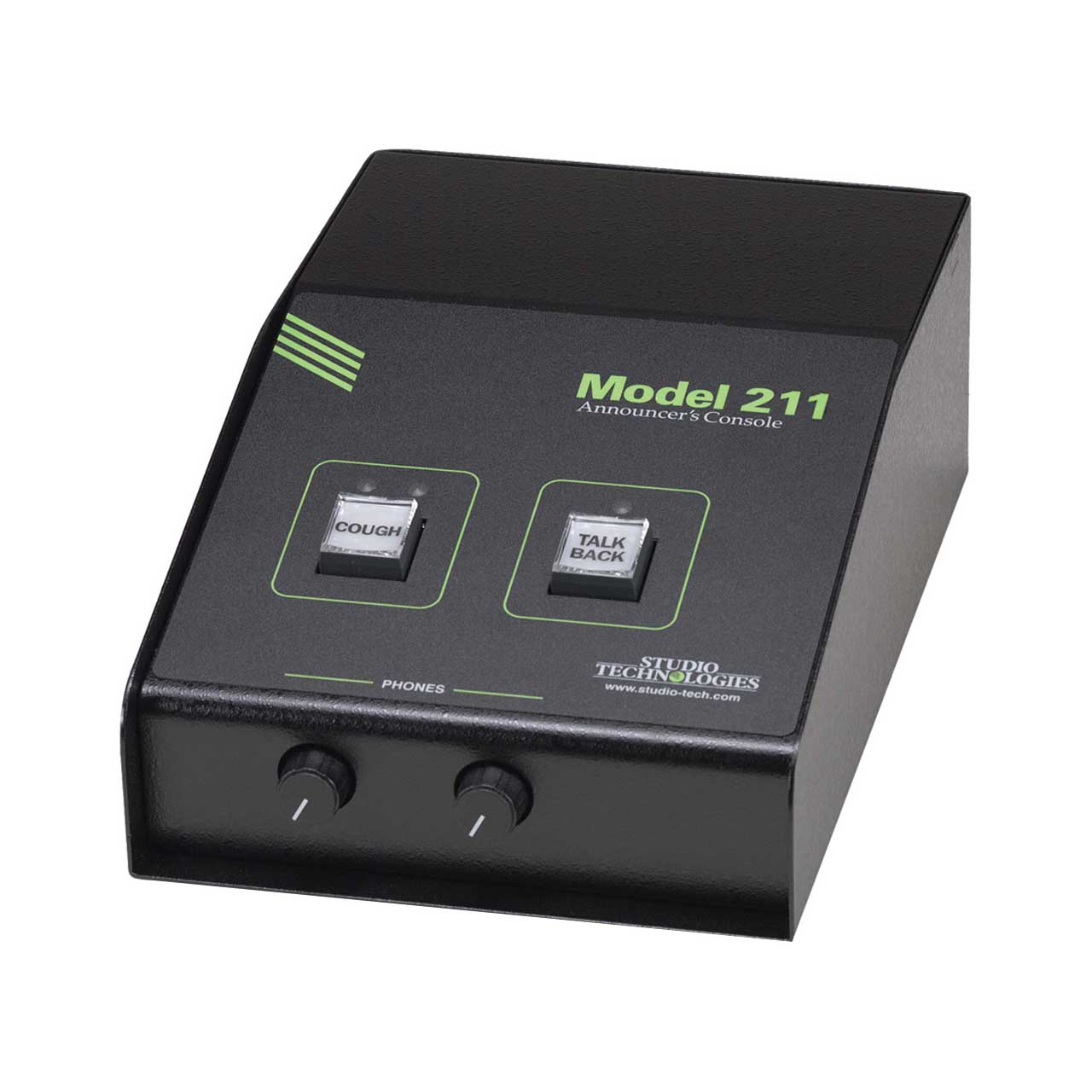

    The Studio Technologies Model 211 Announcer's Console is designed to serve as the audio control center for announcers, commentators, and production talent. The tabletop unit is suited for numerous applications including on-air television sports broadcasting. The Model 211 integrates all on-air, talkback, and cue audio signal routing into one compact system. Ease of use, configuration flexibility, and sonic excellence are some of the unit's highlights.

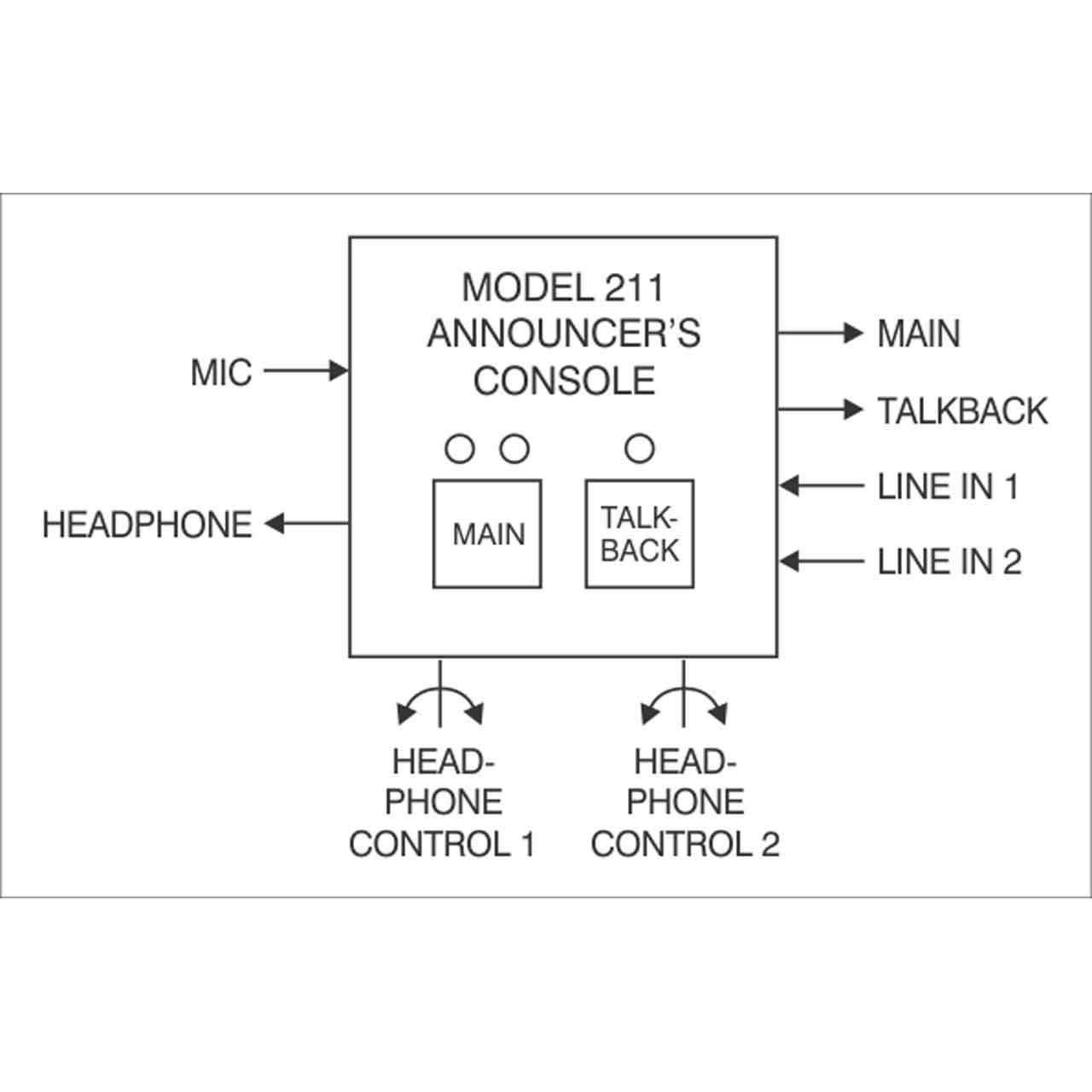

    The Model 211 is compatible with many broadcast and audio system environments. Standard connectors are used to interface microphone, headphone, talkback, and talent cue signals. Whether it's microphone switching, talkback output, or headphone cue feed, superior audio quality is maintained. A microprocessor provides the Model 211's logic power, allowing exacting control of the unit's operation. A range of configuration choices allow the desired operating parameters to be easily selected. While flexible, the user is presented with an easy-to-use set of controls and indicators.

    A truly next-generation product, extensive research into the needs and desires of field production personnel was integral to the Model 211's creation. Target applications include on-air television, radio, streaming, and production applications. Specialized features are included to allow the Model 211 to be used in a variety of other audio applications. These include stadium announcement and voice-over/narration booths.


    • Features

      • Microphone preamp with selectable gain and P48 phantom power
      • Two line-level inputs
      • Two pushbutton switches offer programmable "click-free" audio path control
      • Transformer-balanced main output
      • Transformer-coupled line-level talkback output
      • Stereo headphone monitoring
      • Auxiliary relay contacts
      • Powered by external DC source

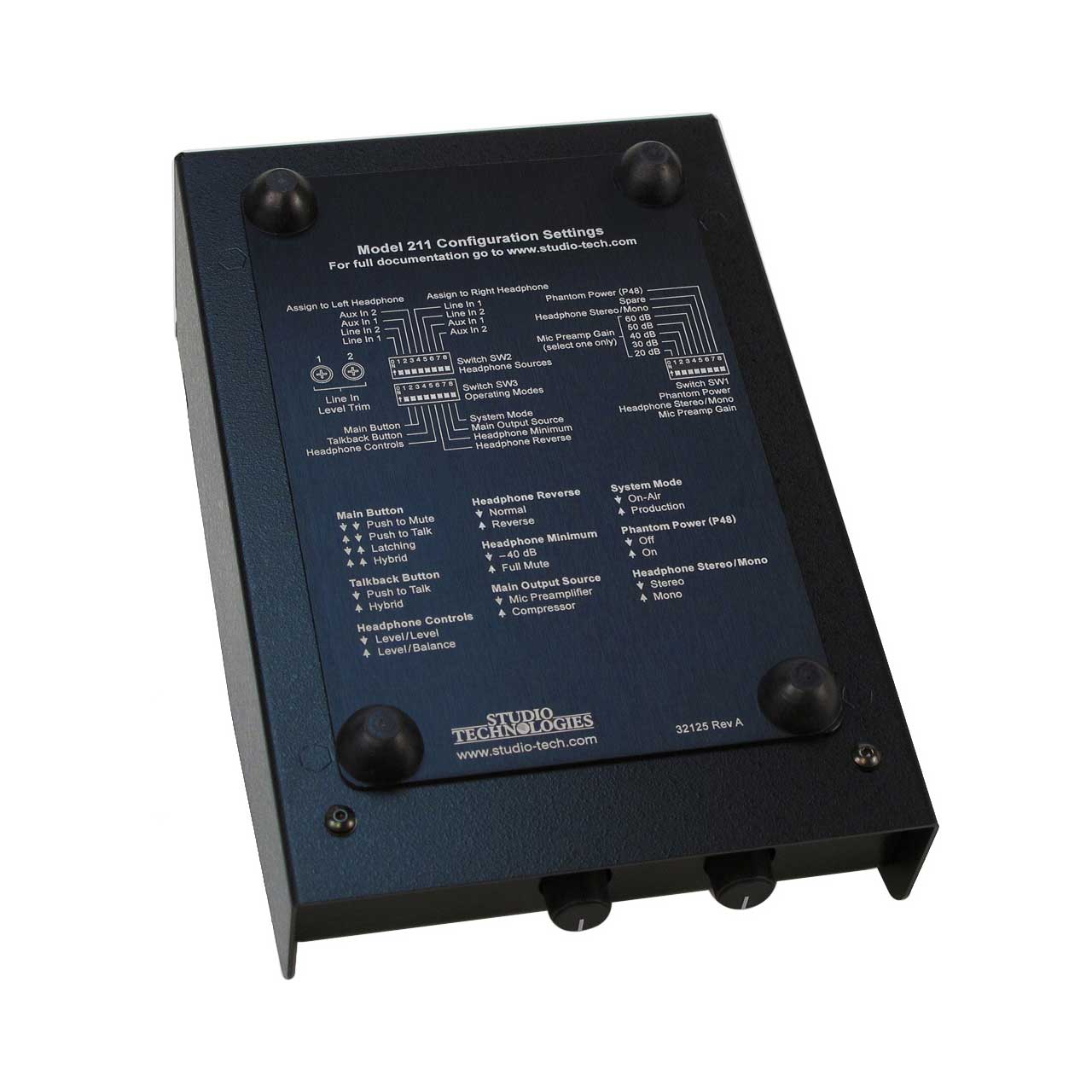

      • Extensive configuration choices accessible via DIP switches located on bottom of enclosure

    • Specifications

      • General Audio:
      • Frequency Response: 10 Hz-20 kHz, ±;0.2 dB, mic in/main out
      • Distortion (THD+N): 0.008%, measured at 1 kHz, mic in/main out
      • S/N Ratio: 86 dB, referenced to -42 dBu mic in/-2 dBu main out
      • Dynamic Range (A-weighted): 108 dB

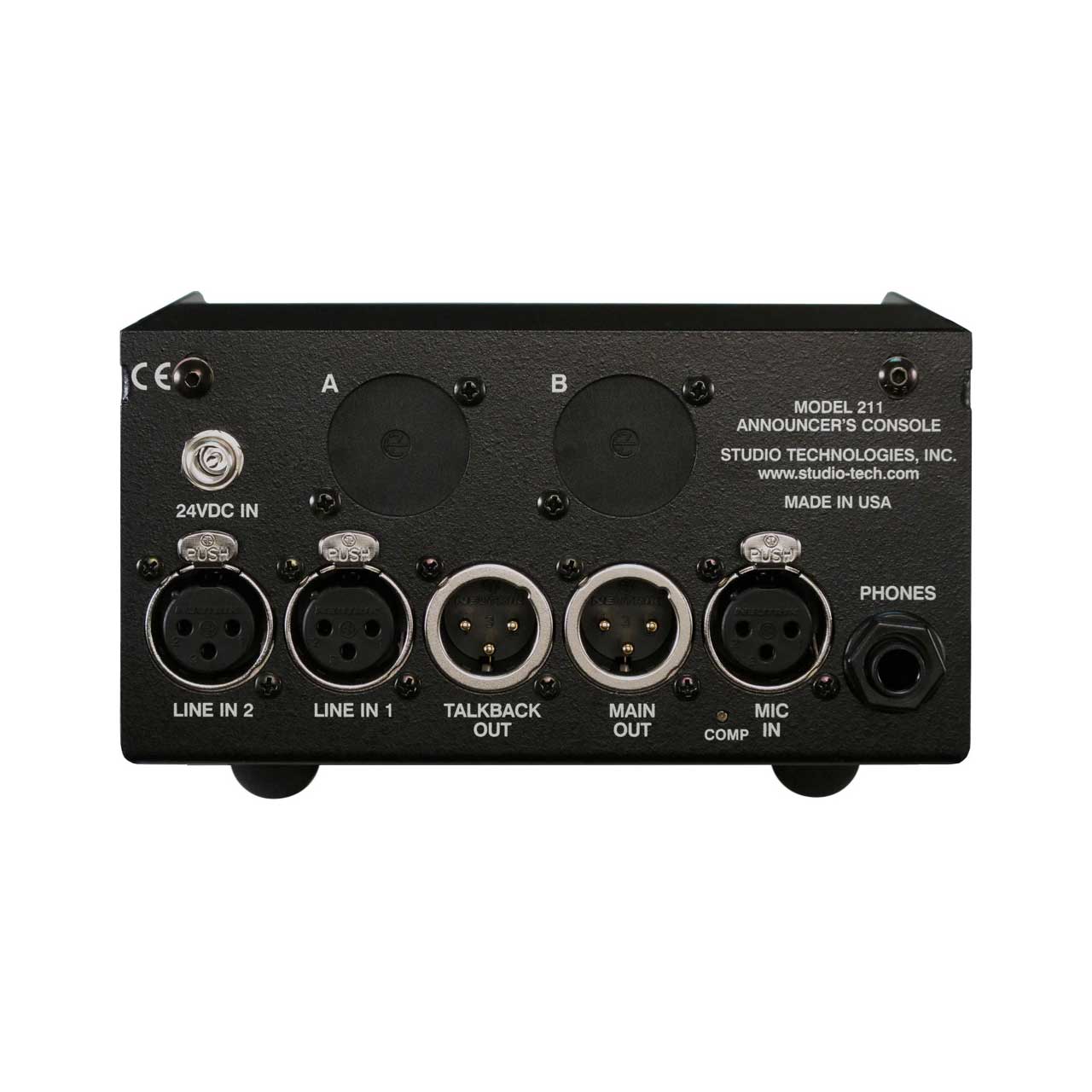

        Connectors:
      • Mic In, Line In 1 & 2: 3-pin female XLR
      • Main Out, Talkback Out: 3-pin male XLR
      • Headphone Out: 1/4-inch 3-conductor phone jack
      • 24 Vdc Power In: coaxial power jack, 2.1 x 5.5 mm, locking bushing, compatible with Switchcraft S760K plug
      • Spare Connector Locations: 2 Allows one or two Neutrik NC*D-L-1 connectors to be installed (*=3F, 3M, 5F, 5M, 6F, 6FS, etc.)

        Microphone Input/Preamplifier:
      • Type: electronically balanced
      • Input Impedance: 2 k ohms, nominal
      • CMRR: >80 dB, 20 Hz-20 kHz, 40 dB gain
      • Gain Range: 20 to 60 dB, nominal, adjustable in 10 dB steps; 0 dB (no gain) also available
      • Compatibility: dynamic or phantom-powered mics
      • Phantom Power: 45 volts DC nominal, meets IEC 61938 P48 standard

        Line Inputs: 2
      • Type: balanced, transformer-coupled
      • Impedance: 10 k ohms
      • Nominal Level: -12 dBV to +6 dBu, adjustable

        2-Channel Auxiliary Input:
      • Implementation: optional IFB Input Card Kit (Studio Technologies order code 31212) can be installed into back panel
      • Type: 2-channel, unbalanced, transformer-coupled
      • Impedance: 10 k ohms, nominal
      • Nominal Level: -10 dBu

        Compressor:
      • Threshold: 2 dB above nominal level
      • Attack/Release Time: 2 mSec/100 mSec, nominal
      • Slope: 5:1, nominal
      • Status LED: compressor active

        Main Output:
      • Type: balanced, transformer-coupled
      • Nominal Level: -2 dBu
      • Maximum Level: +20 dBu into 2 k ohms
      • Impedance: 100 ohms, nominal
      • Source: output of microphone preamplifier or output of compressor, selectable

        Talkback Output:
      • Type: transformer-coupled with series capacitors and isolation resistors
      • Impedance: 600 ohms, nominal
      • Nominal Level: +4 dBu
      • Maximum Level: +11 dBu (compressor restricts maximum)

        Headphone Output: 1, stereo
      • Compatibility: intended for connection to mono or stereo headphones or headsets with nominal impedance of 100 ohms or greater
      • Type: voltage driver
      • Maximum Output Voltage: 12 Vpp, 150 ohm load

        Relay Contacts: 2
      • Functions: follows status of main and talkback outputs
      • Type: form-A (normally open, not-shorted) solid-state relay contact
      • Rating: 100 mA, 60 volts AC/DC, maximum
      • Contact Resistance: 16 ohms, maximum
      • Access: requires user-implemented connection method

        Power Source:
      • 24 volts DC nominal, 70 mA @ 24 volts DC; acceptable range 20-30 volts DC. Each unit shipped with a universal input/24 volt DC output power supply.

        Dimensions (Overall):
      • 5.6 inches wide (14.2 cm)
      • 3.3 inches high (8.4 cm)
      • 8.5 inches deep (22.4 cm)
      • Weight: 3.4 pounds (1.6 kg)
