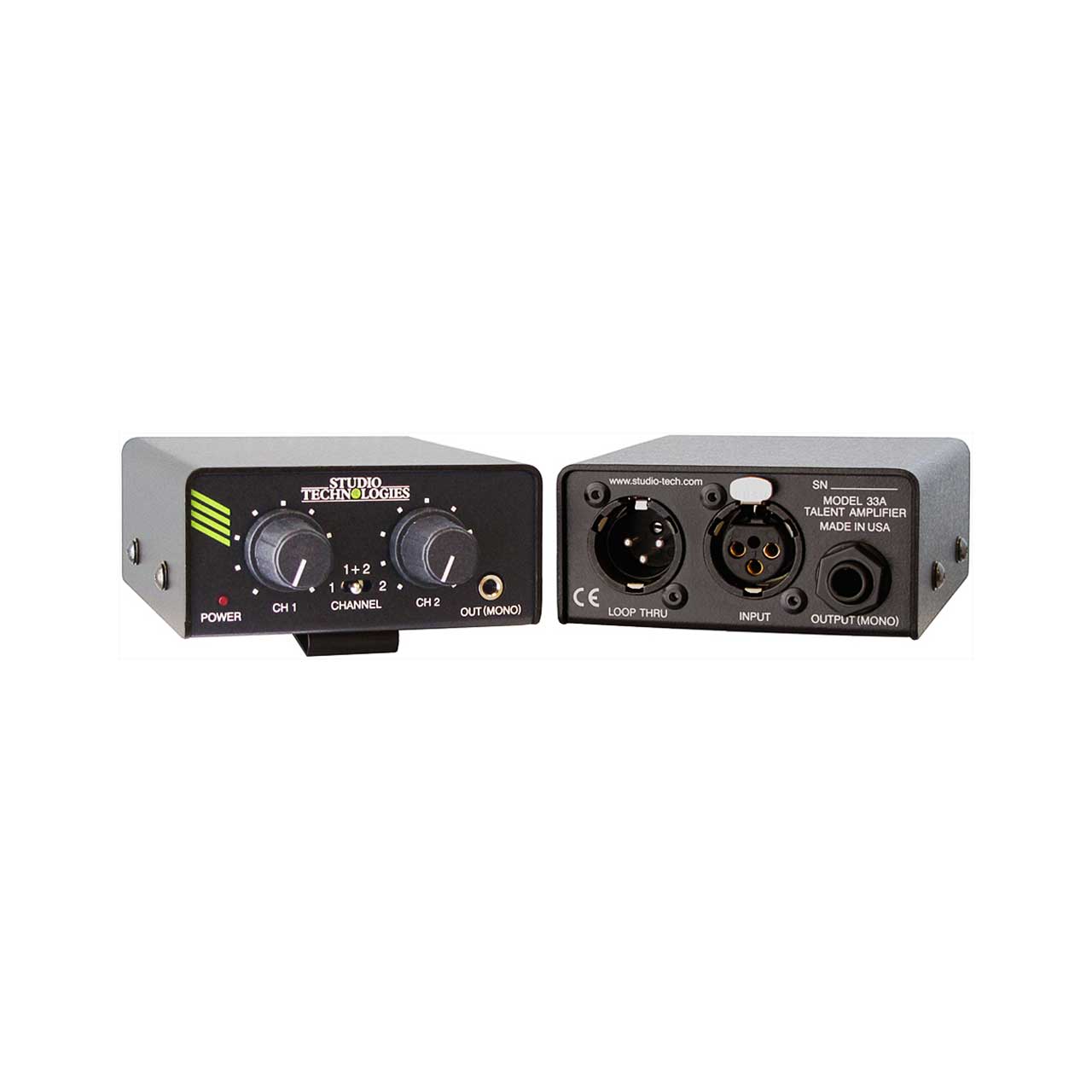

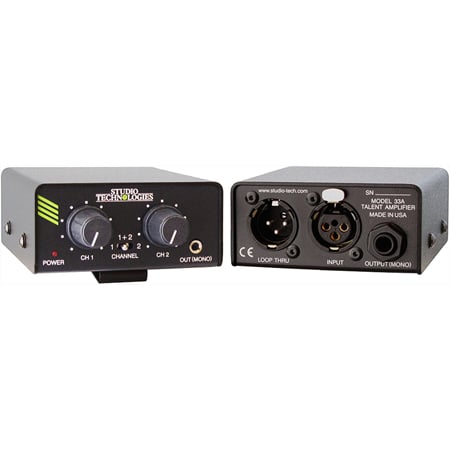

Studio Technologies STCH-M33A Model 33A Talent Amplifier

ITEM #: STCH-M33A MFG #: M33A

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$220.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    M33A - Overview

    The Studio Technologies Model 33A Talent Amplifier is a self-contained listen-only "beltpack" unit intended for use by on-air talent or production personnel. It's directly compatible with the Studio Technologies' Model 2A Central Controller as well as other standard IFB or party-line intercom circuits. The Model 33A is powered by, and receives audio from, the connected IFB or intercom circuit. A single 3-conductor microphone-type cable links the Model 2A's talent amplifier output with the Model 33A's input. Each Model 33A contains both a male and a female 3-pin XLR-type connector, allowing simple "loop-through" connection of multiple units. Up to four talent amplifiers can be connected to, and powered by, a single Model 2A Central Controller. The Model 33A's output is intended to be connected to talent earpieces or headsets. For flexibility the audio output is provided on both 1/4-inch and 3.5 mm jacks. An LED indicator lights whenever input power is present, providing setup assistance and user confidence. The Model 33A is housed in a lightweight, yet rugged, aluminum housing. A belt clip allows it to be directly attached to clothing or accessories. An optional mounting adapter is available to allow the Model 33A to be installed in a permanent location.

    • Features:

      • Controls allow mix of Channels 1 and 2
      • 1/4-inch and 3.5 mm output connectors
      • Excellent audio quality
      • Low DC power consumption
      • Compatible with Model 2A Central Controller
      • Compact, lightweight package
      • Update of the popular Model 33

    • Specifications:

      • Applications: directly compatible with talent amplifier output on Model 2A Central Controller; also compatible with standard single- and dual-channel IFB and party-line intercom circuits
      • Indicator Light: red LED indicates operation of internal power supply

        Connectors
      • Input: 3-pin female XLR
      • Loop Through: 3-pin male XLR, Output: 1/4-inch and 3.5 mm 2-conductor jacks; sleeve common, tip "hot," ring not used
      • IFB/Intercom Input Wiring Scheme: Pin 1: common for DC and audio, Pin 2: DC with channel 1 audio (dual-channel circuits) or DC only (single-channel circuits), Pin 3: channel 1 audio (single-channel circuits) or channel 2 audio (dual-channel circuits)
      • Power Requirement: 18-35 Vdc, 15 mA quiescent, 40 mA maximum

        Output
      • Compatibility: intended for connection to mono (2-conductor) headsets or earpieces with nominal impedance of 150 ohms or greater
      • Type: voltage driver
      • Input/Output Gain: 28 dB, maximum
      • Maximum Output Voltage: 8 Vpp, 1 kHz, 150 ohm load
      • Frequency Response: 40 Hz-20 kHz, ±1 dB, 150 ohm load
      • Distortion (THD+N): 0.03%, 1 kHz, 150 ohm load, 0 dBu out

        Physical
      • Dimensions (Overall): 3.25 inches wide (8.3 cm), 1.8 inches high (4.6 cm), 3.95 inches deep (10.0 cm)
      • Mounting: intended for portable applications; contains integral belt clip; optional mounting adapter kit allows Model 33A to be permanently mounted
      • Weight: 0.6 pounds (0.3 kg)
