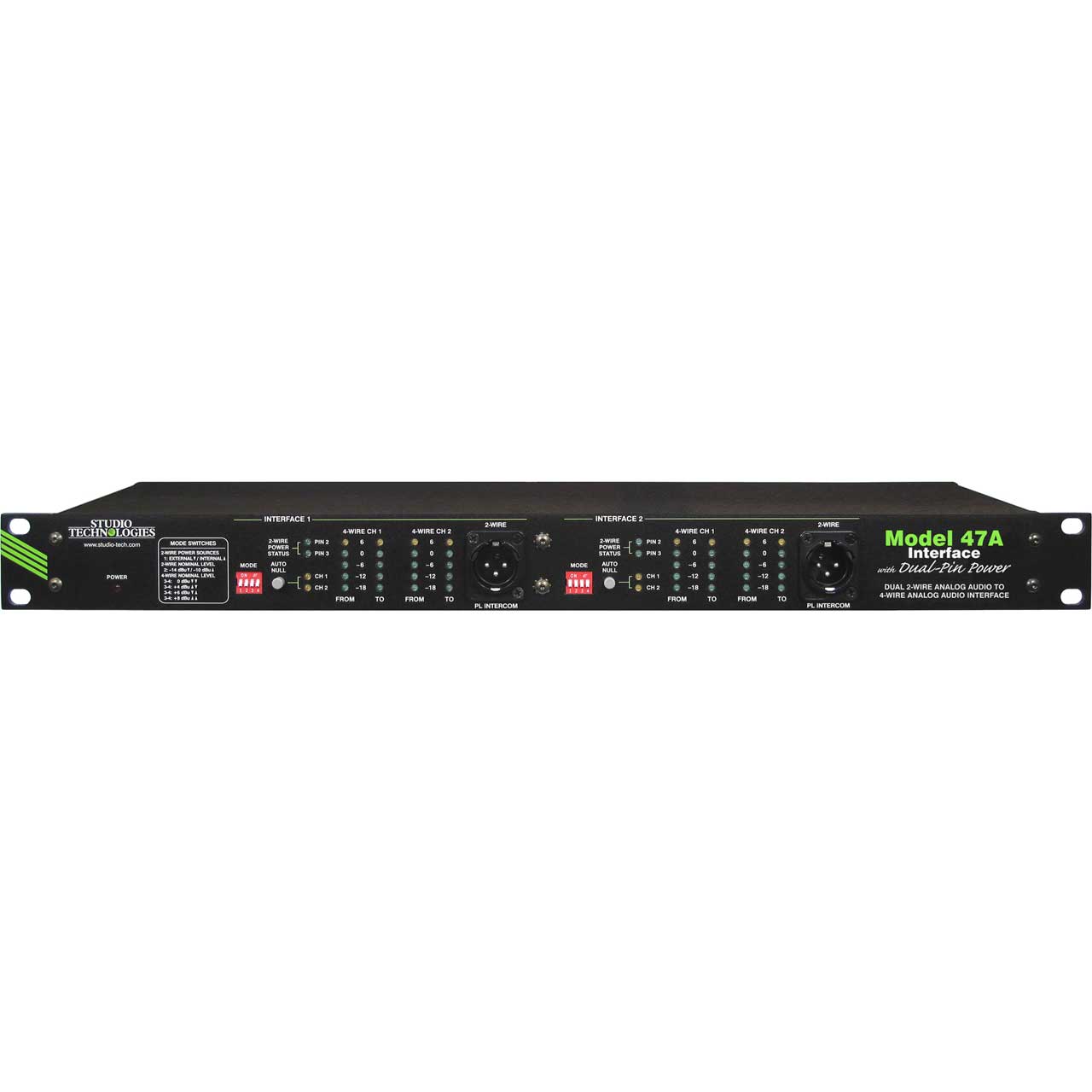

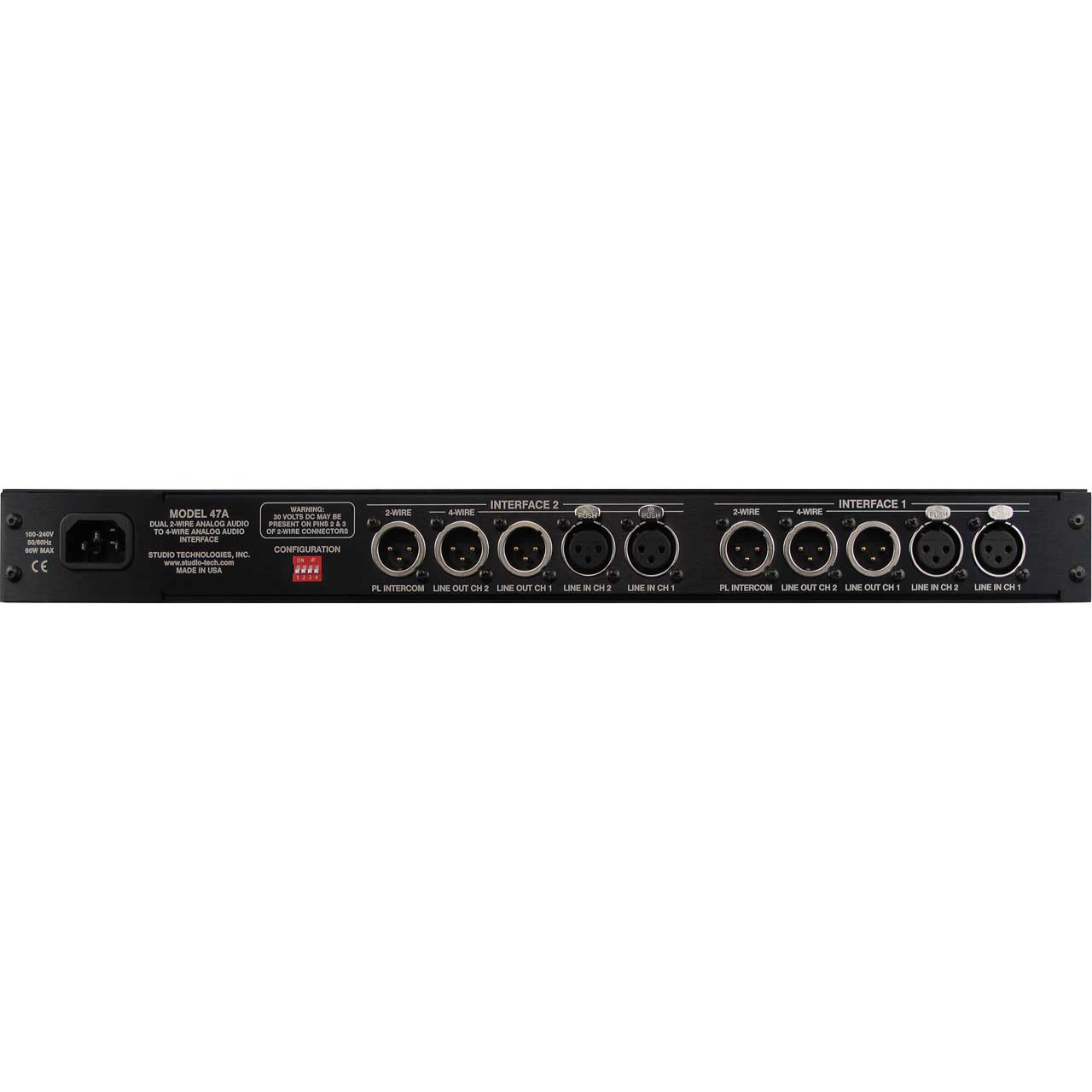

Studio Technologies Model 47A Dual 2-Wire Analog Audio to 4-Wire Analog Audio Interface

ITEM #: STCH-M47A MFG #: M47A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$3,650.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    M47A - Overview

    The Model 47A is designed to interface 2-wire full-duplex party-line (PL) intercom circuits with 4-wire audio circuits associated with matrix intercom systems. Other specialized audio system interfacing applications can also be supported. The Model 47A provides two independent full-featured 2-channel interfaces. Each interface contains two hybrid circuits which include automatic nulling capability. The analog circuitry, under software control, provides excellent audio quality and high return-loss. The interfaces are compatible with powered and unpowered 2-wire party-line circuits. They are capable of supplying DC power to devices such as user beltpacks and user stations. Independent power sources are provided for both channels (pins 2 and 3) of each interface, allowing direct support for broadcast source assignment panel (SAP) applications. Configuration settings allow the 2-wire and 4-wire interface circuitry to be compatible with a range of nominal signal levels. Audio level meters provide user confirmation of system performance during setup and operation. Applications for the Model 47A include mobile and fixed television facilities, theme park and theater installations, and industrial testing environments. Standard audio connectors are used for all input and output signals. The Model 47A mounts in one space (1U) of a standard 19-inch rack enclosure and requires 100-240 V, 50/60 Hz for operation.

    • Features:

      • Two 2-channel party-line intercom interfaces
      • Four analog hybrids with auto null capability
      • Input and output level metering
      • Excellent audio quality
      • 2-channel intercom power sources
      • Direct support for broadcast SAP panel applications
      • Standard audio connectors
      • Universal input mains powered

    • Specifications:

      • General Audio
      • Frequency Response: +/-2 dB 100 Hz to 8 kHz
      • Distortion (THD+N): <0.5%, measured at 1 kHz, 4-wire input to 2-wire interface pin 2
      • Signal-to-Noise Ratio: >55 dB, measured at 1 kHz, 4-wire input to 2-wire interface pin 2

        Connectors
      • Inputs from 4-Wire: 3-pin female XLR
      • Outputs to 4-Wire: 3-pin male XLR
      • 2-Wire Party-Line Intercom: 3-pin male XLR
      • Remote Control: 10-pin header, requires user-provided 10-pin ribbonconnector assembly
      • AC Mains: 3-blade, IEC 320 C14 (mates with IEC 320 C13)

        2-Wire Party-Line Intercom Interfaces: 2
      • Type: 2-channel party-line (PL), unbalanced (pin 1 common; pin 2 channel 1 audio or DC with channel 1 audio; pin 3 channel 2
        audio or DC with channel 2 audio)
      • Compatibility: single- and 2-channel intercom systems such as from RTS® and Clear-Com® Impedance, External Power Mode:
        >10 k ohms Impedance, Internal Power Mode: 200 ohms
      • Nominal Level: -10 or -14 dBu, selectable
      • "Mic Kill" Signal: square wave, 24 kHz, +/-1%

        2-Wire Party-Line Power Sources: 4, 2 per interface
      • Rating: 30 volts DC nominal, 315 mA maximum, software monitored and controlled

        Hybrids: 4, 2 per interface
      • Topology: 3-section analog circuitry compensates for resistive,
      • inductive, and capacitive 2-wire party-line loads
      • Nulling Method: automatic upon user initiation, processor implements digital control of analog circuitry; null settings stored
        in non-volatile memory
      • Nulling Line Impedance Range: 120-350 ohms
      • Nulling Cable Length Range: 0-3500 feet, typical
      • Trans-Hybrid Loss: >40 dB, typical at 800 Hz

        4-Wire Inputs: 4, 2 per interface
      • Type: transformer-coupled, capacitor isolated
      • Impedance: 13 k ohms
      • Nominal Level: 0, +4, +6, or +8 dBu, selectable in tandem with nominal output level
      • Maximum Level: +22 dBu

        4-Wire Outputs: 4, 2 per interface
      • Type: transformer-coupled, capacitor isolated
      • Impedance: 50 ohms nominal
      • Nominal Level: 0, +4, +6, or +8 dBu, selectable in tandem with nominal input level
      • Maximum Level: +20 dBu into 2 k ohms

        Meters: 8
      • Function: displays level of 4-wire inputs and outputs
      • Type: 5-segment LED, modified VU ballistics

        Remote Control Inputs: 3
      • Type: optically coupled
      • Input: 3-32 volts DC; 2 mA minimum for operation, 20 mA maximum
      • Functions: auto null interface 1, auto null interface 2, and "mic kill"

        AC Mains Requirement: 100-240 volts (-15/+10%), 50/60 Hz,
      • 60 watts maximum

        Dimensions (Overall):
      • 19.0 inches wide (48.3 cm)
      • 1.72 inches high (4.4 cm)
      • 8.4 inches deep (21.3 cm)
      • Mounting: one space (1U) in a standard 19-inch rack
      • Weight: 4.7 pounds (2.1 kg)
