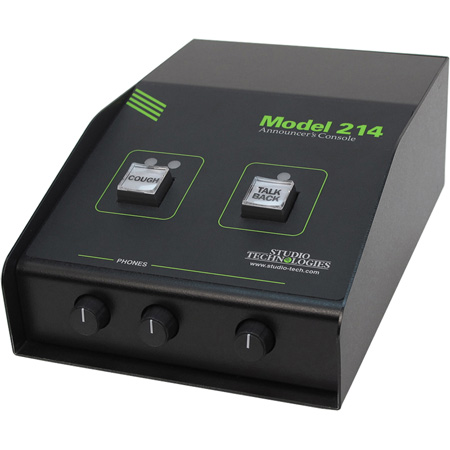

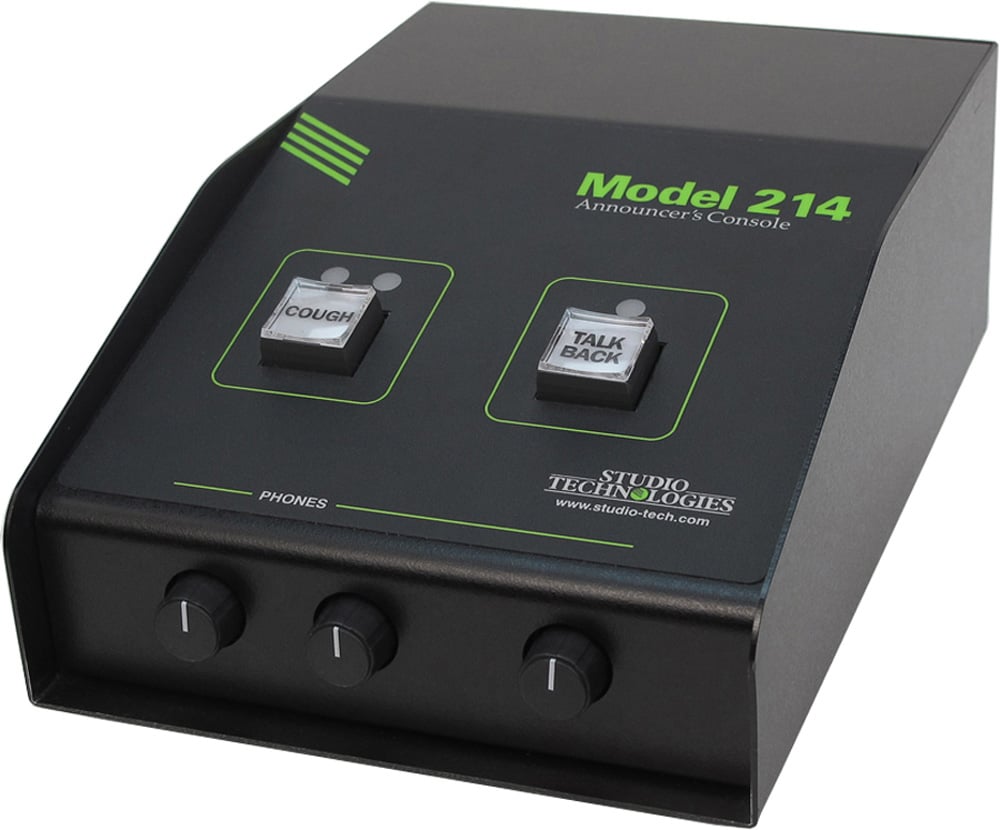

Studio Technologies Model 214 Announcers Console
  • Studio Technologies Model 214 Announcers Console
  • Studio Technologies Model 214 Announcers Console
  • Studio Technologies Model 214 Announcers Console
  • Studio Technologies Model 214 Announcers Console
  • Studio Technologies Model 214 Announcers Console

Questions? Ask a Markertek Expert:
800-522-2025 Email

Studio Technologies Model 214 Announcers Console

Item #: STCH-MODEL-214   •   MFG #: MODEL-214



List Price:$995.00
Our Price:$875.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Studio Technologies Model 214 Announcer's Console is designed to serve as the audio control center for announcers, commentators, and production personnel. This tabletop unit supports applications utilizing the Dante® audio-over-Ethernet media networking technology. The Model 214 is suitable for numerous applications including on-air television sports broadcasting, stadium announce, and corporate AV. The unit integrates all on-air, talkback, and cue audio signal routing in one compact system. Two push button switches allow the user to control the main and talkback audio output channels. Ease of use, configuration flexibility, and sonic excellence are some of the unit's highlights.


    • Features

      • Dante audio-over-Ethernet technology
      • Extensive feature configuration
      • Excellent audio quality
      • Main, talkback, and tally tone/hot mic audio outputs
      • Four headphone audio input channels
      • PoE and 12 Vdc powering
      • Headphone output with sidetone function
      • Rugged, compact enclosure
      • Configured using STcontroller application

    • Specifications

      • Power Sources:
      • Power-over-Ethernet (PoE): class 2 (low power) per IEEE 802.3af
      • External: 10 to 18 Vdc, 270 mA max @ 12 Vdc

        Network Audio Technology:
      • Type: Dante audio-over-Ethernet
      • AES67-2013 Support: yes
      • Dante Domain Manager (DDM) Support: yes
      • Bit Depth: up to 24
      • Sample Rates: 44.1 and 48 kHz
      • Number of Transmitter (Output) Channels: 3 (main, talkback, hot mic)
      • Number of Receiver (Input) Channels: 4
      • Dante Audio Flows: 4; 2 transmitter, 2 receiver
      • Analog to Digital Equivalence: a +4 dBu input with 0 dB gain selected results in a Dante digital output level of -20 dBFS

        Network Interface:
      • Type: twisted-pair Ethernet, preferably with Power-over-Ethernet (PoE) support
      • Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)

        General Audio Parameters:
      • Frequency Response: 20 Hz to 20 kHz, +0/-1 dB, mic input to Dante output
      • Distortion (THD+N): 0.004%, measured at 1 kHz, -36 dBu mic input, 40 dB gain (Dante output approx. -20 dBFS)
      • Dynamic Range: >109 dB, 40 dB gain, A-weighted

        Microphone Input/Preamplifier:
      • Type: electronically balanced
      • Input Impedance: 3.7 k ohms
      • CMRR: >76 dB, 20 Hz to 20 kHz, 40 dB gain
      • Gain Range: 19 to 64 dB, adjustable in 3-dB steps
      • EIN: -123 dBu, 22 kHz bandwidth, 64 dB gain, 150 ohm source resistance
      • Compatibility: dynamic or phantom-powered mics
      • Phantom Power: 45 Vdc, nominal, meets IEC 61938 P48 standard
      • Remote Configuration Capability: microphone preamplifier gain and P48 power on/off status (uses STcontroller application)

        Headphone Output:
      • Type: stereo, configured to drive headphones through 10 ohm series resistors
      • Compatibility: intended for connection to headphones or headsets with impedance of 100 ohms or greater
      • Level: adjustable using rotary level control
      • Maximum Voltage: 7.5 Vpp, 150 ohm load

        Tally Tone:
      • Use: provides support for call light activation on Studio Technologies' Model 391 Dante Alerting Unit
      • Type: sine wave, <0.01% THD+N
      • Level: -20 dBFS
      • Frequency: 20 kHz ± 0.1 Hz

        Relay Contacts: 2
      • Functions: one each follows main and talkback pushbutton status
      • Contacts: form A (normally open, not shorted)
      • Rating: 100 mA, 60 V AC/DC, maximum
      • Contact Resistance: 16 ohms, maximum
      • Access: requires user-implemented connector scheme

        Configuration: requires Studio Technologies' STcontroller software application, version 1.05.00 and later (STcontroller compatible with Windows® version 7 and later)

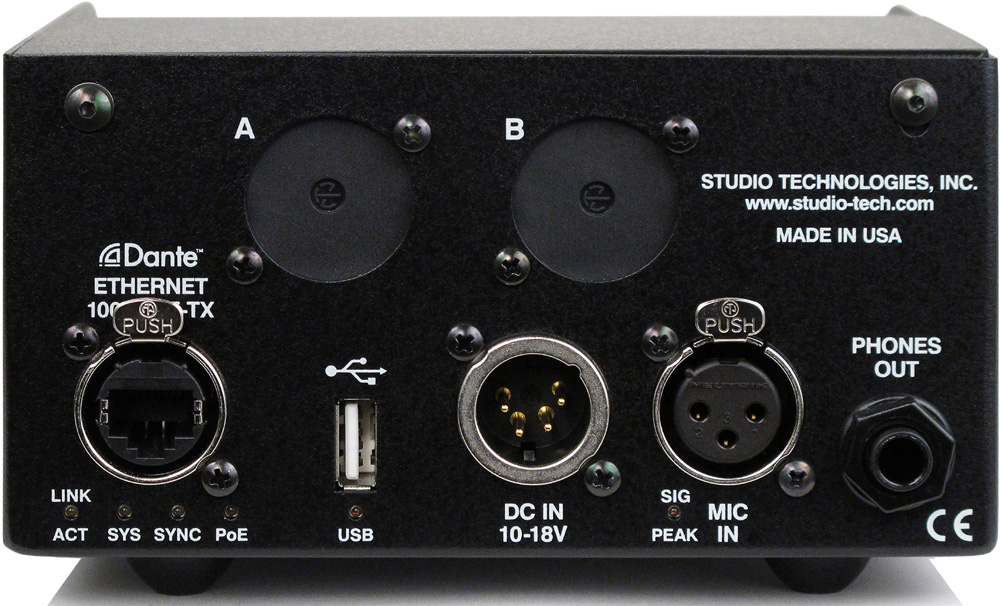

        Connectors:
      • Microphone Input: 3-pin female XLR
      • Headphone Output: ¬-inch 3-conductor jack
      • Ethernet: Neutrik etherCON RJ45
      • External DC: 4-pin male XLR
      • USB: type A receptacle

        Spare Connector Locations: 2
      • Allows Studio Technologies' cable assemblies or option modules to be installed. Also compatible with Neutrik NC*D-L-1 connectors (*=3F, 3M, 5M, 6F, 6FS, etc.).

        General
      • Dimensions (WxHxD): 5.6 x 3.3 x 8.5" (14.2 x 8.4 x 21.6cm)
      • Weight: 2.7Lbs (1.2kg)
