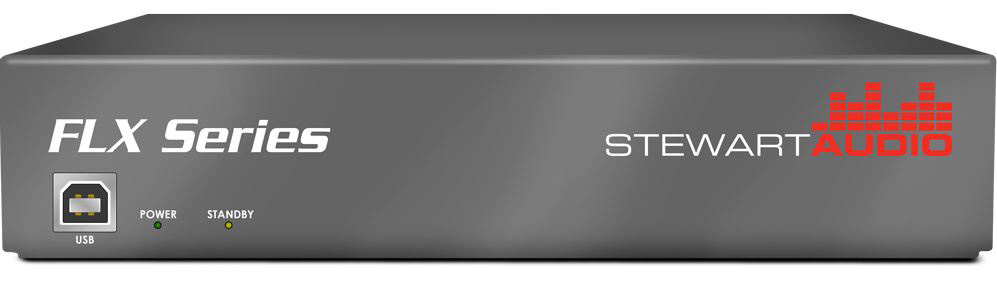

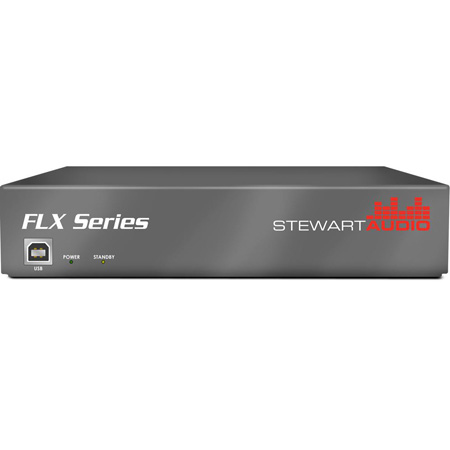

Stewart FLX80-4-LZ 4 Channel DSP-Enabled Amplifier - 4 x 80W @ 4-Ohms
  • Stewart FLX80-4-LZ 4 Channel DSP-Enabled Amplifier - 4 x 80W @ 4-Ohms
  • Stewart FLX80-4-LZ 4 Channel DSP-Enabled Amplifier - 4 x 80W @ 4-Ohms

Questions? Ask a Markertek Expert:
800-522-2025 Email

Stewart FLX80-4-LZ 4 Channel DSP-Enabled Amplifier - 4 x 80W @ 4-Ohms

Manufacturer: Stewart Audio, Inc.

Item #: STW-FLX80-4   •   MFG #: FLX80-4



List Price:$1,449.00
Our Price:$1,229.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The FLX (pronounced FLEX) Series of amplifiers is the most versatile 1/2 rack amplifier Stewart has ever produced. The FLX80-4-LZ provides 80 watts from each of the four output channels into a 4 Ohm load. At the heart of the amplifier is a robust, internal, full-function DSP designed to solve a multitude of your audio problems in just one enclosure. The DSP includes a full cross-point mixer, EQ, filters, limiters and much more. A USB port makes programming simple, fast and repeatable for large installations. The RVC and RS232 control allow volume control from a wide range of devices. You won't find a more flexible combination of power output and processing in a comparable package on the market today.

Applications include: Dante Network Audio, Hospitality Installations, Classrooms, Conference Rooms, Houses of Worship, Room combining


  • Features

    • Onboard DSP for signal routing, filtering, and set programming
    • USB and RS-232 available for configuration
    • Remote Volume Control
    • Phantom Power (2 channels)
    • Dante audio network interface option
    • 1/2 rack enclosure
    • Made in the USA

  • Specifications

    • Output: 80/40W x 4 @ 4/8 Ohms
    • Frequency Response (+0, -3dB): 20 Hz-20 kHz (4 Ohms), 100 Hz-20 kHz (70.7/100V)
    • THD+N: <0.05% @ 6dB below clipping
    • Signal-to-Noise Ratio:>95dB
    • Input Sensitivity: 1V (0 dBV)
    • Input impedance (Balanced/Unbalanced/Phantom): 7.2k Ohms/3.6k Ohms/2.4k Ohms
    • Current Draw - Standby, 1/8 Power: 12W, 65W
    • Amplifier Class: D
    • Remote Volume: 0-10V
    • Channel to Channel Isolation: >60dB FLX80-4 CV & LZ, >85dB FLX160-2 CV & LZ
    • Input Connectors: 3.5mm Euroblock
    • Output Connectors: 5mm Euroblock
    • LED Indicators: Power
    • Controls: USB & RS232
    • Network Audio Port (optional): Dante
    • Power Supply Input: 100-240 VAC 50/60Hz (PFC Universal Input)
    • Construction: Aluminum Chassis
    • Mounting: Rack- Mountable, Single and Dual
    • Cooling: Convection-Cooling (No Fans)
    • Dimensions (height, width, depth): 1.7" (44mm) H x 8.3" (212mm) W x 11.25" (272mm) D
    • Weight: 6.2 lb

  • Warranty

    • 3 Years
