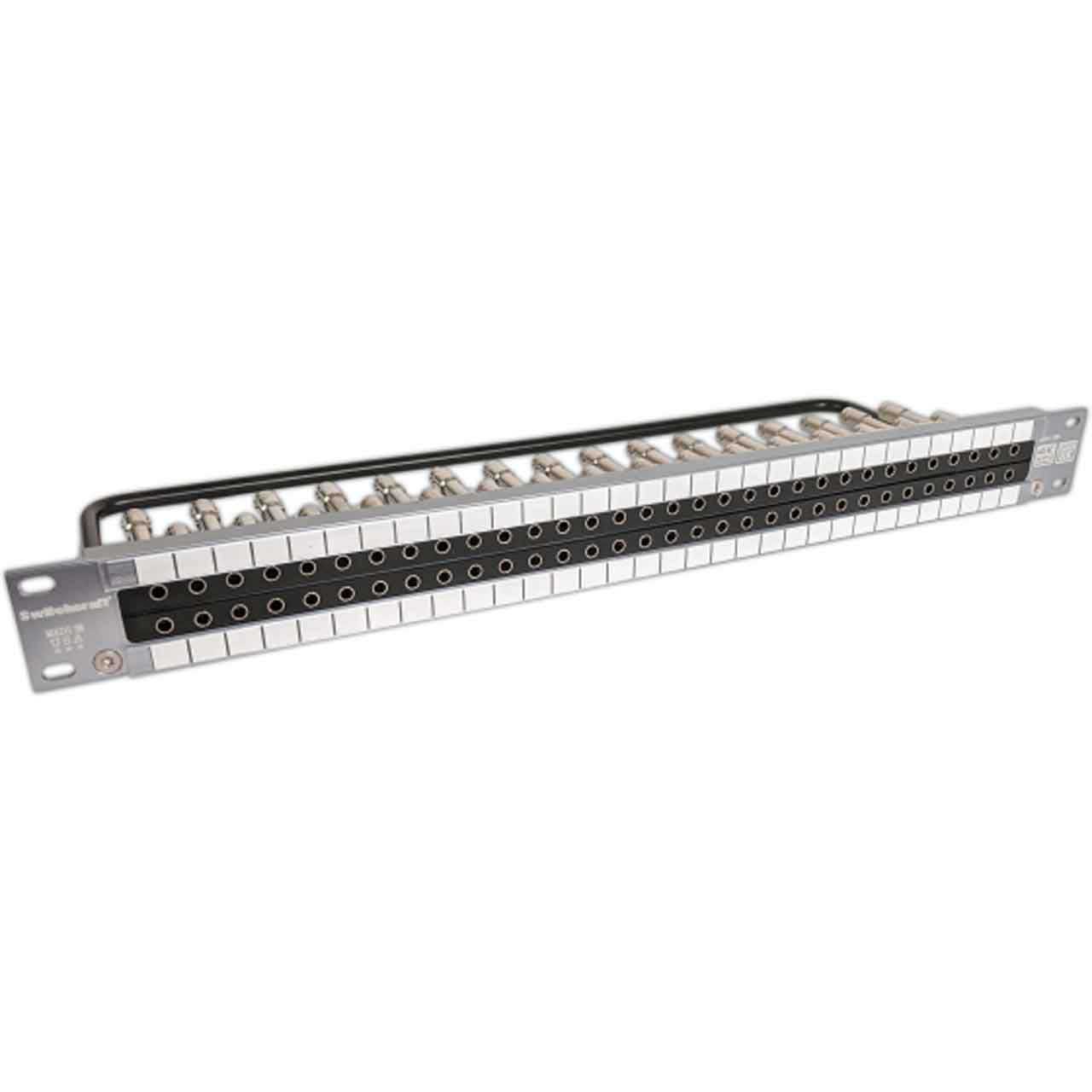

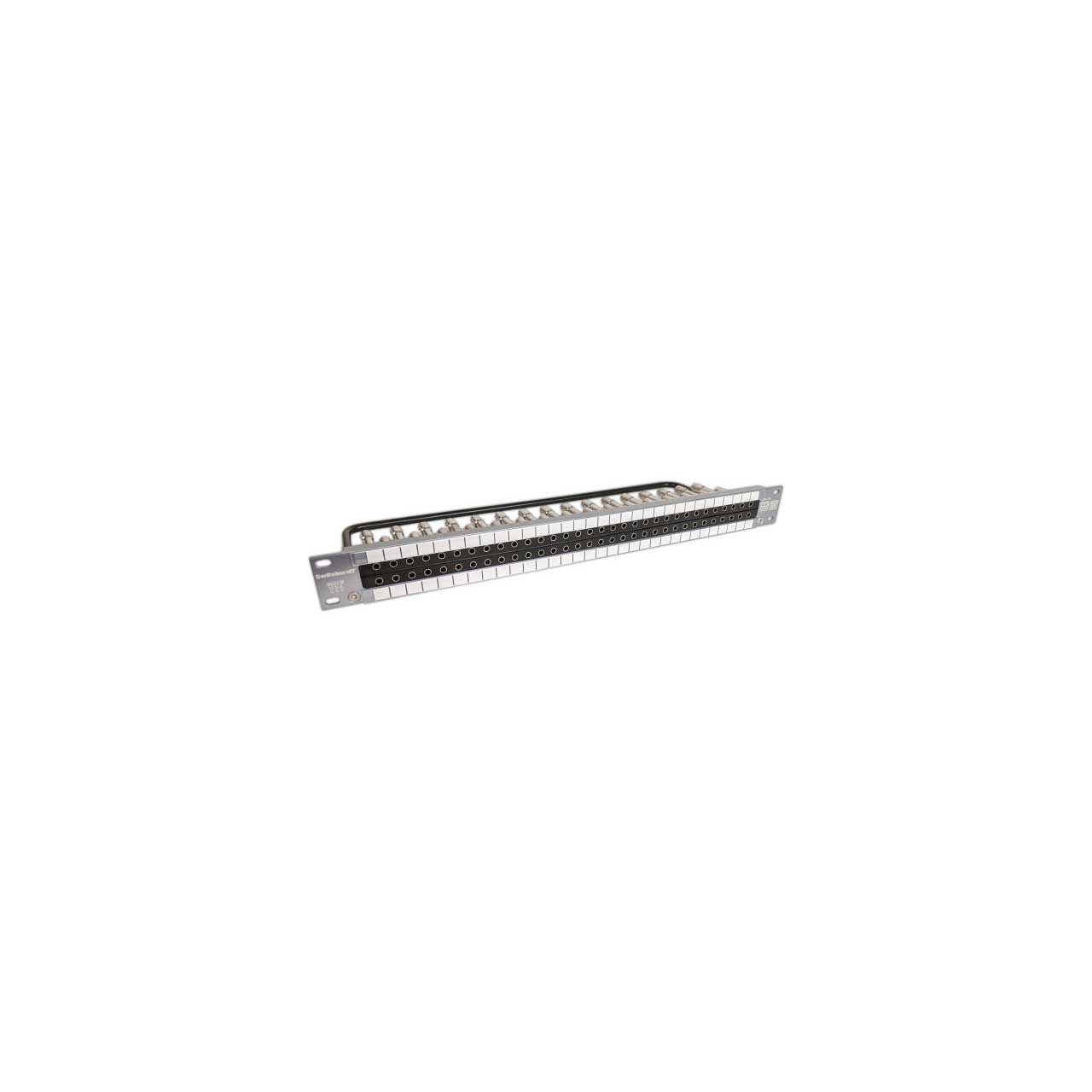

Switchcraft SW-MMVPB32K175T 2x32 Micro UHD Video Patchbay Panel - Full Normal - BNC

Name: Switchcraft SW-MMVPB32K175T 2x32 Micro UHD Video Patchbay Panel - Full Normal - BNC
Brand: Switchcraft
SKU: SW-MMVPB32K175T
Price: 2810.23 USD
Availability: SoldOut

ITEM #: SW-MMVPB32K175T MFG #: MMVPB32K175T

Switchcraft

Normaling:

Normaling

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MMVPB32K175T - Overview

The Switchcraft Ultra VideoPatch line is a full line of 4K,8K UHD video patching solutions: Mid-Size/Mini-WECO single jacks, 2x32 1RU patch bay, patch cables, and accessories. This innovative product line meets and exceeds SMTPE ST 2081-1 and ST 2082-1 with low return loss, 75 ohm impedance and life cycle of 30,000. Passing quality signals for 4K, 8K and Beyond.

Features:
- 1RU, 2X32 MidSize 12G 4K/8K Video Patchbay.
- Full Normal (No Looping Plug) Micro Video Plug to UHD BNC
Specifications:
- Electrical:
- Meets SMPTE 2082-1
- Characteristic Impedance: 75 Ohms
- Contact Resistance: Less Than 50 Milliohms

  Interface:
- Mating Plug: 0.175 Outside Diameter
- Center Conductor: Accepts 0.029 Pin Diameter

  Mechanical:
- Vibration: Per Mil - Std 202, Method 201
- Insertion Force: 9 Lbs Max.
- Withdrawal Force: 2 Lbs Min.
- Life Cycle: 20,000 Typ

  Environmental:
- Operating Temperature: -40°F to 149°F
- Storage Temperature: -40°F to 149°F
- Thermal Shock: Per Mil-Std- 202, Method 107
- Moisture And Humidity: Per Mil-Std- 202, Method 106
- Salt Spray: Per Mil-Std- 202, Method 101

  *Use UHDBNC94 (4594R Cable) And VMMPUHD Patchcords or VMMLPUHD Looping Plugs to Meet SMPTE 2082-1.
Item Includes:
- 1x MMVPB32K1NNT 2x32 Micro UHD Video Patchbay Panel - Non-Normal - BNC
