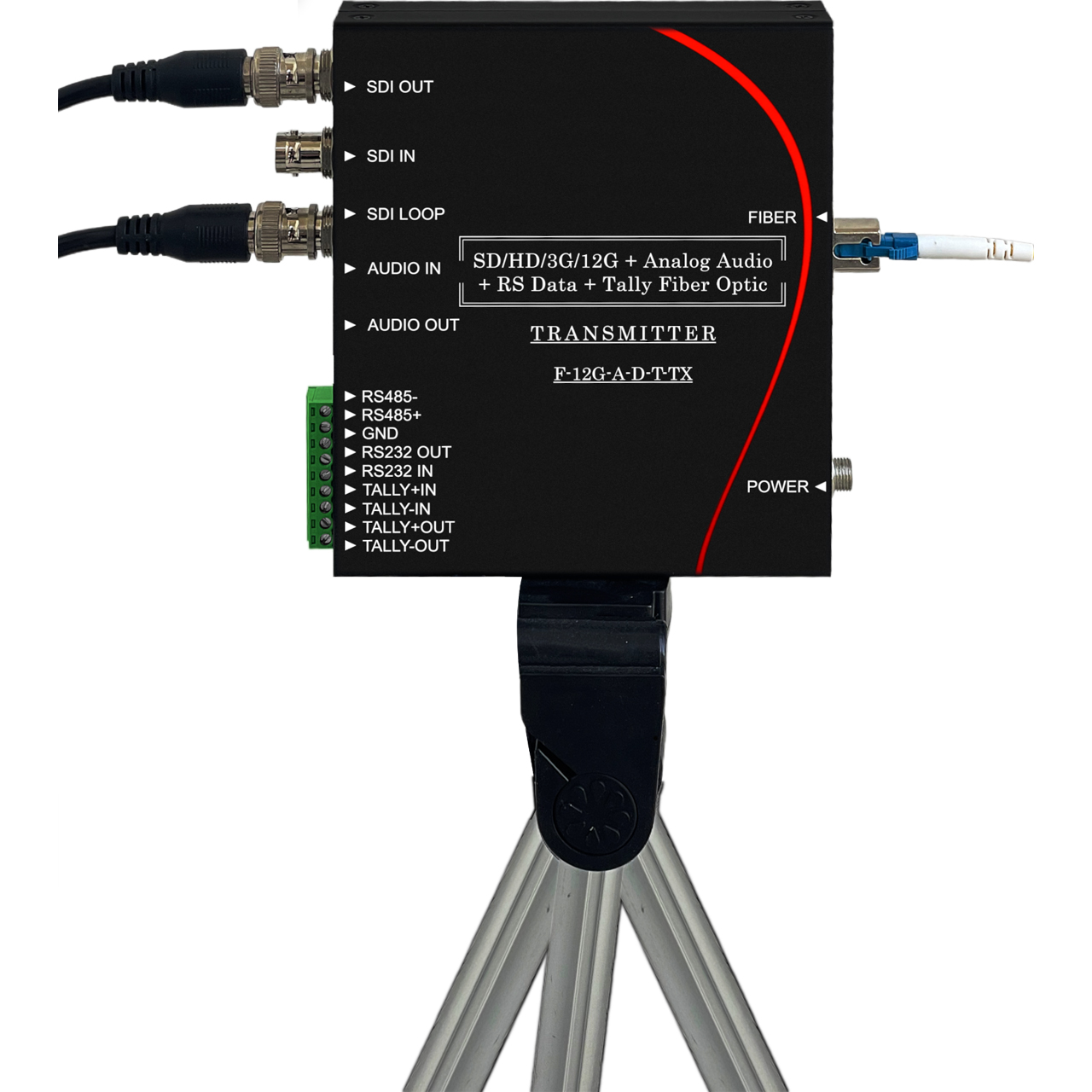

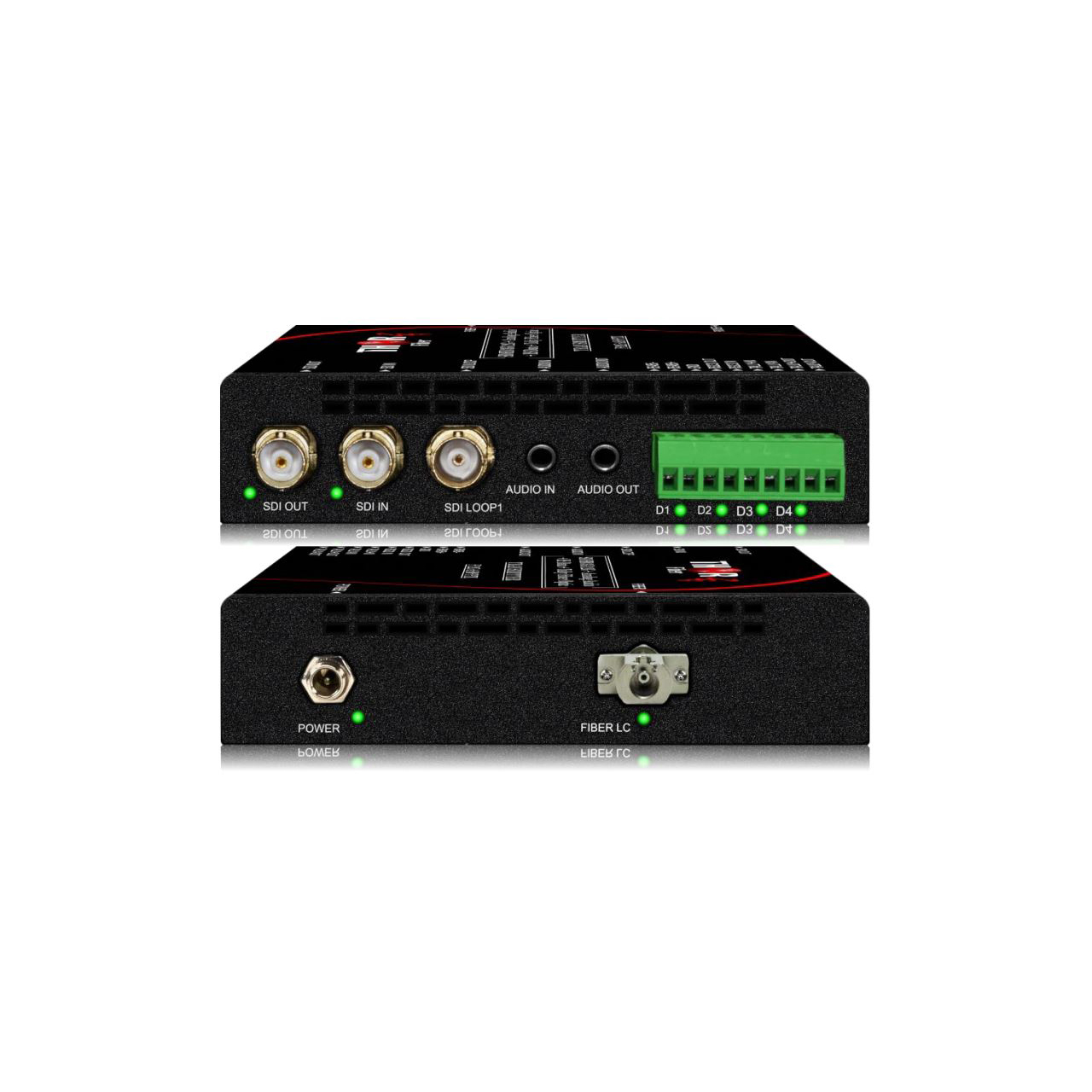

Thor Fiber Cobra II 1-Channel Bi-Directional 12G-SDI UHD Multi-function Fiber Optic Transmitter and Receiver Set

COBRA II - Overview

• Features:

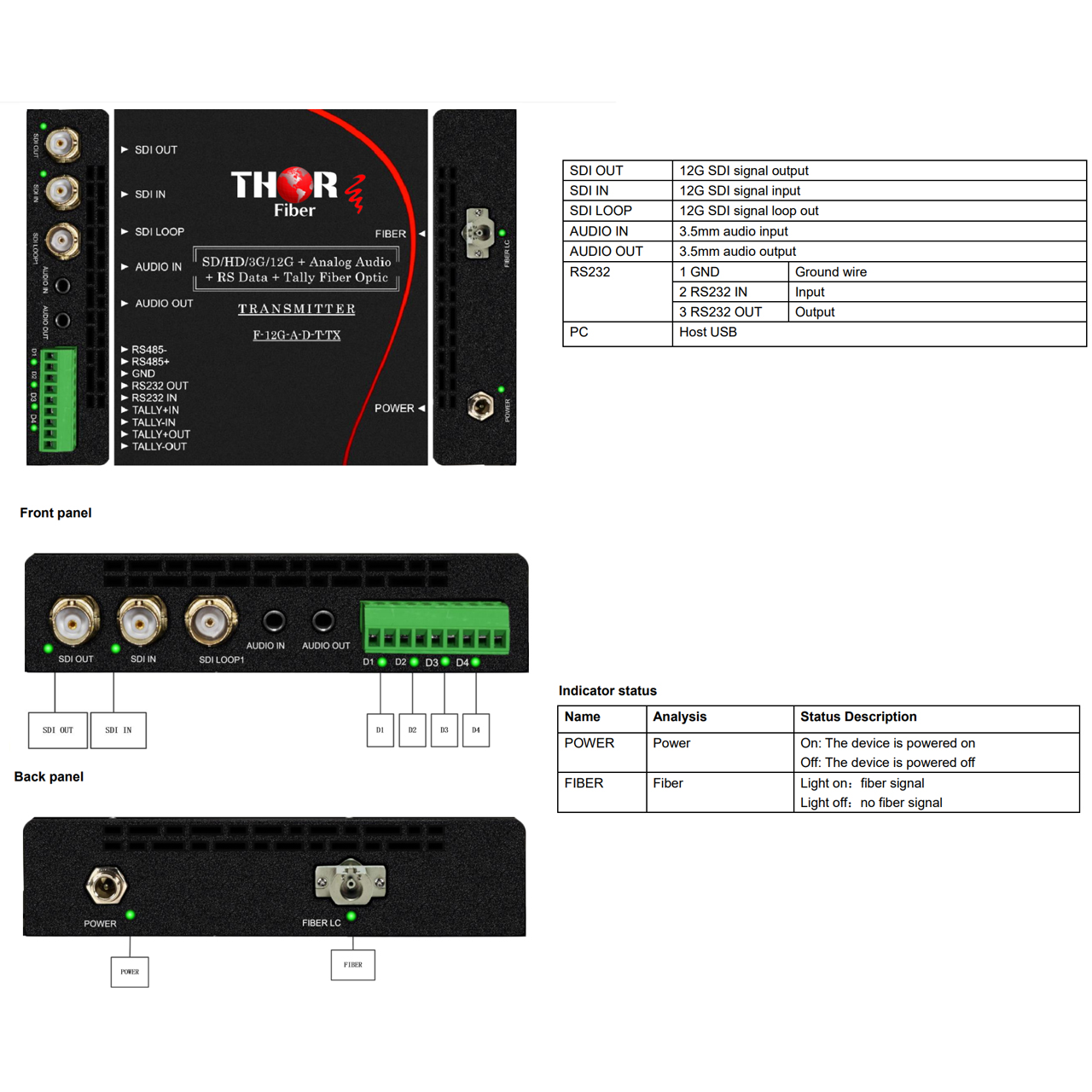

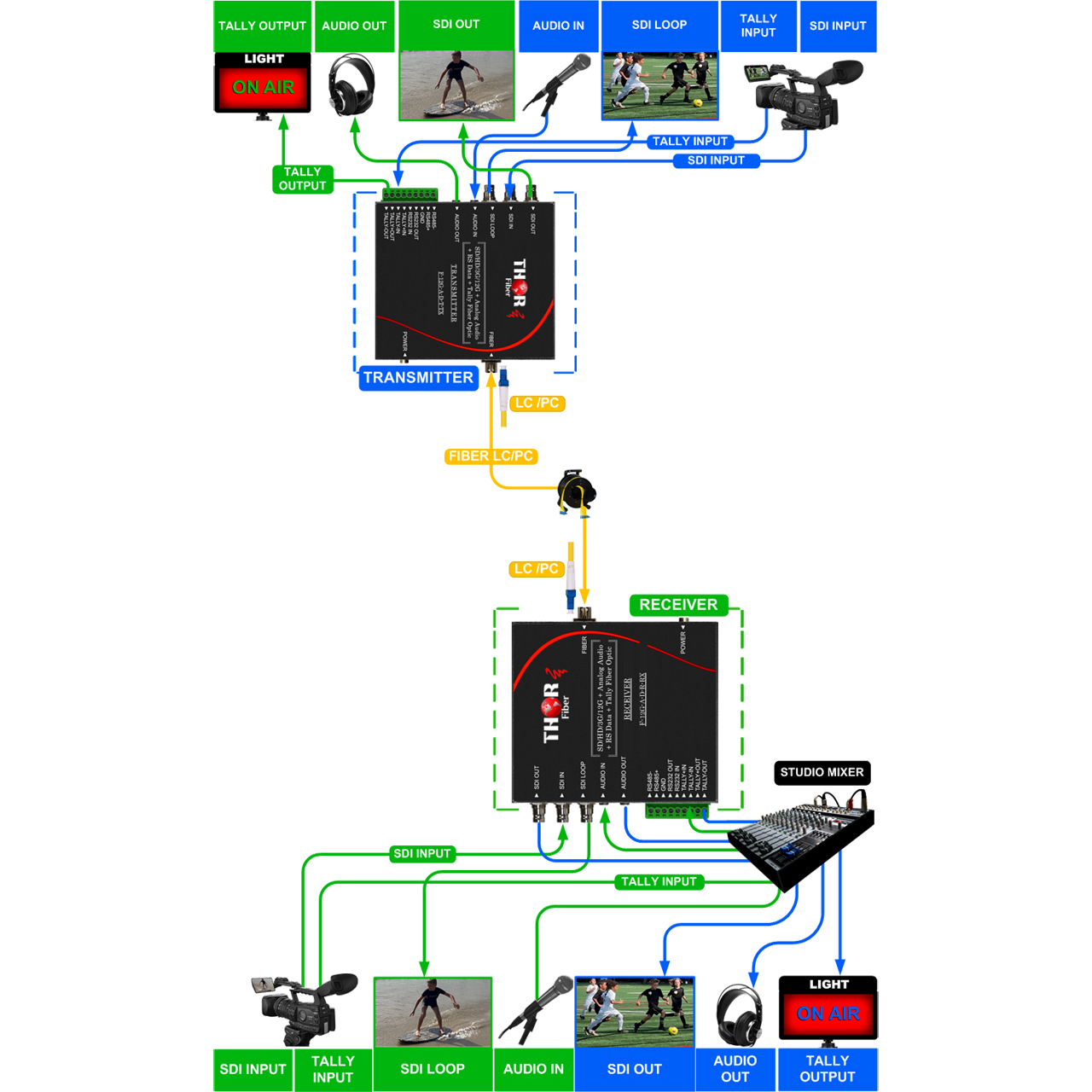

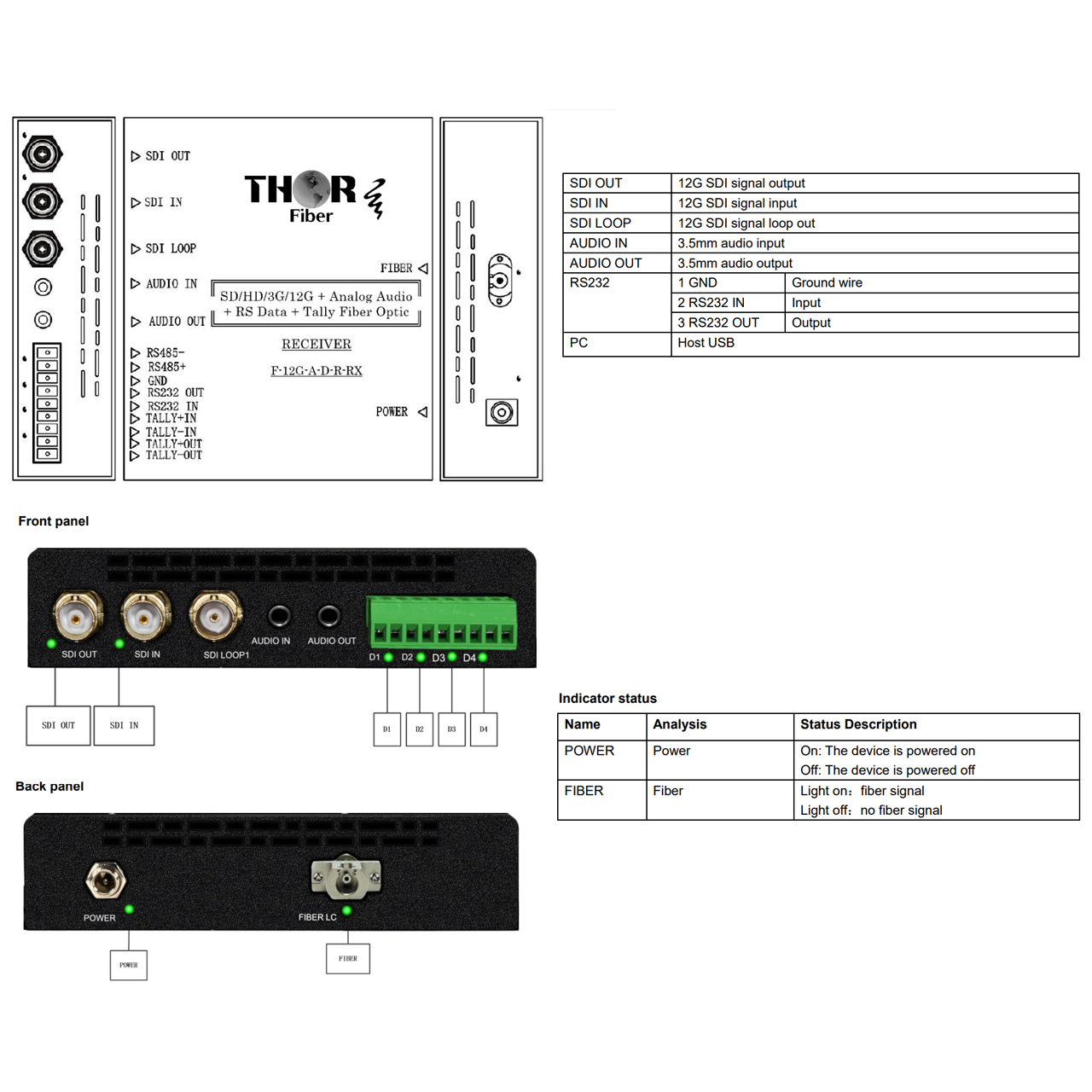

  • One-channel bidirectional SD, HD, 3G or 12G-SDI video transmission; the transmitter has SDI video loop-out and HD audio and video
  • CWDM optical multiplexing allows ultra-low delay - 1ms
  • SDI Video formats supported: ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI)
  • Supports up to 16 embedded SDI audios
  • Both the transmitter and receiver feature reclock functionality
  • The signal input includes an automatic cable equalization (EQ) function, and the output features drive (CD) functionality
  • One-channel bidirectional 3.5 stereo audio transmission Independent
  • Transparent transmission of RS232/485/422 serial port data
  • One-channel bidirectional tally signal
  • Single-mode Fiber with a 10km transmission distance
  • One Simplex LC/PC Optical connector
  • Plug-and-play operation; power supplies are included


• Specifications:

  • Fiber Parameters
  • Wavelength: 1270/1330/1470/1490nm
  • Fiber Type: 9/125um single-mode
  • Transmitter Power: 0~-3dB
  • Receiver Sensitivity: >-10dB
  • Fiber Connector: LC
  • Optical Distance: Single Mode Fiber 10km

    Video Parameters
  • Protocol Standard: SMPTE ST-2082
  • SMPTE Rate: 270Mbit/s,1.48Gbit/s,2.97Gbit/s,5.94Gbit/s, 11.88Gbit/s
  • SDI SMPTE:
    - 259M - SD-SDI: 480i,576i
    - 344M - ED-SDI: 480P, 576P
    - 292M - HD-SDI: 720P, 1080i
    - 424M - 3G-SDI: 1080P60Hz
    - ST-2081 - 6G-SDI: 2160P30Hz
    - ST-2082 - 12G-SDI: 2160P60Hz
  • EQ Mode:
    - 11.88Gbps at 75m
    - 5.94Gbps at 120m
    - 2.97Gbps at 200m
    - 1.485Gbps at 300m
    - 270Mbps at 600m
  • Signal Amplitude: 800mV±10%
  • Impedance: 75Ω
  • Connector: BNC IEC169-8 standard


  • Audio Parameters
  • Sampling Frequency: 48K
  • Sampling Depth: 24bit
  • Dynamic Bandwidth: 96db
  • Total Harmonic Distortion (THD): -88db
  • Signal to Noise Ratio (SNR): 96db
  • Audio Input/Output Impedance: 600Ω
  • Signal Level: VPP 3.5V
  • Physical Interface: 3.5mm stereo audio socket
  • Signal Type: Stereo Audio

    Data Parameters
  • Standard: EIA RS-232,RS-485,RS-422 standard
  • Physical Interface: Industrial terminal/3.81mm
  • Baud Rate: 50bps to 115200 kbps (support non-standard baud rates)
  • RS232: 3-wire(RXD,TXD,GND), full-duplex, point to point communication
  • RS485: 2-wire (A, B), half-duplex, point to multi-master-slave communication
  • RS422: 4-wire, full-duplex

    RS485 Circuit Parameters
  • RS-485 Pull-Up Resistance/Pull-Down Resistance: 4.7 kΩ,4.7 kΩ
  • RS-485 Terminal Resistance: N/A,120 Ω and 120 kΩ

    Tally Signal Parameters
  • Level Type: TTL(5V)/LVTTL(3.3V)
  • Input Level Range: 3.3V~12V
  • Output Level Parameter: 0V or 3.3V
  • Default State: No-voltage output (0V)
  • Physical Interface: Industrial terminal/3.81mm

    Mechanical & Environmental Parameters
  • Shell: Aluminum alloy
  • Product Size: 4.57"x 5.04" x 1.18" (116mm x 128mm x 30mm)
  • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
  • Relative Humidity: 5% - 95% (non-condensing)
  • MTBF: > 10,0000 hours


• Item Includes:

  • 1x Transmitter
  • 1x Receiver
  • 2x 9-pin phoenix terminal male (fixed to the device)
  • 1x User's manual
  • 1x Warranty card
  • 1x Certificate of quality
