Thor Fiber F-12G-SDI-TX/RX 12G 3G HD SD-SDI to Fiber 4K Tx/Rx Kit with Power Adapters - Simplex Singlemode LC Fiber

ITEM #: THR-F-12GSDITXRX MFG #: F-12G-SDI-TX/RX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$1,500.00

Our Price:

$1,250.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

F-12G-SDI-TX/RX - Overview

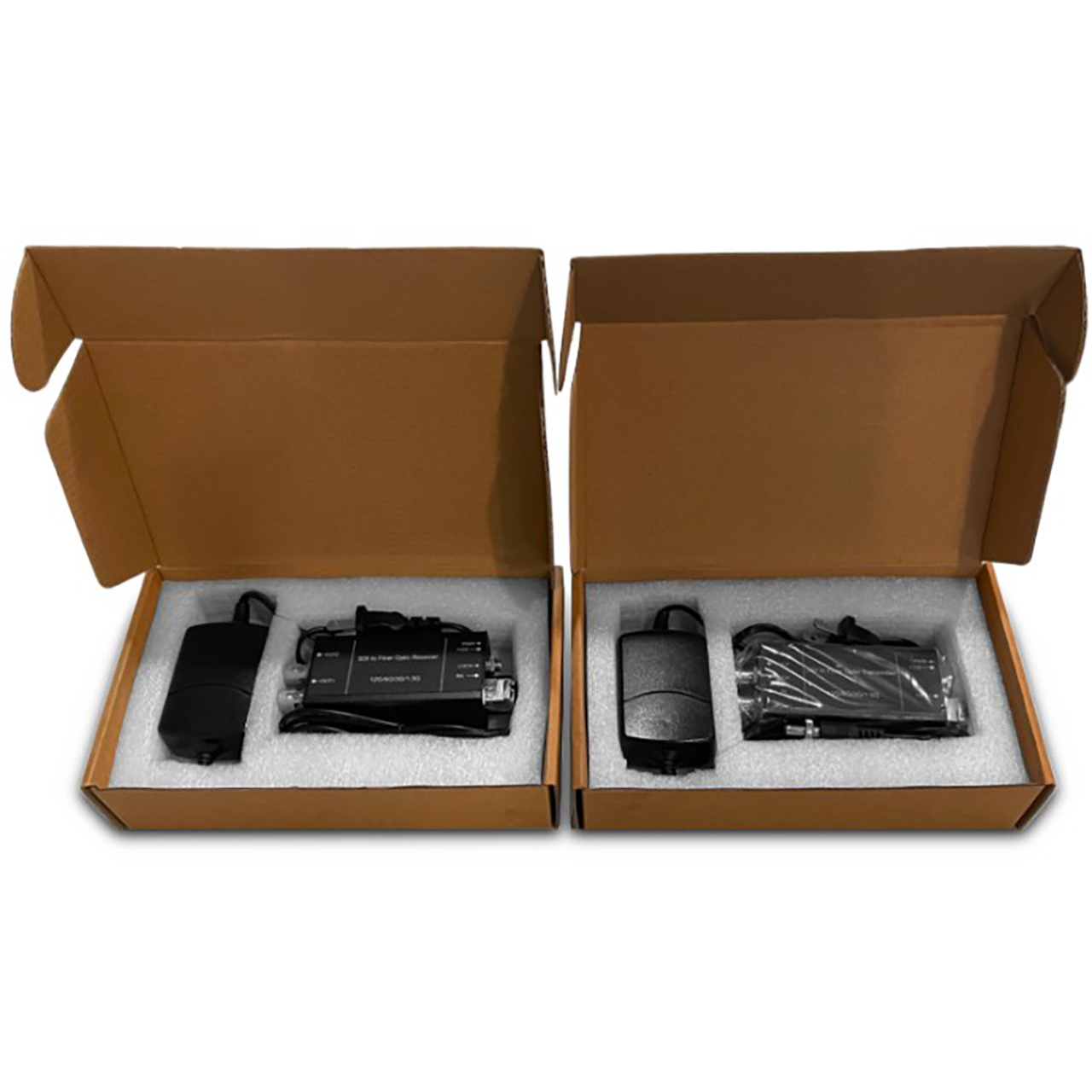

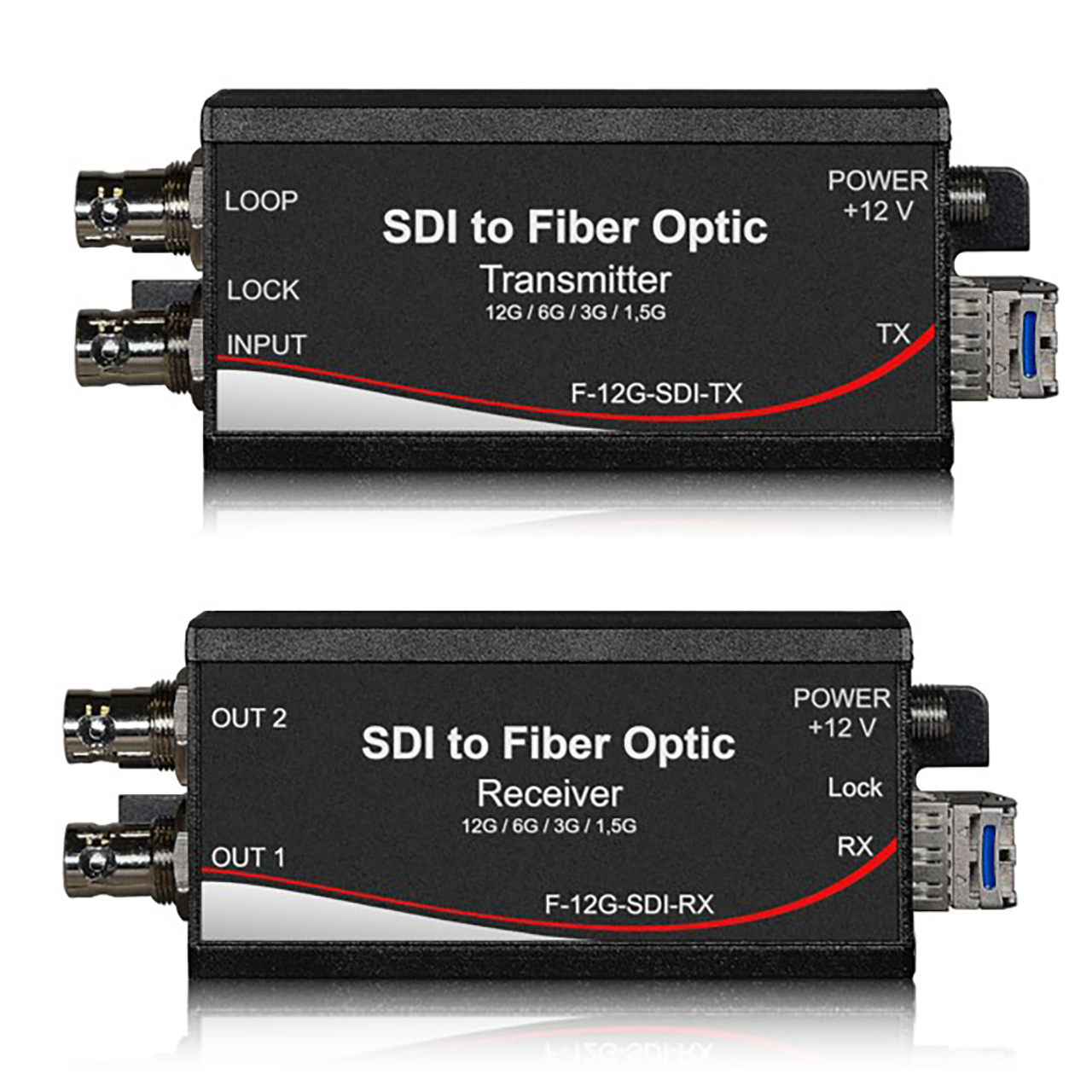

The Thor Fiber F-12G-SDI-TX/RX is a 12G and 3G HD SD-SDI to Simplex Singlemode LC Fiber 4K transmitter and receiver kit with Power Adapters. This powerful transmitter provides one SDI input and one SDI loopout, and the receiver provides two SDI outputs. Utilizing single mode fiber, this multirate Ultra High Definition has zero delay to perform under the most ciritcal applications in real world conditions.

This unit provides transparent and loss-free transmission technology, which ensures that the quality of images is up to broadcast level, and also guarantees the normal transmission of embedded audio signals. It can be widely used in 4K/8K ultra high-definition TV program production, live broadcast of Large-scale concert or Sports events.

12G-SDI solutions can simplify production and post workflows, providing bandwidth to handle high resolution, high frame rate and deep color content over one single mode cable, by directly connecting the camera.

  • Features:

    • Compact design with a casing size of 93.0mm x 45.0mm x 29.2mm
    • Unidirectional 12G/6G/3G/HD/SD-SDI signal transparent transmission, the bit rate is auto-adaptive
    • PAL/NTSC auto-detection
    • Passes SDI pathological code test and compliant with SMPTE RP178 standard
    • Integrated cable equalizer and Re-Clocker for SDI input

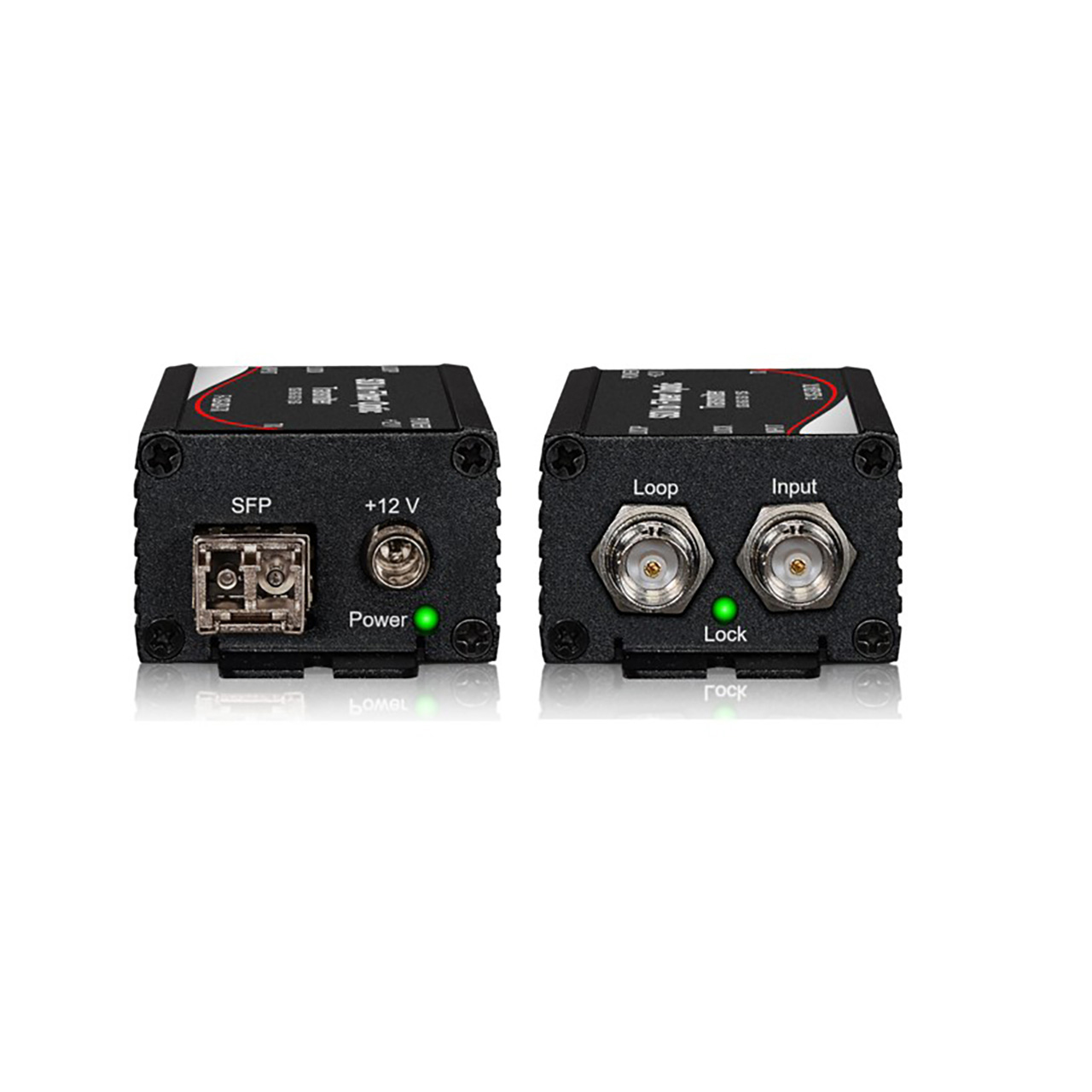

    • Provides one SDI loop output, supports long-distance 20km
    • Provides SDI input lock indicator and power indicator

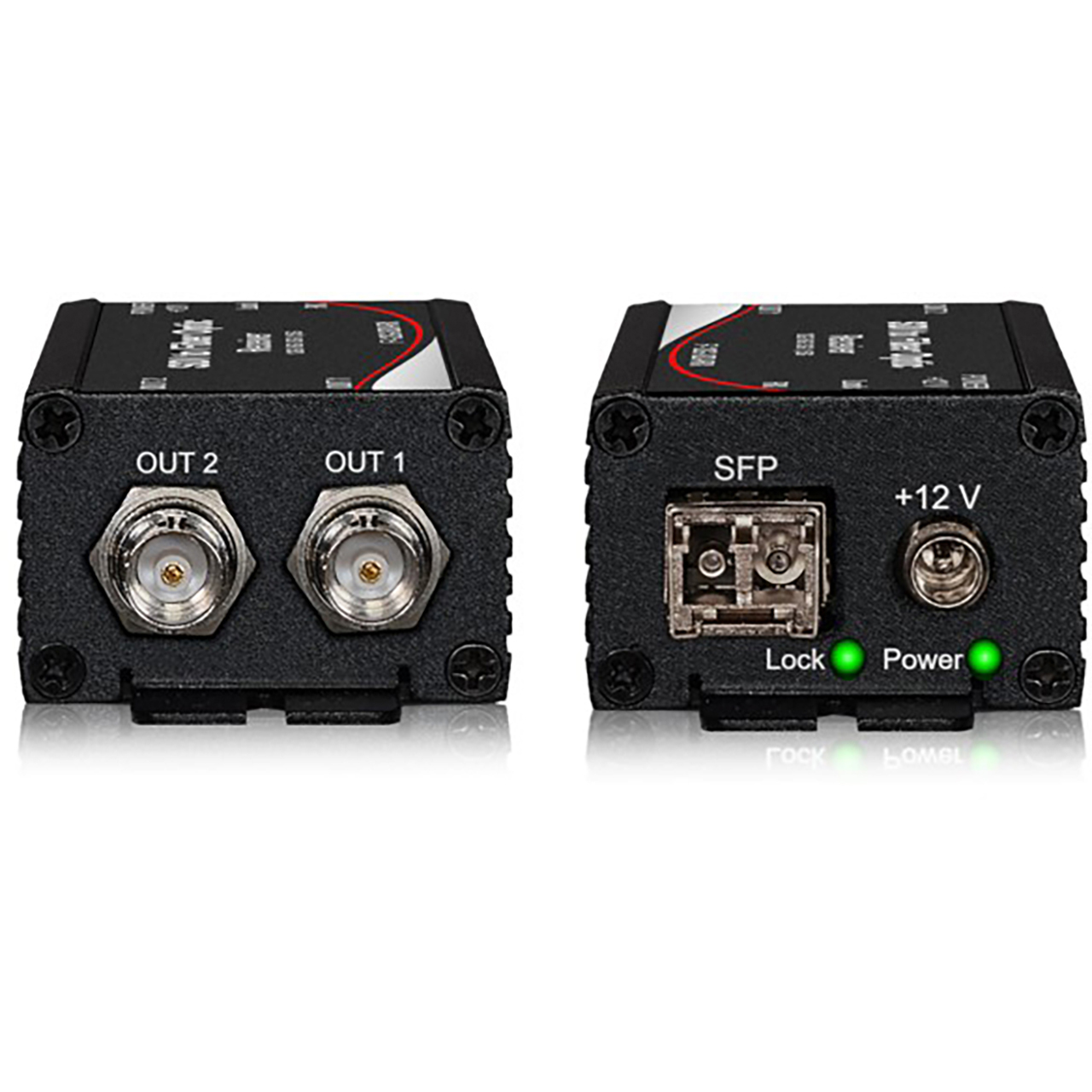

    • Provides dual SDI outputs, with integrated re-clocker
    • Provides optical input lock indicator and power indicator
    • BNC input/output interface has 15kV electrostatic protection ability, which can meet indoor application
    • Compliant with SMPTE ST297, ST2081, ST2082, SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, and DVB-ASI standard


  • Specifications:

    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards:
      - 720p50, 720p59.94, 720p60
      - 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, [email protected], 1080P@24, 1080P@25, [email protected], 1080P@30, 1080i50, 1080i59.94, 1080i60
    • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF.
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
    • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
    • SFP: LC/PC optical module INLUDED, with 1310nm, 20km long haul, compliant with SFP MSA and SFF-8472 standard, with higher overload power, allows for short jumpers to connect for testing purposes
    • Video Input Digital: 1-Channel independent 12G-SDI , SMPTE-259/292/424/2081/2082.
    • Video Output Digital: 1-Channel independent 12G-SDI Loop out, SMPTE-259/292/424/2081/2082; 1-Channel Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082.
    • Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select; All other rates are passed through and not reclocked.

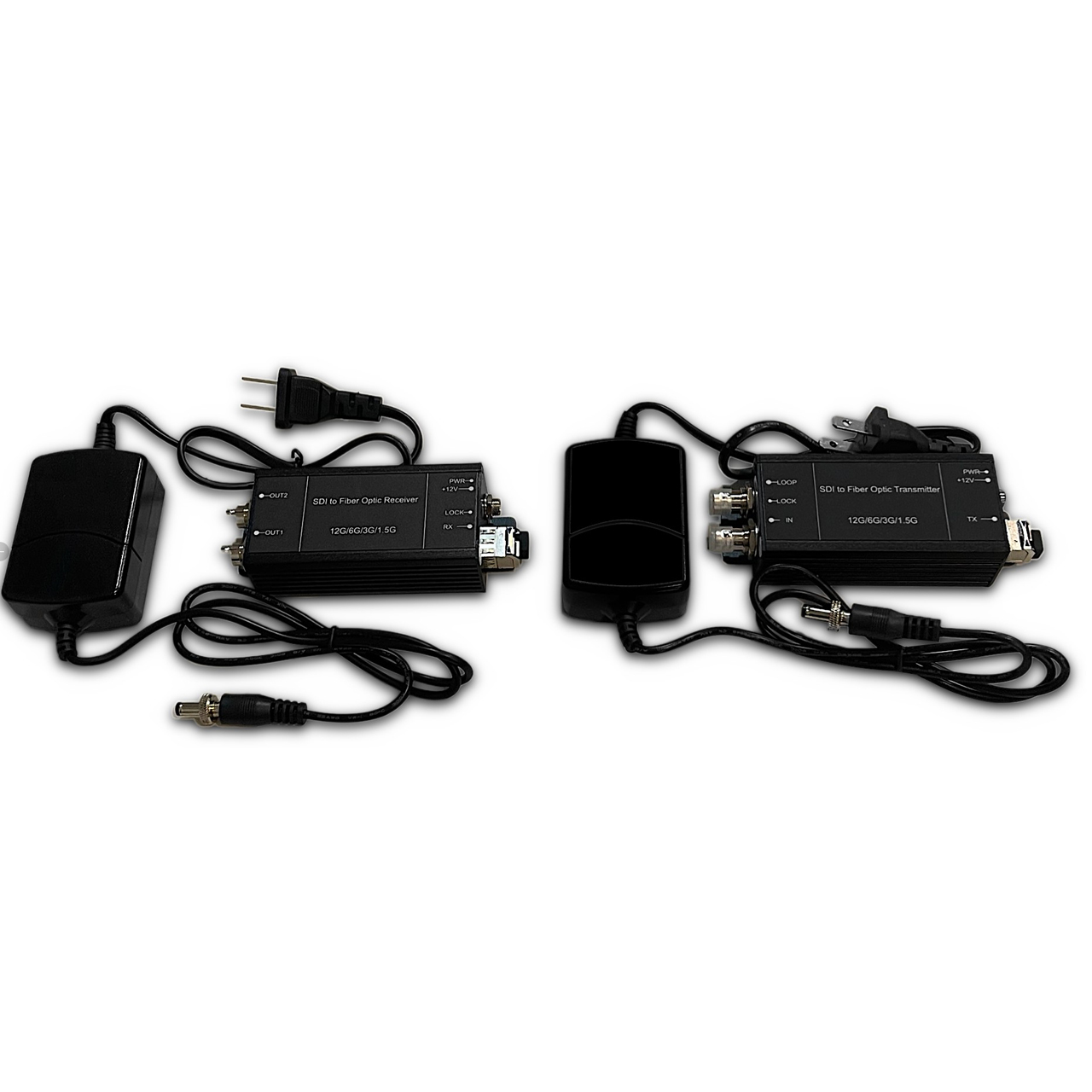

    • Power Adapter:
      - Input: AC 90V - 264V @ 50 - 60Hz
      - Output: DC +12V. The power plug has anti-shedding protection function, provides CLI interface for failure location.
    • Working Temperature: -40°F - 185°F (-40°C - 85°C)
