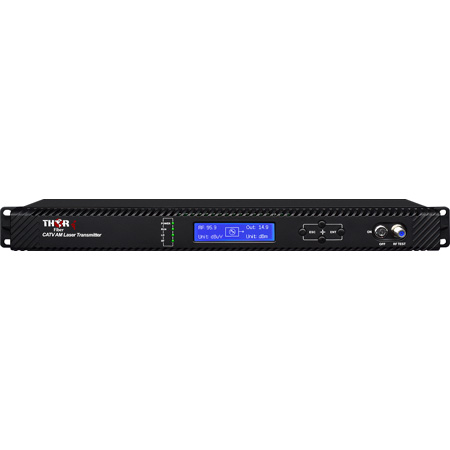

Thor Fiber F-RF-1310-Tx-8mW CATV RF Over Fiber Transmitter 45-870 MHz with 8dB Output Power
  • Thor Fiber F-RF-1310-Tx-8mW CATV RF Over Fiber Transmitter 45-870 MHz with 8dB Output Power
  • Thor Fiber F-RF-1310-Tx-8mW CATV RF Over Fiber Transmitter 45-870 MHz with 8dB Output Power
  • Thor Fiber F-RF-1310-Tx-8mW CATV RF Over Fiber Transmitter 45-870 MHz with 8dB Output Power
  • Thor Fiber F-RF-1310-Tx-8mW CATV RF Over Fiber Transmitter 45-870 MHz with 8dB Output Power
  • Thor Fiber F-RF-1310-Tx-8mW CATV RF Over Fiber Transmitter 45-870 MHz with 8dB Output Power

Questions? Ask a Markertek Expert:
800-522-2025 Email

Thor Fiber F-RF-1310-Tx-8mW CATV RF Over Fiber Transmitter 45-870 MHz with 8dB Output Power

Manufacturer: Thor Fiber

Item #: THR-RF-1310-T8MW   •   MFG #: F-RF-1310-TX-8MW



List Price:$3,118.75
Our Price:$2,495.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

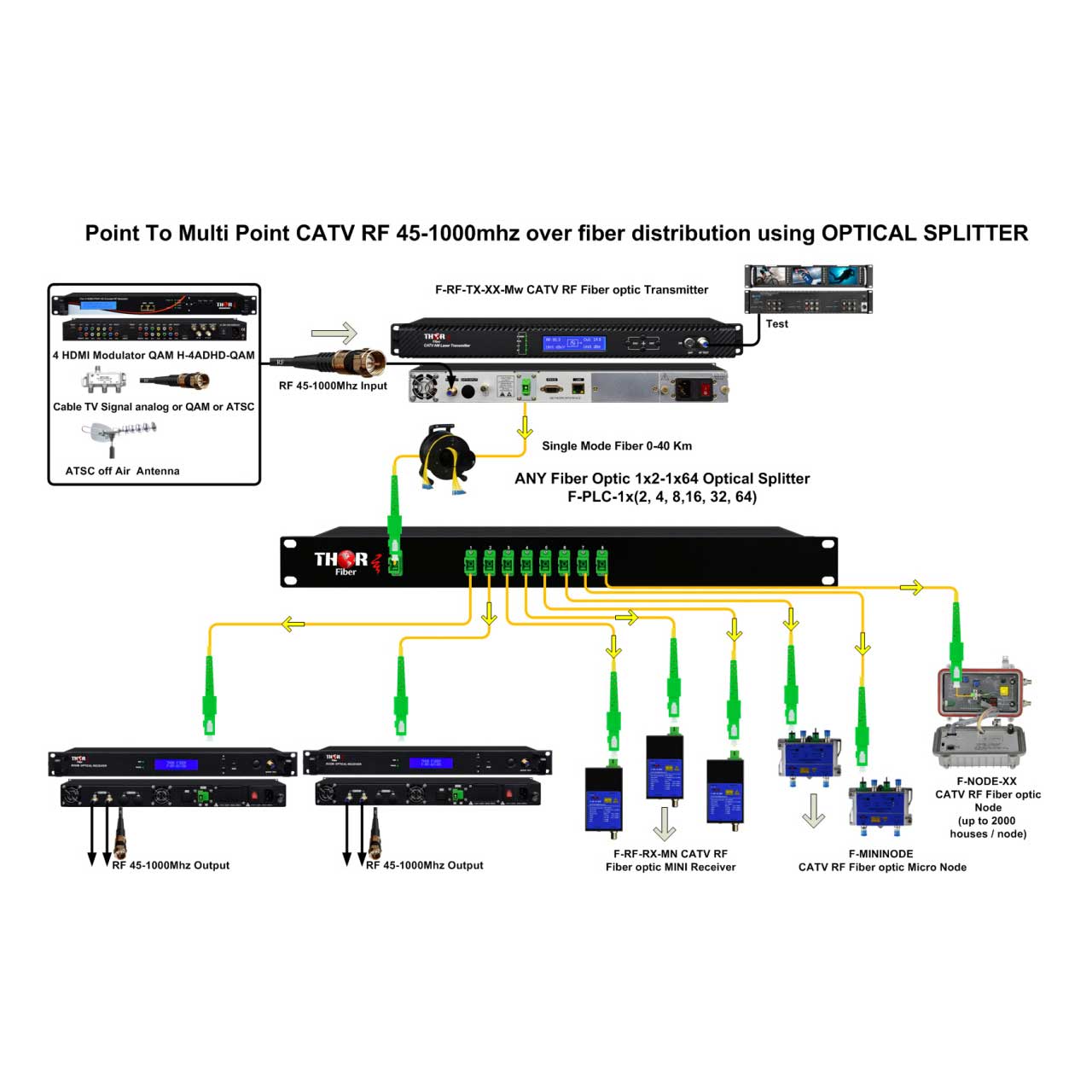

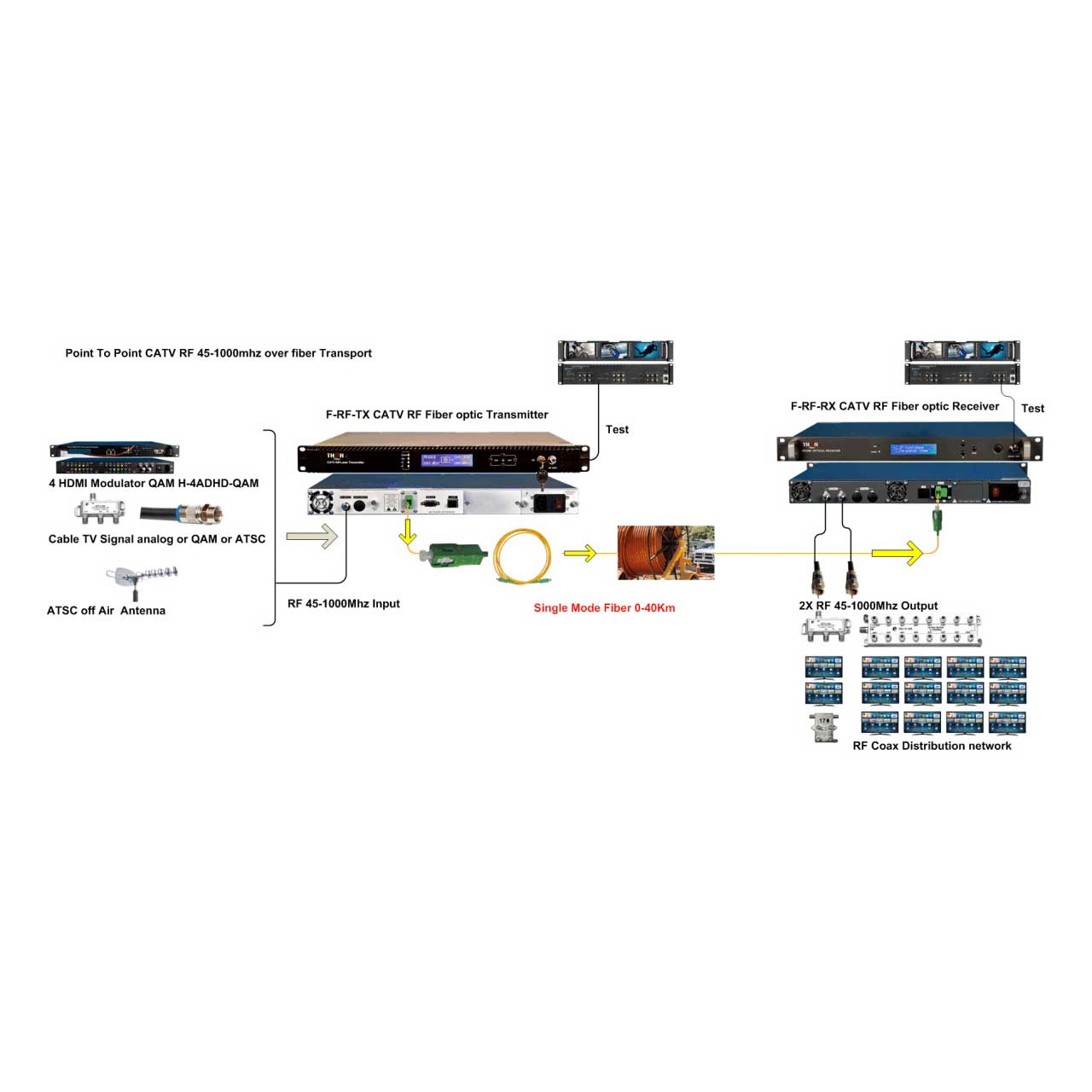

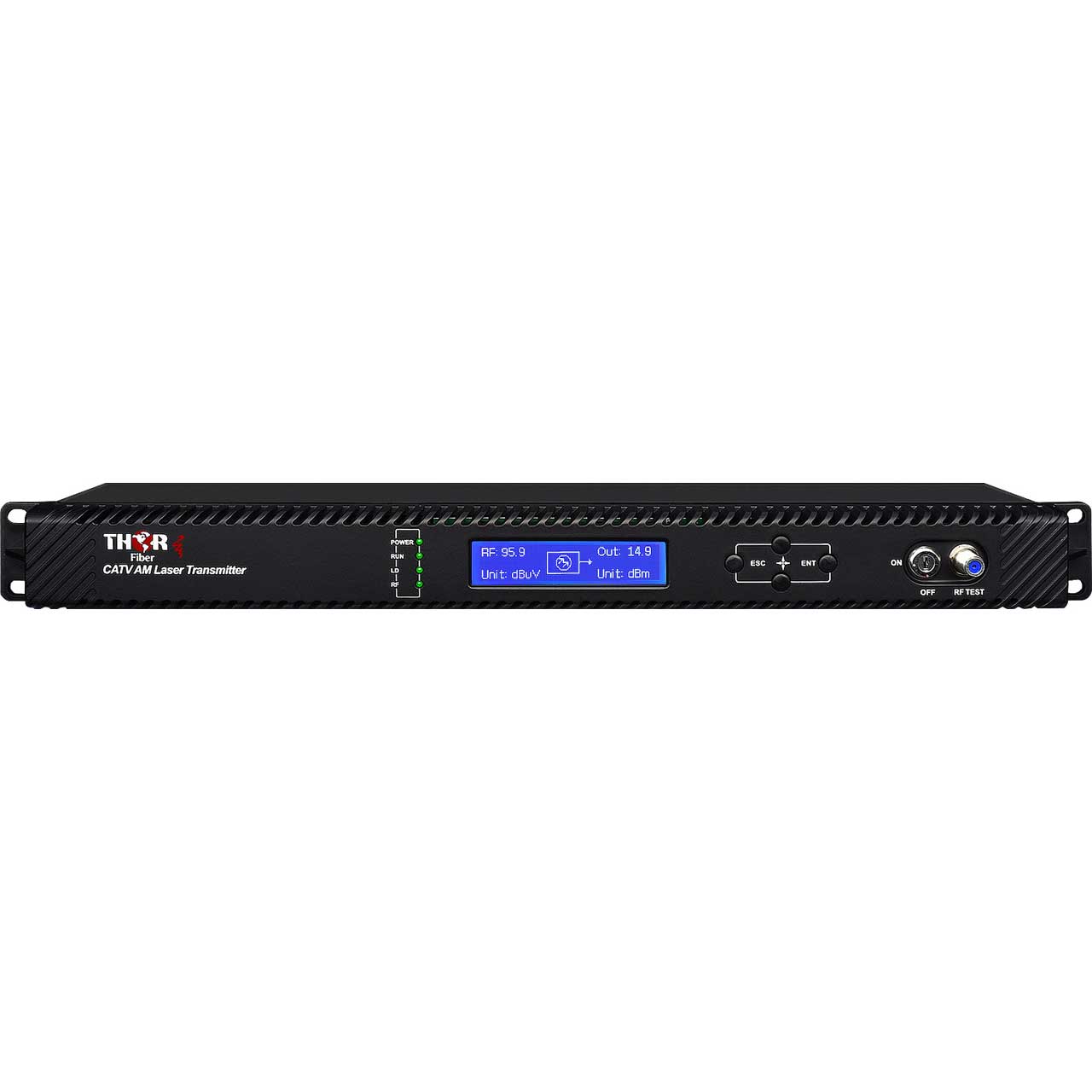

    1310nm - 8mW fiber optic transmitter for Television RF (Radio Frequencies) from 45-870 MHz. Directly converts any incoming RF signal within this band to optical RF. Transports all channels and programs over one fiber. Can be used for point to point, or combined with PLC couplers and fiber optic splitters for point to multipoint applications. Outputs Industry standard RFoG (RF over Glass) signals that can be accepted by most fiber optic RF receivers from other manufacturers. Easy to read front panel LCD provides information and alarm data, and simplifies configuration. This system features a highly linear DFB laser with automatic adjustment circuitry with Automatic Gain Control. For added reliability, a second internal Power Supply Unit is available as an option.


    • Features

      • 8mW Laser Optics for Optical Output Power of at least +5 dBm
      • Temperature controlled optics for consistent power output
      • Broadband RF response for full lineup transport of telivision RF
      • Transports any channels in the 45-870 MHz broadband range

    • Specifications

      • Laser Power: 8mW
      • Optical Power: > +6 dBm
      • Fiber Connector: SC/APC
      • RF Input Power: 19 - 21 dBmV
      • RF Connector: Type-F 75 Ohm
      • Power Input: 120-240 VAC
      • Power Rating: 50W
      • Dimensions: 19 x 10 x 1.75 IN
      • Termperature: -5 - 65 C

    • Item Includes

      • Optical Transmitter
      • US Power Cable
      • User Manual

    • GTIN:

      0799599222107
