Fiberplex TKIT-3GXC-S TD-6010 (Pair) 3GSDI Video to Singlemode Optical Conversion Dual Channel Optimized 1310nm w/ AC Pw
  • Fiberplex TKIT-3GXC-S TD-6010 (Pair) 3GSDI Video to Singlemode Optical Conversion Dual Channel Optimized 1310nm w/ AC Pw
  • Fiberplex TKIT-3GXC-S TD-6010 (Pair) 3GSDI Video to Singlemode Optical Conversion Dual Channel Optimized 1310nm w/ AC Pw

Questions? Ask a Markertek Expert:
800-522-2025 Email

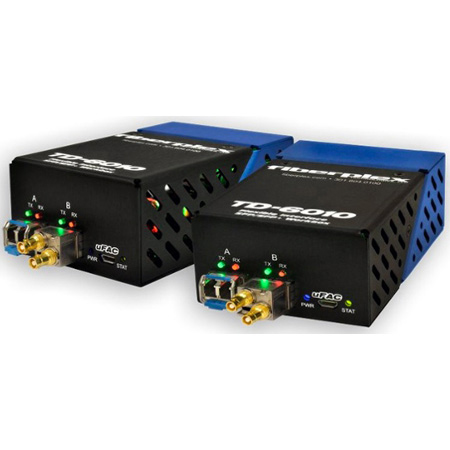

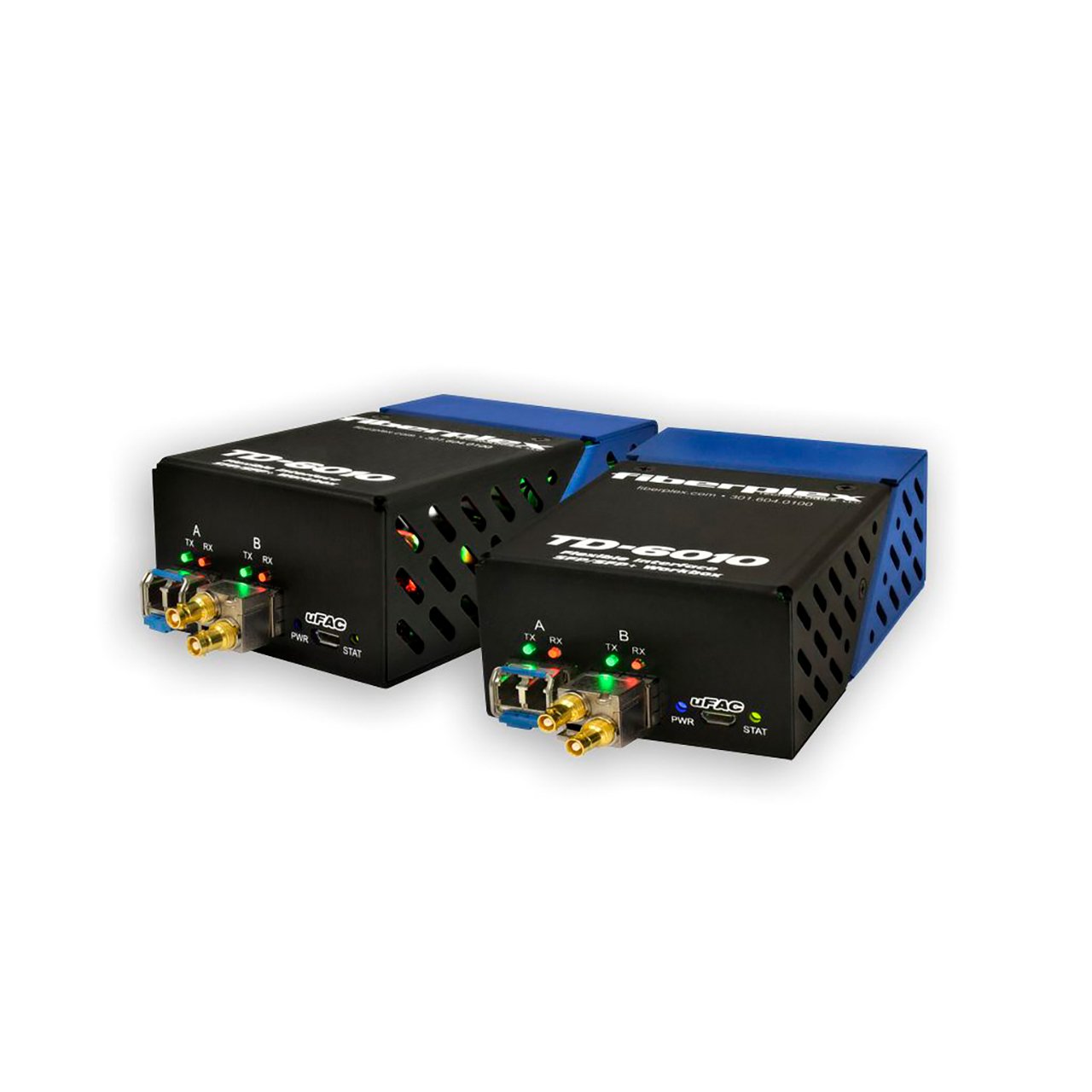

Fiberplex TKIT-3GXC-S TD-6010 (Pair) 3GSDI Video to Singlemode Optical Conversion Dual Channel Optimized 1310nm w/ AC Pw

Item #: TKIT-3GXC-S   •   MFG #: TKIT-3GXC-S



List Price:$2,104.00
Our Price:$1,500.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

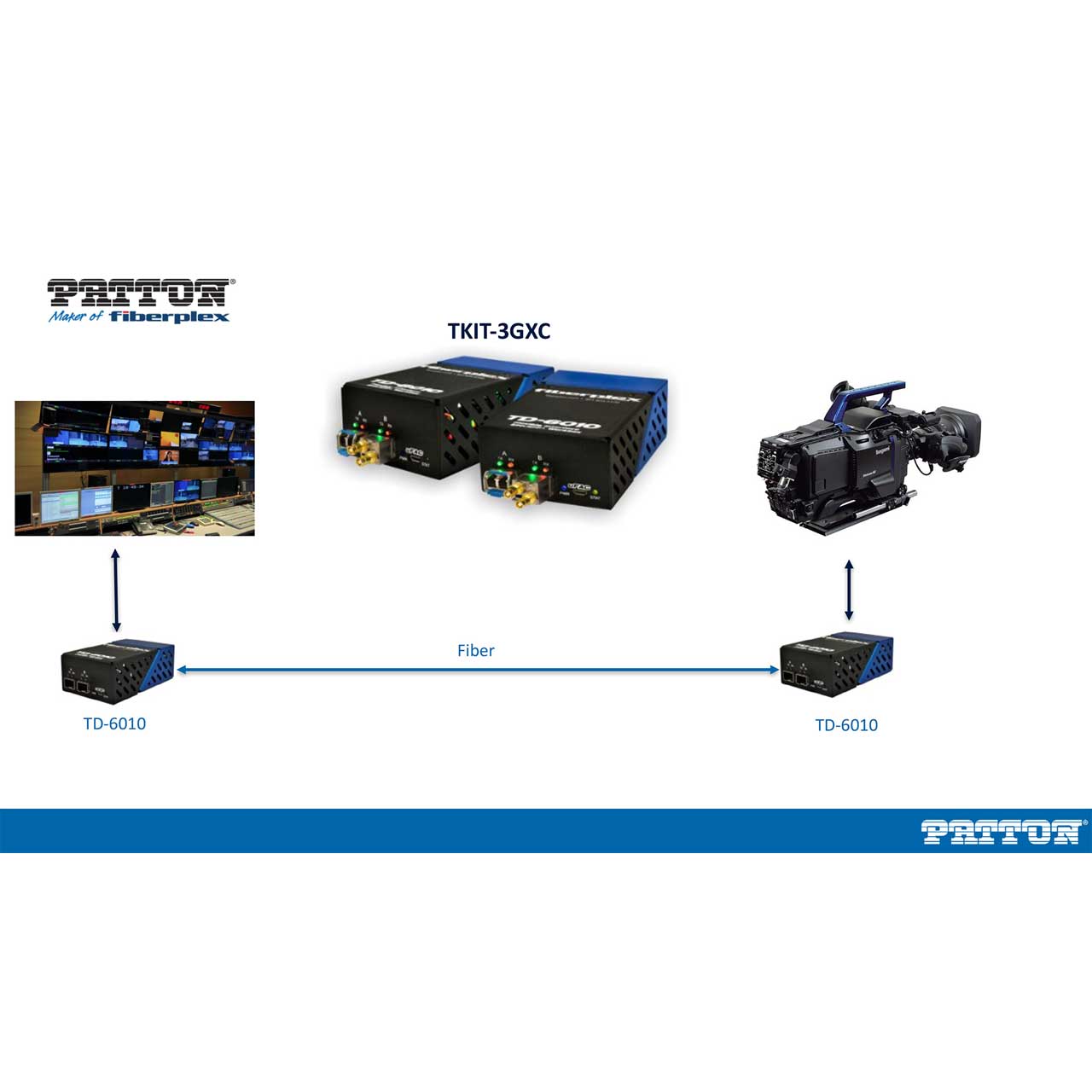

    The FiberPlex Technologies `TKIT' bundles takes the incredible flexibility of the TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application. Includes AC Power Adapters.
    All TKIT boxes come equipped with a USB 2.0 Micro-B Connection for monitor control. It is a USB port intended to monitor and control the installed SFP. It is for future functionality only, Fiberplex currently does not have software available for this.

    All fiber connectors are LC duplex and all TKIT kits come with all SFPs needed. All TKITs listed have HDBNC connections where applicable. (3G SDI, MADI).


    • Features

      • SMPTE 424M, SMPTE 344M, SMPTE 292M and SMPTE 259M compliant
      • Integrated Reclocker and Cable Driver
      • Supports DVB-ASI at 270Mb/s
      • Supports Audio in SDI stream
      • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
      • Control via serial interface including: Input signal detection, Reclocker Rate & Lock, Voltage & Temperature Monitoring, Bypass Reclocker stage, Module Information.

    • Specifications

      • Storage Temperature (°C): -40 - 85°C
      • OperatingTemperature (°C): 0 - 50°C
      • Interface: Full speed USB 2.0 compliant MicroB Device
      • Optical Modules: 2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 - 12.5 gigabits
