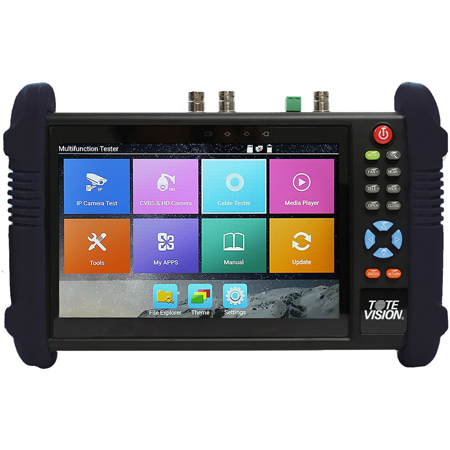

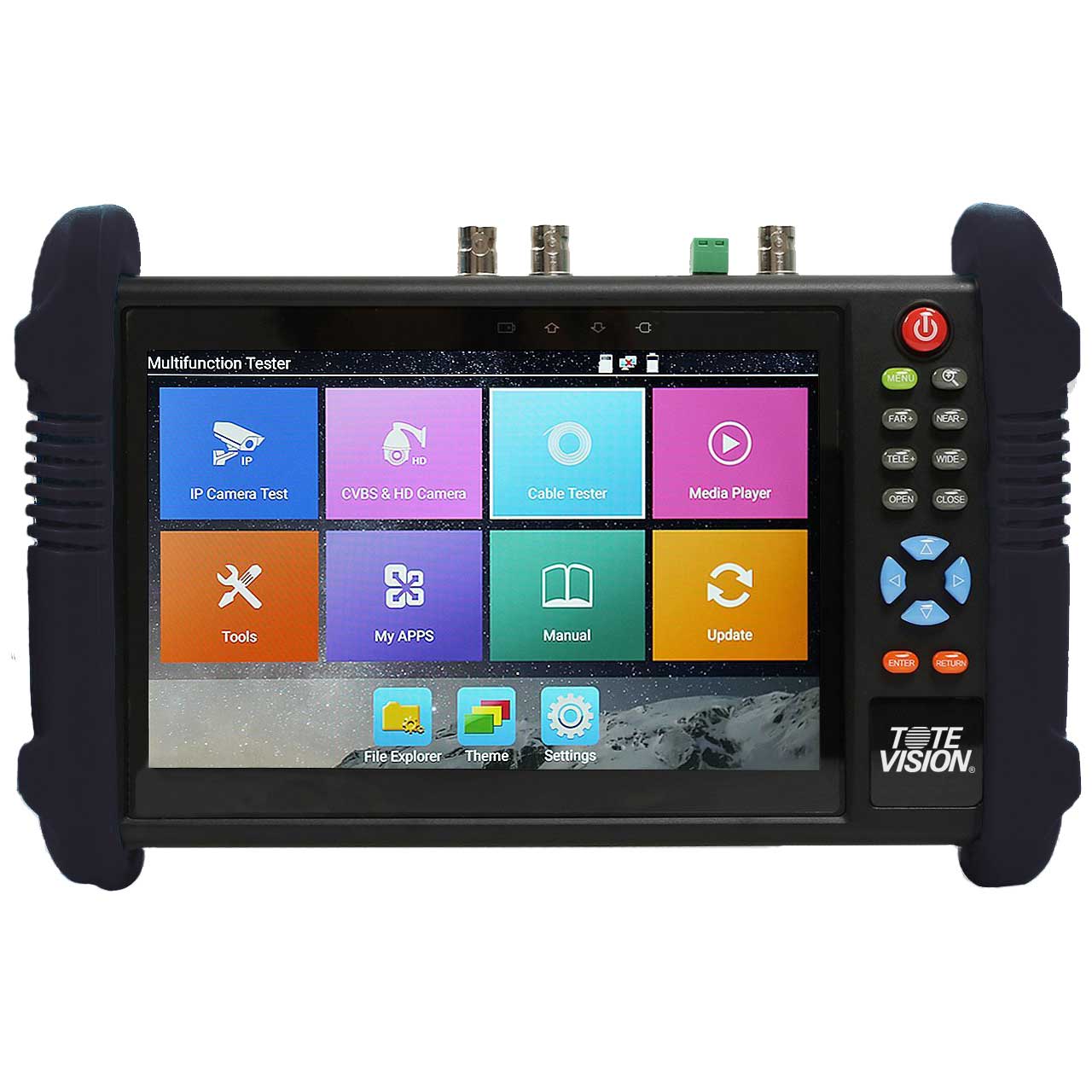

ToteVision LED-715-4KIP 7 inch Ruggedized IP/Analog Camera Field Test Monitor & Digital Multimeter with TDR Port & HDMI

LED-715-4KIP - Overview

PTZ controller for both IP and analog cameras

• Features:

  • Linux-based 1.2GHz quad-core processor using Android 5.1 OS
  • 8GB SD card for storage with port capacity to support 32GB
  • Interactive on-screen touch-controlled menu with dropdown menu to quickly access functions
  • TDR cable test displays the measurement results on the screen.
  • Digital multimeter visually displays AC/DC voltage/current measurement/diode testing/resistance and capacitance measurment/continuity testing.
  • Supports H.264 and H.265 protocol; 4K video can be displayed via main stream feed
  • Supports 5MP TVI at resolution 2560x1944p up to 12.5fps, and 4MP AHD / CVI at 2560x1440p up to 30fps
  • Resolution is downscaled with 4x zoom, video record, playback, and PTZ control capability
  • Supports HD-SDI/EX-SDI 1080p resolution @30fps (50/60Hz)
  • Rapid video selection with single key to detect all network IP cameras and auto display
  • PTZ controller for both IP and analog cameras (supports many models - more than 30 protocols)
  • Enhanced color bar generator (NTSC and PAL)
  • Wireless (Wi-Fi) and wired connectivity
  • Capable of testing IP and analog cameras at the same time with dual test window
  • Built-in rechargeable Lithium Polymer battery that provides 10 hours of power depending on workload
  • auto-off adjustable (5-30 minutes)
  • Screen Lock function with option to password lock and pattern lock


• Specifications:

  • Control: Input Capacitive Touchscreen
  • Resolution: 1280 x 800
  • CPU: 1.2GHz, quad-core
  • Operating System: Android 5.1
  • Memory: 1GB RAM
  • Storage: 8GB Flash
  • Video Card: Mali 400
  • Wireless Connectivity: 802.11 b/g/n; ability to create WiFi hotspot

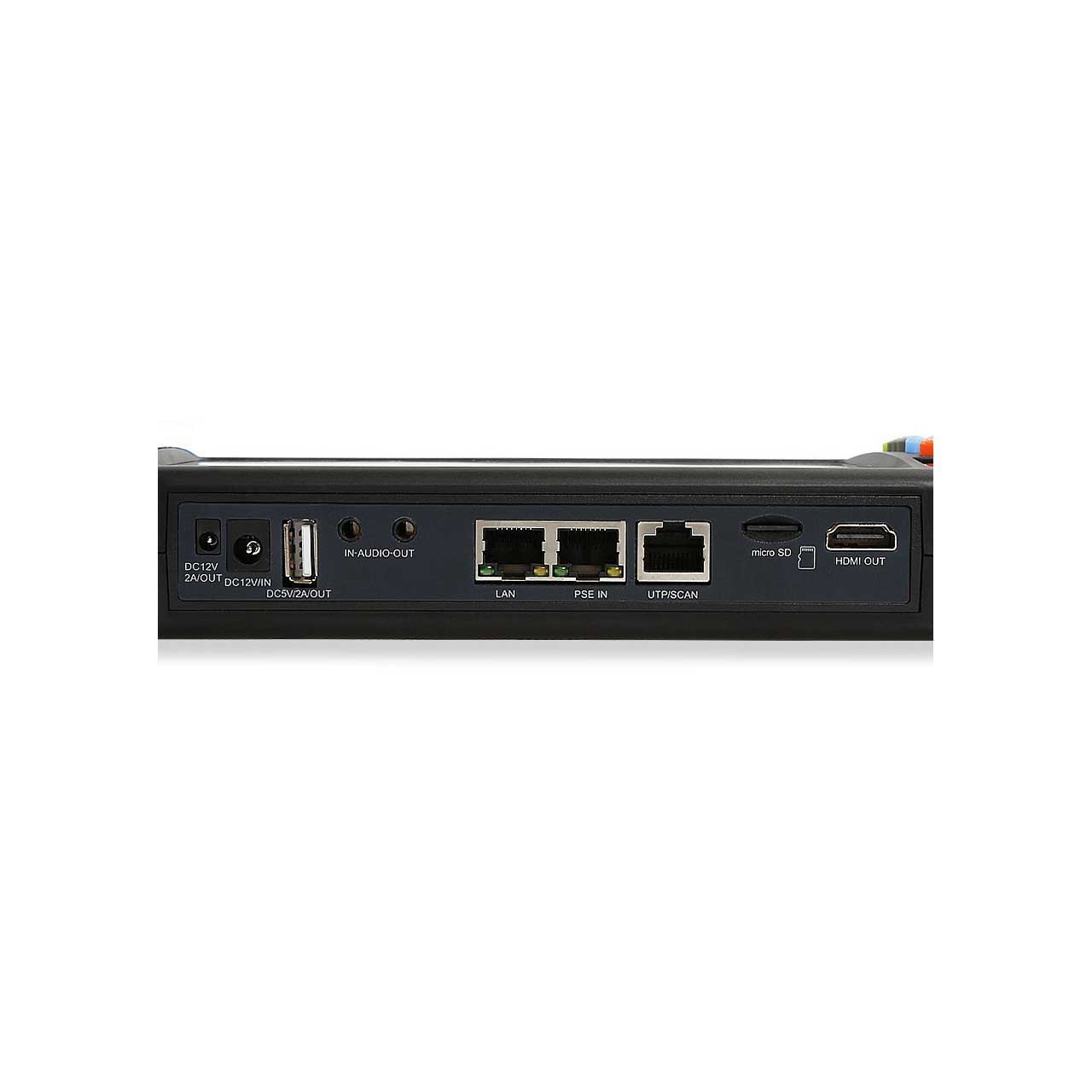

  • Wired Connectivity: x1 RJ45 IP/LAN port; x1RJ45 PSE port - ethernet power test
  • Micro SD Card Port: Includes 8GB SD for storage; 32GB max
  • Operating Temp: 41 ~ 95°F / -10 ~ 50°C
  • Humidity: 3% ~ 90%
  • IP (ONVIF): x1 RJ45 Input; RTSP and ONVIF

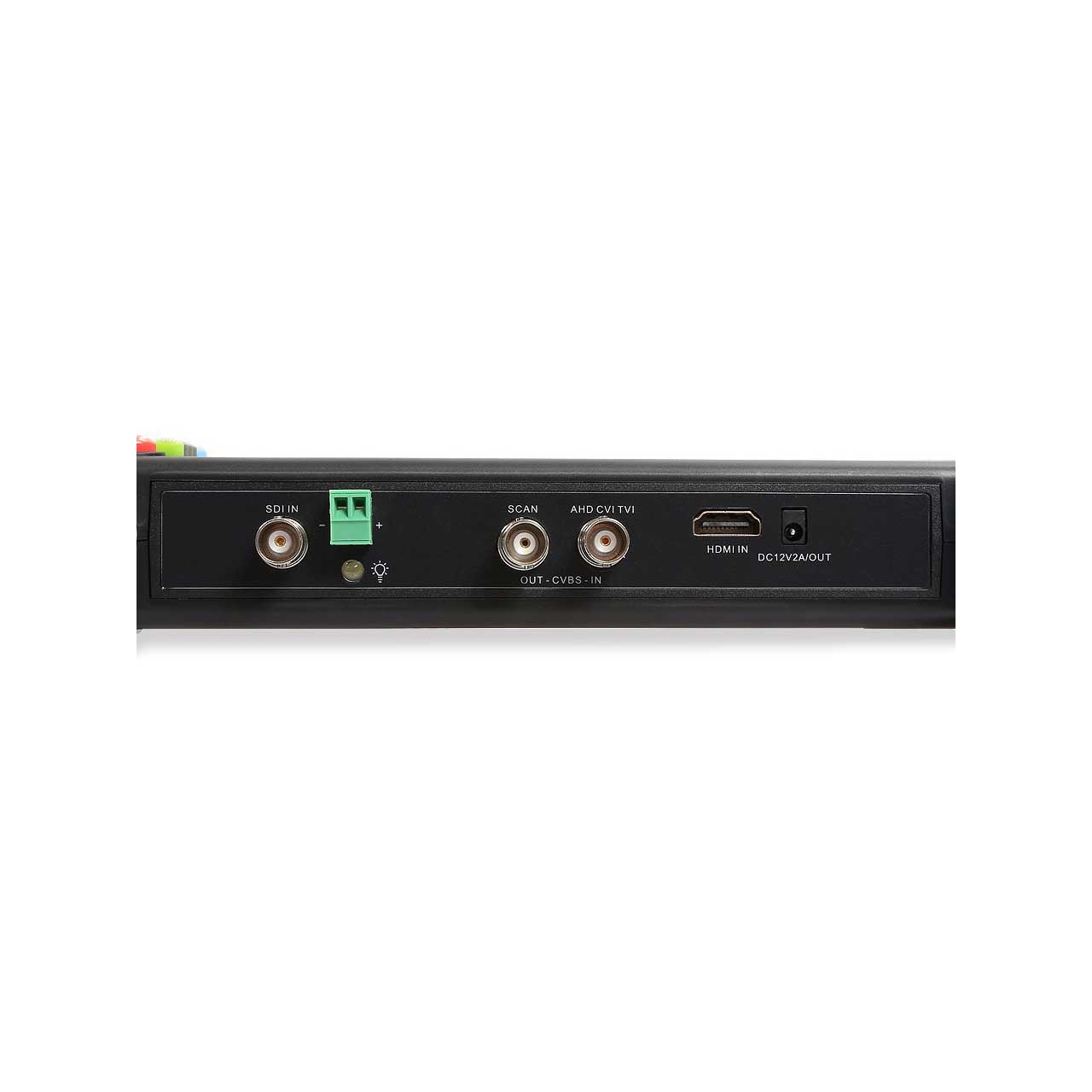

  • CVBS (analog): x1 BNC Input; x1 BNC Output (looping); PTZ control / RS485 control (baud 600 - 115,200bps) supporting over 30 protocols
  • HD Coaxial: x1 TVI/CVI/AHD Input (shared with CVBS); UTC control
  • HD-SDI / EX-SDI: x1 Input; supports 1080p 30fps (50/60Hz)
  • HDMI: x1 v1.4 Input; x1 Output; supports 1080p
  • Audio: x1 Input; x1 Output (for headphones)
  • POE (Power over Ethernet): x1 48V Output; 24watts max power
  • USB Port: x1 port for 5V 2amp power only; does not transfer data
  • Multimeter: x4 ports for testing; includes one pair of red and black cables with probe ends
  • TDR Port: x1 BNC TDR port and one BNC to alligator clips cable
  • Power Consumption: 3.6 watts active; 10milliwatts standby
  • External Power Supply: 12VDC 2amp
  • Battery: 7.4V 5400mAh Lithium Polymer battery
  • Dimensions: 9.45" x 6" x 1.8" / 240 x 154 x 46mm
  • Weight Net: 1.4 lbs / 620g


• Item Includes:

  • 1x Tote Vision 7" IP and Analog 4K Camera Test Monitor
  • 1x 8GB MicroSD Card
  • 1x Cabling Tracer Tool with Integrated Terminator


• Warranty:

  • 3-Year


• GTIN:

  0081651483114
