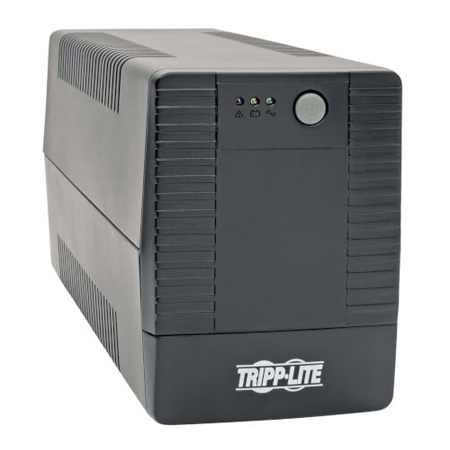

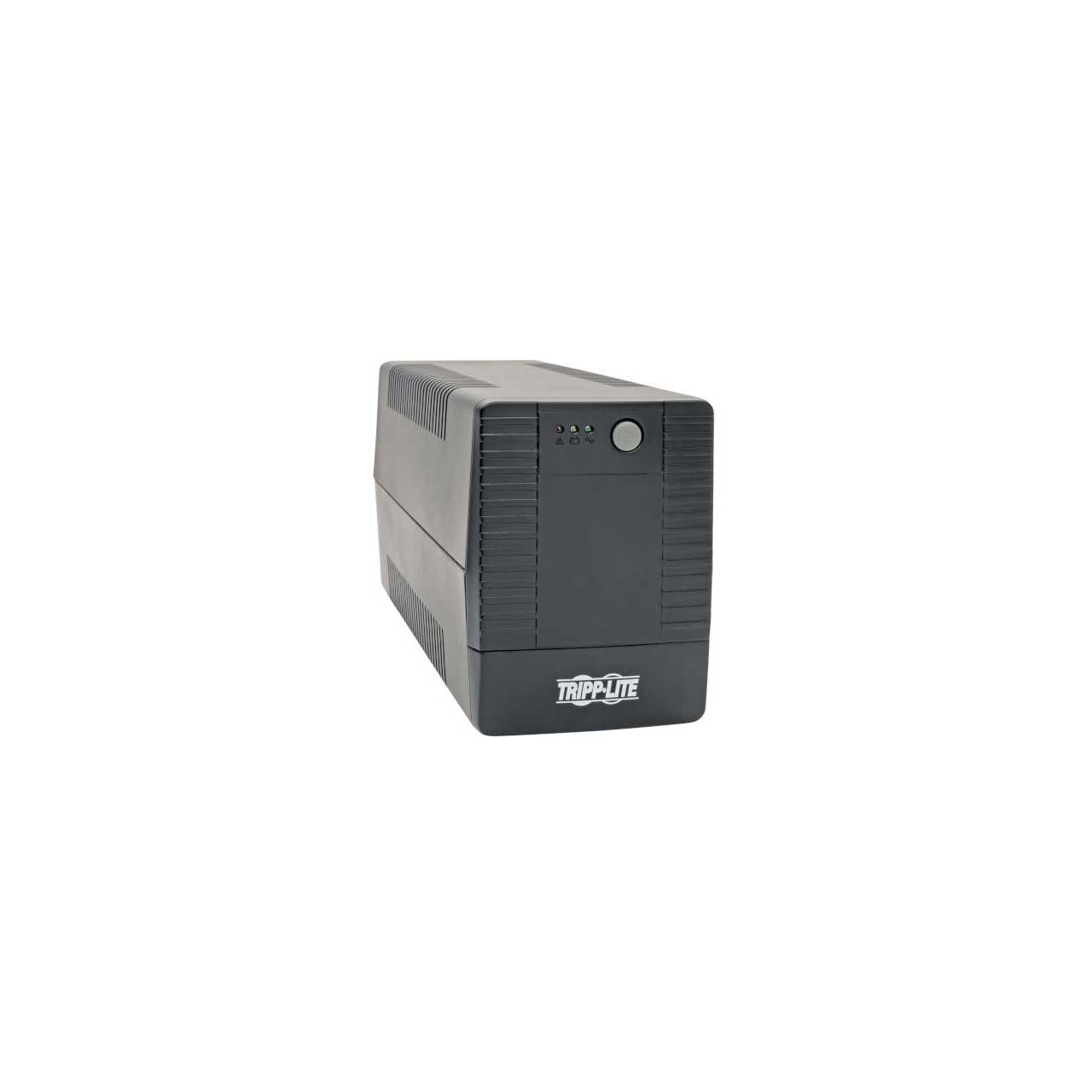

Tripp Lite AVRT450U 450VA 360 Watt Line-Interactive UPS with 6 Outlets - AVR / 120V / 50/60 Hz / USB

ITEM #: TRL-AVRT450U MFG #: AVRT450U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-AVRT450U

AVRT450U - Overview

450VA/360W/120V Battery Backup for PCs, Home Theater or Digital Signage
This Tripp Lite AVRT450U 120V UPS with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 35 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

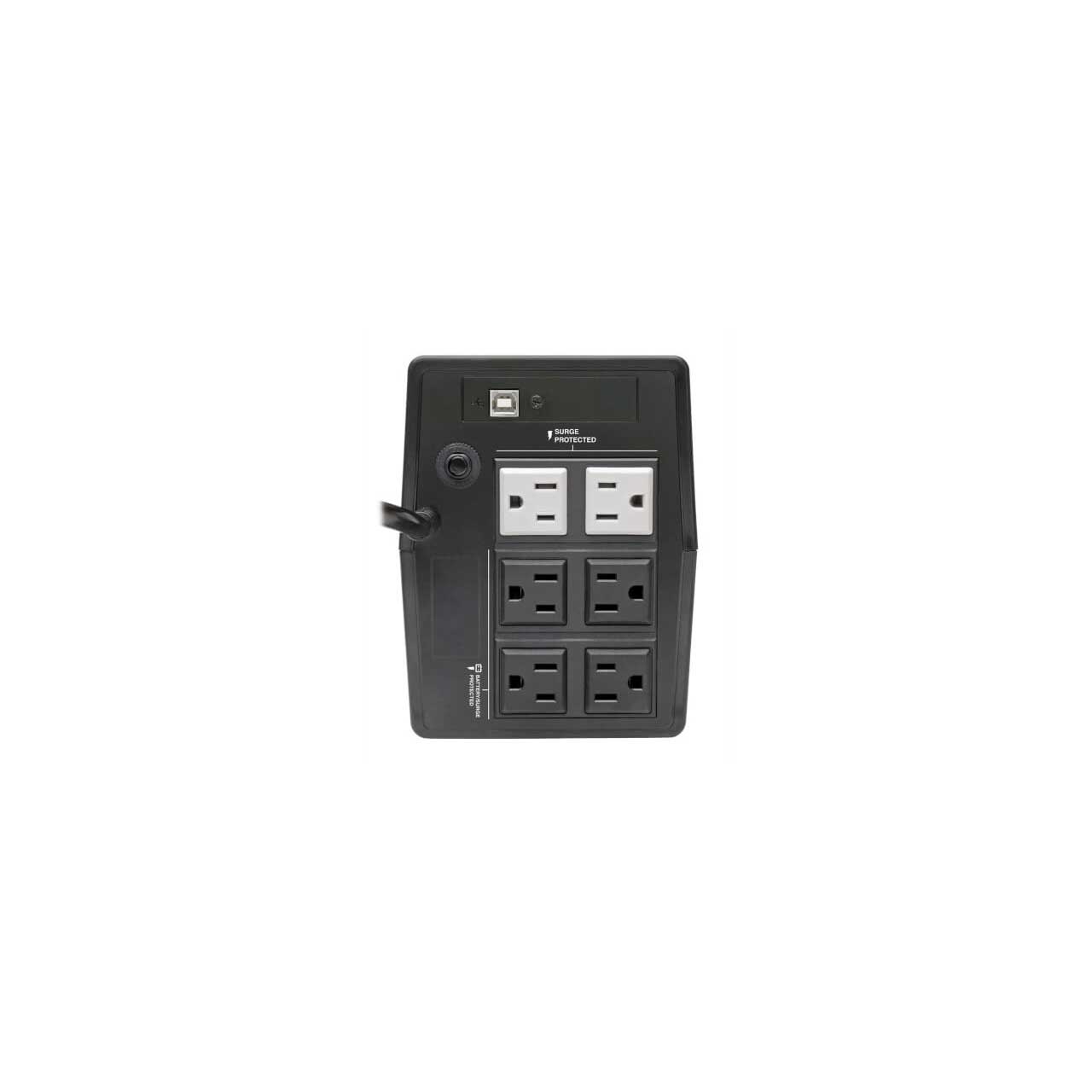

Connects Your Equipment to 6 NEMA 5-15R Outlets
Four 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other two 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The AVRT450U can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power without drawing on the battery backup needed to support your equipment during a blackout.

316 Joules Fight Back Against Unexpected Power Surges
A 316-joule surge suppression rating protects connected components from the harmful effects of power surges.

Please Note! AVRT450U is not for sale in Colorado, Vermont and Washington state. Customers in these states should purchase the recommended ENERGY STAR 2.0 model instead: OMNISMART750MX.

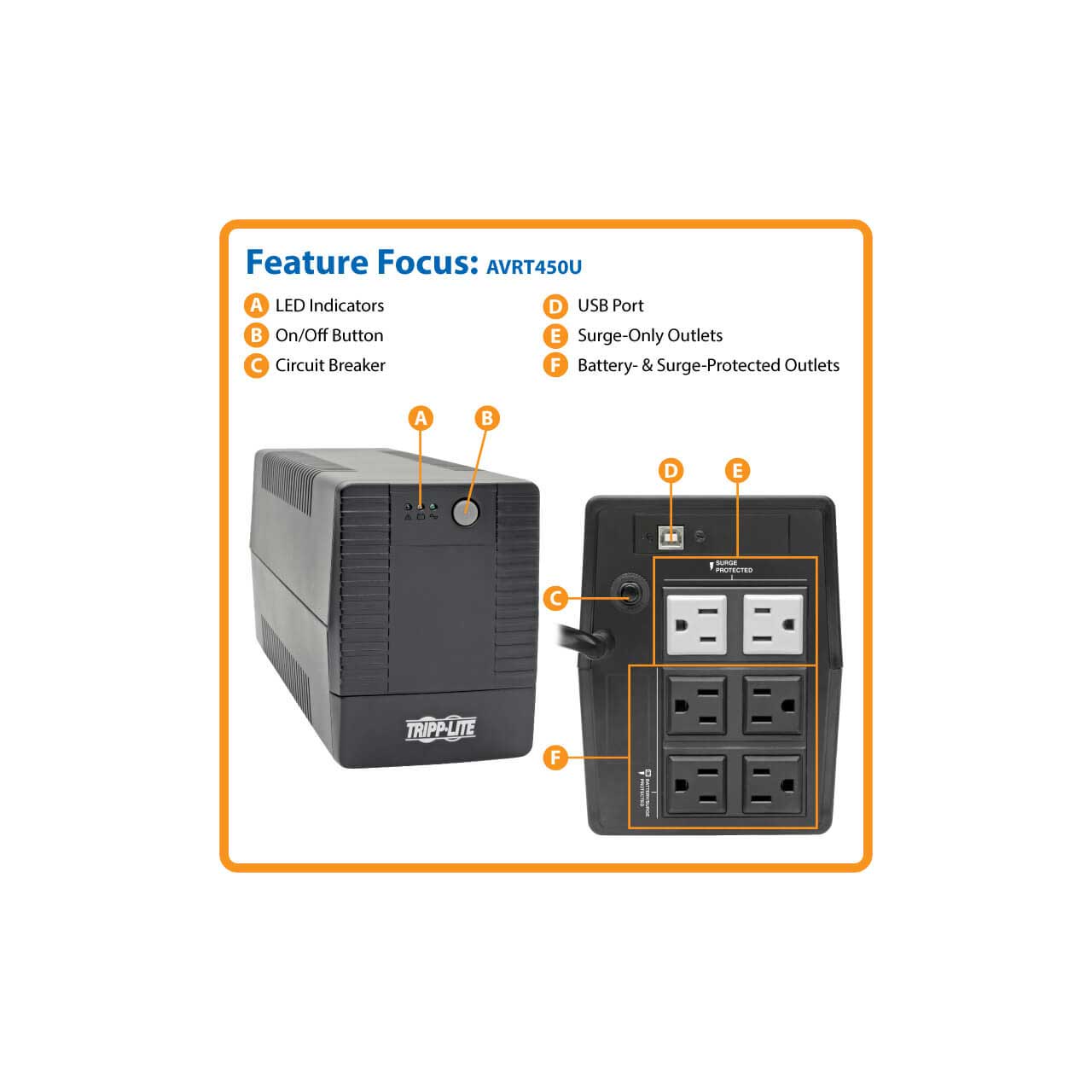

  • Features:

    • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
    • AVR battery backup allows time to save files and safely shut down during blackouts
    • 6 NEMA 5-15R outlets provide power to PC, home theater or digital signage equipment

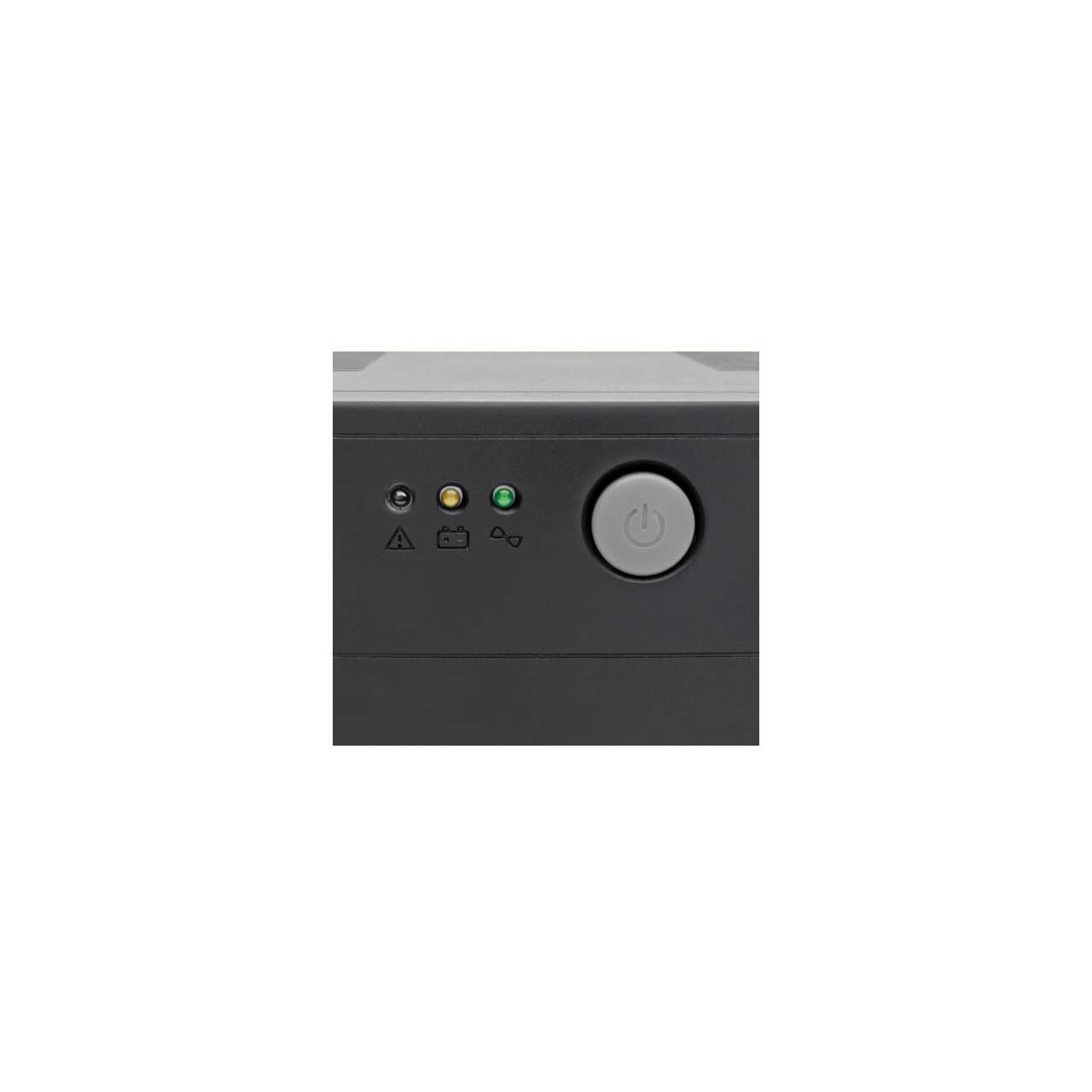

    • Easy-to-see LEDs indicate operating mode, low battery, overload and other vital data
    • High >95% efficiency with low BTU ratings saves power and lowers your energy costs
    • 3-year limited warranty
    • $100,000 Ultimate Lifetime Insurance


  • Specifications:

    • Input
    • Rated input current (Maximum Load): 5A
    • Nominal Input Voltage(s) Supported: 110V AC; 115V AC; 120V AC

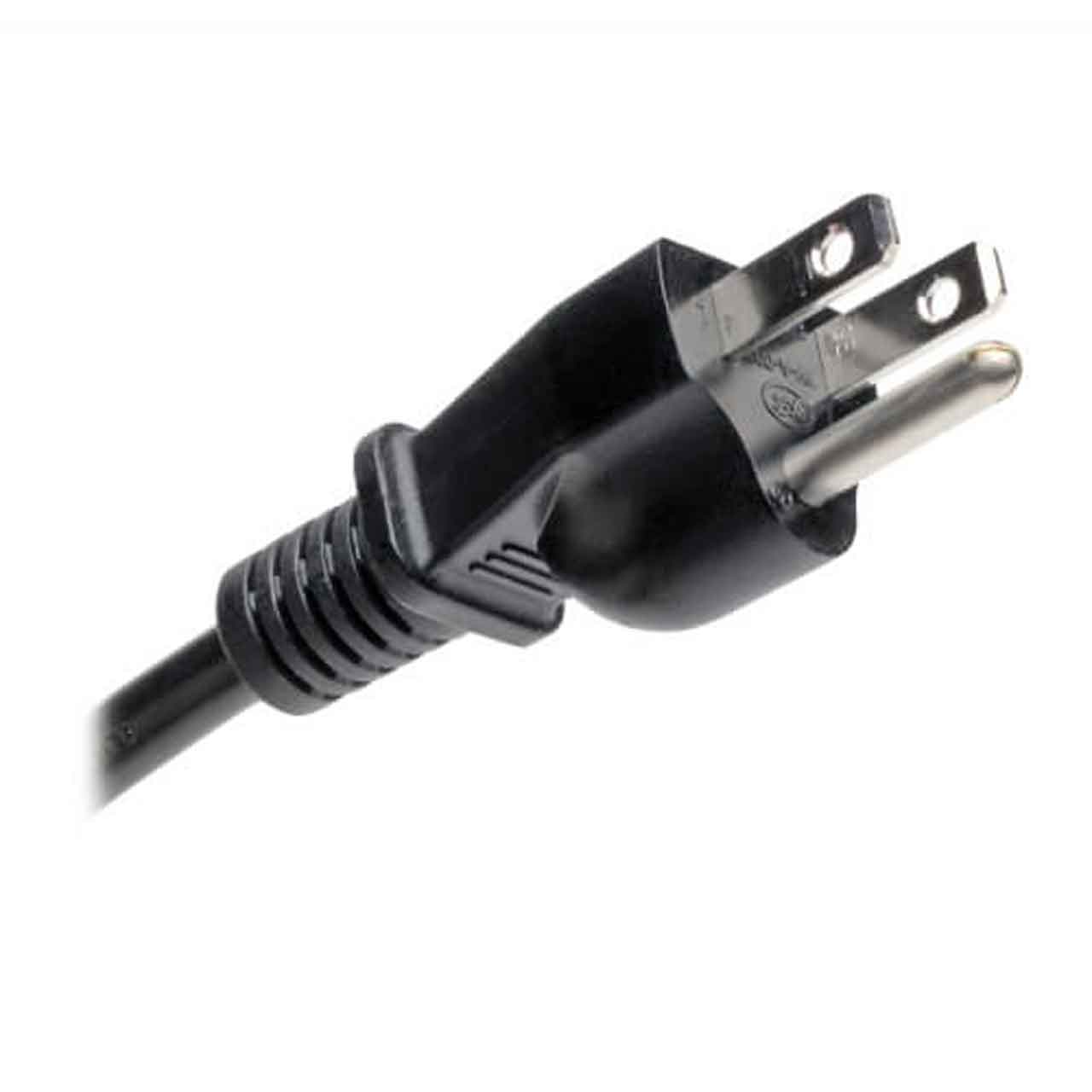

    • UPS Input Connection Type: 5-15P
    • Input Circuit Breakers: 5A
    • UPS Input Cord Length (ft.): 5
    • Recommended Electrical Service: 15A 120V
    • Input Phase: Single-Phase

      Output
    • Output Volt Amp Capacity (VA): 450
    • Output Watt Capacity (Watts): 360
    • Output Capacity Details: 3.8A @ 120V. (LINE MODE) 110%+/- 10% @ 5 minutes; (BATTERY MODE) 110% +/- 10% @ 5 seconds
    • Power Factor: 0.8
    • Nominal Voltage Details: 120V sinusoidal in line mode and 120V PWM in battery mode
    • Frequency Compatibility: 50 / 60 Hz
    • Frequency Compatibility Details: Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal.
    • Output Voltage Regulation (Line Mode): 120V (+9% / -12%)
    • Output Voltage Regulation (Battery Mode): 120V (±10%)
    • UPS Output Receptacles (Surge Suppression Only): 4 UPS outlets, 2 surge-only outlets
    • Hot-Swap PDU options: PDUB15 (2U / 8 5-15R outlets)
    • Output AC Waveform (AC Mode): Sine wave
    • Output AC Waveform (Battery Mode): PWM sine wave
    • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
    • Output Receptacles: (6) 5-15R
    • Individually Controllable Load Banks: No

      Battery
    • Battery Type: Valve Regulated Lead Acid (VRLA)
    • Full Load Runtime (min.): 0.5 min. (360W)
    • Half Load Runtime (min.): 5.7 minutes (180w)
    • Expandable Runtime: No
    • DC System Voltage (VDC): 12
    • Battery Recharge Rate (Included Batteries): 8 hours from 10% to 90%
    • Battery Access: Includes bottom panel battery access door

      Voltage Regulation
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
    • Overvoltage Correction: Input voltages between 129 and 145 are reduced by 15%
    • Undervoltage Correction: Input voltages between 89 and 108 are boosted by 14%

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 316
    • UPS AC Suppression Response Time: Instantaneous
    • EMI / RFI AC Noise Suppression: Yes

      Physical
    • Primary Form Factor: Tower
    • Installation Form Factors Supported with Included Accessories: Tower
    • Primary UPS Depth (mm): 345
    • Primary UPS Height (mm): 160
    • Primary UPS Width (mm): 122
    • Shipping Dimensions (hwd / in.): 9.80 x 7.20 x 16.30

      Environmental
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
    • Storage Temperature Range: +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius.
    • Relative Humidity: Up to 90%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 41
    • AC Mode Efficiency Rating (100% Load): >95%
    • Operating Elevation (ft.): 6561 ft. (2000 m) above sea level

      Line / Battery Transfer
    • Transfer Time: 6 milliseconds typical (10 milliseconds max)
    • Low Voltage Transfer to Battery Power (Setpoint): 89
    • High Voltage Transfer to Battery Power (Setpoint): 145

      Features & Specifications
    • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
    • High Availability UPS Features: Automatic Voltage Regulation (AVR); Surge/noise protection
    • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

      Standards & Compliance
    • UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
    • Certification Details: UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION


  • Item Includes:

    • 1x AVRT450U 450VA 360W Line-Interactive UPS with 6 Outlets
    • 1x USB cable
    • 1x Owner's manual


  • Warranty:

    • 3-year limited


  • GTIN:

    0037332212917
