Tripp Lite B003-HC2-DOCK1 USB-C KVM Dock 2-Port 4K HDMI USB-A Hub PD Charging USB 3.2 Gen 1

ITEM #: TRL-B003HC2DOCK1 MFG #: B003-HC2-DOCK1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$220.00

Our Price:

$163.31

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B003-HC2-DOCK1 - Overview

    Connects 2 USB-C Sources to a Single HDMI Monitor, Keyboard and Mouse
    This Desktop KVM/Docking Station lets you access, control, boot and reboot 2 USB-C sources at the same time. Both USB-C sources share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

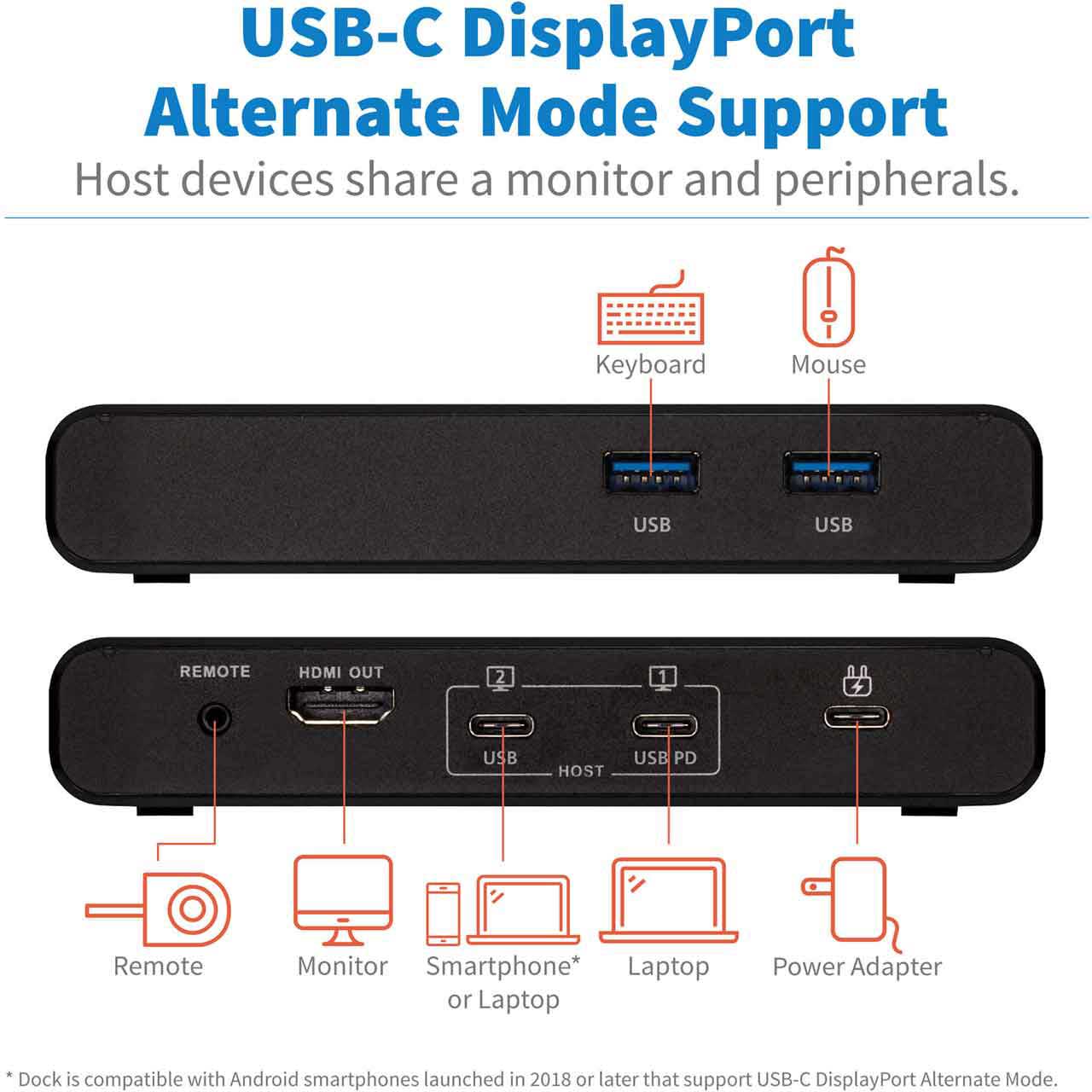

    Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
    By connecting the included USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. The B003-HC2-DOCK1 lets you build a workstation for multitasking by giving you the ability to extend screens, connect USB peripherals and switch between sources with ease.

    Transmits Crystal-Clear 4K Video
    The HDMI port support 4K resolutions up to 3840 x 2160 at 30 Hz.

    USB Hub Lets You Share Peripherals between Computers
    The built-in two-port USB 3.1 Gen1 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers/sources. The hub is backward compatible with USB 2.0 and 1.1 devices.

    USB-C PD 3.0 Charging Port Charges the Connected Notebook, Tablet or Other Device
    The USB-C Power Delivery 3.0 port supports power output up to 85W, which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port.

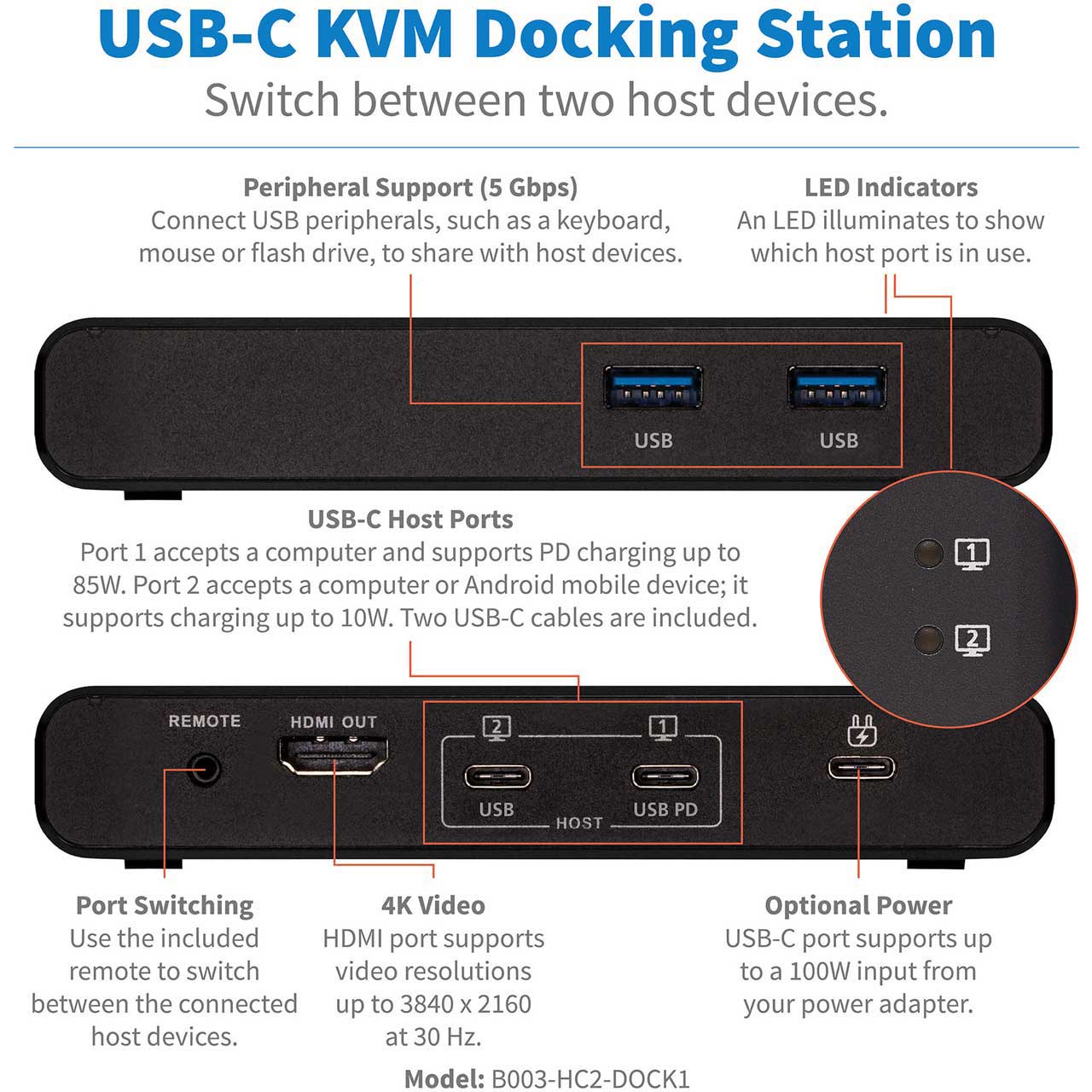

    Switching Between Computers Is Fast and Easy
    Connect the included remote port selector to the specified port on the B003-HC2-DOCK1 and simply press the button anytime you want to switch between your USB-C sources. White LEDs indicate which computer is currently selected.

    Cables Are Included for Fast and Simple Setup
    Connect your two USB-C sources using the included USB-C (M/M) cables. The plug-and-play B003-HC2-DOCK1 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows and Mac.

    • Features:

      • Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
      • HDMI port supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video
      • USB-C PD 3.0 port supports 85W power output for charging host computer
      • USB 3.2 Gen 1 data ports allow connection of flash drives and other peripherals
      • Remote port selector allows fast one-touch switching between connected devices

    • Specifications:

      • Video
      • Video Ports: (1) HDMI (FEMALE); (1) USB C (FEMALE)
      • Video Ports Detail: HDMI 1.4; HDCP 1.4
      • Resolutions Supported: HDMI: 4K 30Hz (3840 x 2160), USB-C: 4K 30Hz (3840 x 2160)
      • Max Supported Video Resolution: 3840 x 2160 @ 30Hz
      • Max Supported Color Depth: 36-bit Deep Color

        Data
      • Data Ports: (2) USB A (FEMALE)
      • Data Ports Detail: (2) USB-A - USB 3.2 Gen 1 (5 Gbps); (2) USB-C - USB 3.2 Gen 1 (5 Gbps)

        Input
      • Bus Powered: Yes

        Power
      • USB Power Delivery (PD) Charging Support: Yes
      • USB Power Delivery (PD) Charging Specification: 3.0
      • LED Indicators: Port 1/2 (White)

        Charging
      • Charging Ports: (1) USB-C: 85W Power Delivery (PD 3.0)
      • Total Charging Watts: 85
      • Charging Ports Detail: USB-C: 85W PD 3.0 (5V/9V/15V/20V), USB-C: 10W

        Physical
      • Color: Black
      • Material of Construction: Aluminum
      • Rackmountable: No
      • Unit Dimensions (hwd / in.): 5.63 x 4.69 x 0.96
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 0.83

        Environmental
      • Operating Temperature Range: 32 to 104°F (0 to 40°C)
      • Storage Temperature Range: -4 to 140°F (-20 to 60°C)
      • Relative Humidity: 0% to 80% RH, Non-Condensing
      • Power Provided to Connected Device(s): USB-C PD 3.0 Port: 100W (20V/5A), USB-C Port 1: 85W, USB-C Port 2: 10W

        Communications
      • IP Remote Access: No

        Connections
      • Ports: 2
      • PC/Server Connections: USB
      • Side A - Connector 1: (3) USB C (FEMALE)
      • Side B - Connector 1: HDMI (FEMALE); (2) USB A (FEMALE)
      • Computer Keyboard and Mouse Interface: USB
      • Console Keyboard and Mouse Interface: USB
      • Console Monitor Interface: HDMI

        Features & Specifications
      • Number of Users: 1
      • NIAP-Certified Secure: No
      • Port Selection: Remote Selector
      • HDMI Specification: 1.4
      • HDCP Specification: 1.4
      • USB Hub Ports: Yes
      • Number of USB Hub Ports: 2
      • USB Specification: USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
      • Driver Required: No
      • Cat5 KVM Switch: No

    • Item Includes:

      • 1x B003-HC2-DOCK1 2-Port USB-C KVM Dock, Black
      • 1x Remote port selector
      • 2x USB-C cables (M/M), 1 m
      • 1x Owner’s manual

    • Warranty:

      • 3 Year Limited Warranty

    • GTIN:

      0037332256621
