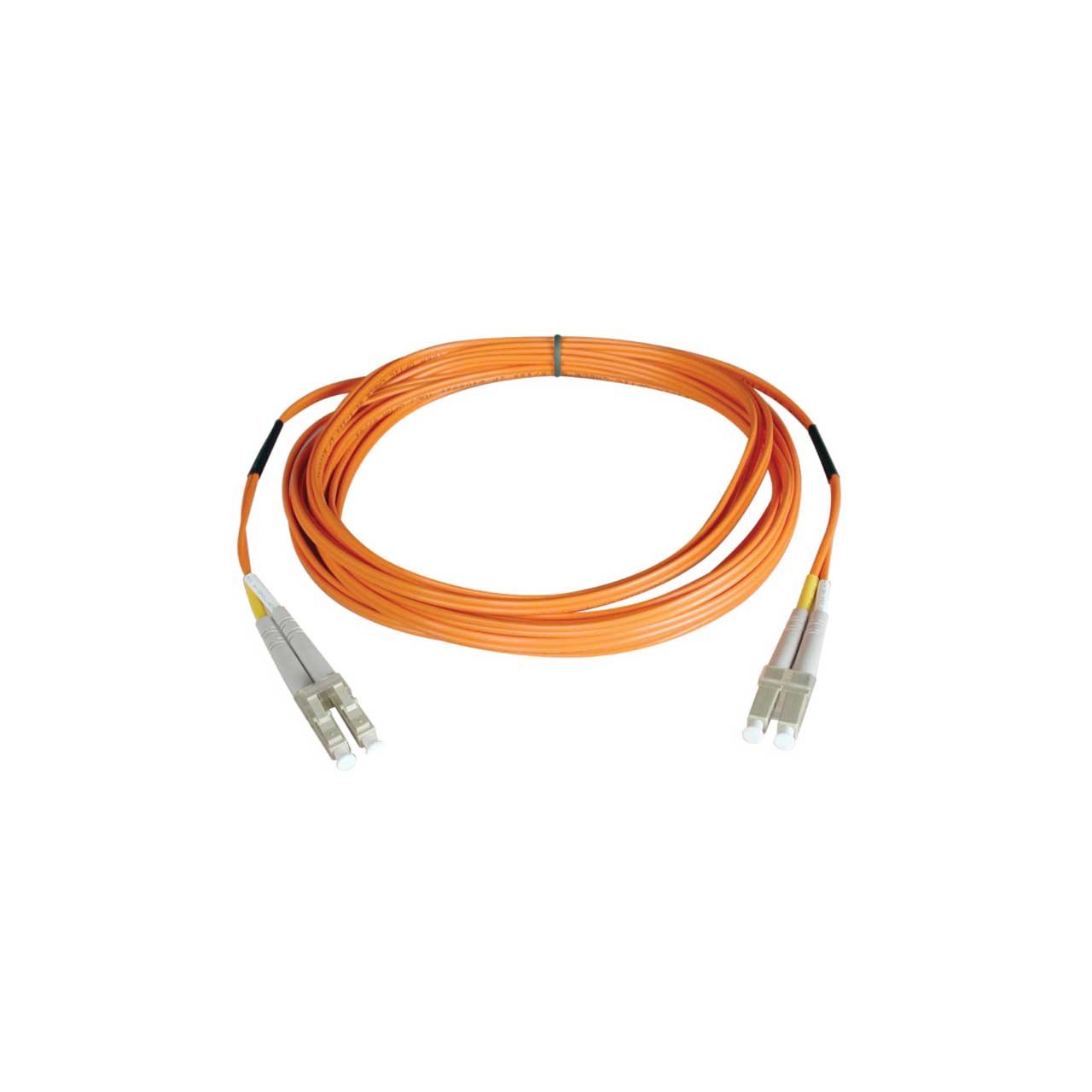

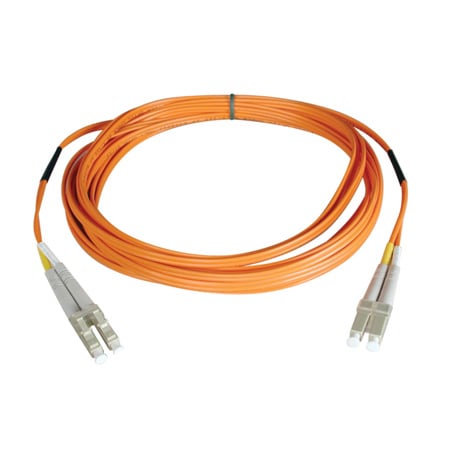

Tripp Lite N520-01M Duplex Multimode 50/125 Fiber Patch Cable (LC/LC) 3 Feet

ITEM #: TRL-N520-01M MFG #: N520-01M

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$17.04

Our Price:

$16.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N520-01M - Overview

    Tripp Lite's 3-foot multimode duplex Fiber Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fiber Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in lengths up to 152 meters. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" and for SC-SC, search "N506-".

    • Features:

      • Constructed with 50/125 micron cable
      • Length: 1-meter
      • Use on fiber and fibre channel installations
      • LC male to LC male connectors
      • Higher bandwidth optimized for gigabit and 10Gbps networks
      • Backward compatible with 62.5 micron fiber
      • Built-in headroom for future applications
      • Number of fibers: 2
      • Fiber type: All glass graded index
      • Core diameter: Two 50+/-3 microns
      • CLAD diameter: 125+/-2 microns
      • Primary coating diameter: 245+/-15 microns
      • Primary coating material: Acrylate
      • Secondary coating diameter: 900+/-50 microns
      • Secondary coating material: PVC
      • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
      • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
      • Numerical aperture: .275 nominal
      • Proof test level: 100,000 PSI
      • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
      • Beveled edge on ends of glass makes insertion of plug a breeze

    • Specifications:

      • Attenuation @ 850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
      • Bandwidth @ 850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
      • Clad Diameter: 125+/-2 microns
      • Core Diameter: Two 50+/-3 microns
      • Number of Fibers: 2
      • Numerical Aperture: .275 nominal
      • Primary Coating Diameter: 245+/-15 microns
      • Primary Coating Material: Acrylate
      • Proof Test Level: 100,000 PSI
      • Secondary Coating Diameter: 900+/-50 microns
      • Secondary Coating Material: PVC
      • Cable Length (ft.): 3.3
      • Cable Length (m): 1
      • Color: Orange
      • Network Speed: 1Gbps
      • Side A - Connector 1: LC DUPLEX (MALE)
      • Side B - Connector 1: LC DUPLEX (MALE)
      • Certifications: ROHS
      • Product Warranty Period (Worldwide): Lifetime limited warranty

    • Item Includes:

      • 3-foot duplex MMF cable LC/LC 50/125 fiber

    • Warranty:

      • Lifetime

    • GTIN:

      0037332119520
