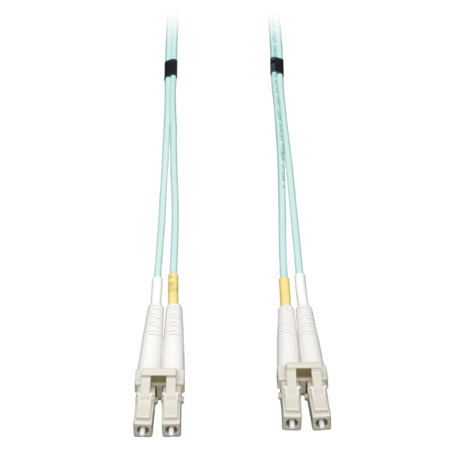

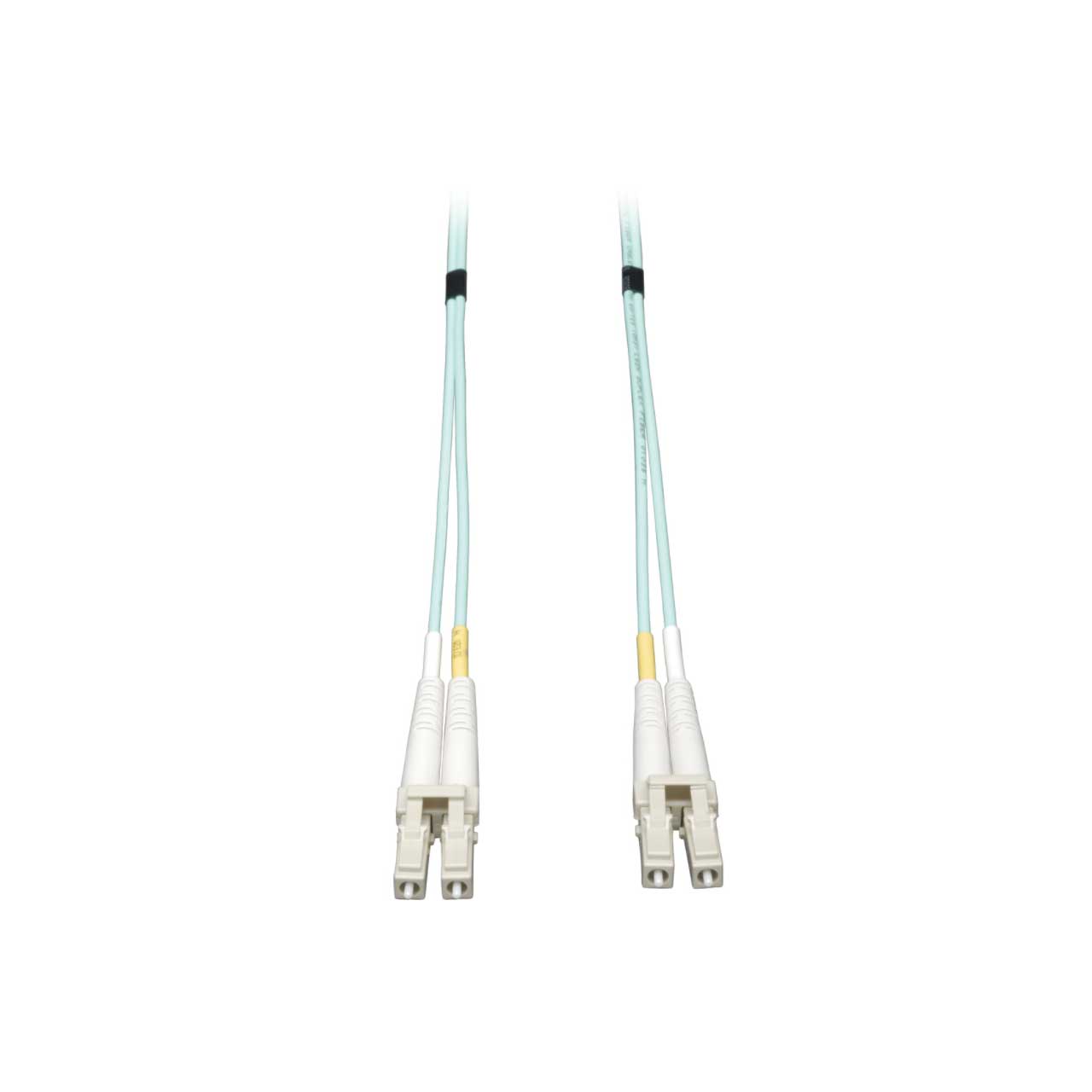

Tripp Lite N820-20M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/LC) - Aqua 65-Feet

ITEM #: TRL-N820-20M MFG #: N820-20M

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    N820-20M - Overview

    Tripp Lite introduces it's new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost.

    LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

    • Features:

      • Designed for 10-Gig Ethernet applications...OM3 Rated
      • Backward compatible with existing 50/125 fiber
      • Max 10Gb distance of 300 meters @850nm
      • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
      • 20 Meter ( 66ft ) LC/LC 10Gb Fiber Patch Cable, OM3 Rated
      • 10gb Ethernet speed to 300 meters @850nm
      • Use with VCSEL and LED laser light sources
      • High-Speed, High-Bandwidth, Low-Cost
      • Backward compatible with legacy LAN's
      • Ideal for Fibre Channel (SAN) applications
      • IEEE 802.3ae and TIA LOMMF compliant
    • Specifications:

      • Clad Diameter: 125um
      • Core Diameter: 50um
      • Number of Fibers: 2
      • Cable Length (ft.): 65.6
      • Cable Length (m): 20
      • Color: Aqua
      • Network Speed: 10Gbps / 40Gbps / 100Gbps
      • Side A - Connector 1: LC DUPLEX (MALE)
      • Side B - Connector 1: LC DUPLEX (MALE)
      • Product Warranty Period (Worldwide): Lifetime limited warranty
    • Item Includes:

      • 65-foot Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, LC/LC
    • Warranty:

      • Lifetime
    • GTIN:
