Tripp Lite N836-03M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (Mini-LC / LC) - Aqua 10 Feet

ITEM #: TRL-N836-03M MFG #: N836-03M

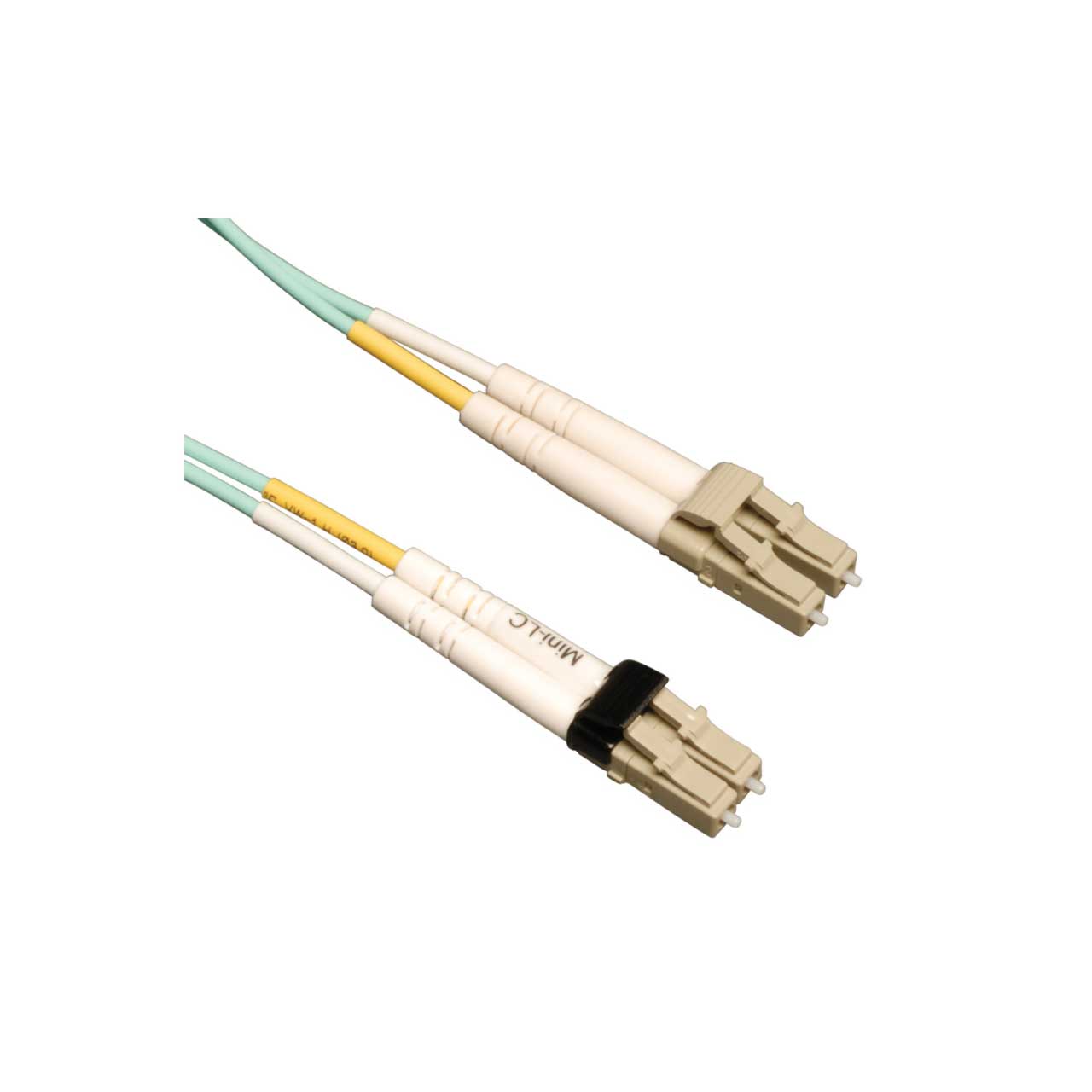

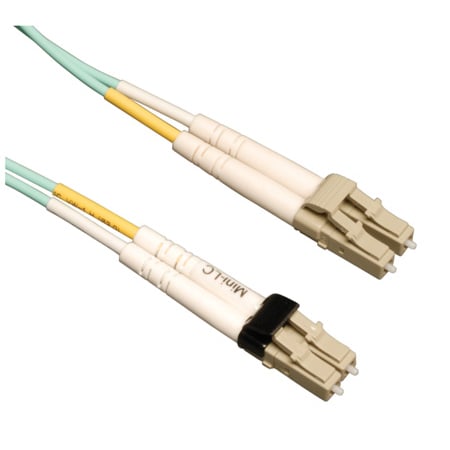

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$38.72

Our Price:

$38.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N836-03M - Overview

    Tripp Lite introduces it's new, Mini-LC to LC, OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications, utilizing mini SFP transceivers, such as Brocade FC8-64 High Density 64-port Fibre Channel Blade. These new technology, 50/125um, mini-LC/LC Fiber Optic cables, provide nearly four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost.

    LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

    • Features:

      • Mini-LC to LC Fiber Patch Cable, 3 Meter
      • Mini-LC to LC Fiber Patch Cable, 3 Meter
      • Designed for 10-Gig Ethernet applications...OM3 Rated
      • For use with networking hardware employing mini-LC SFP transceivers
      • Max 10Gb distance of 300 meters @850nm
      • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
      • Use with Brocade FC8-64 and other Mini-LC SFP devices

    • Specifications:

      • Cable Length (ft.): 9.8
      • Cable Length (m): 3
      • Color: Aqua
      • Network Speed: 10Gbps / 40Gbps / 100Gbps
      • Side A - Connector 1: LC DUPLEX (MALE)
      • Side B - Connector 1: MINI LC DUPLEX (MALE)
      • Product Warranty Period (Worldwide): Lifetime limited warranty

    • Item Includes:

      • 10-foot 10Gb Duplex MMF 50/125 OM3 LSZH Patch Cable ( Mini-LC / LC) - Aqua

    • Warranty:

      • Lifetime

    • GTIN:

      0037332165732
