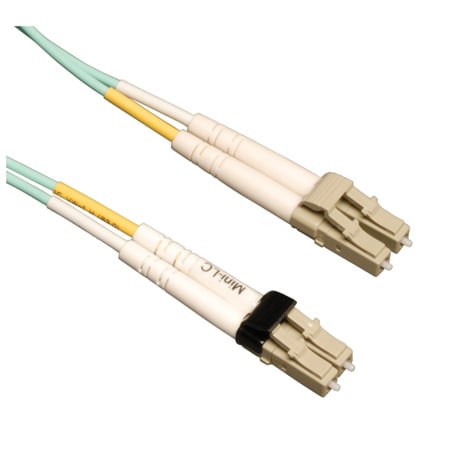

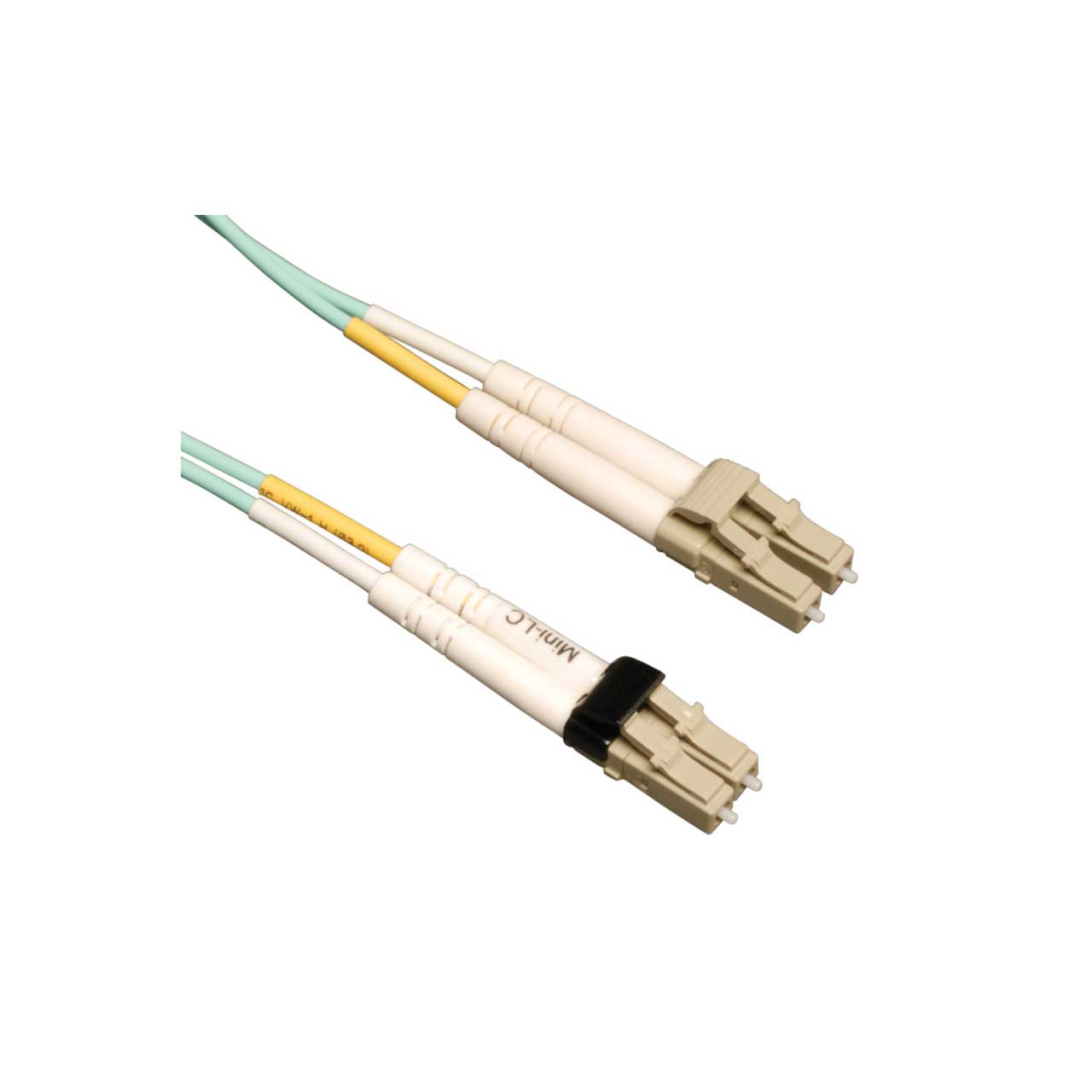

Tripp Lite N836-05M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (Mini-LC / LC) - Aqua 16 Feet

ITEM #: TRL-N836-05M MFG #: N836-05M

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$48.00

Our Price:

$39.86

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N836-05M - Overview

Tripp Lite introduces it's new, Mini-LC to LC, OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications, utilizing mini SFP transceivers, such as Brocade FC8-64 High Density 64-port Fibre Channel Blade. These new technology, 50/125um, mini-LC/LC Fiber Optic cables, provide nearly four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost.

LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

  • Features:

    • Mini-LC to LC Fiber Patch Cable, 5 Meter
    • Designed for 10-Gig Ethernet applications...OM3 Rated
    • For use with networking hardware employing mini-LC SFP transceivers
    • Max 10Gb distance of 300 meters @850nm
    • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
    • Use with Brocade FC8-64 and other Mini-LC SFP devices

  • Specifications:

    • Cable Length (ft.): 16.4
    • Cable Length (m): 5
    • Color: Aqua
    • Network Speed: 10Gbps / 40Gbps / 100Gbps
    • Side A - Connector 1: LC DUPLEX (MALE)
    • Side B - Connector 1: MINI LC DUPLEX (MALE)
    • Product Warranty Period (Worldwide): Lifetime limited warranty

  • Item Includes:

    • 16-foot 10Gb Duplex MMF 50/125 OM3 LSZH Patch Cable ( Mini-LC / LC ) - Aqua

  • Warranty:

    • Lifetime

  • GTIN:

    0037332165756
