    XVVRM-HDMI2HDBT - Overview

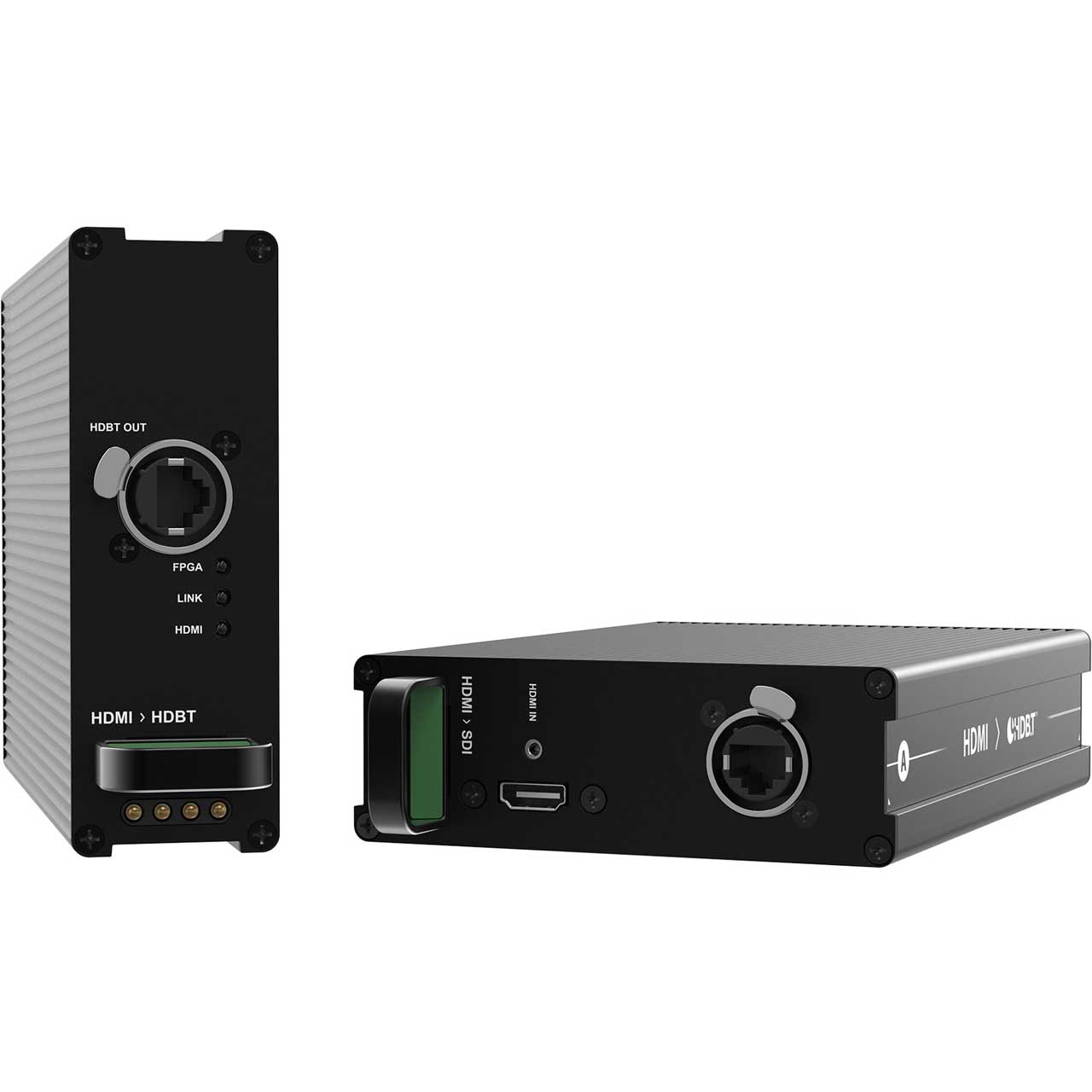

    The Theatrixx XVVRM-HDMI2HDBT is an HDMI to HDBaseT Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

    The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections
      • Video Input: 1x HDMI 1.4 with locking system
      • Ethernet Port: 1x Gbps Ethernet on Neutrik EtherCON

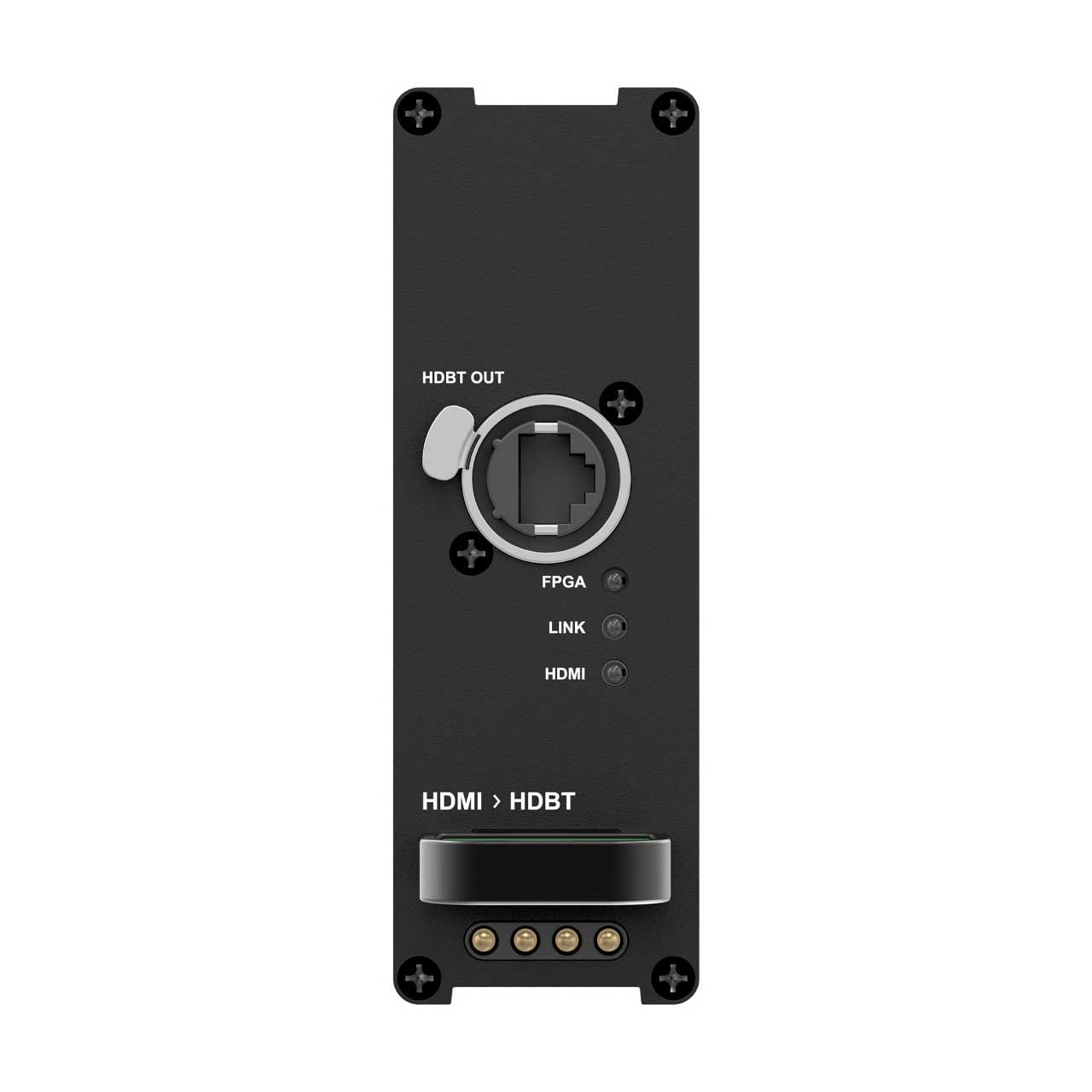

      • Video Output: 1x HDBaseT 1.0 on shielded EtherCON connector

        Supported Signals
      • Video Format Support: HDMI 1.4
      • HDCP Support: HDCP 1.4
      • Ethernet Support: 100 Mpbs

      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC
    • Item Includes:

      • 1x Theatrixx Reversible Module HDMI to HDBaseT
