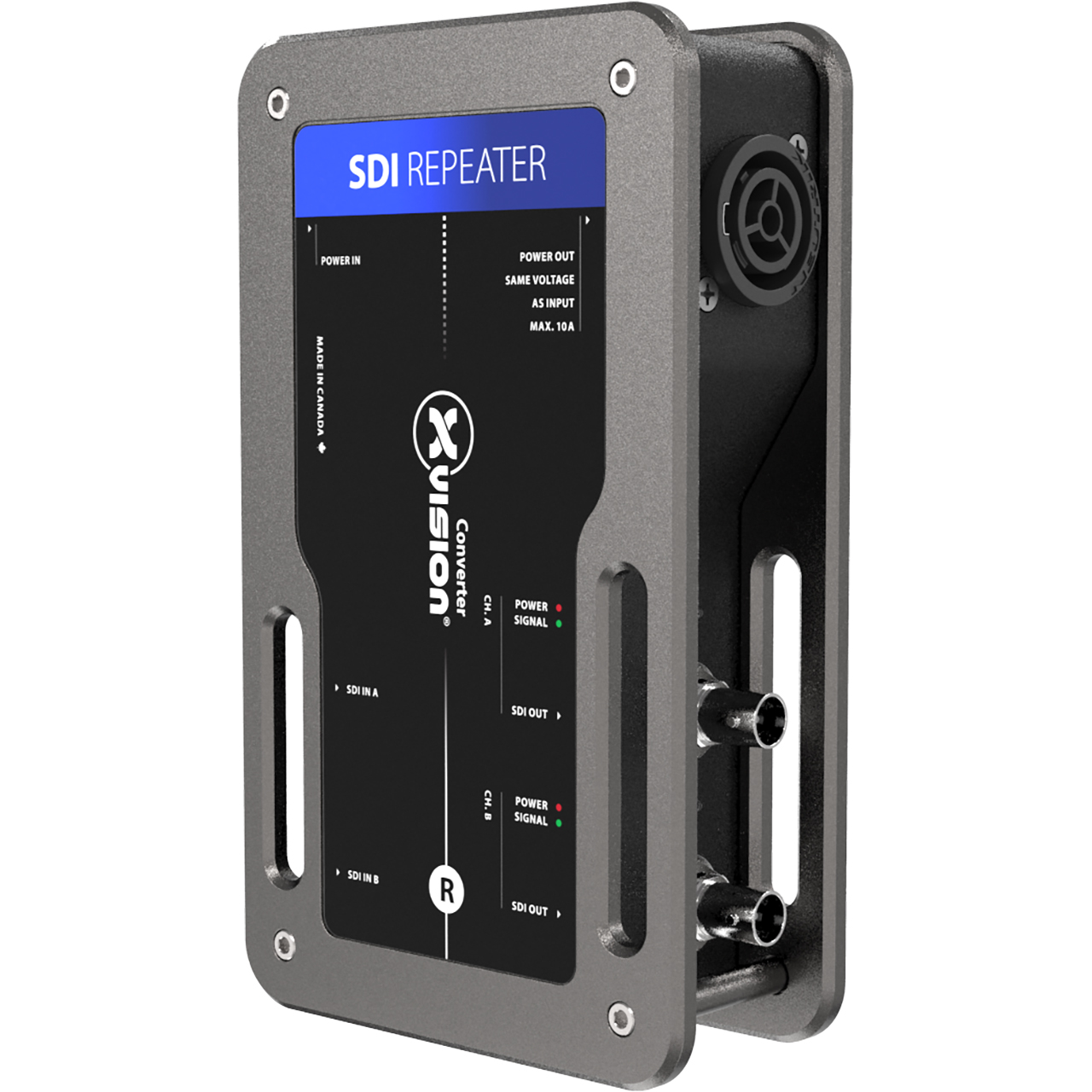

Theatrixx XVVSDI2SDIT1 3G-SDI Repeater - 2 Channels - PT1

XVVSDI2SDIT1 - Overview

• Features:

  • Integrated power supply with locking PowerCON True1 connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps. Power bar to connect both converter and device not required anymore.
  • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.

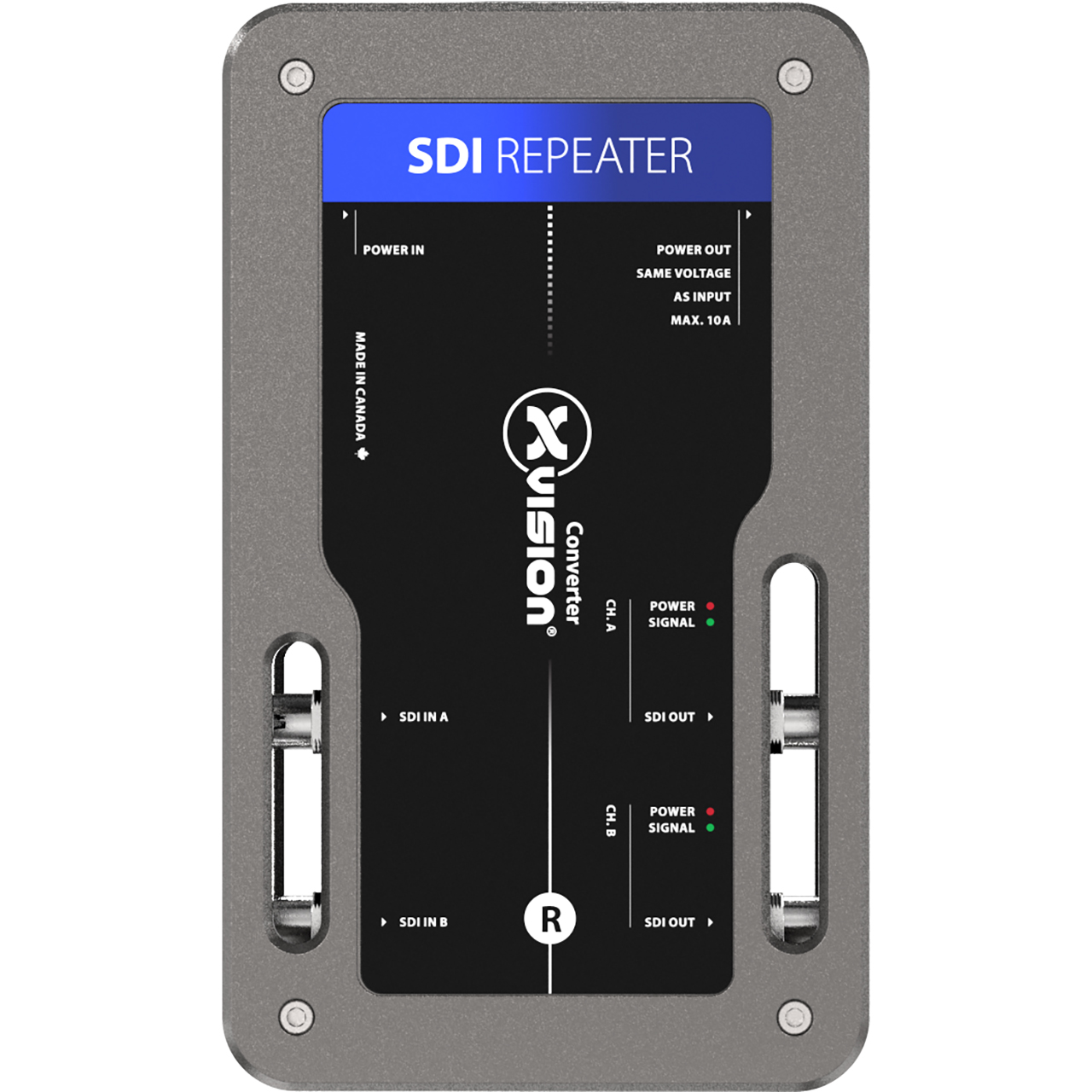

  • Clear and ample status LED indicators for quick troubleshooting
  • Easy on-the-field identification with unique color and alphabetic coding system
  • Extend two 3G-SDI lines up to another 330ft (100m) (Using proper RG-7 cable. Contact Theatrixx Technologies Inc. for more information).
  • All outputs fully re-clocked and amplified


• Specifications:

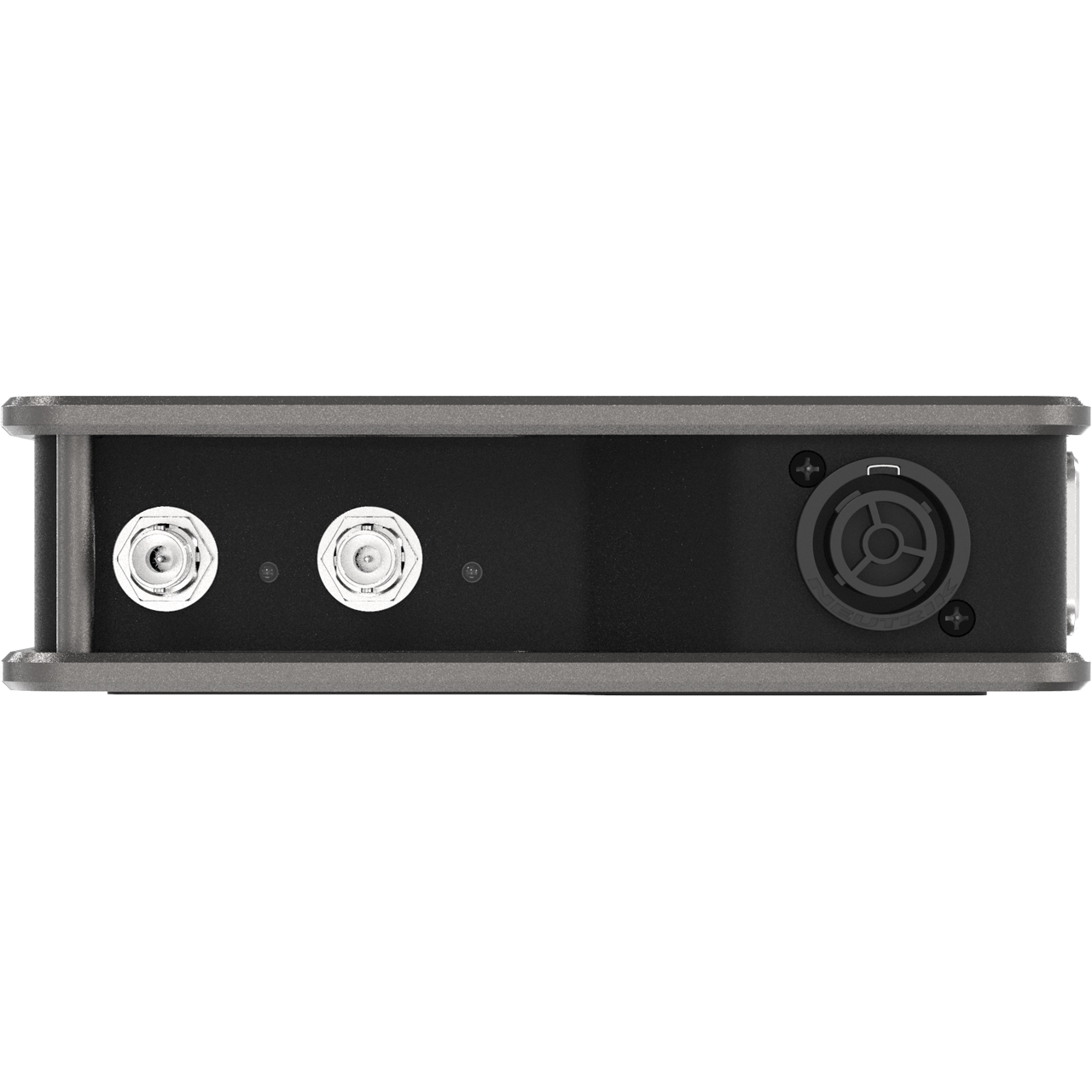

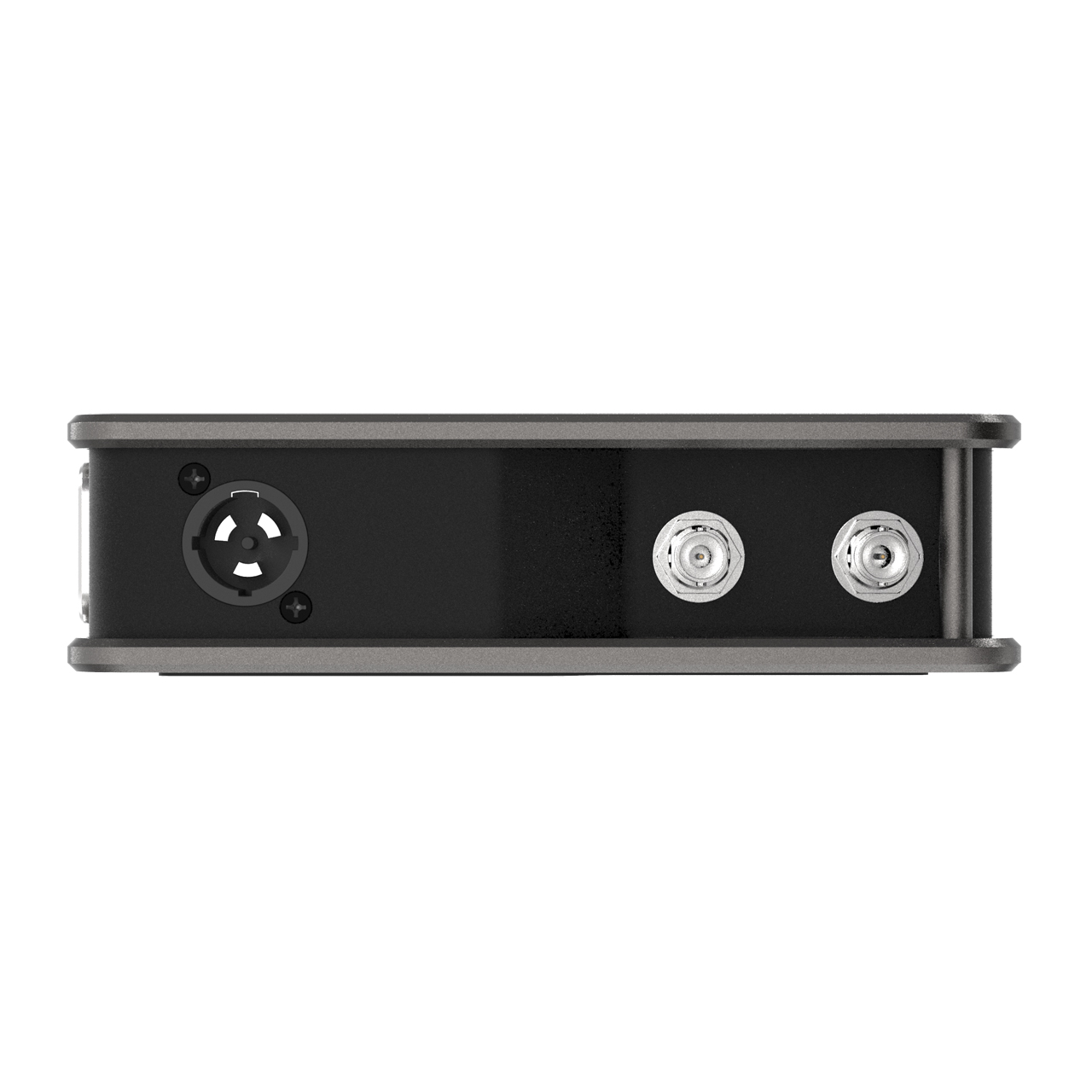

  Connections
  • Video Input: 2x 3G/HD/SD SDI BNC
  • Video Output: 2x 3G/HD/SD SDI BNC

    Supported Signals
  • 3G Format Support: 1080p50, 1080p59.94, 1080p60
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
  • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
  • SDI Color Space: YUV and RGB
  • SDI Auto Switching: Automatically detects incoming signal format
  • SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M

    Power Requirements
  • Power Supply:
    - Built-in power supply
    - PowerCON True1 input
    - PowerCON True1 output (loop-thru)
  • Power Consumption: 15W
  • Voltage Range: 100V - 240V, 50-60Hz
  • Courtesy Outlet: Max 10A, same voltage as input

    Environmental
  • Relative Humidity: 0% - 90% non-condensing
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)

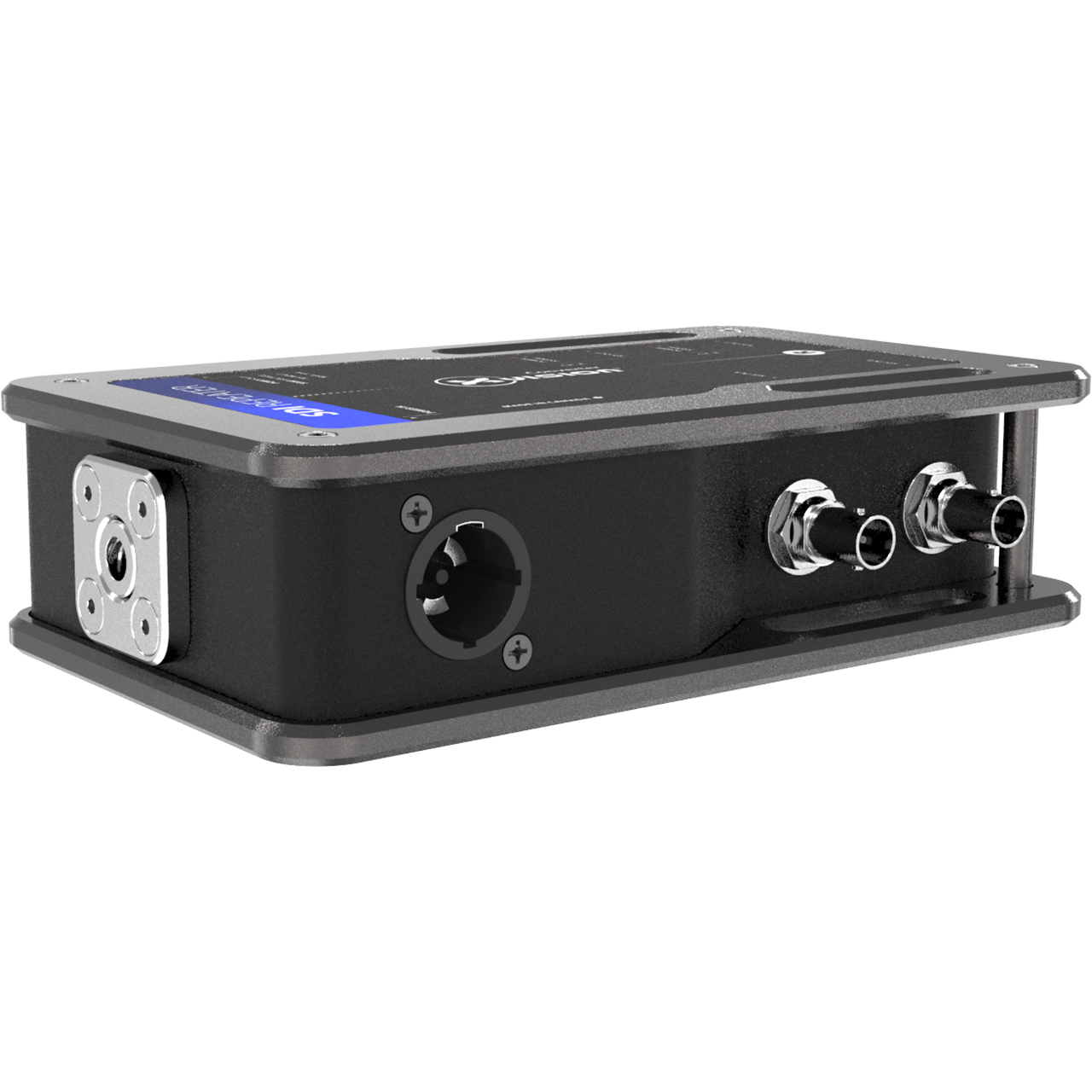

    Physical
  • Dimensions (HxWxD): 1.97" x 4.21" x 7.08" (50mm x 107mm x 180mm)
  • Weight: 2.2lbs (1kg)
  • Alternate Form Factor: Also available as a Reversible Module


• Item Includes:

  • 1x xVision Converter SDI Repeater
  • 1x 3ft (1.5m) AC Mains to PowerCON True1 cable
