TV Logic F-5A 5.5-Inch Full-Featured Field Monitor with FHD IPS-LCD

ITEM #: TVL-F-5A MFG #: F-5A

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup

    F-5A - Overview

    5.5'' Full-featured Field Monitor with FHD IPS-LCD

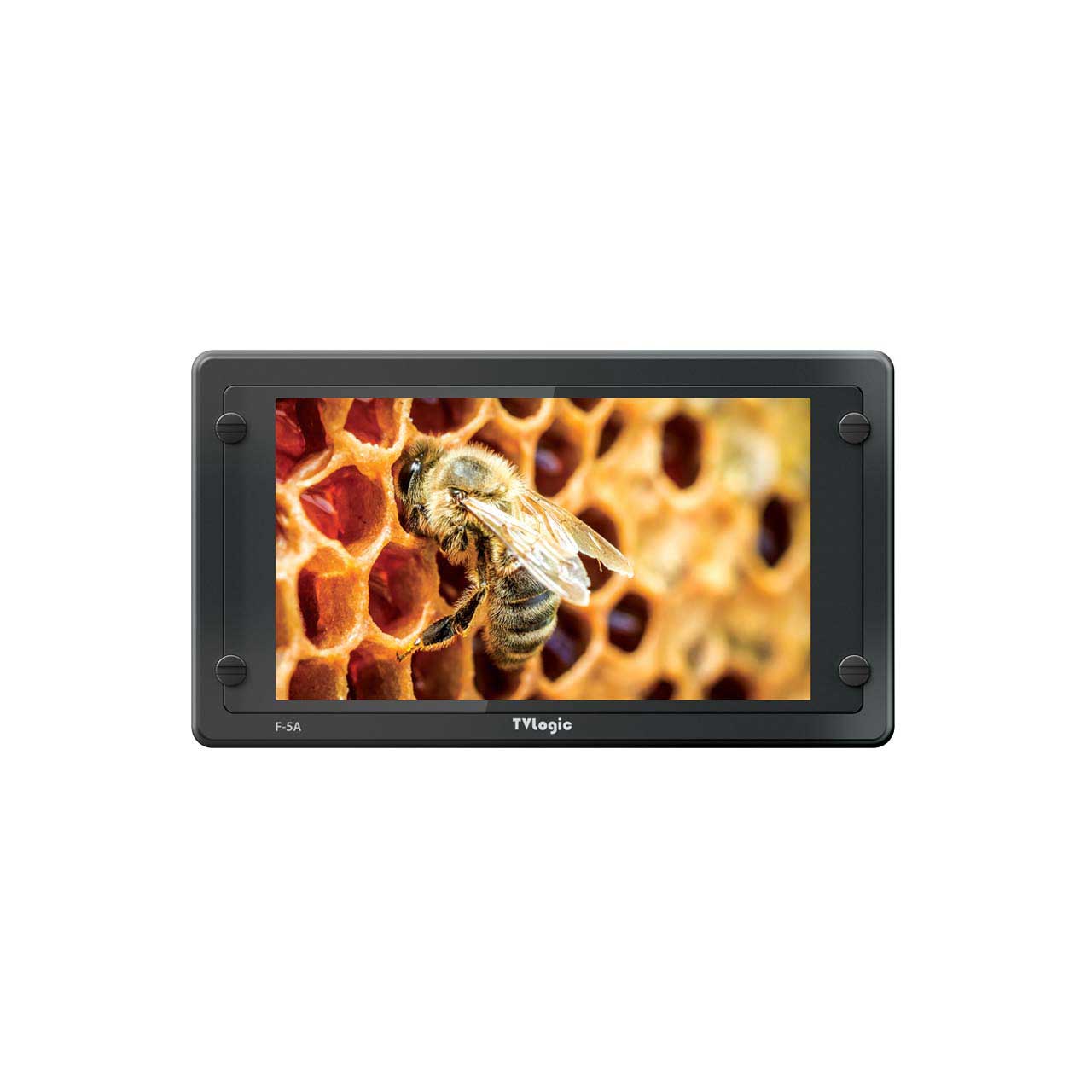

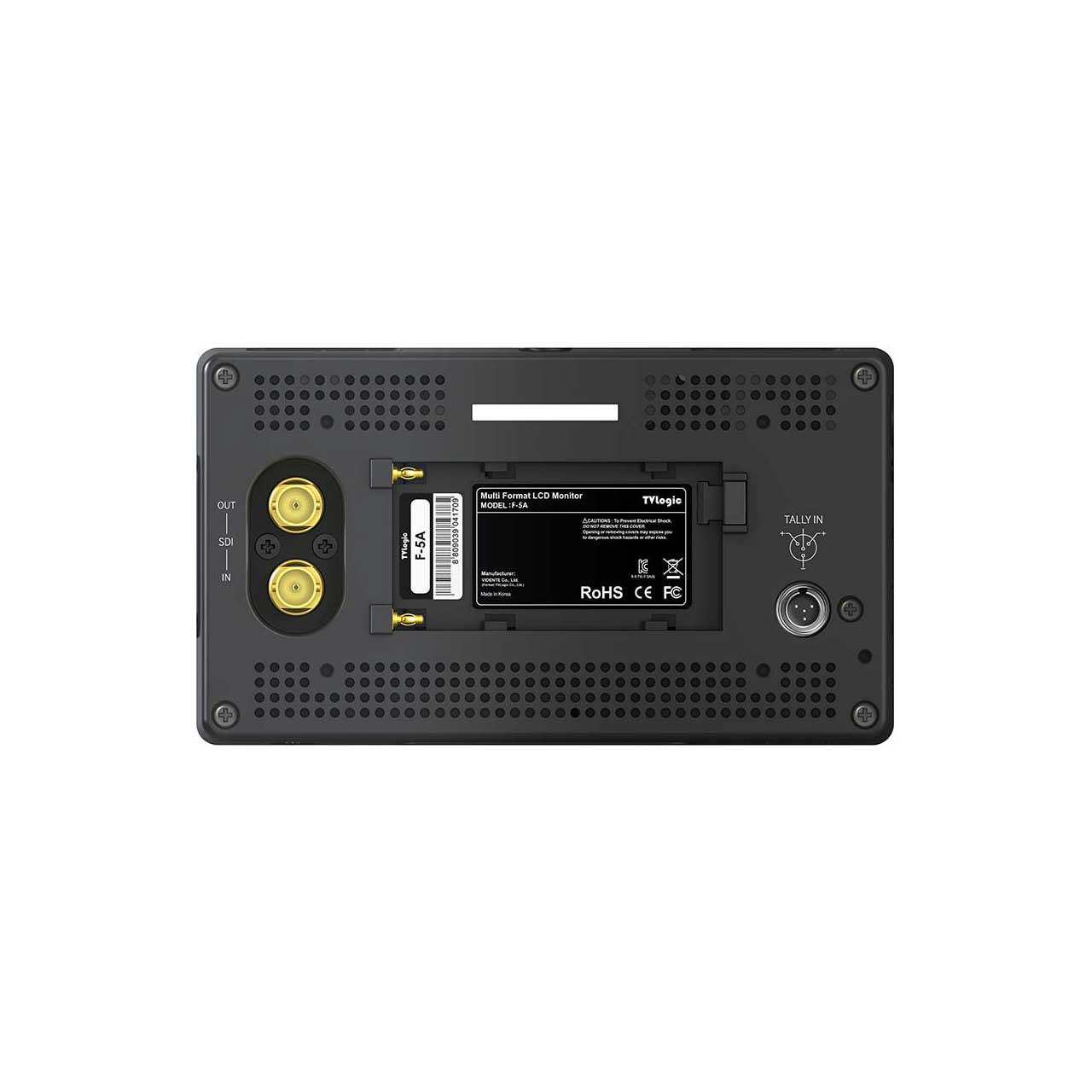

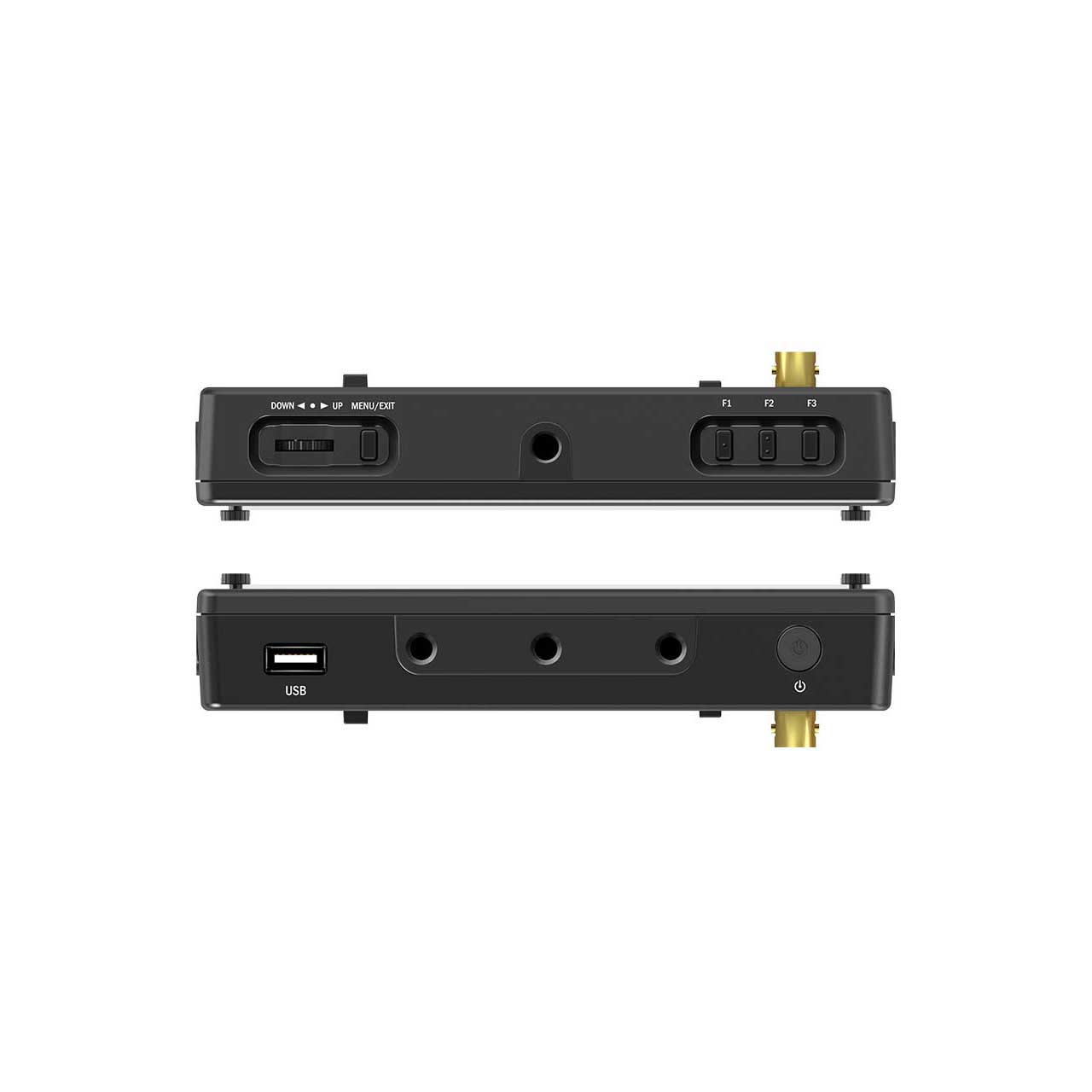

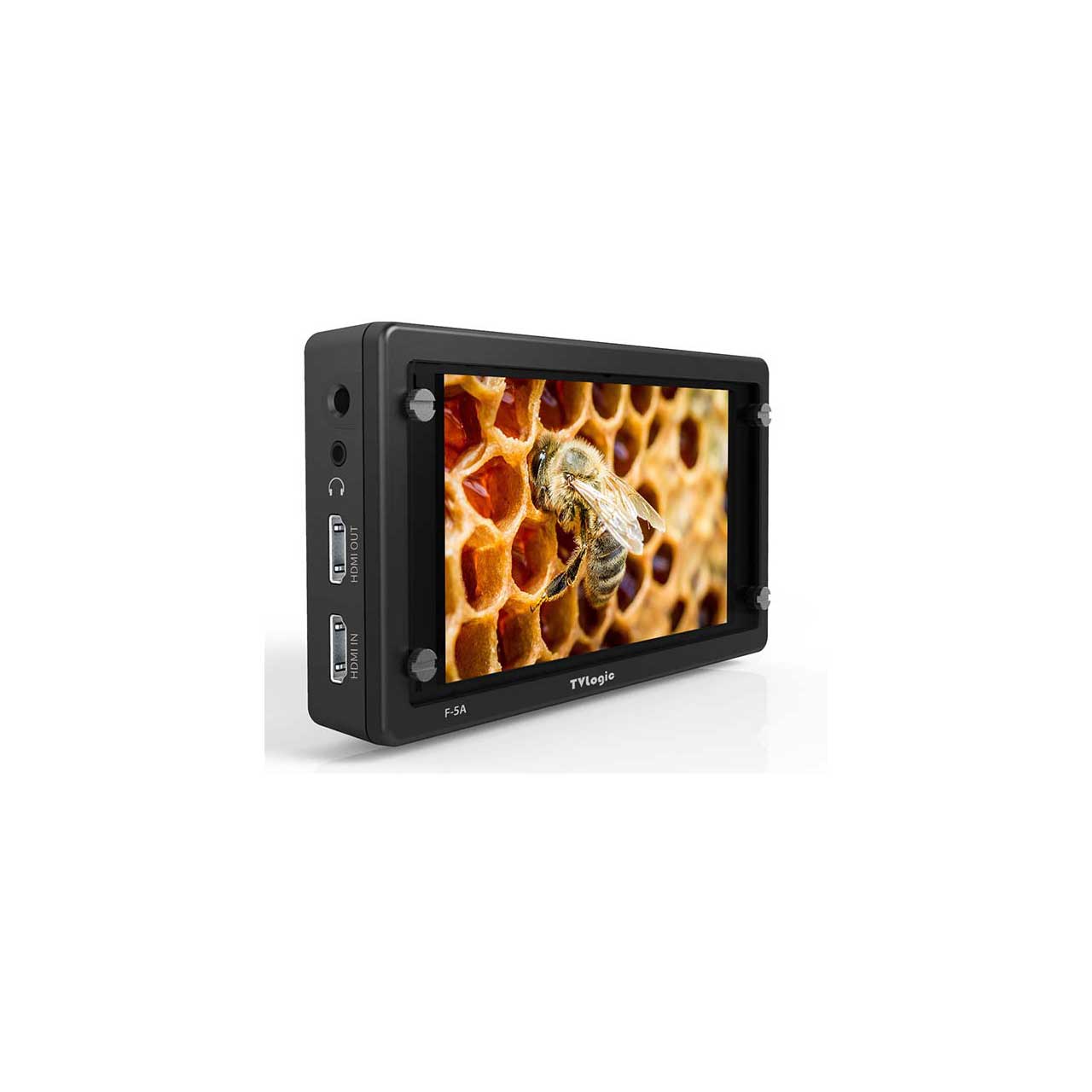

    The TV Logic F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit. Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface. And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.

    HDR Emulation
    A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000: 1; in addition, they cover 99% of the DCI color gamut.

    Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

    * True HDR Monitor: HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
    * HDR Emulation Monitor: Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

    And in TVLogic monitors, HDR Emulation function includes the control parameters below;
    * Standard Color Mode (HLG, PQ, PQ2)
    * Video Range
    * Display Luminance *
    * HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
    * PQ EETF (On / Off)
    * HLG System Gamma (Fixed 1.2 / Auto)
    * Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
    * White Point (D65, D93, DCI)
    * Gamut Warning
    * Shadow Mode *** (LUM-318G only)
