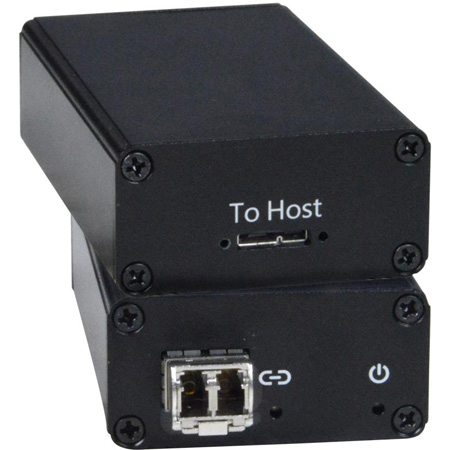

NTI USB3ONLY-2FOLC9 XTENDX 1-Port USB 3.0 Fiber Extender for 9 Micron Singlemode - up to 1148 Feet via LC Fiber

USB3ONLY-2FOLC9 - Overview

• Features:

  • Supports fully transparent USB 3.0 connection - compatible with USB computers (Windows 7/8/8.1/10, Mac OS, Linux) and their associated peripherals.
  • Signal transmission up to 1,148 feet (350 meters) via a two-strand LC fiber optic cable.
  • USB3ONLY-2FOLC9: For 9-micron singlemode fiber.
  • USB3ONLY-2FOLC50: For 50-micron OM3 (and above) multimode fiber.
  • Compliant with USB 3.0 specifications.
  • Not backwards compatible with USB 2.0/1.1.
  • Supports super-speed (5 Gbps) USB devices (flash drives, external hard drives, portable monitors, smartphones/tablets with USB 3.0 Type-C port, etc.).
  • Supports full 900mA current.
  • Supports Plug-n-Play specification.
  • Low RFI/EMI for sensitive applications.
  • No drivers required.
  • Cables can be installed in conduit prior to extender installation.


• Specifications:

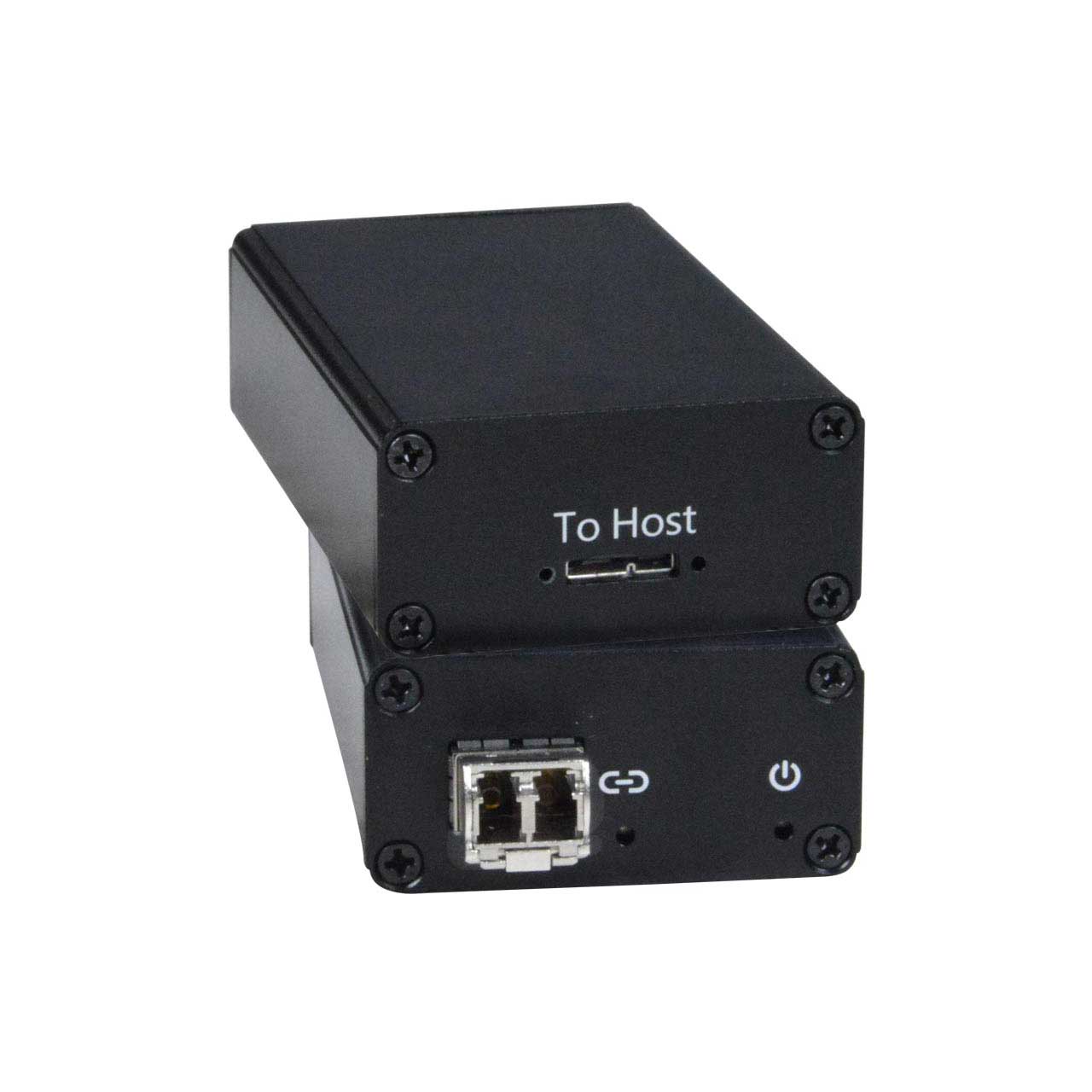

  • Local Unit
  • One female USB 3.0 Type Micro B connector.
  • Two female LC fiber optic ports.
  • For 9-micron singlemode fiber.
  • Compatible with USB computers (Windows 7/8/8.1/10, Mac OS, Linux).

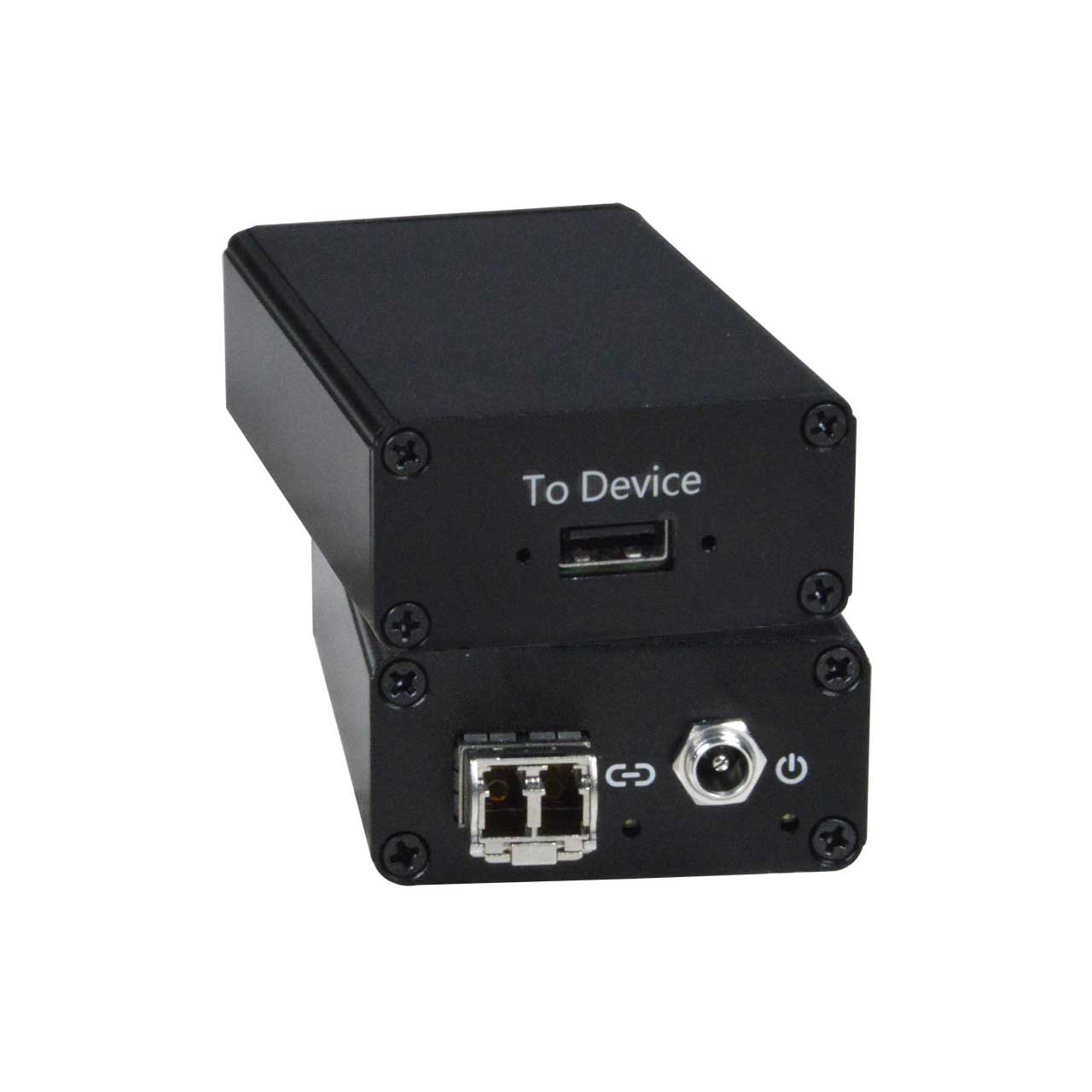

    Remote Unit
  • One female USB 3.0 Type A connector.
  • Two female LC fiber optic ports.
  • For 9-micron singlemode fiber.
  • Supports super-speed (5 Gbps) USB 3.0 devices.
  • Not backwards compatible with USB 2.0/1.1.

    Power
  • Local Unit: powered from attached computer.
    Remote Unit
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Output: 5VDC, 3A USB port supports full 900mA current.

    Dimensions
  • Local and Remote Unit WxDxH: 2.24x4.13x1.1 in (57x105x28 mm)

    Environmental
  • Operating Temperature: 32 to 122°F (0 to 50°C).
  • Storage Temperature: -4 to 158°F (-20 to 70°C).
  • Operating Relative Humidity: 20 to 80% non-condensing RH.
  • Storage Relative Humidity: 10 to 90% non-condensing RH.
  • Max Distance: 1,148 feet (350 meters) over a duplex LC fiber optic cable.

    Cables
  • Use a duplex LC 9µm singlemode fiber optic cable to extend the receiver from the transmitter up to 1,148 feet (350 meters). (Cable not included.)

    Regulatory Approvals
  • CE, FCC, RoHS, TAA compliant


• Item Includes:

  • 1x NTI XTENDEX Transmitter and Receiver
  • 1x 100-240VAC, 50 or 60Hz-5VDC/3A AC Adapter
  • 1x Multi-Country Power Plug Connectors (EU, UK, AU and US)
  • 1x USB 3 Type Micro B-to-USB 3 Type A Male 21 Inch (540mm) cable
  • 1x URL slip with location of This manual


• Warranty:

  • 2 Years
