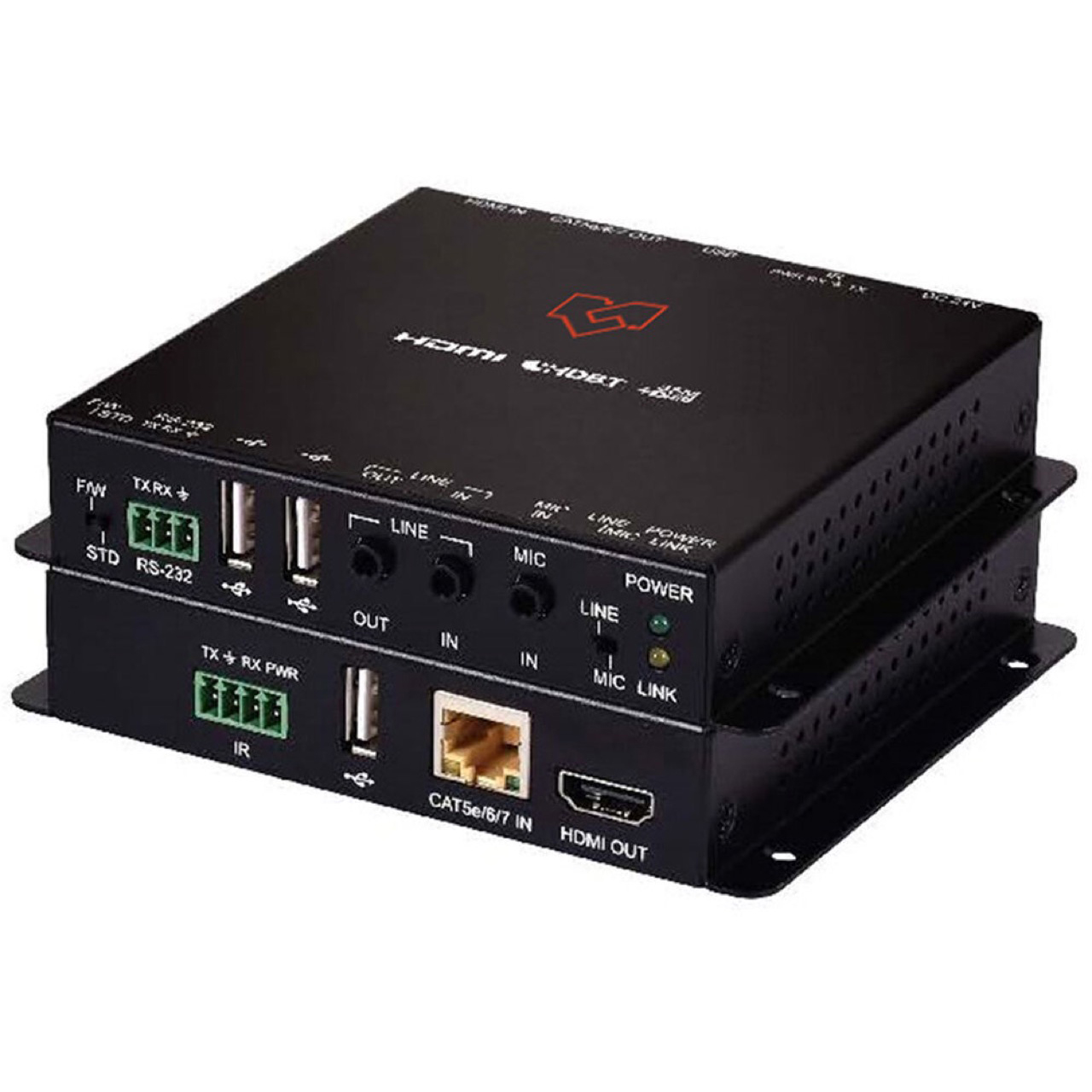

The VigilLink VLEX-CHT235-TR is a 4K UHD HDMI over HDBaseT transmitter and receiver pair that uses HDBaseT 2.0 technology, and is the perfect solution for extending high bandwidth HDMI 4K@60Hz (4:2:0, 8-bit) video (10.2Gbps) with HD audio via a single run of Cat. 6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the HD audio and video, including bi-directional IR, RS-232, bi-directional analog audio, and USB 2.0.
When the transmitter and receiver are used together, the USB 2.0 Type-B port on the transmitter can connect a single USB host (such as a laptop or PC) to devices on up to 5 USB 2.0 (Type-A) ports (2 on the transmitter, 3 on the receiver), forming a highly powerful KVM extension configuration. Additionally, the receiver is powered by PoH (Power over HDBaseT) from the transmitter, allowing greater flexibility across different installation scenarios. This transmitter and receiver pair is ideal for use in any video extension scenario, but they excel when used in a latency-free, uncompressed, high-resolution video.
