VigilLink VLEX-HT2150-TR 18Gbps HDBaseT 2.0 4K@60Hz 4:4:4 HDMI 2.0 Extender - 492 Foot/150m

VLEX-HT2150-TR - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 compliant
  • Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
  • HDR, HDR10, HDR10+, Dolby Vision pass-through
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Up to 120m (4K) and 150m (1080P) using CAT6/6A cable
  • Two-way IR transmission
  • USB 2.0 protocol, transmission rate up to 480Mbps transmission
  • EDID management
  • Two-way PoC (Power over Cable)


• Specifications:

  Technical
  • HDCP Compliance: HDCP 2.2/HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution:
    - 4K2K 50/60Hz 4:4:4
    - 4K2K 50/60Hz 4:2:2
    - 4K2K 50/60Hz 4:2:0
    - 4K2K 30Hz 4:4:4
    - 1080p, 1080i, 720p, 720i, 480p, 480i
    - All HDMI 3D TV formats
    - All PC resolutions, including 1920 x 1200
  • Color Depth:
    - 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
    - 8-bit (4K60Hz 4:4:4)
  • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • L/R Audio Formats: PCM 2.0
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

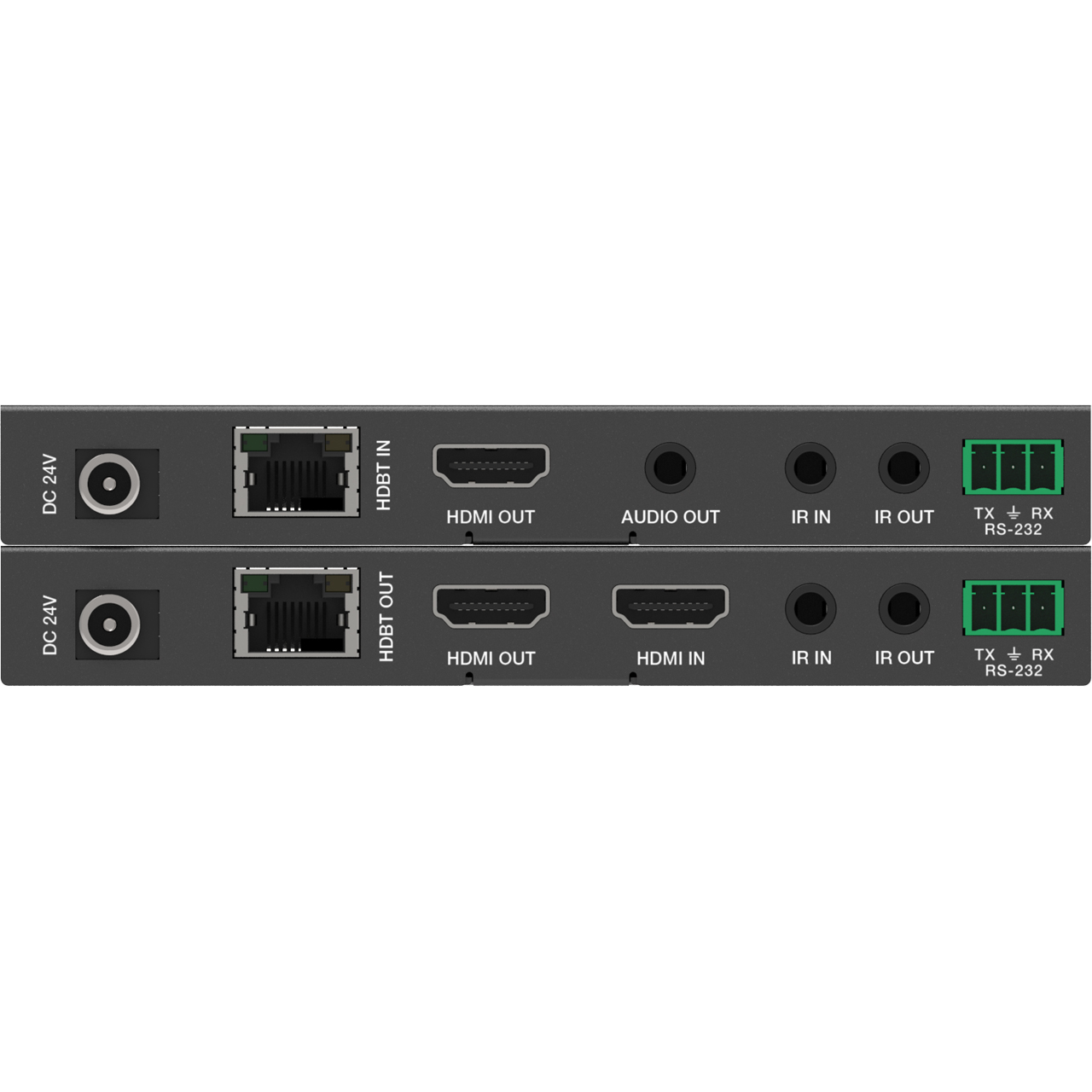

    Connections
  • Transmitter Inputs: 1x HDMI Type A (19-pin female)
  • Transmitter Outputs:
    - 1x HDMI Type A (19-pin female)
    - 1x HDBT OUT (RJ45, 8-pin female)
  • Transmitter Control:
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x IR OUT (3.5mm Stereo Mini-jack)
    - 1x RS-232 (Phoenix jack)
    - 1x SERVICE (Mini-USB, Update port)
  • Receiver Inputs: 1x HDBT IN (RJ45, 8-pin female)
  • Receiver Outputs:
    - 1x HDMI Type A (19-pin female)
    - 1x AUDIO OUT (3.5mm Stereo Mini-jack)
  • Receiver Controls:
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x IR OUT (3.5mm Stereo Mini-jack)
    - 1x RS-232 (Phoenix jack)
    - 1x SERVICE (Mini-USB, Update port)

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions (TX/RX): 5.51" x 2.55" x 0.71" (140mm x 65mm x 18mm)
  • Weight:
    - Transmitter: 0.35lbs (160g)
    - Receiver: 0.34lbs (155g)
  • Power Supply:
    - Input: AC 100V - 240V 50/60Hz
    - Output: DC 24V/1A (Locking connector)
  • Power Consumption: 9.36W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

    Resolution/Distance
  • 4K2K: 394ft (120m)
  • 1080P: 492ft (150m)

    Resolution/HDMI Cable Length
  • 4K60: 16ft
  • 4K30: 32ft
  • 1080p60: 50ft


• Item Includes:

  • 1x 18Gbps HDMI over HDBaseT Extender (Transmitter)
  • 1x 18Gbps HDMI over HDBaseT Extender (Receiver)
  • 1x IR Blaster cable (1.5 meters)
  • 1x 20~60KHz IR Receiver cable (1.5 meters)
  • 4x Mounting Ear
  • 2x 3-pin Phoenix connector
  • 1x 24V/1A Locking Power adapter
  • 1x User Manual


• Warranty:

  • 6 Years
