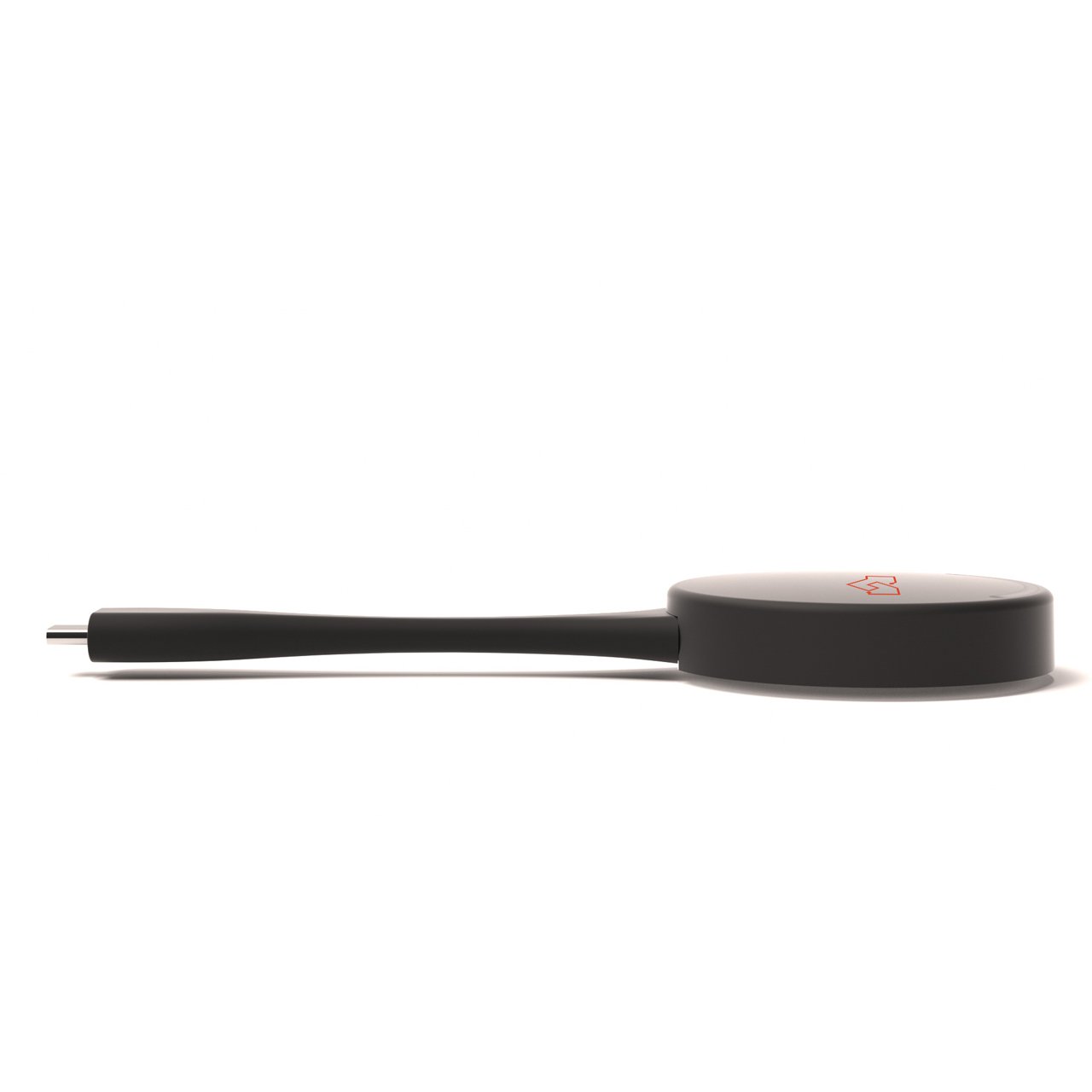

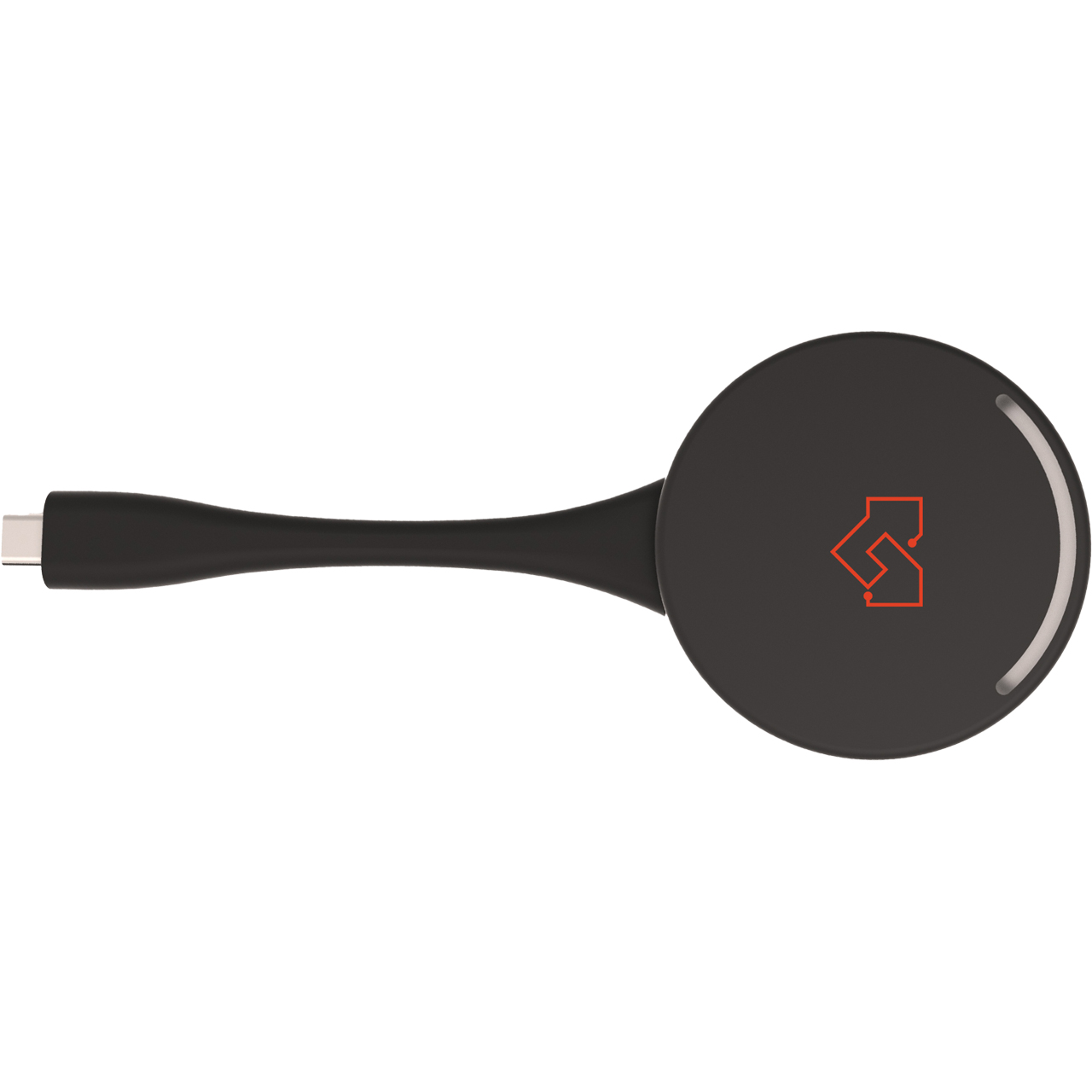

VigilLink VLWP-USBC1 USB-C Dongle Transmitter for WP-33

VLWP-USBC1 - Overview

• Features:

  • With popular USB-C interface
  • APP-free
  • Plug and play
  • Easy to use


• Specifications:

  Technical
  • HDCP: HDCP1.3
  • Video Input Formats:
    - Compliant with DP 1.2 for 1.62Gbps, 2.7Gbps ,5.4Gbps
    - Compliant with DP 1.2 and eDP1.4
    - Support DP 1, 2, 4 lanes
    - Over type-C
  • Video Input Resolution: VESA, maximum 2560x1440
  • Video input timing: 1920x1080, 1680x1050, 1600x900, 1440x900, 1400x1050,1366x768, 1280x1024, 1280x800, 1280x720, 1024x768, 1920x1200, 1600x1200, 2560x1440 @ 24 25, 30, 50,60 HZ
  • Video Output Formats: 1x Wireless
  • Audio Input Formats: DP 2CH PCM
  • Audio Output Formats: WIFI 11b/g/n/ac
  • USB Input: USB type C (USB 2.0 only)
  • Wireless Transmission Protocol: WIFI IEEE 802.11 a/g/n/ac
  • WIFI Frequency Band: 2.4 GHz & 5 GHz
  • WIFI Antenna: MIMO 2x2
  • WIFI Data Rate: Up to 1200Mbps
  • Video Capacity: Wireless Transmission 1080p @ 60Hz, 2560x1440 30Hz
  • Distance: Typical: 35m without obstacle between WMT3-H and WMS
  • Latency: < 100ms
  • Button: Capacitive touch Key and vibration
  • Indicator: Green/Red/color back-lit LED indicator

    Mechanical
  • Round Unit Dimensions (LxHxR): 2.55" x 0.59" x 3.14" (65mm x 15mm x 80mm)
  • Weight: 0.2lbs (85g)
  • Surface Finish: 1mm - 2mm plastic with matte black finish
  • Power Input: USB Internal 5V
  • Power Consumption: 3W (max.) has context menu
  • Operating Temperature: -4°F - 113°F (-20°C - 45°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 85% RH (No condensation)


• Warranty:

  • 6 Years
