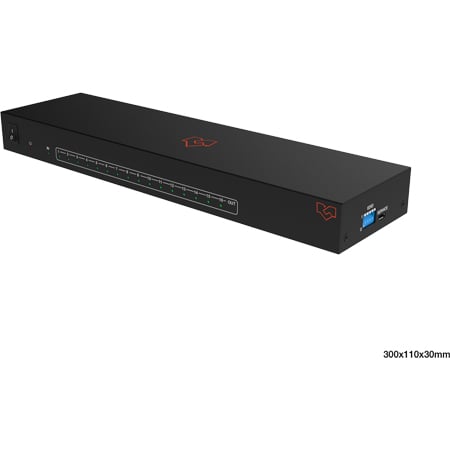

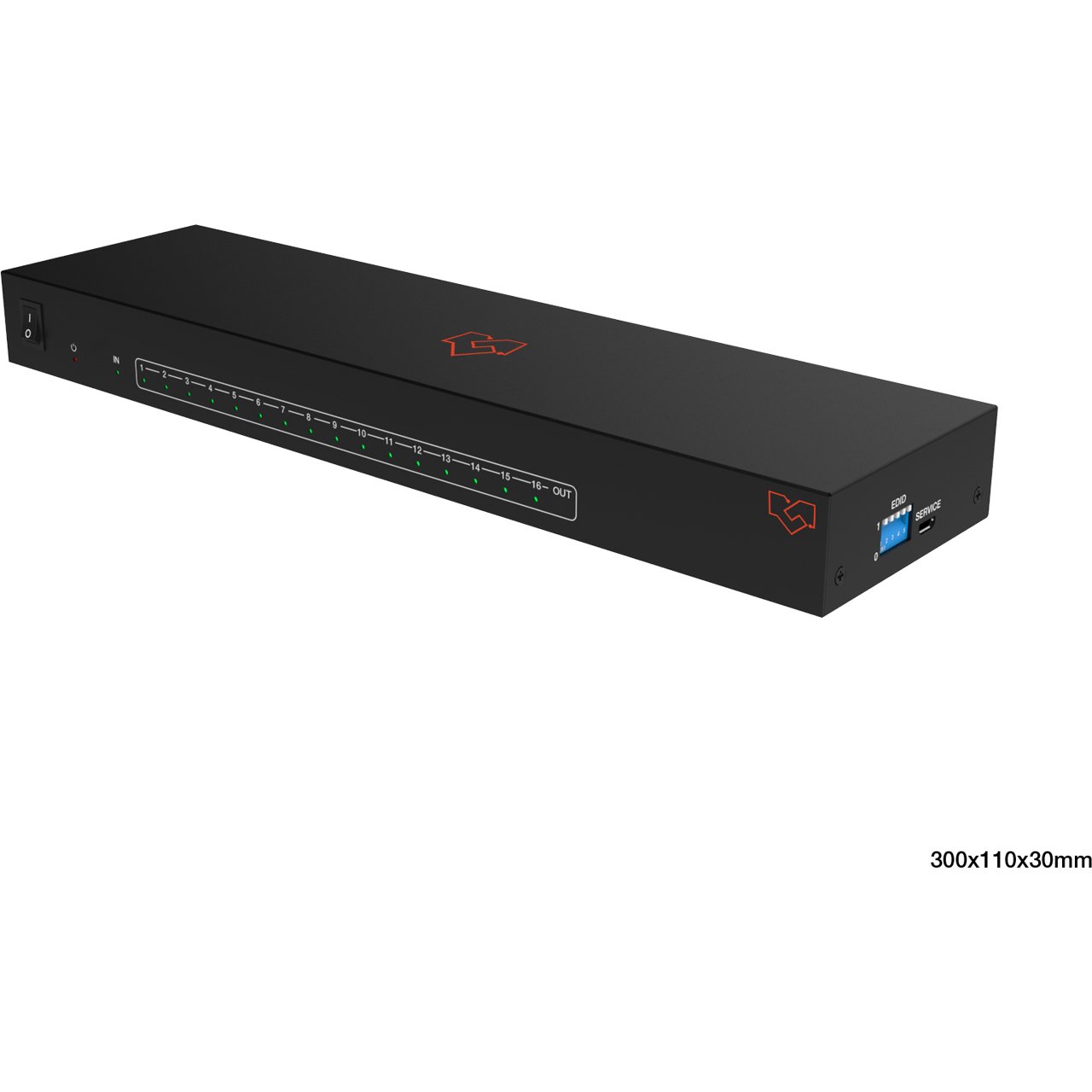

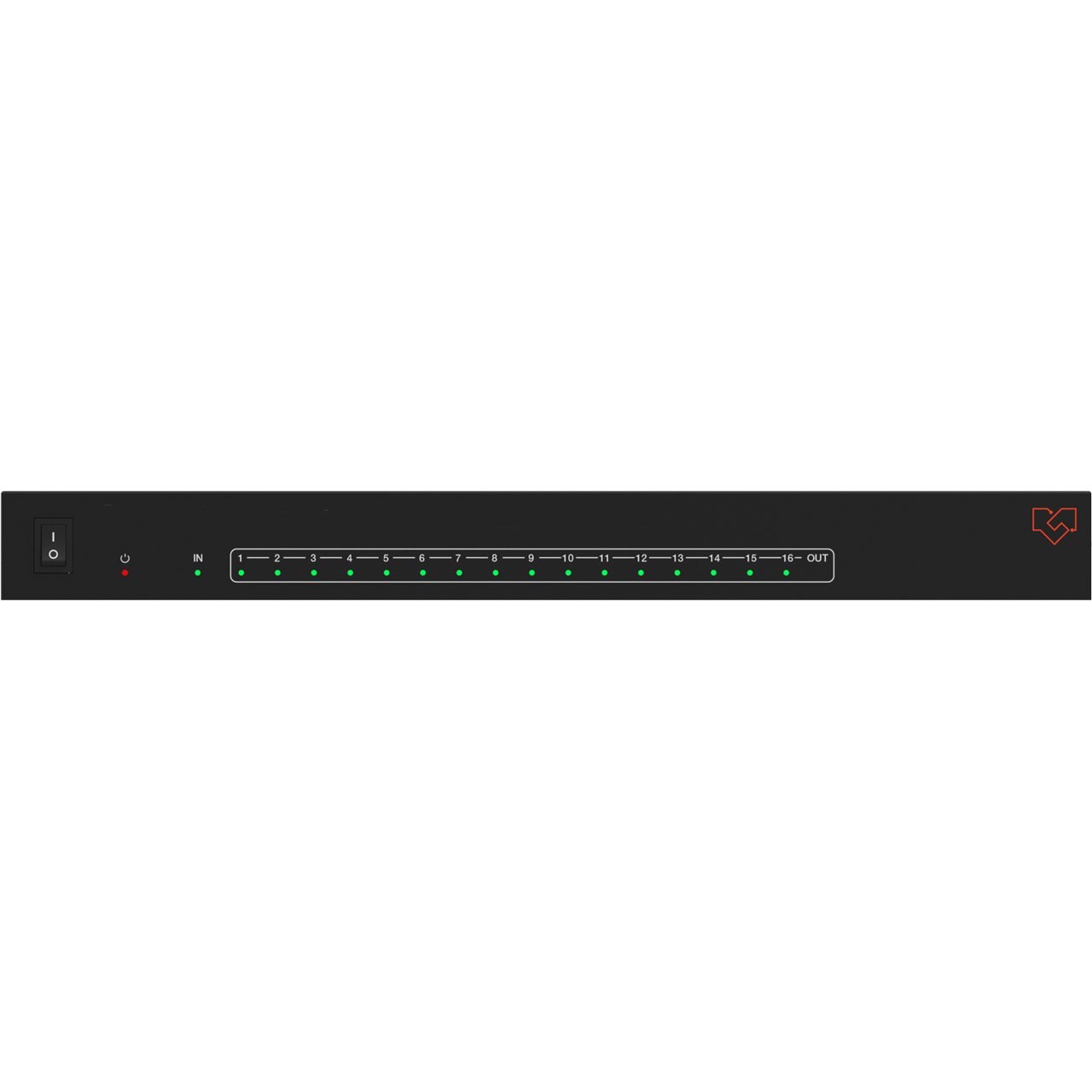

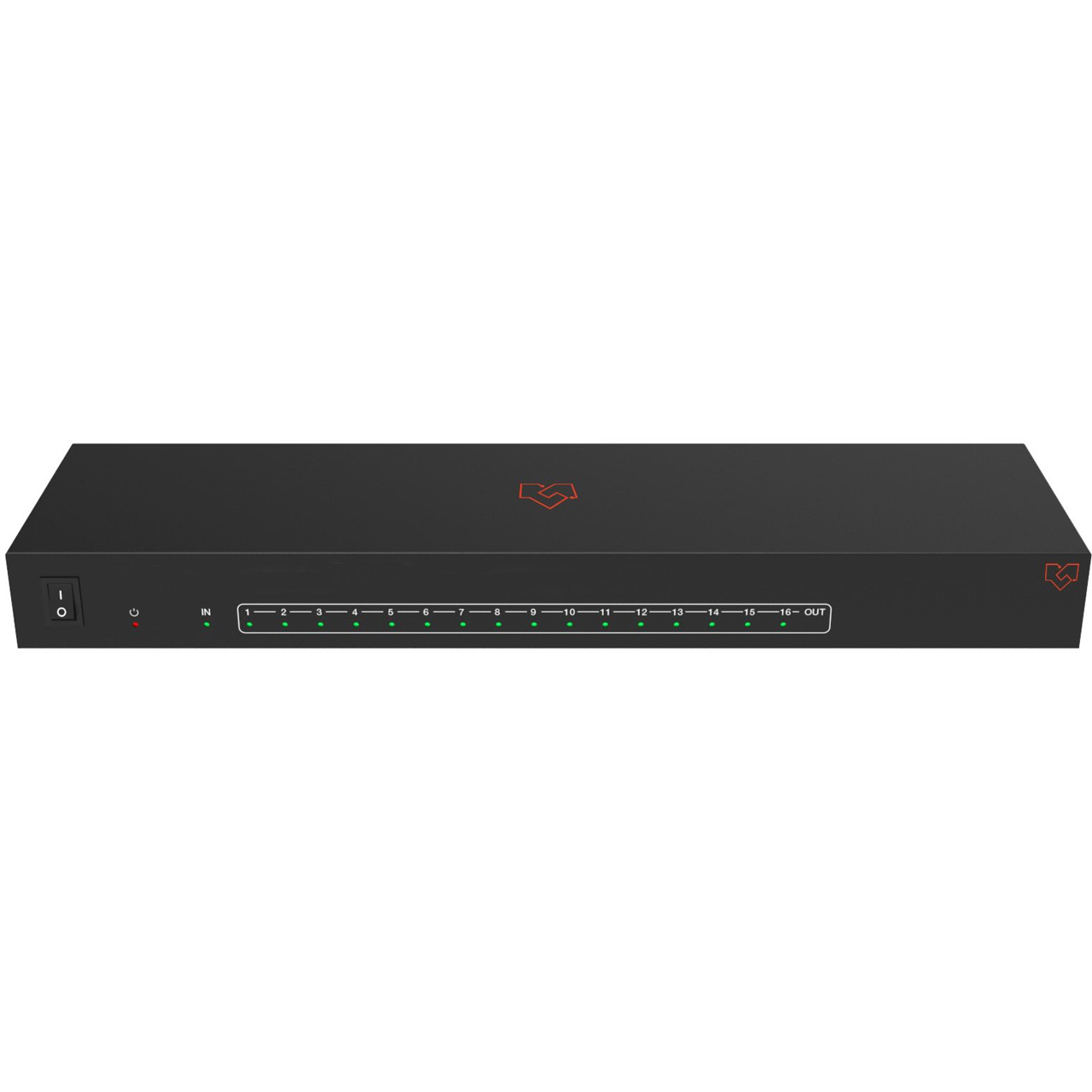

VigilLink VLSP-16H20 1x16 HDMI 2.0 18Gbps 4K2K Distribution Amplifier - HDMI 2.0b/HDCP 2.2/1.x/DVI 1.0 Compliant

VLSP-16H20 - Overview

• Features:

  • DMI 2.0b, HDCP 2.2/1.x and DVI 1.0 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K @ 50/60Hz 4:4:4
  • Supports digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
  • Supports HDR, HDR10, HDR10+, HLG and Dolby vision
  • Advanced EDID management
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 594MHz / 18Gbps
  • Video Resolution: Up to 4k2k @ 50/60Hz 4:4:4
  • Color Depth:
    - 8-bit,10-bit,12-bit(1080p @ 60Hz)
    - 8-bit (4K2K @ 60Hz YUV4:4:4)
    - 8-bit,10-bit,12-bit (4K2K @ 60Hz YCbCr 4:2:2/4:2:0)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0
  • HDR: Support HDR, HDR10, HDR10+, HLG, Dolby vision
  • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby- TrueHD, DTS-HD
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connections
  • Input: 1x HDMI Type A (19-pin female)
  • Output: 16x HDMI Type A (19-pin female)
  • Control:
    - 1x SERVICE (Micro USB, Update port)
    - 1x DIAL switch (5-pin)

    Mechanical
  • Housing: Metal Enclosure
  • Silkscreen Color: Black
  • Dimensions: 11.81" x 3.94" x 1.10" (300mm x 100mm x 28mm)
  • Weight: 1.98lbs (900g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption: 12W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x 18Gbps 1x16 HDMI Splitter
  • 1x 12V/2.5A DC Locking Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Years
