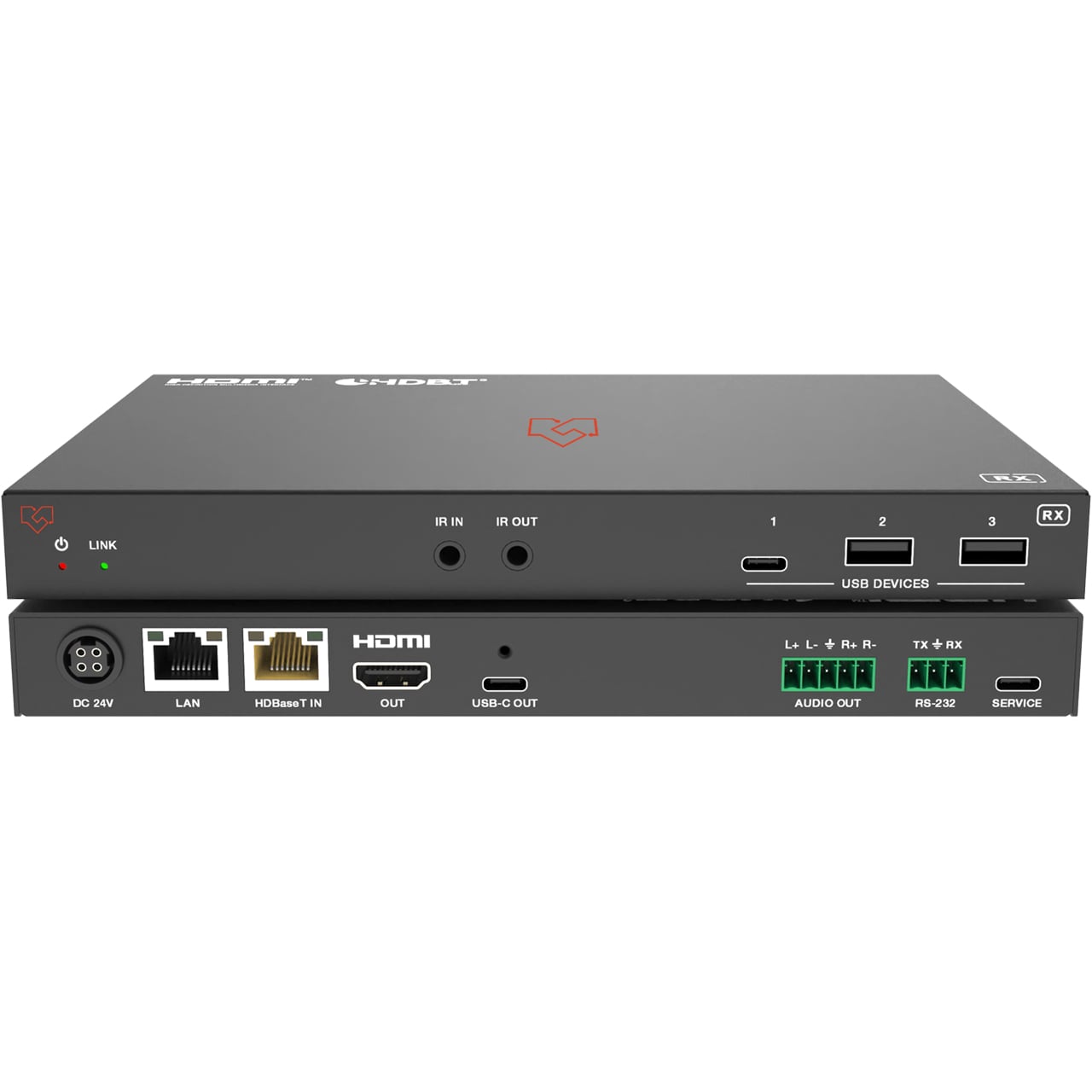

The VLEX-HT3HUTHU100G is the dual-output member of VigilLink's HDBaseT 3.0 family, extending uncompressed 4K2K@60Hz (YUV 4:4:4) video, USB 3.2, 1G Ethernet, RS-232, and bidirectional IR up to 328ft/100m over a single Cat6A/7 cable. Where its sibling models terminate at a single HDMI or USB-C output, this receiver drives both simultaneously: one HDMI output and one USB-C output that carries DP video plus a USB 2.0 device port, useful for displays or touch panels that only accept USB-C, or installations feeding two different endpoints from one source.

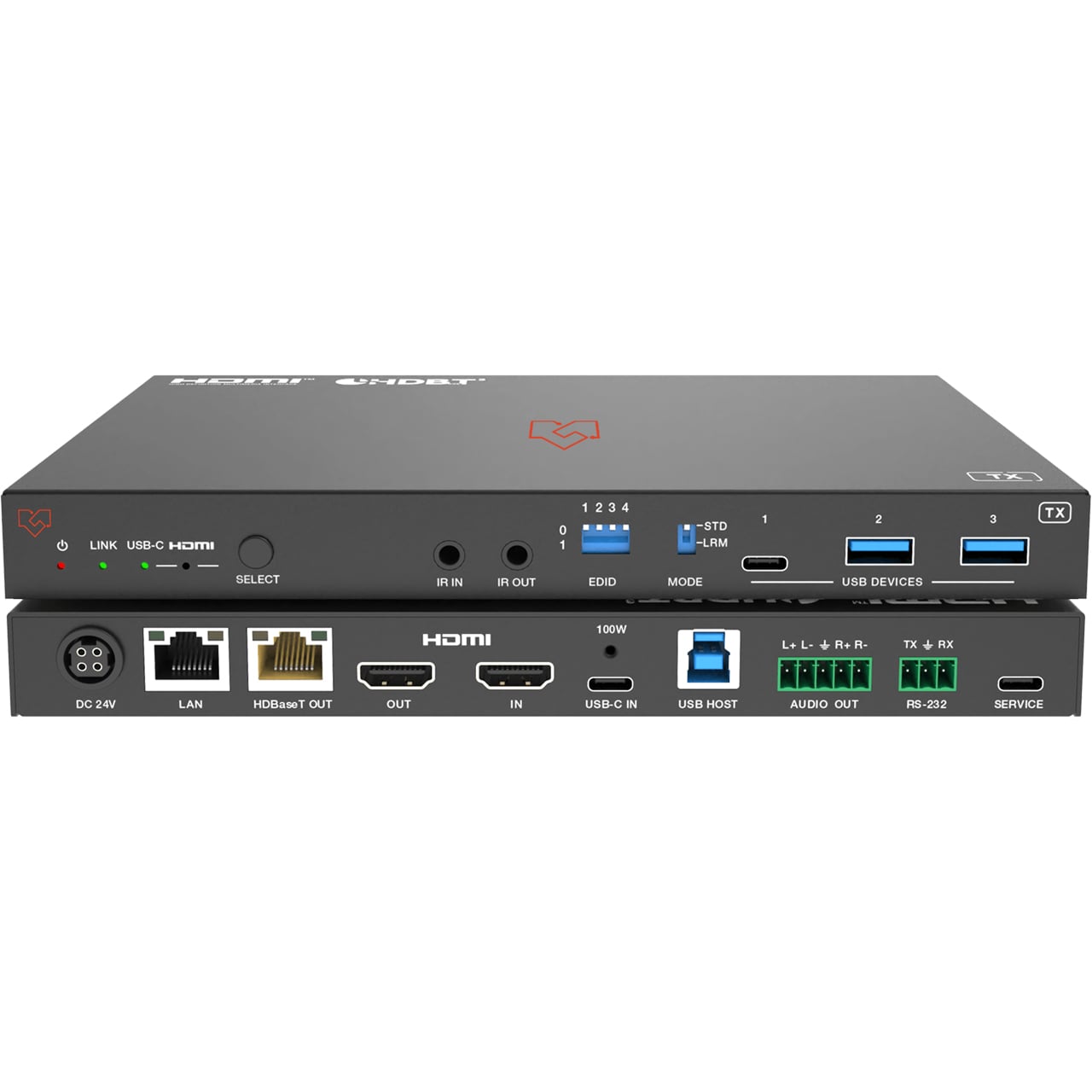

The transmitter's USB-C host port is shared across the family: DP-Alt Mode A/V, USB 3.2 Gen 1 data at up to 5Gbps, 1G Ethernet, and 100 watts of charging over one connection, backed by a dedicated USB-B 3.2 host and additional USB-A device ports. HDBT Standard Mode covers the full 100m at 4K60/4K30/1080p, and HDBT Long Reach Mode extends to 492ft/150m at 1080p 8-bit when distance matters more than resolution.
Both ends de-embed 3.5mm analog audio, support advanced EDID management, and pass RS-232 (with API and CEC device power control), 1G Ethernet, and bidirectional IR. HDCP 2.2 and DisplayPort 1.4a compliance keep it compatible with current USB-C laptops and docking hardware.
Ideal Applications:
• Corporate Boardrooms & Conference Rooms
• Higher Education Classrooms & Lecture Capture
• Healthcare & Telemedicine Suites
• Command Centers & Control Rooms
• Broadcast & Production Facilities
• Hospitality & Digital Signage
Recommended HDMI Cable Lengths:
• 4K60: 16.4ft / 5m
• 4K24: 33ft / 10m
• 1080P60: 49ft / 15m
Use of "Premium High Speed HDMI" cable is highly recommended.
