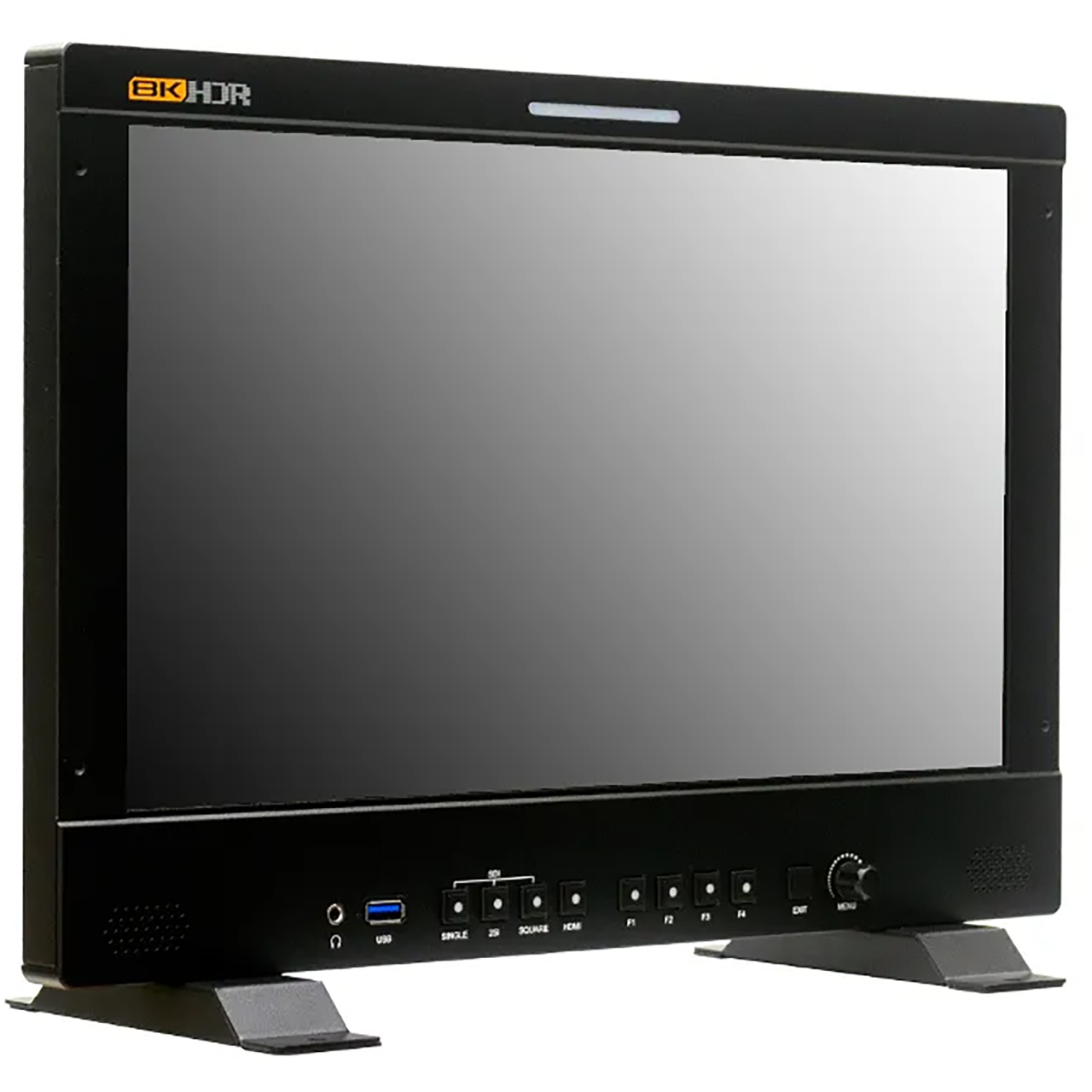

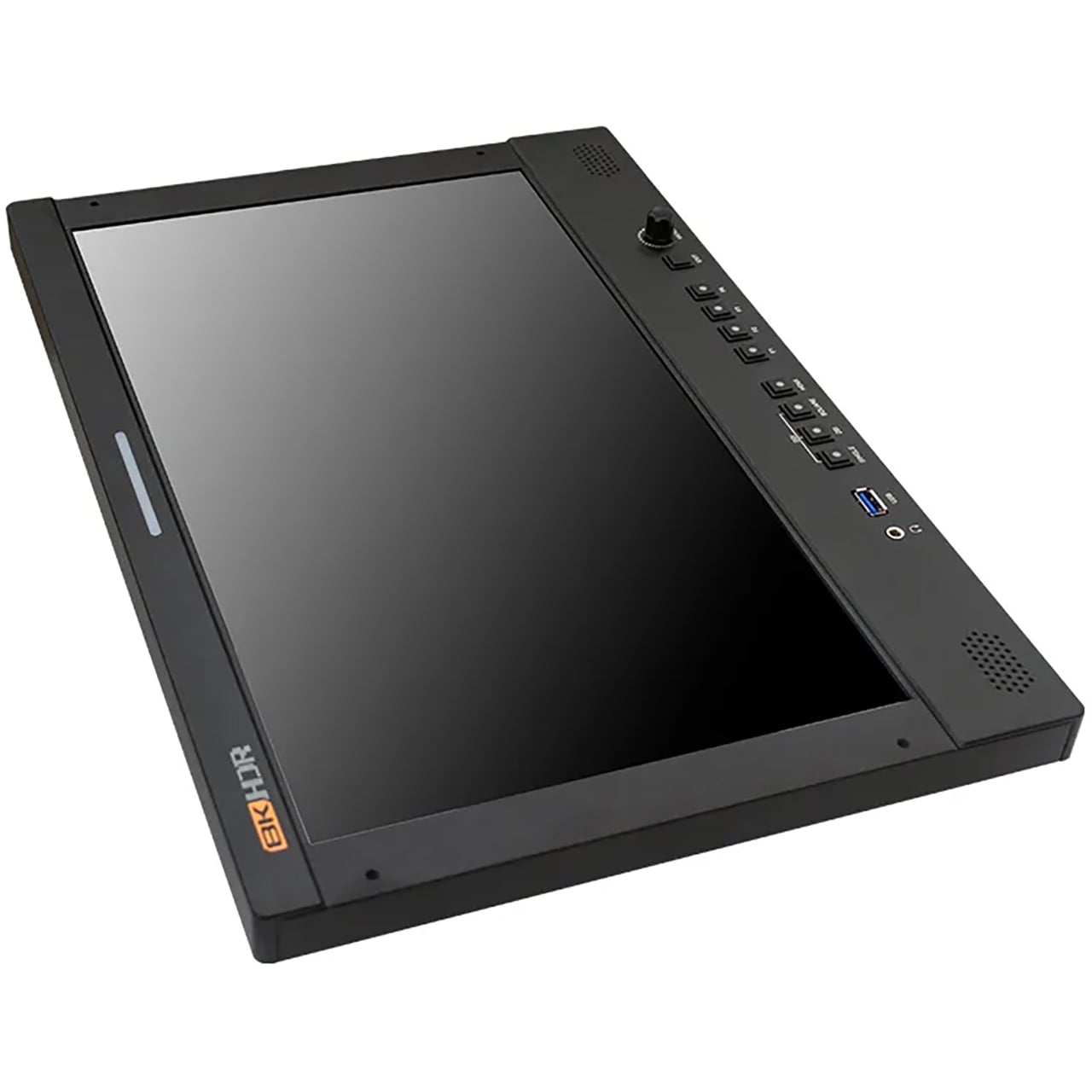

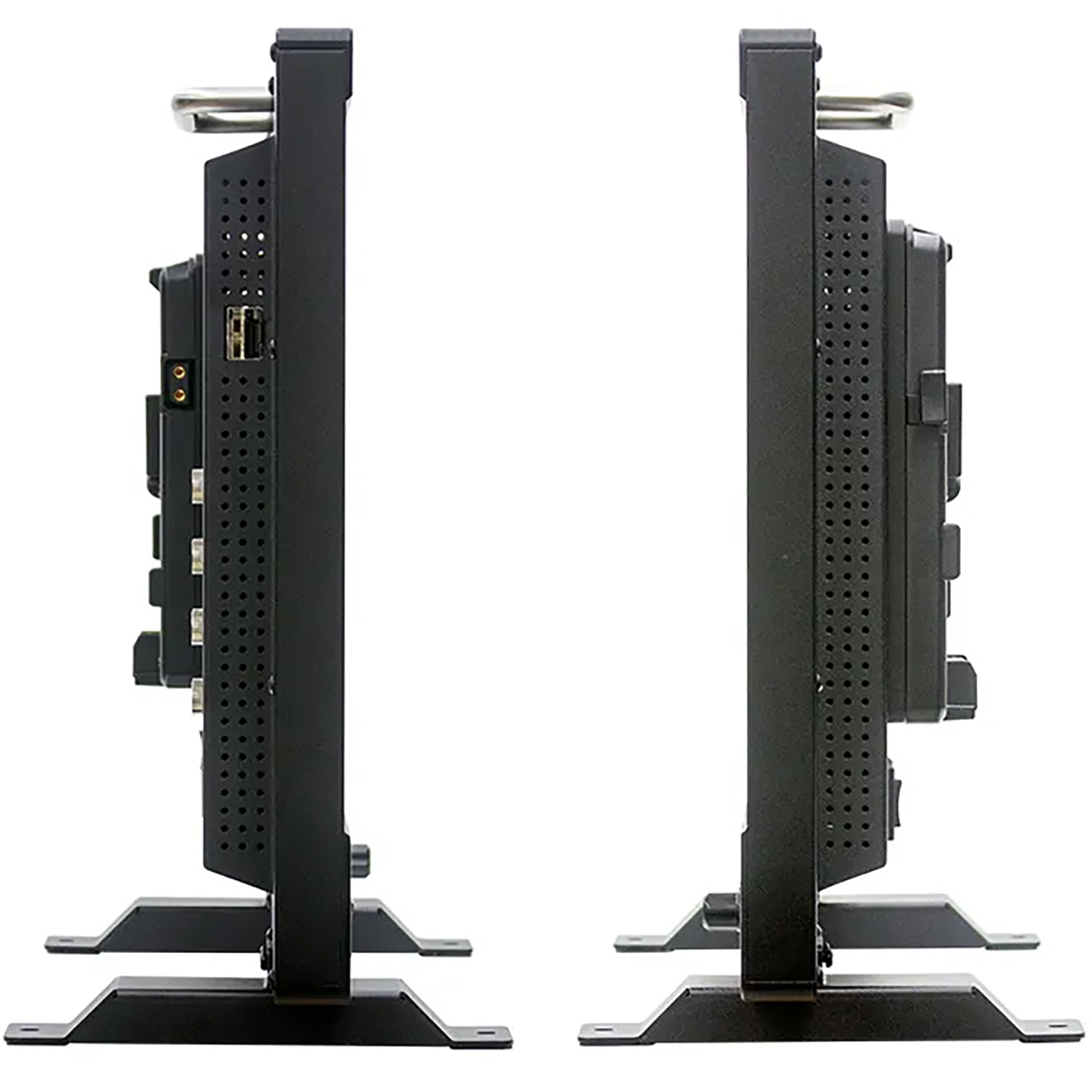

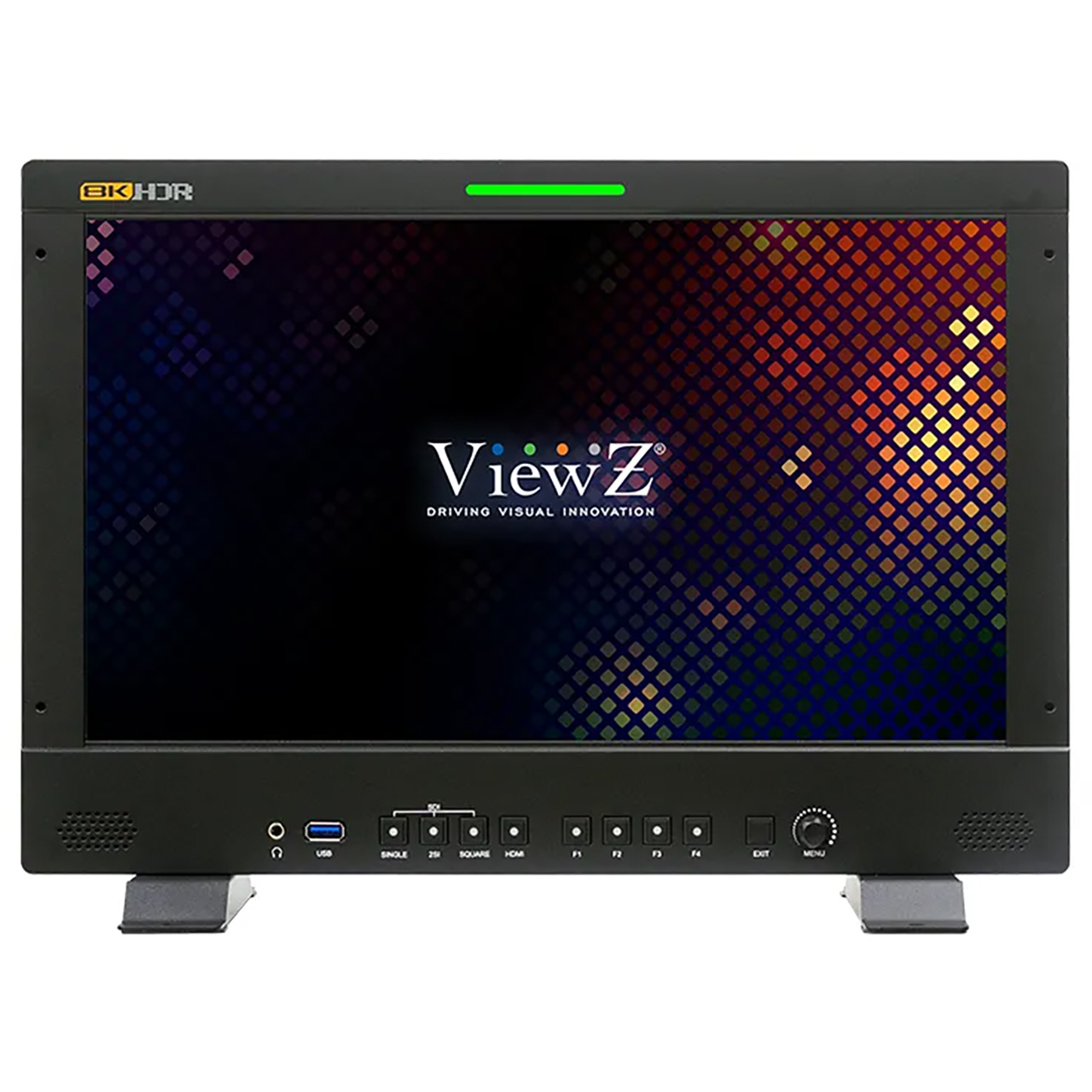

ViewZ VZ-156PM-8K 15.6-Inch 8K Video Broadcast Monitor with 12G-SDI Interface

ITEM #: VZ-156PM-8K MFG #: VZ-156PM-8K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
ViewZ
Free Shipping with $49 Minimum Order

List Price:

$3,457.00

Our Price:

$3,284.15

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VZ-156PM-8K - Overview

The ViewZ VZ-156PM-8K is a 15.6" 8K monitor with 12G-SDI interface - 4x12G-SDI. VZ 156PM-8K supports various video formats including 12G-SFP, 12G/6G/3G/HD-SDI and HDMI 2.0. VZ-156PM-8K provides wide color gamut up to DCI and a full feature set. Input & loop out Quad-Link signals support up to 7680x4320 (60, 59.94, 50, 48, 47.95, 30, 29.97, 25, 24, 23.98p) and 8192x4320 (60, 59.94, 50, 48, 47.95, 30, 29.97, 25, 24, 23.98p).

When HDR is activated, the display reproduces a greater dynamic range of luminasity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300/1000/10000 and HLG.

3D-LUT is a table for quickly looking up & output specific color data. By leading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs & 6 user logs. Supports leading the .cube file via USB flash disk.

  • Features:

    • SDI signals Input - 12G-SDI/6G-SDI/3G-SDI (Level A, DL-B, DS-B)/HD-SDI/SD-SDI
    • Quad & Single SDI/Color Calibration (Rec. 709, NTSC & DCI-P3)
    • HDR - ST2082/HLG/HDMI 2.0 & 1.4
    • Color Gamut - SMPTE-C/Rec709/EBU/DCI-P3/BT2020
    • Time Code (LTC/VITC)/Tally (Red/Green/Yellow)
    • False Color (Default/Spectrum/ARRI/RED)/Exposure
    • Color Temperature/Color Space
    • Color Space (94% DCI-P3)/UMD/Peaking/RGB Gain
    • Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
    • Waveform/Vector Scope/Histogram
    • Check Field/Overscan/H/V Delay/Zoom/Freeze
    • Audio Level Meter (16ch)/Audio Vector
    • Front User definable Buttons F1 ~ F4
    • Marker - Center, Safety & Aspect ([16:9], [1.85:1], [2.35:1], [4:3], [3:2], [2.0X], [2.0X MAG], [Grid], [User])


  • Specifications:

      Display
    • Screen Size: 15.6"
    • Max Resolution: 3840 x 2160 @60Hz
    • Pixel Pitch: 0.0995mm x 0.0995mm
    • Brightness: 600 cd/m² (Typical)
    • Contrast Ratio: 1700:1
    • Aspect Ratio: 16:9
    • Viewing Angle (H/V): 170°/170°
    • Display Color: 1.07 B
    • HDR: ST2084 300/1000/10000/HLG
    • Supported Log Formats: SLog2/SLog3/CLog/NLog/ArriLog/JLog or User
    • LUT (Look Up Table): Support (3D LUT - .cube Format)
    • Technology: Calibration to Rec.709 with Optional Calibration Unit

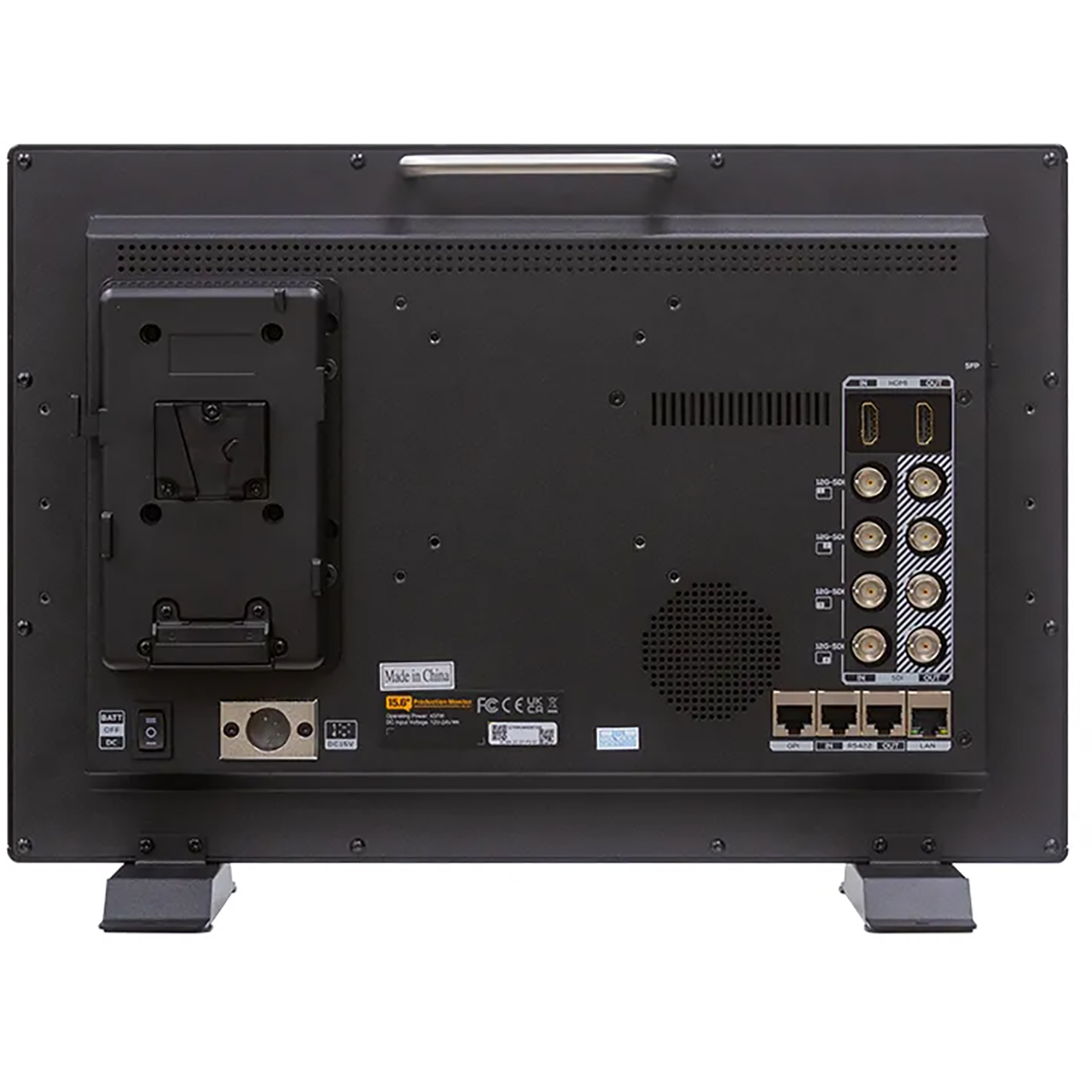

      Interface
    • 12G-SDI In/Out: 4x/4x (Loopthrough)
    • HDMI In/Out: 1x/1x
    • SFP In: 1x 12G SFP+ (Fiber Module for Option)
    • RJ45 In: 1x
    • RS422 In/Out: 1x/1x (Remote Control)
    • GPI In: 1x (Remote Control)
    • USB In: 1x (Remote Control)

      Audio
    • Built in speaker: 1W x 2
    • SDI: 16ch 48kHz 24 bit
    • HDMI: 8ch 24 bit
    • Ear Jack: 3.5mm

      Physical
    • Outline Dimension Without Stand (WxHxD): 15.47" x 10.51" x 1.62" (393mm x 267mm x 41.4mm)
    • Outline Dimension With Stand (WxHxD): 15.47" x 11.12" x 5.66" (393mm x 282.5mm x 144mm)
    • Net Weight: 6.39lbs (2.9kg)
    • Gross Weight: 15.29lbs (6.93kg)


  • Item Includes:

    • 1x 15V DC Adapter
    • 1x Manual
    • 1x Desktop Stand Set
    • 1x USB Disk
    • 1x Rack Mount Bracket
    • 1x VESA Plate
    • 1x Battery Plate (V-Mount)


  • Warranty:

    • 3 Year Limited Warranty
