ViewZ VZ-MV401 4 Channel 4K Multiviewer - HDMI In/Output - 4K/60 4:4:4 Color Sampling & 6 Presets

ITEM #: VZ-MV401 MFG #: VZ-MV401

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
ViewZ
Free Shipping with $49 Minimum Order

List Price:

$3,400.00

Our Price:

$3,230.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    VZ-MV401 - Overview

    The ViewZ VZ-MV401 is a 1RU, 4 input/1 output Multi-Viewer with HDMI input/output. It features up to 4K/60 4:4:4 Color Sampling, has 6 Presets & 8 Customized Layouts with HDCP1.4/2.0, an AC100-240V Adaptor and Rackmount Ears are included.

    • Features:

      • Fast switching among input channels and combined multiple images on single monitor
      • Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2
      • Supports input/output resolution up to 4K@60Hz, 4:4:4 color sampling
      • Supports scaling up to 4K@60Hz, 4:4:4 color sampling
      • Supports 14 screen layouts - 6 preset and 8 customized screen layouts
      • Rotation (R90° and L90°) when input resolution up to 1080p or flip output in full screen layout
      • Receives Dolby Digital® 5.1, DTS® 5.1 and uncompressed 7.1 linear PCM audio includes stereo analog audio input
      • Supports front panel button, IR remote control, RS232 and Web UI
      • Supports stereo audio output


    • Specifications:

      • Specification
      • HDMI signals with Deep Color and HDCP: 1.4 / 2.2
      • Input Resolution: Up to 4K@60Hz, 4:4:4 Color Sampling
      • Output Resolution: Up to 4K@60Hz, 4:4:4 Color Sampling
      • Scaling: Up to 4K@60Hz, 4:4:4 Color Sampling
      • PIP & POP: Support
      • Custom Layout: 14 Layout ( 6 preset & 8 custom )
      • Rotation: Support ( R 90° & L 90° ) - On 1080p Input
      • Flip: Support

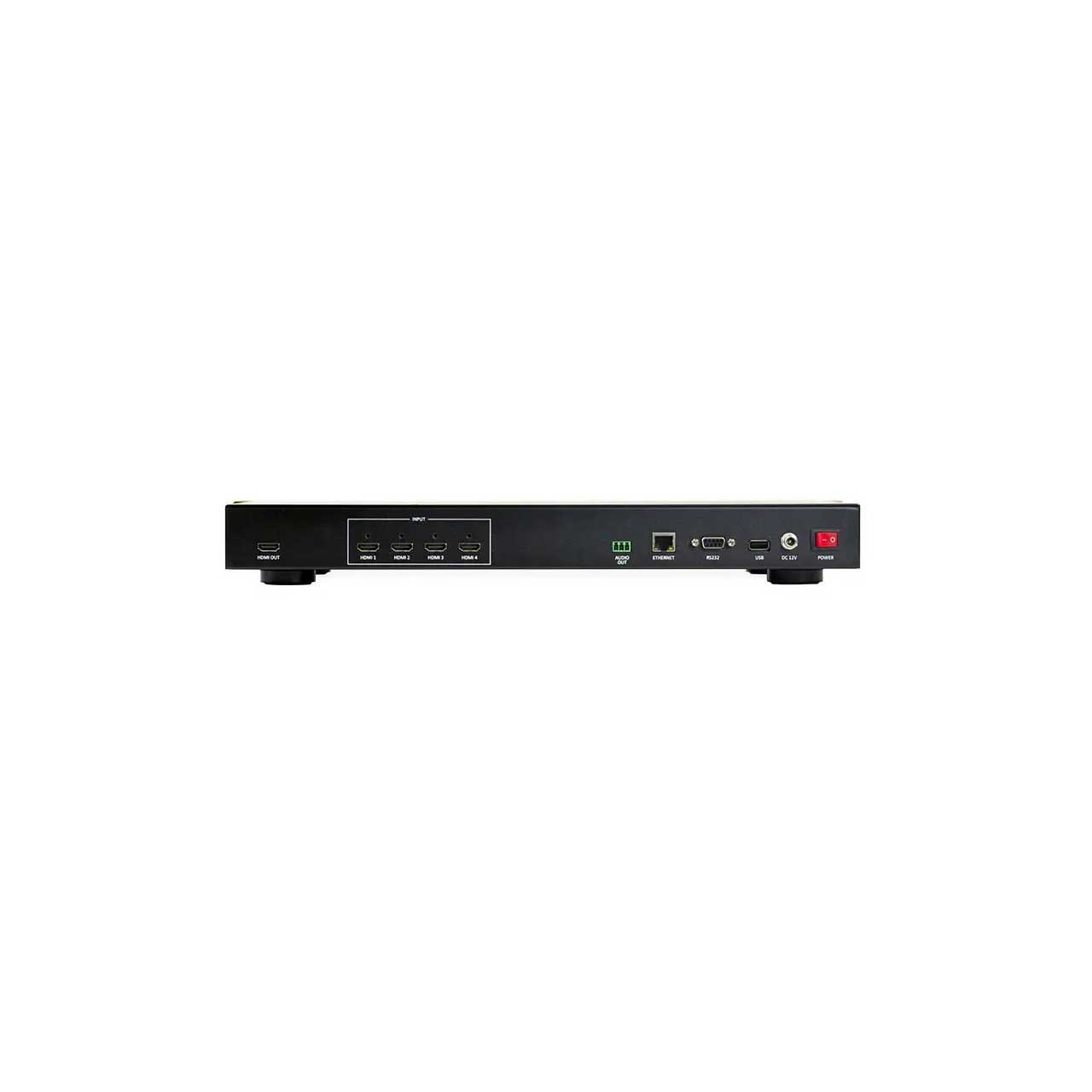

        Interface
      • HDMI Input: 4
      • HDMI Output: 1
      • Audio R/L: 1
      • USB 2.0: 1 - Firmware
      • Network (RJ-45): 1 - 10/100/1000 Base-T
      • Serial Port (RS-232): 1

        Resolution
      • Video Output: 4096 x 2160 @60Hz, 4:4:4 Color Sampling

        Dimensions & Weight
      • Outline Dimension (W x H x D): 17.33 x 9.05 x 1.77" / 440.4 x 230 x 45 mm
      • Net Weight: 5.99 lbs / 2.72 Kg

        Mount
      • Server Chassis: 1U (19")

        General Summary
      • Transmitter - IR Remote Control: YES
      • Power - Electrical Ratings: DC 12V/2A, locking barrel connector
      • Power - Consumption: 15W
      • Operating / Storage Temperature: 32 ~ 113°F ( 0 ~ 45°C ) / -4 ~ 140°F (-20 ~ 60°C )
      • Operating Humidity: 20 % ~ 90 % RH
      • LED Indicator Color: Input, Layout, Input Swap, Lock - Blue
      • Standby On - Red
      • Standby Off - Green


    • Warranty:

      • 2 Years
