ViewZ VZ-MV802 8 Channel Multiviewer - 2048x1080 - DVI/HDMI Output - Up to 30 Customized Layout Presets - HDCP

VZ-MV802 - Overview

• Features:

  • Handles HDMI signals with Deep Color and HDCP 1.4 / 2.2
  • Fast switching among input channels and combined multiple images on single monitor
  • 8 DVI Input / 2 HDMI Out
  • Field up-gradable to allow discrete audio (AES/AA)
  • Output resolution up to 2048 x 1080 (incl. 1080p)
  • Multiple labels per video windows - UMD, OMD, IMD, standalone labels
  • Automatic input aspect ratio detection
  • Built-in video, audio alarm detection - no audio, audio high/low, no video, video black, video frozen
  • Up to user-defined 24 presets for display layout
  • 3G ready. Up-gradable to 3Gbit/s HD inputs (OPTION)

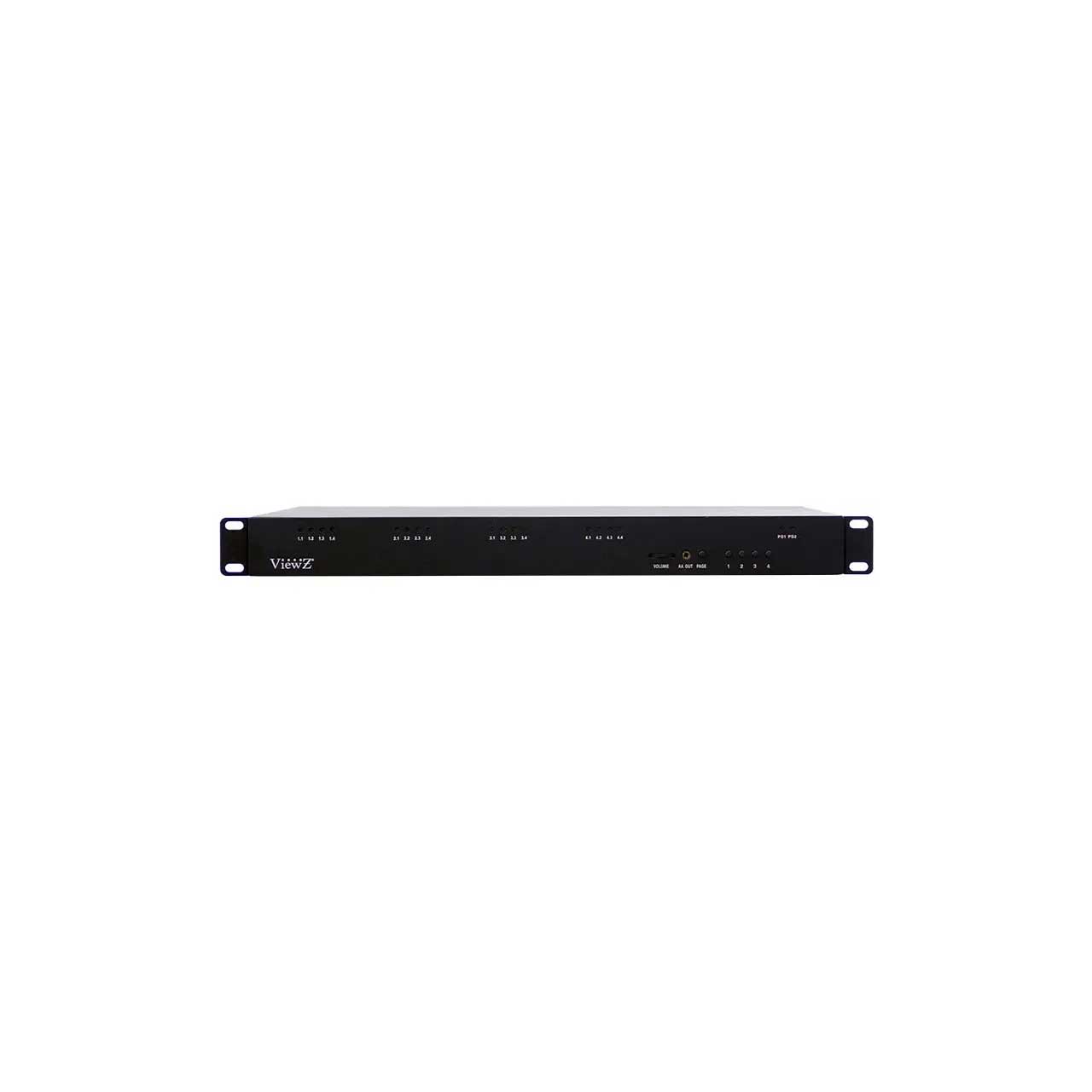

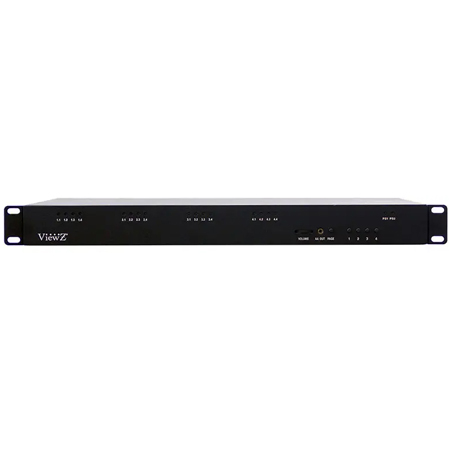

  • Front panel headphone jack with volume adjustment for audio monitoring
  • Front panel buttons for quick preset recalls
  • 1 RU with redundant power supply


• Specifications:

  • Specification
  • HDMI signals with Deep Color and HDCP: 1.4 / 2.2
  • On Screen Display: Skin Technology for customizing borders, labels (4 per window), fonts, tally LEDs, clock faces, logos, UMD, OMD, IMD, dynamic UMD
  • Alarms: No audio, audio high/low, no video, video black, video frozen
  • Discrete AES Audio: Up to 4ch/video input (2 pairs, balanced/unbalanced)
  • Discrete Analog Audio: Upto 4ch/video input (2 pairs, balanced/unbalanced)
  • Control: Front panel buttons for quick preset recalls, GPIs, ASCII Protocol (AXP), Director

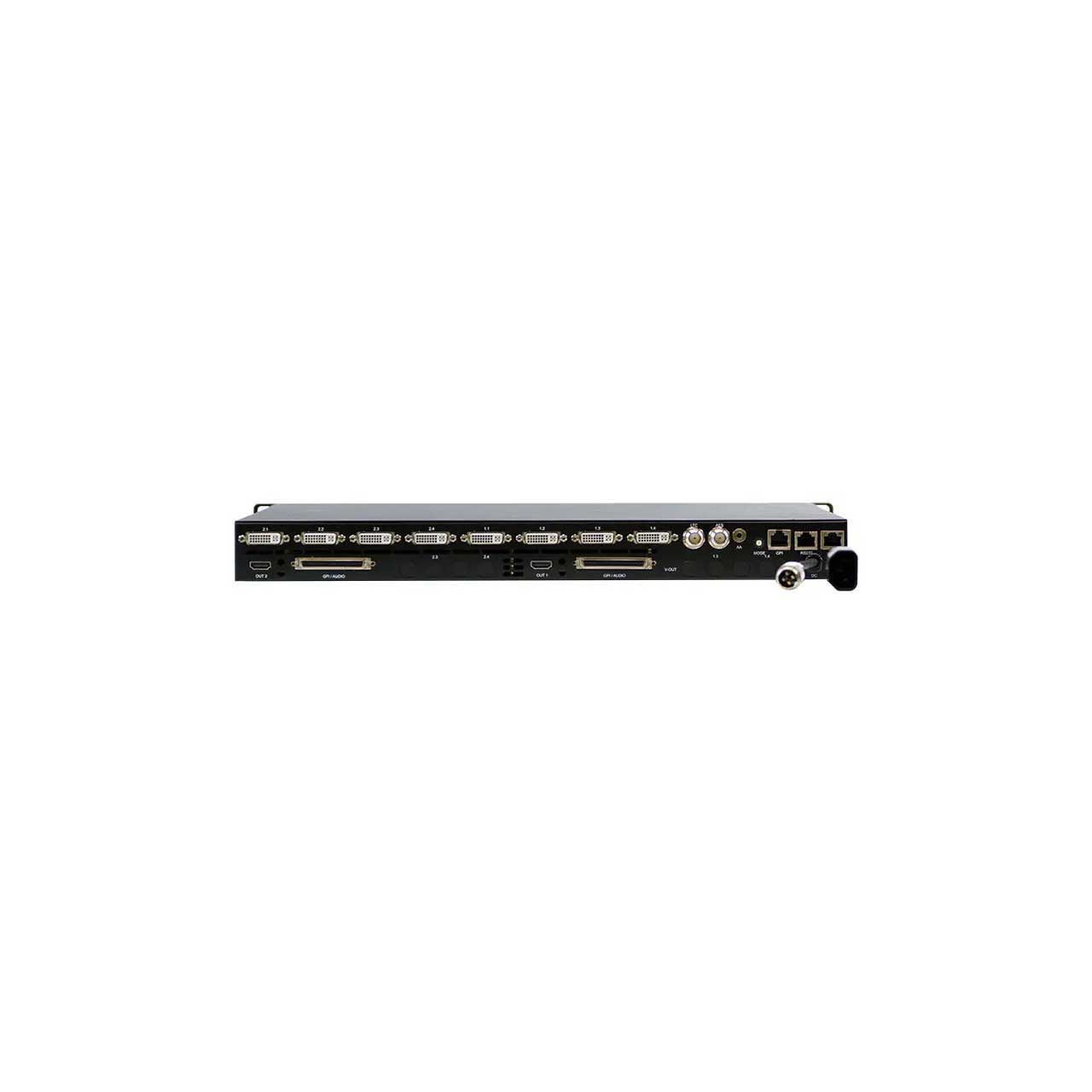

    Interface
  • DVI-I Input: 8
  • HD/SD-SDI: 8 (Optional)
  • HDMI Output: 2
  • Discrete AES Audio Output (BNC): 1 - Line Level AES Audio Monitor
  • Discrete Audio Output (SCSI): 2 - Discrete Audio and GPI/O
  • Discrete Analog Audio Output: 1
  • LTC (BNC): 1 - Sync on Screen Clocks
  • Serial Port (RJ-45): 1 - RS-232
  • Network (RJ-45): 1 - 10/100/1000 Base-T
  • General Purpose IO (RJ50): 1 - Control, Alarm and Tally

    Resolution
  • Video Output: 800 x 480 (2048 x 1080 @60hz)

    Dimensions & Weight
  • Outline Dimension (W x H x D): 18 x 13 x 1.75" / 457.2 x 330.2 x 44.5 mm
  • Net Weight: 12 lbs / 2.8 kg

    Mount
  • Server Chassis: 1RU (19")

    General Summary
  • Transmitter - IR Remote Control: Yes
  • Power - Electrical Ratings: DC 12V/5A / AC 90~250 V (50/60Hz) 1.5A
  • Operating / Storage Temperature: 32 ~ 104°F ( 0 ~ 40°C ) / -4 ~ 140°F (-20 ~ 60°C )
  • Operating / Storage Humidity: 20 % ~ 80 % RH / 10 % ~ 90 % RH
  • Operating Humidity: 20 % ~ 90 % RH
  • EMI/RFI: FCC Part 15 Class A, CE, EU EMC, C-tick


• Warranty:

  • 2 Years
